Ranch House Plan 168-00018

Sq Ft1,769
Beds4
Baths2
1/2 Baths1
Stories1
Cars2
Width40' 0"
Depth60' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

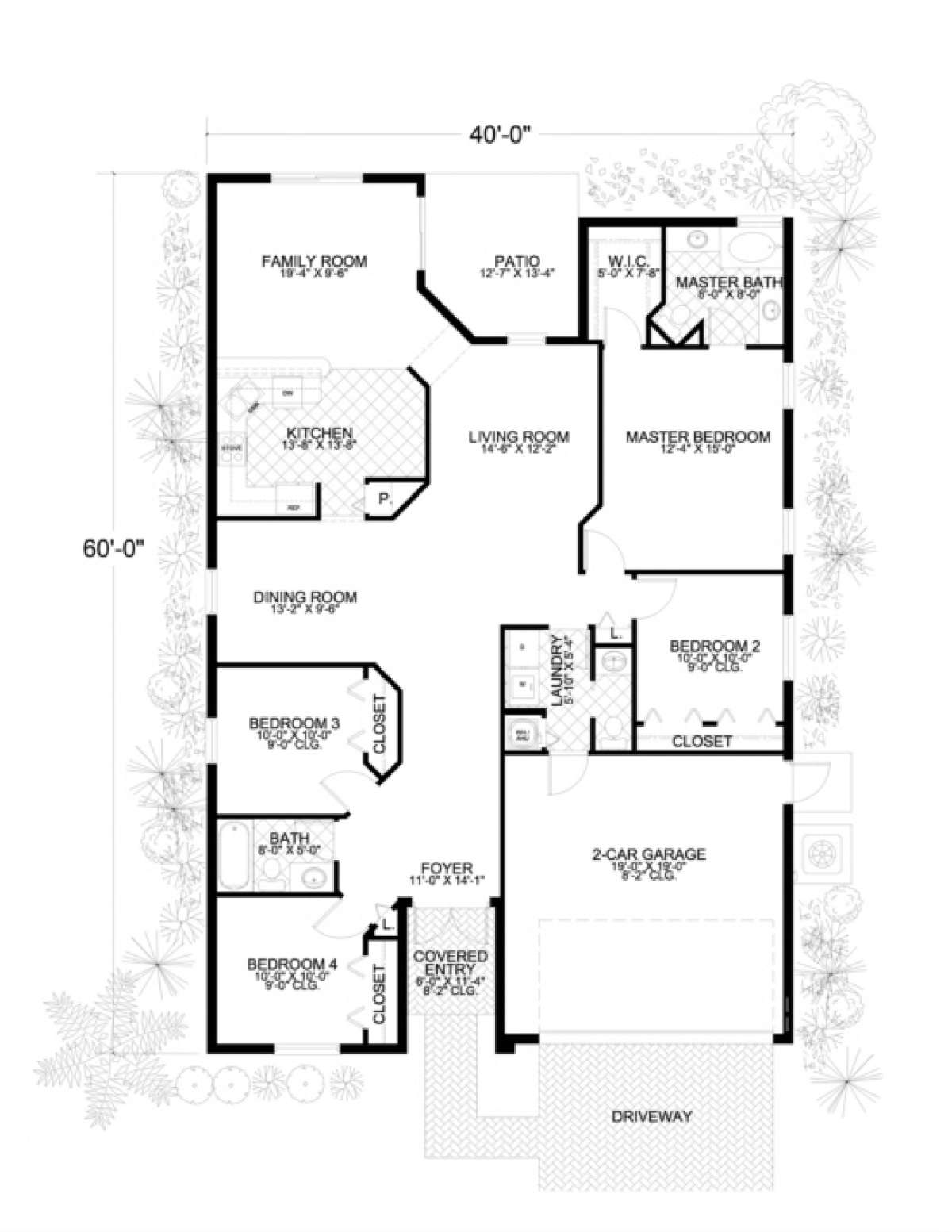

Floorplan 1 for House Plan #168-00018
Floorplan 1
Floorplan 1 for House Plan #168-00018


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Spanish styled home offers rich and warm colors reminiscent of the Mediterranean coast and a functional and versatile floor plan. The towering entrance, tiled roof and symmetry of the home offer balance and an exciting exterior façade. There are four bedrooms, two plus bathrooms and a two car garage in approximately 1,700 square feet of living space. The grand covered entrance is an enticing space to greet your family and friends and leads to the spacious foyer. The expansive hallway holds two bedrooms, each with spacious closet space and there is a shared hall bath situated between the two bedrooms. At the rear of the hallway is the formal dining room which is open to the spacious formal living room with window views of the rear patio. The gourmet kitchen anchors the dining room and casual family room and features a separate walk-in pantry, breakfast bar and an abundance of additional counter and cabinet space. As is the case, oftentimes, in traditional Mediterranean influenced homes, the large family room sits at the rear of the home for privacy and family comfort. It also has rear yard views and outdoor patio access making this an excellent space for family and friends to gather. These rear common living spaces are family friendly, open spaces that provide casual family living and strengthen family bonds.
A fourth bedroom sits on the opposite side of the home and features double closets. A powder room, linen closet and large utility room are adjacent to the garage for convenience. The master suite features a spacious bedroom with a large walk-in closet and master bath. The master bath is highlighted by a corner garden tub, dual vanities and a private toilet area. This versatile and functional floor with a warm exterior façade makes an excellent family home and will provide years of comfortable living.
