Ranch Plan 168-00017

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,744
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 35'
Depth 66' 2"

Floorplan Drawings

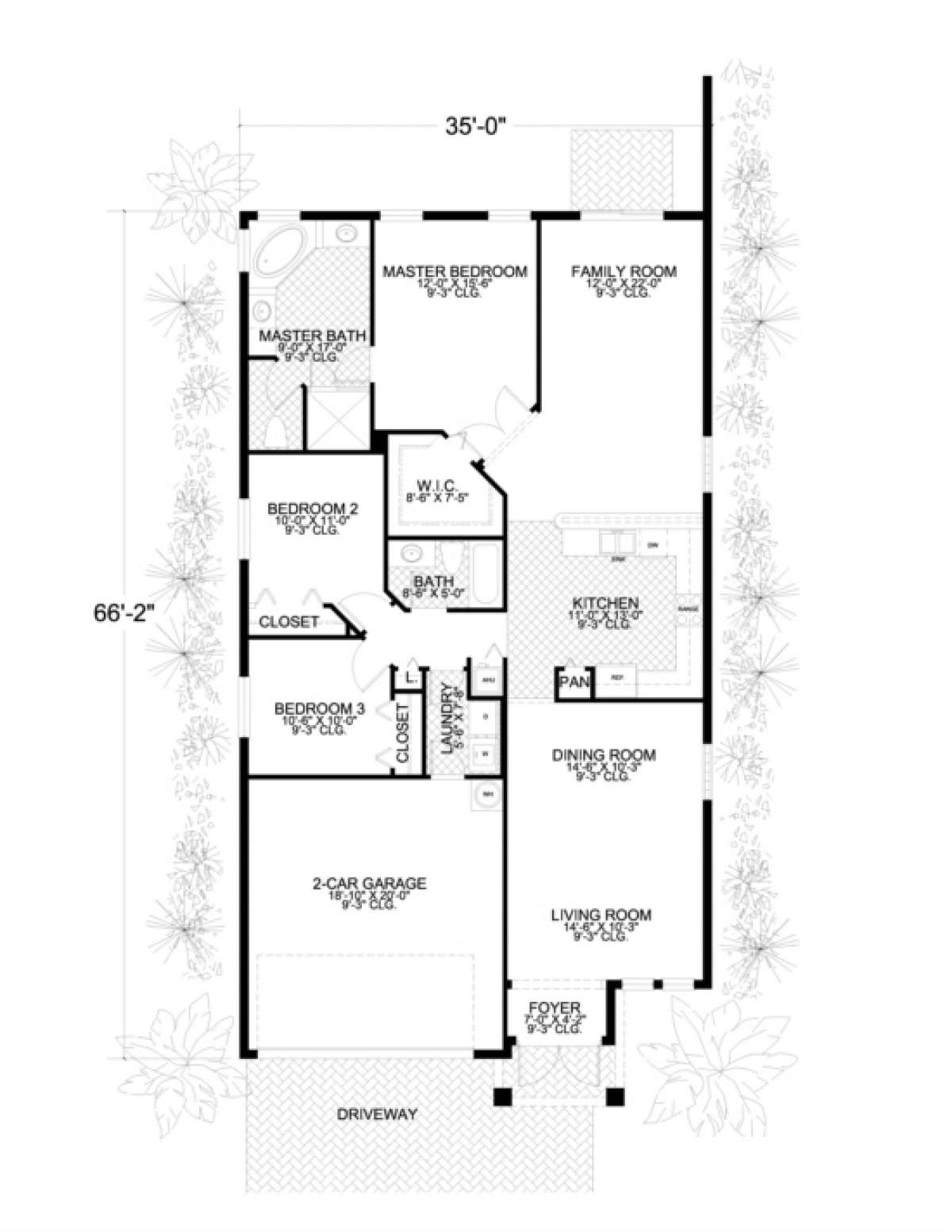

Floorplan 1
Floorplan 1 for House Plan #168-00017


What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

You will enjoy the Mediterranean inspired exterior façade which features a grand covered entrance with double door entry along with arched windows and tiled roofing. This three bedroom, two bath home has a two car garage in approximately 1,750 square feet of living space. The Spanish ranch has a combination living and dining room which translates into an outstanding entertaining option. Both spaces are quite large and are ideal for special occasion hosting or Sunday family dinners. The spacious chef’s delight kitchen features a separate pantry, breakfast bar and is open to the family room. The family room is another large space with outdoor access and provides a separate and private space for relaxing and “hanging out” with family and close friends. The laundry room is situated off the two car garage for convenience and is perfect for ease of cleaning. The master suite is accessed through French doors and features a large bedroom with rear window views and access to the oversized walk-in closet. The master bath is highlighted by a corner garden tub, separate shower, compartmentalized toilet and dual vanities. While this home is compact at 1,750 square feet, it offers an abundance of common spaces perfect for entertaining and relaxing as well as private retreats which allow for the family’s comfort.
