Name: House Plan 168-00013 - Ranch Plan: 1,671 Square Feet, 3 Bedrooms, 2 Bathrooms
Brand: America's Best House Plans
SKU: 168-00013
Price: 1150.00 USD

Sq Ft1,671

Beds3

Baths2

1/2 Baths0

Stories1

Cars2

Width42' 0"

Depth57' 6"

Ranch House Plan #168-00013 Elevation Photo

Exterior Interior Floor Plans Client Photos

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

PLANS FROM $1,150

SEE WHAT'S INCLUDED WITH THESE PLANS

Select Package

Select Foundation

Additional Options

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Return Policy, Building Code & Copyright Info

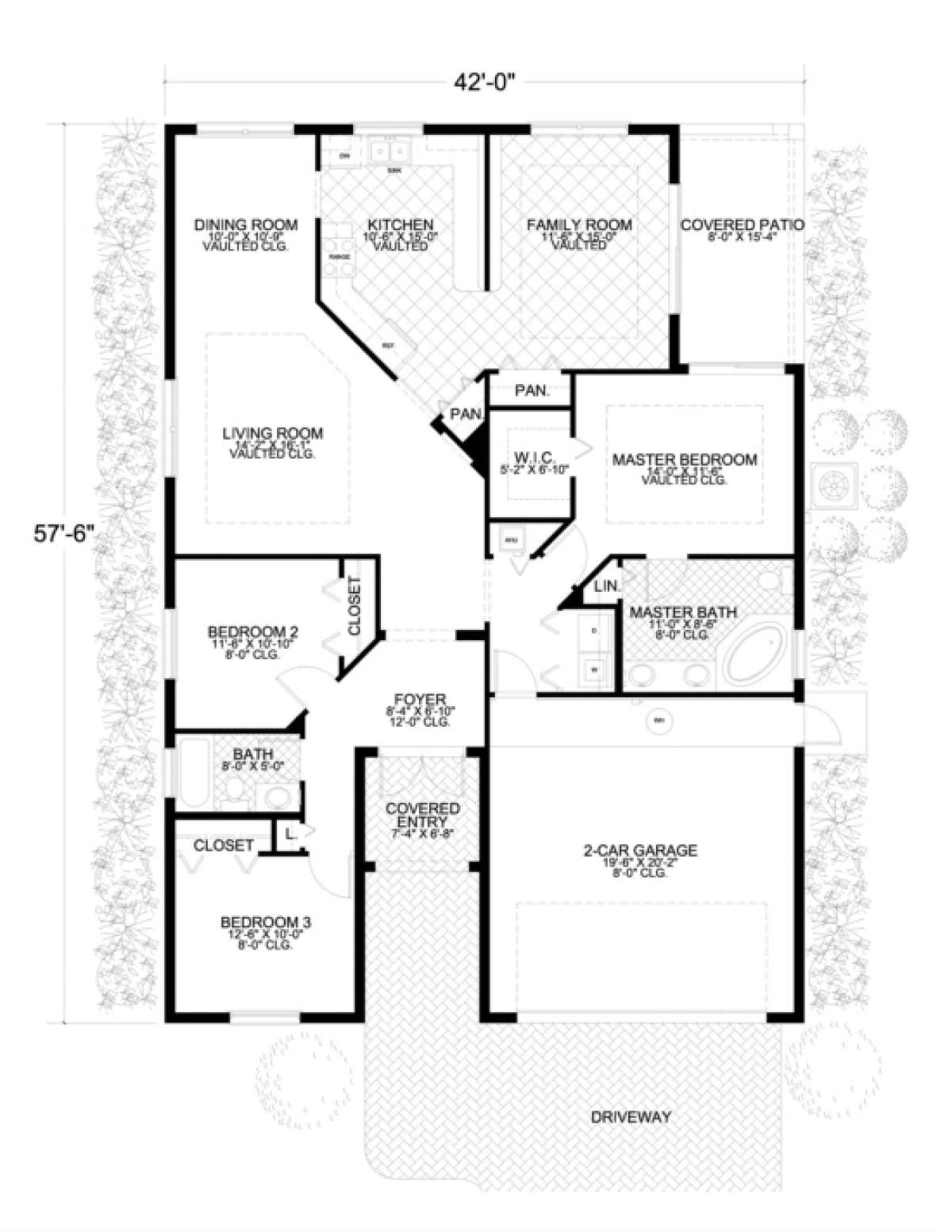

Floorplan Drawings

REVERSE PRINT DOWNLOAD Images copyrighted by the designer.

Floorplan 1

MODIFY THIS PLAN

MODIFY THIS PLAN IN
4 EASY STEPS...

1 Tell Us About Your Modifications

Send us a description of the changes you want to make, using the form below. You may optionally include marked up drawings with your written request. Once received, we will send you a confirmation email letting you know we are working on a quote.

Show Me An Example

2 Review Your No-Obligation Quote

One of our designers will review your request and provide a custom quote within 3 business days. The quote will include the price for the modifications, plus the time frame needed to complete the changes.

3 Submit Payment & Hire A Designer

Once you approve the quote and submit payment, your designer will get to work!

Can I See The Plans Before Paying?

4 Receive Your Modified Plans!

Custom modifications typically take 3-4 weeks, but can vary depending on the volume and complexity of the changes. The exact time frame to complete your plans will be specified in the quote.

Get started on your dream home today!

Fill out the form below, or fax us at 1-678-388-9651 to receive your free no-obligation quote.

First Name:
Last Name:
State where you plan to build:
Phone:
E-mail Address:
Please leave blank:
----------

Select a Foundation:: Please include any needed foundation changes in the modification request below.
Describe The Modifications You Need:
File Upload 1 (Optional):
File Upload 2 (Optional):
File Upload 3 (Optional):

Details

Total Heated Area:1,671 sq. ft.

-- First Floor:1,671 sq. ft.

-- Garage:434 sq. ft.

Floors:1

Bedrooms:3

Bathrooms:2

Garages:2 car

Width:42ft.

Depth:57ft.-6in.

Height:18ft.-10in.

Foundation:Slab Foundation

Main Roof Pitch:5:12

Exterior Framing:CMU

Need different framing?

Get a free modification quote.

CEILING HEIGHTS

First Floor:varies feet

Additional Specs:Show Room Dimensions

	(width x depth x height)
Bath 2:	8 x 5 x 8
Bedroom 2:	11-6 x 10-10 x 8
Bedroom 3:	12-6 x 10 x 8
Covered Entry:	7-4 x 6-8 x 12-4
Covered Patio:	8 x 15-4
Dining Room Vaulted:	10 x 10-9
Family Room Vaulted:	11-6 x 15
Foyer:	8-4 x 6-10 x 12
Garage 2 car:	19-6 x 20-2 x 8
Kitchen Vaulted:	10-6 x 15
Living Room Vaulted:	14-2 x 16-1
Master Bath:	11 x 8-6 x 8
Master Bedroom Vaulted:	14 x 11-6
Master Closet:	5-2 x 6-10 x 8

Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

About This Plan

This charming Mediterranean design has plenty of Spanish flair and character with tiled roofing, a grand entrance and double door accent. The approximately 1,700 square feet of living space houses three bedrooms, two baths and a two car garage in a single story. The numerous vaulted ceilings in the home lend to the overall spaciousness of the home and create visual interest. The front covered entrance spills into the foyer which bridges to the formal living and dining room; these rooms have soaring ceiling heights and make the ideal space in which to entertain large gatherings of family and friends. The kitchen is a chef’s delight with an abundance of counter and cabinet space and two separate pantries. The sizable family room sits off the kitchen and has rear covered patio access which is fantastic for dining al fresco. The master suite has private access and enjoys a large footprint. The master bedroom is quite large with a vaulted ceiling, has an oversized walk-in closet and private access to the rear patio. The master bath has a gorgeous corner garden tub, double vanities, a linen closet and toilet area. Two additional bedrooms line the front hallway and each has ample closet space and they share a hall bath and linen closet. The laundry nook is situated off the two car garage for convenience and ease while the garage provides additional storage room. This home; although compact, offers plenty of family and entertaining space and is ideal for a small family or empty nesters who value their space and family.
