Mediterranean House Plan 168-00008

Sq Ft1,404
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width54' 8"
Depth51' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

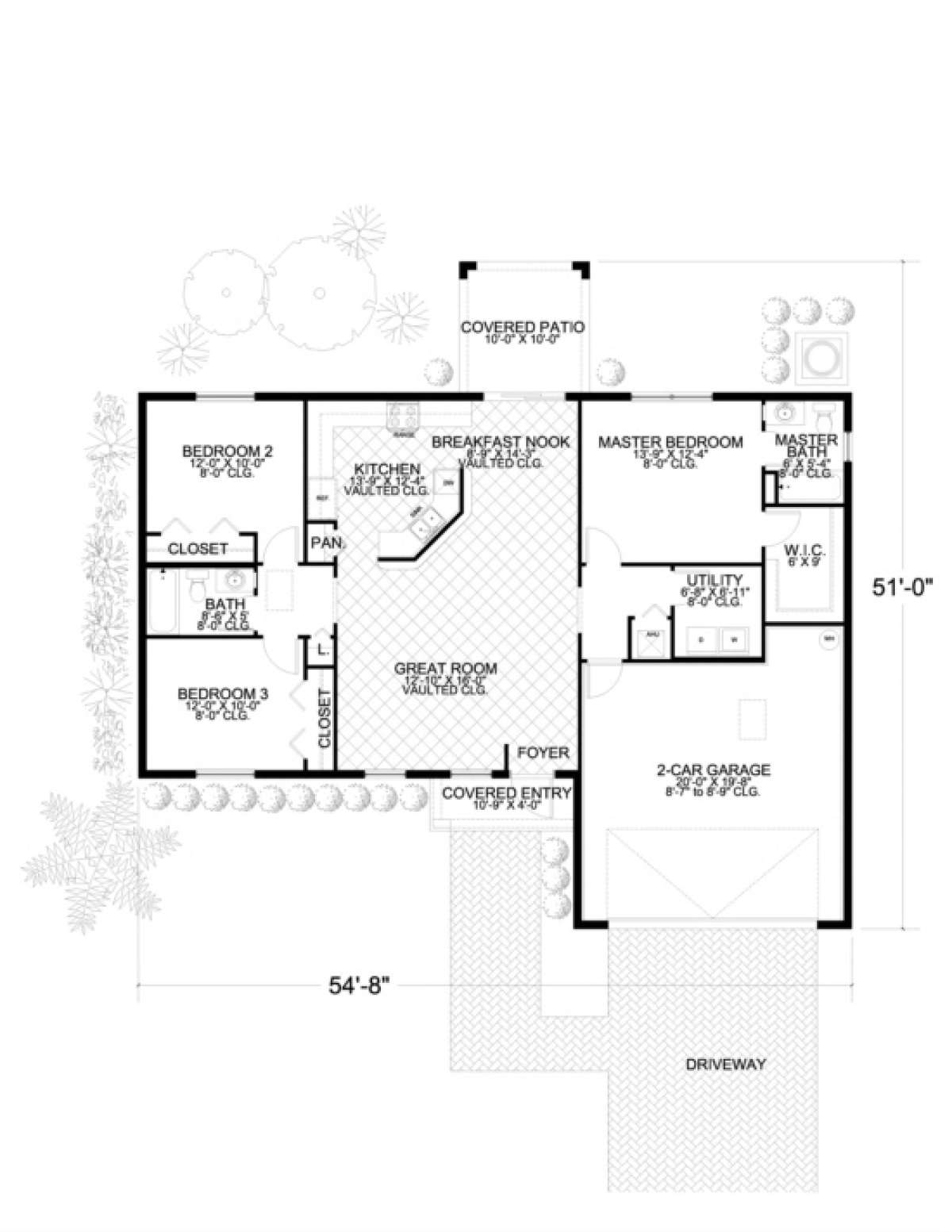

Floorplan 1 for House Plan #168-00008
Floorplan 1

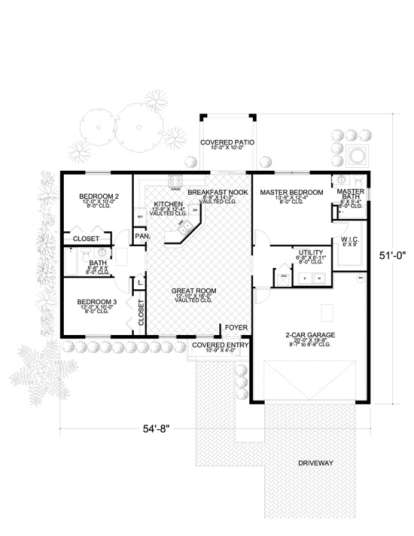

Floorplan 1 for House Plan #168-00008


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This outstanding home offers Spanish style features and approximately 1,400 square feet of usable living space with three bedrooms, two baths and a two car garage. The warm colors of the home are reminiscent of the Mediterranean coastline and offer a cozy living environment. The covered entryway poses an inviting space in which to greet family and friends. The open concept living area includes a vaulted great room which measures 12’10’x16’ and kitchen/breakfast nook. This is an outstanding space in which to entertain or enjoy quality family time. The vaulted kitchen features a breakfast bar overlooking the great room, a separate pantry and an abundance of additional counter and cabinet space. The breakfast area is conveniently tucked into a corner nook and provides access to the rear covered patio which is a wonderful space for entertaining and outdoor dining.
The ever popular split bedroom plan features two bedrooms with ample closet space and window views. A shared hall bath and linen closet is situated between the two bedrooms. The master suite has a generous size bedroom with double window views and an oversized walk-in master closet. The master bath enjoys a tub/shower combination. The large utility room has plenty of space and sits off the two car garage for convenience and tidiness. The garage is a spacious size and could easily house two vehicles and other outdoor gear. This home, while compact, enjoys a functional and spacious floor space and is ideally suited for a small family or empty nesters or it could function quite nicely as a vacation home.
