Ranch House Plan 168-00006

Sq Ft1,382
Beds3
Baths2
1/2 Baths0
Stories1
Cars1
Width35' 0"
Depth51' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

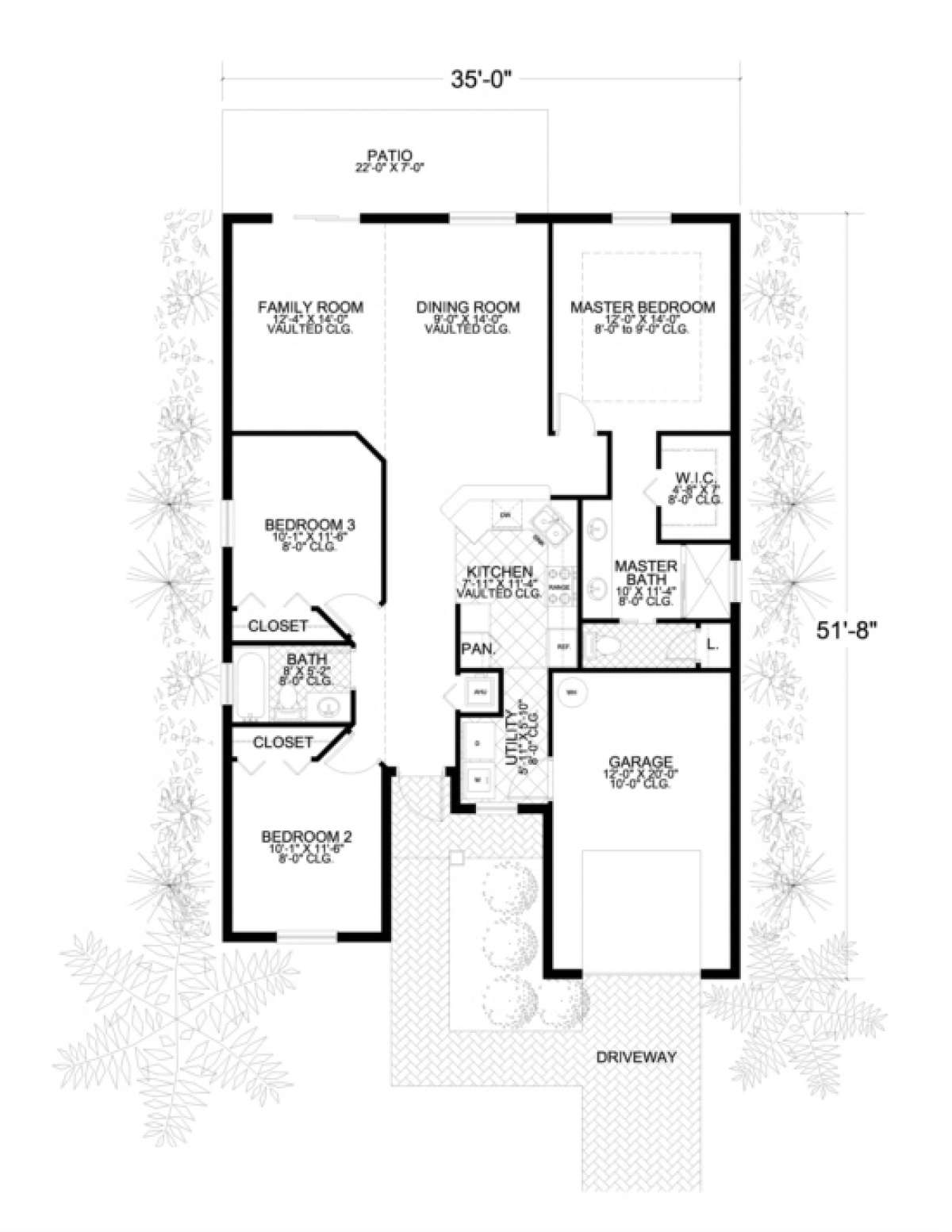

Floorplan 1 for House Plan #168-00006

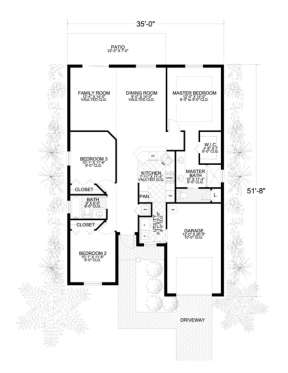

Floorplan 1

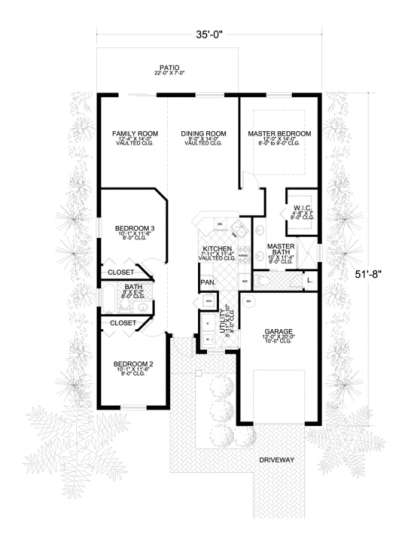

Floorplan 1 for House Plan #168-00006


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Mediterranean home offers a mix of architectural details which adds balance and symmetry to the exterior façade. A small courtyard with column detailing enhances the Spanish flavor of the home in the traditional sense. This compact floor space is ideal for a small family, empty nesters or would make an excellent vacation home. There is plenty of room for a small family and the open concept design provides good space large gatherings of family and friends. The floor plan features approximately 1,300 square feet, three bedrooms, two baths and a one car garage. The elongated foyer holds two side bedrooms, each with window views and ample closet space. There is a shared hall bath which sits between the two bedrooms. The garage provides entry into the home as well and, access to the interior laundry room which subsequently leads to the kitchen. The chef’s kitchen is spacious with a breakfast bar, separate pantry, an abundance of additional counter and cabinet space and opens onto the vaulted living and dining rooms. This is a great open concept space which provides a large amount of space for family comfort and ease of entertaining. This space continues to the rear patio which measures 22’x7’ which provides additional outdoor living space. The master suite features a generous size bedroom with trey ceiling and rear window views. There is an oversized master walk-in closet directly off the master bath. The master bath is well appointed and offers dual vanities, a large shower, linen closet and a compartmentalized toilet area. The garage provides vehicle and storage space and completes the home. This small home offers all the modern conveniences for your family, open living spaces for ease of entertaining and private individual spaces for family members and guests.
