Mediterranean Plan 168-00005

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,320
Beds 3
Bath 2
1/2 Baths 0
Car 1
Stories 1
Width 50'
Depth 38'

Floorplan Drawings

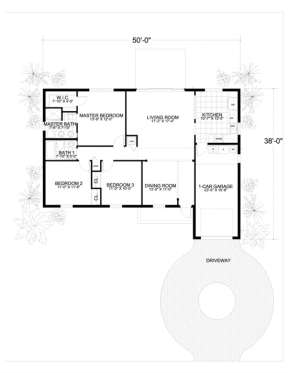

Floorplan 1

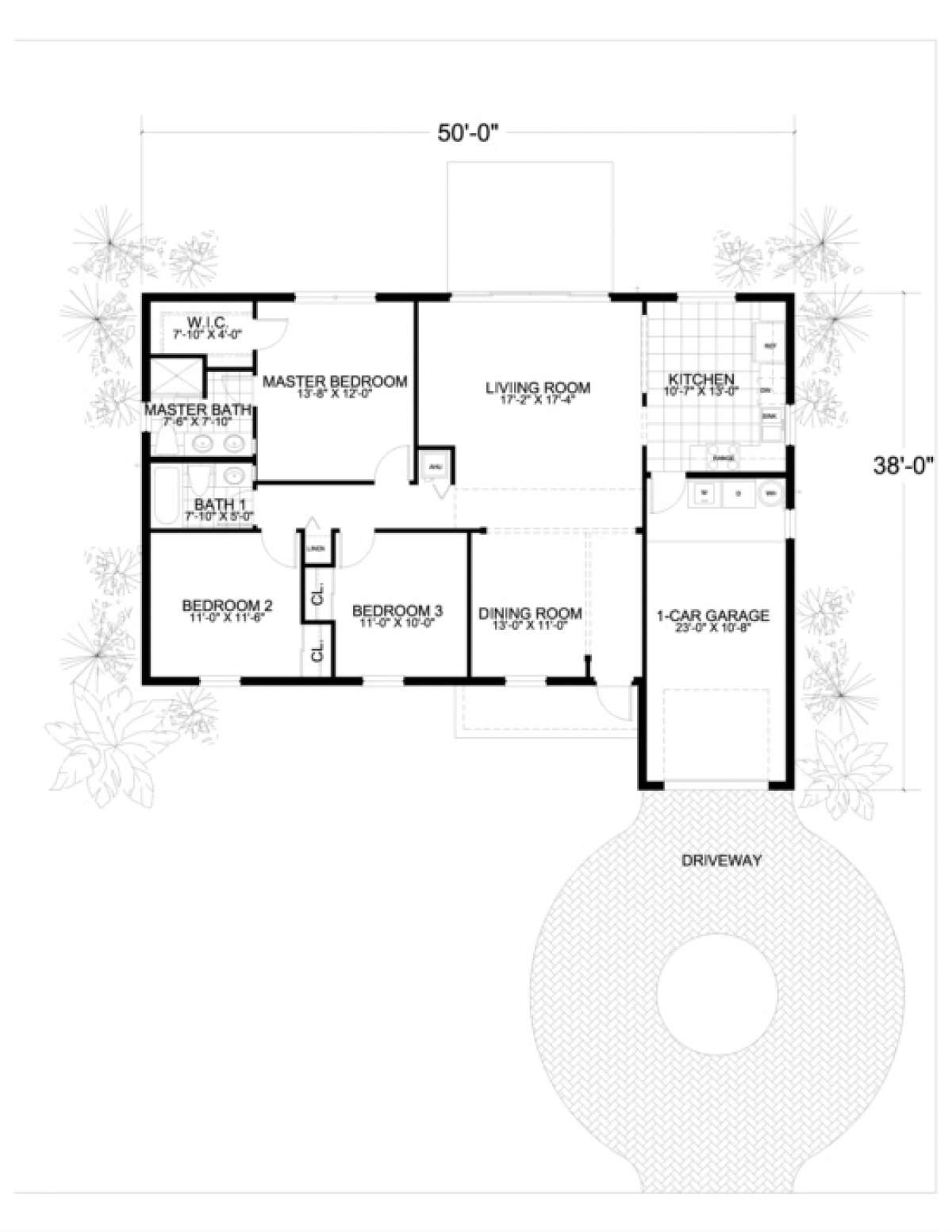

Floorplan 1 for House Plan #168-00005


What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Spanish style home is fully functional and offers classic features reminiscent of the Mediterranean coast. The towering entrance and gently arched window produce an inviting space to greet family and guests. This single story home features approximately 1,300 square feet with three bedrooms, two baths and a one car garage perfect for storage of vehicle and lawn equipment. The elongated foyer is open to the formal dining room which is a generous size and bridges to the oversized living room which features rear yard access. This open concept living area is an excellent space to entertain or to “hang out” with family and intimate friends. The kitchen is open to the living room and is highlighted by a large footprint, a multitude of counter and cabinet space and rear and yard views. The laundry room is situated behind the rear wall of the kitchen and provides access to the garage. Bedroom two and three offer ample closet space and window views while sharing a hall bath and linen closet. The master suite sits at the rear of the home for privacy and features a spacious bedroom with private rear access and large walk-in closet. The master bath features an oversized shower, dual vanities and private toilet area. This compact home has the Spanish features you desire and the space you need to comfortably raise your family. It is best suited as a home for small families or empty nesters that enjoy entertaining or having guests.
