Mediterranean House Plan 168-00002

Sq Ft1,243
Beds3
Baths2
1/2 Baths0
Stories1
Cars1
Width38' 0"
Depth42' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

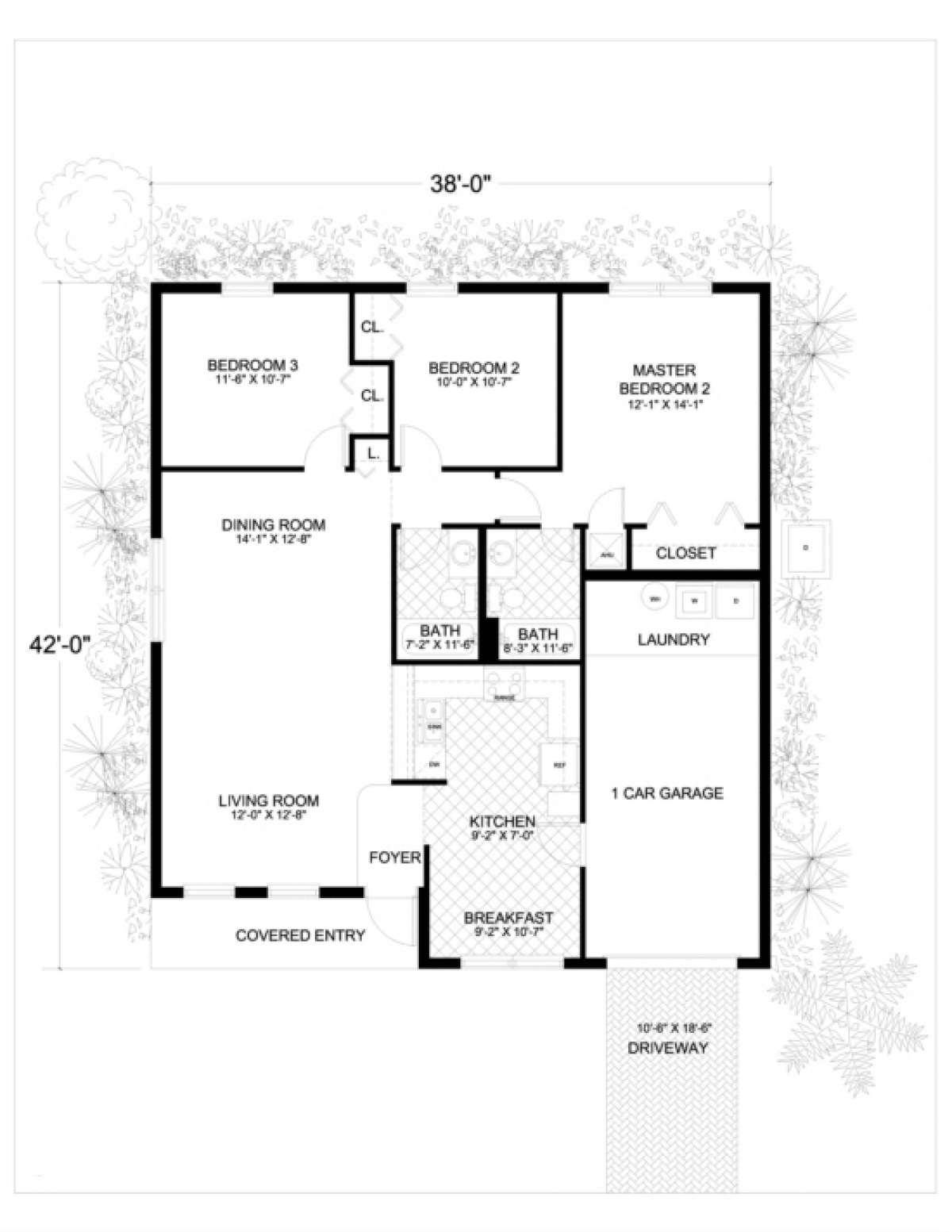

Floorplan 1 for House Plan #168-00002
Floorplan 1
Floorplan 1 for House Plan #168-00002


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

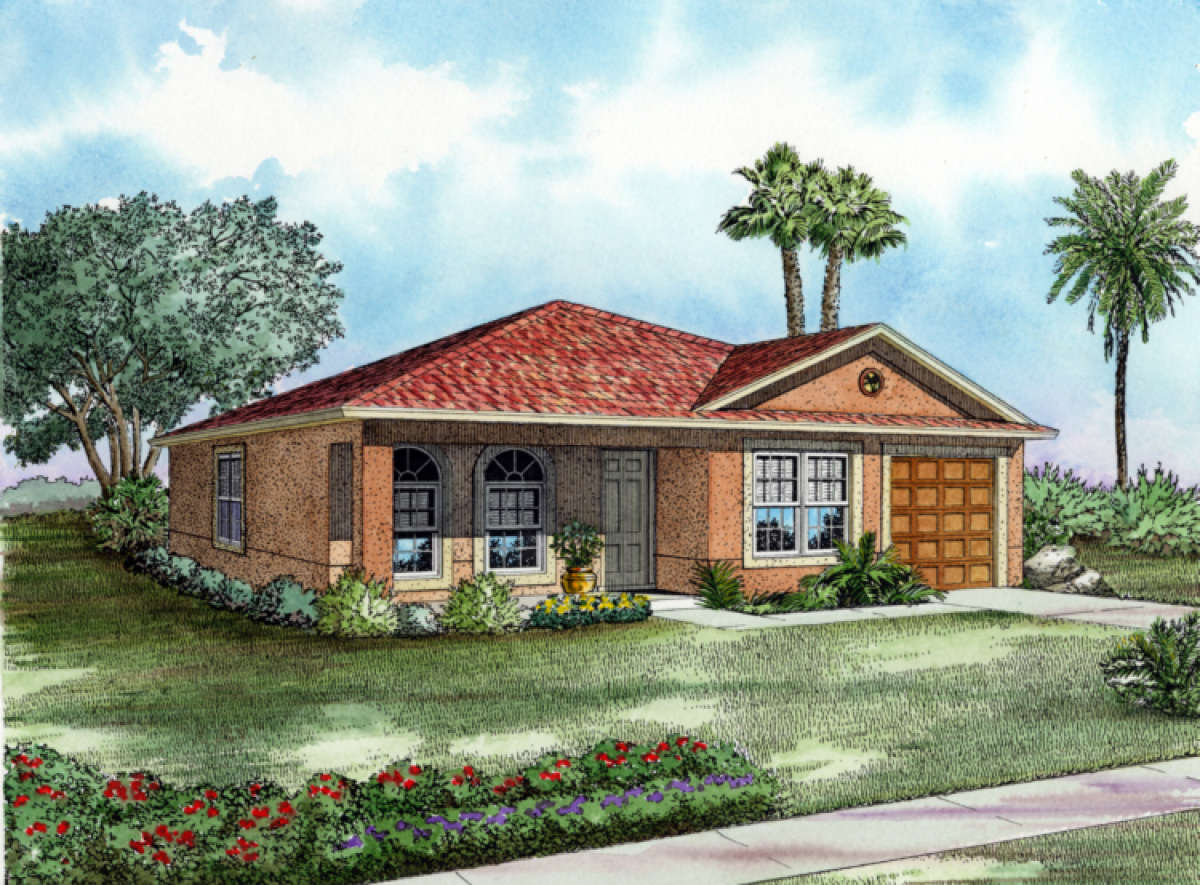

This charming Mediterranean styled home offers classic architectural features such as red tiled roofing, graceful window detail and an inviting covered porch. The visually stunning Spanish exterior evokes the warmth and colors of the Mediterranean coastline and blends beautifully with the interior floor plan which features approximately 1,200 square feet. The floor plan encompasses three bedrooms, two bathrooms and a one car garage in a comfortable floor plan. The covered entry leads to the spacious foyer and living room. This space looks directly onto the combination dining room, runs almost the length of the home and provides outstanding space in which to entertain or relax with family and friends. The gourmet kitchen enjoys a large footprint with an abundance of counter and cabinet space. The spacious breakfast room is sunny and bright with front window views. Bedroom two and three feature generous living space and rear yard window views. Each bedroom has double closets and direct access to the shared hall bath and linen closet. The master bedroom is spacious with a double door closet, walk-in closet and rear yard views and access to a private bath. The laundry nook is off the garage and provides plenty of space for storage and other paraphernalia. This home, while compact, offers a fully functional floor plan and is ideally suited for small families or empty nesters that enjoy entertaining and hosting family visits and special occasions.
