Coastal House Plan 1637-00105

Sq Ft2,157
1/2 Baths0
Width25' 5"
Depth64' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

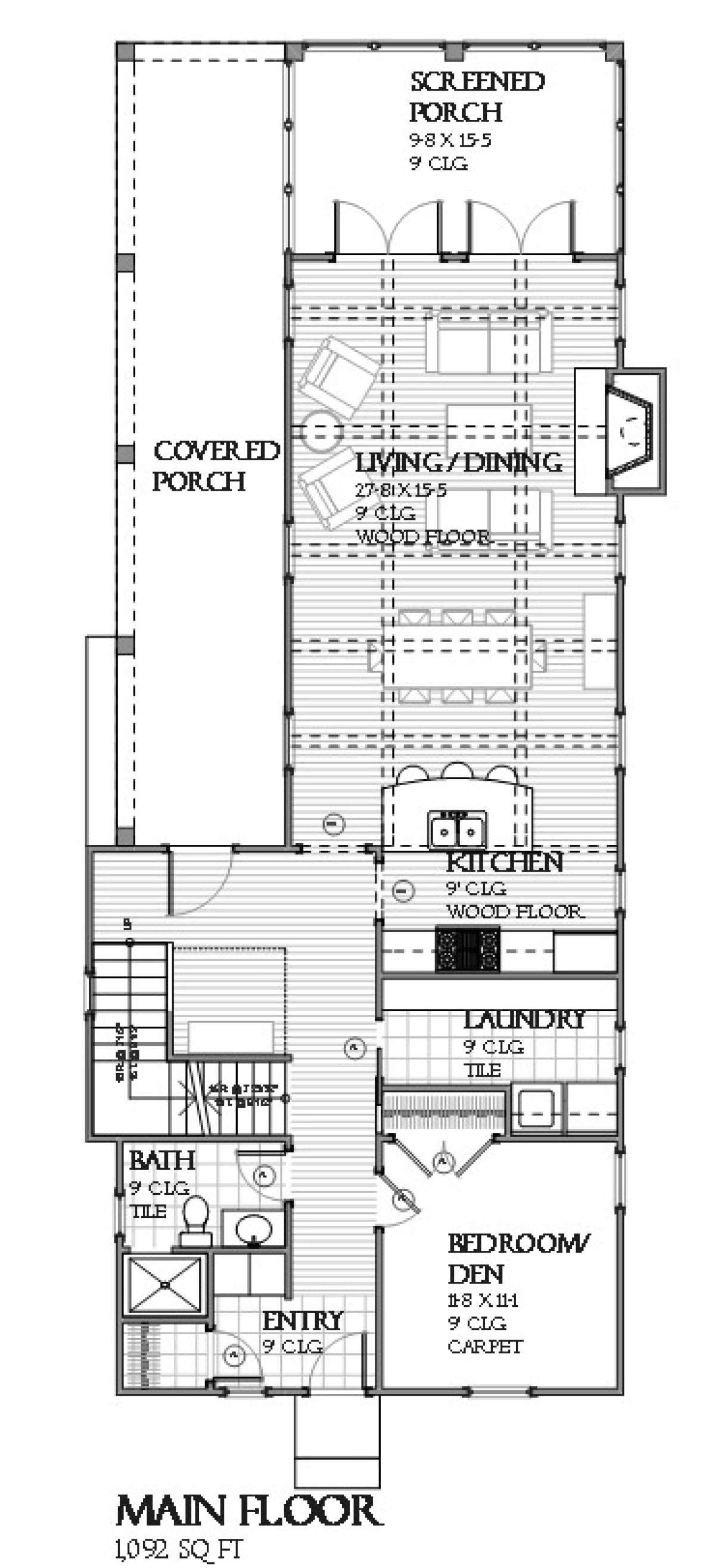

Floorplan 1 for House Plan #1637-00105

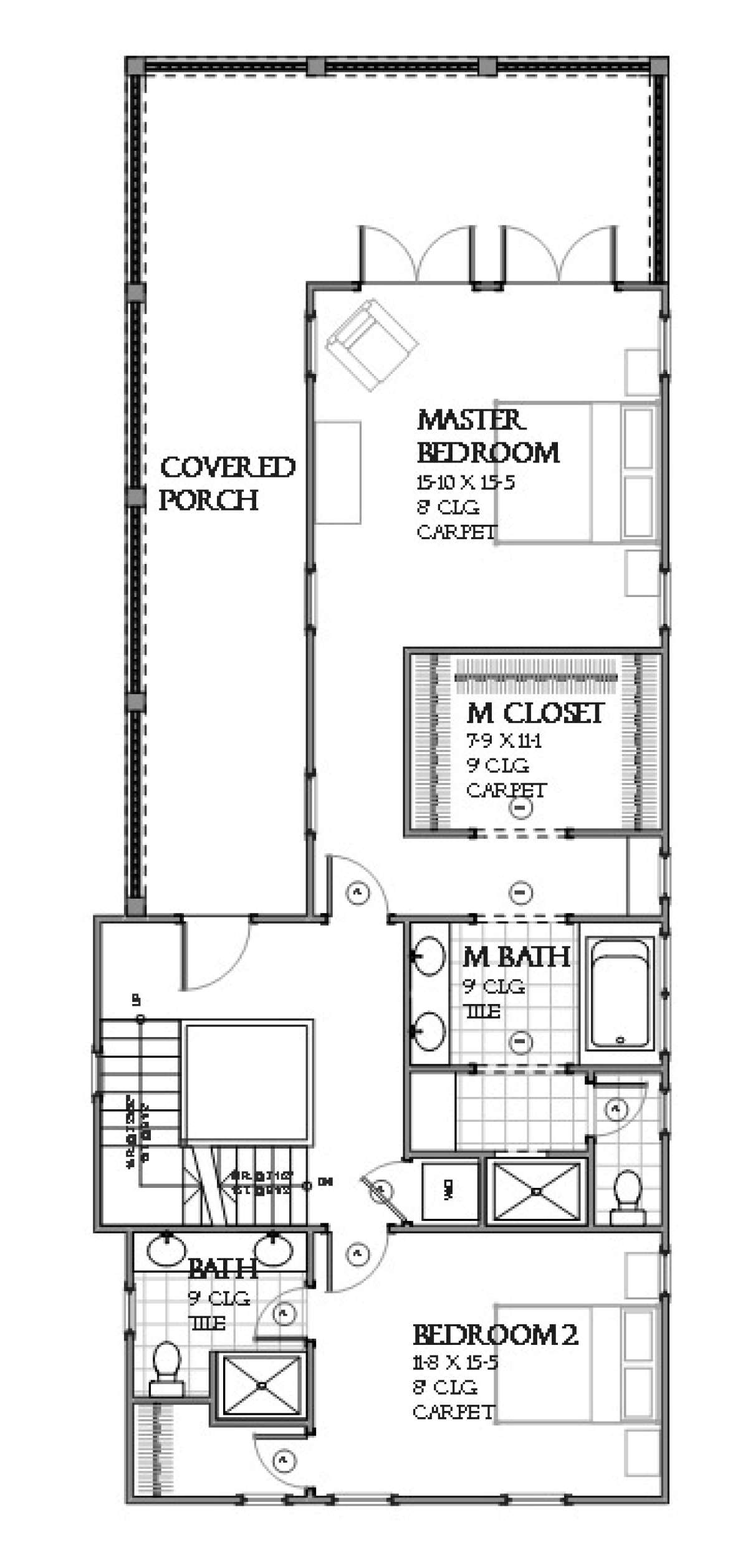

Floorplan 2 for House Plan #1637-00105

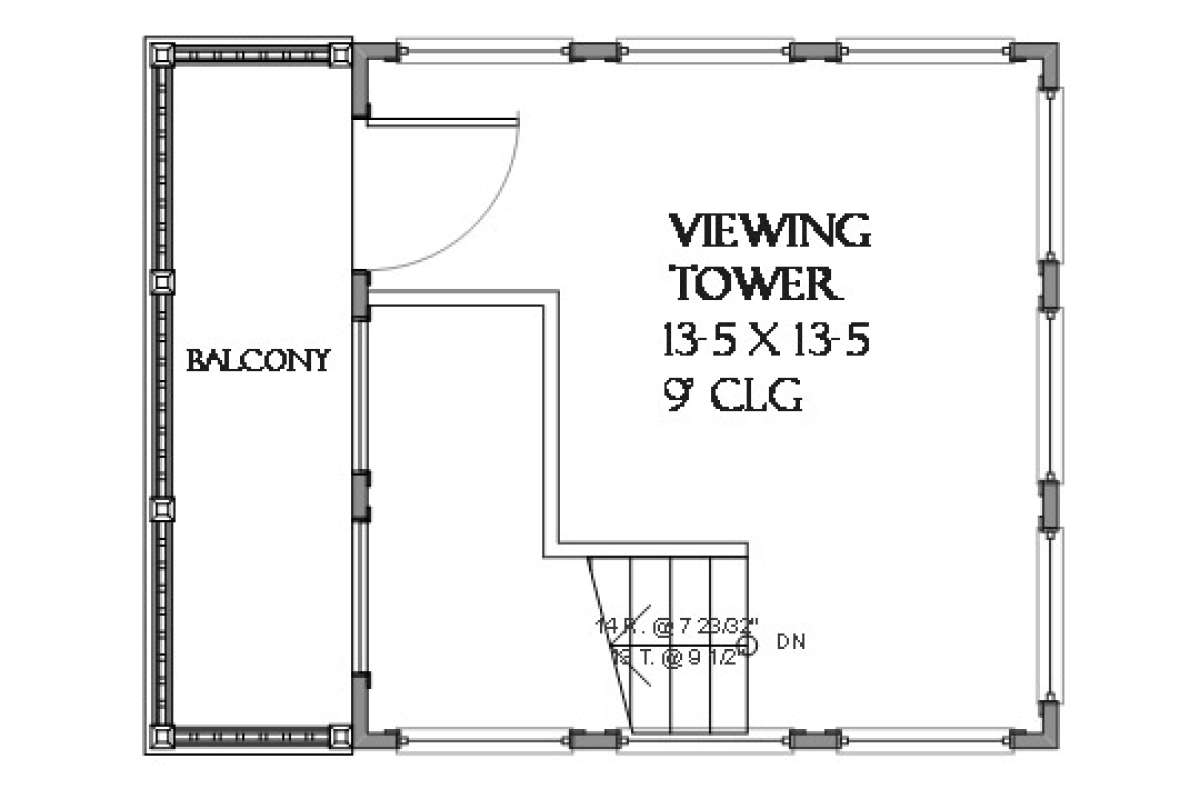

Floorplan 3 for House Plan #1637-00105
Floorplan 1
Floorplan 1 for House Plan #1637-00105
Floorplan 2
Floorplan 2 for House Plan #1637-00105
Floorplan 3
Floorplan 3 for House Plan #1637-00105

Frequently Asked Questions


What's Included in these plans?

  • Construction Ready Main Level Floor Plan (1/4"=1-0')
  • Construction Ready Upper Floor Plan (if applicable) (1/4"=1'-0")
  • Lower Level Floor Plans/Foundation (1/4"=1'-0")

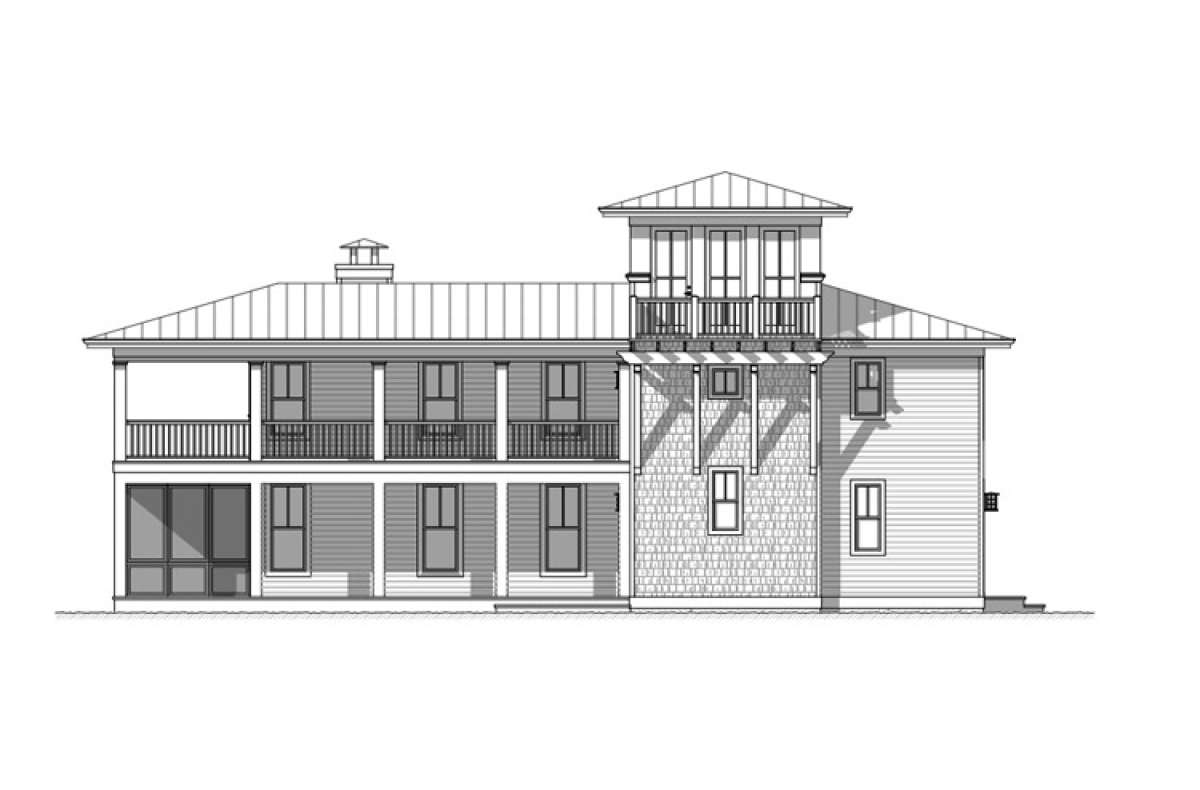

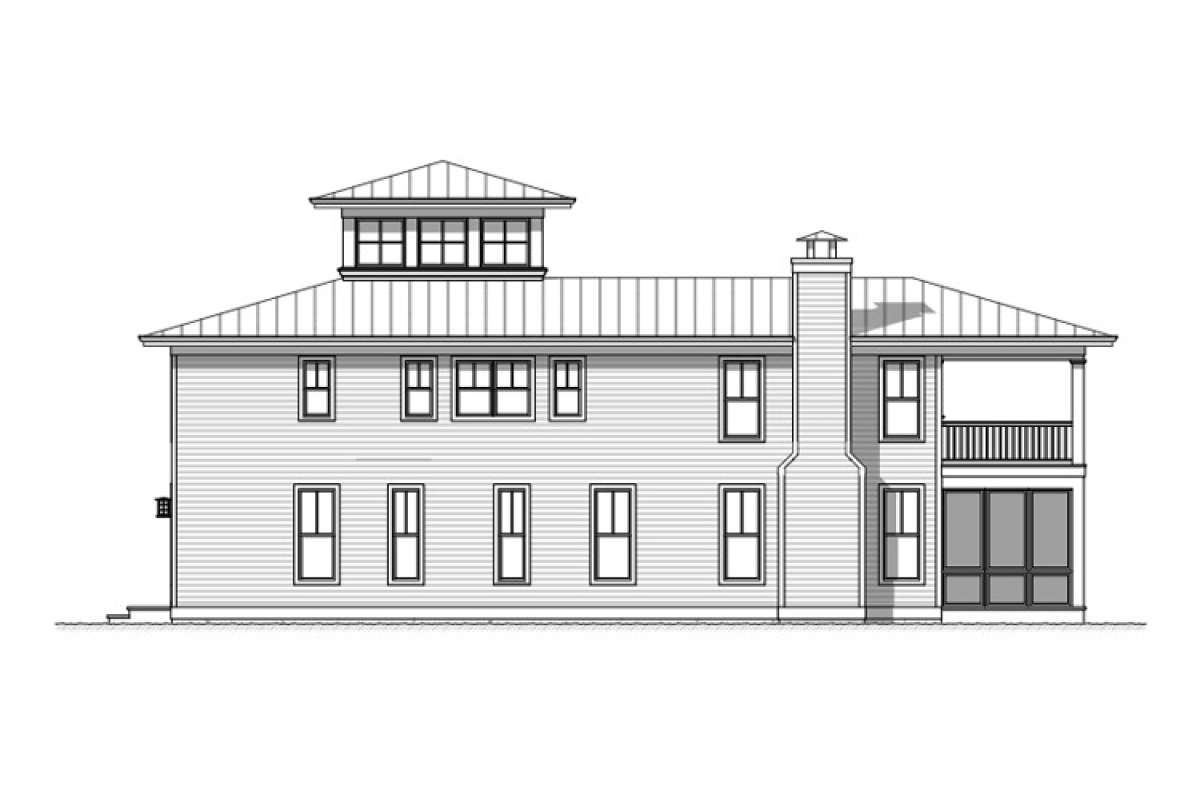

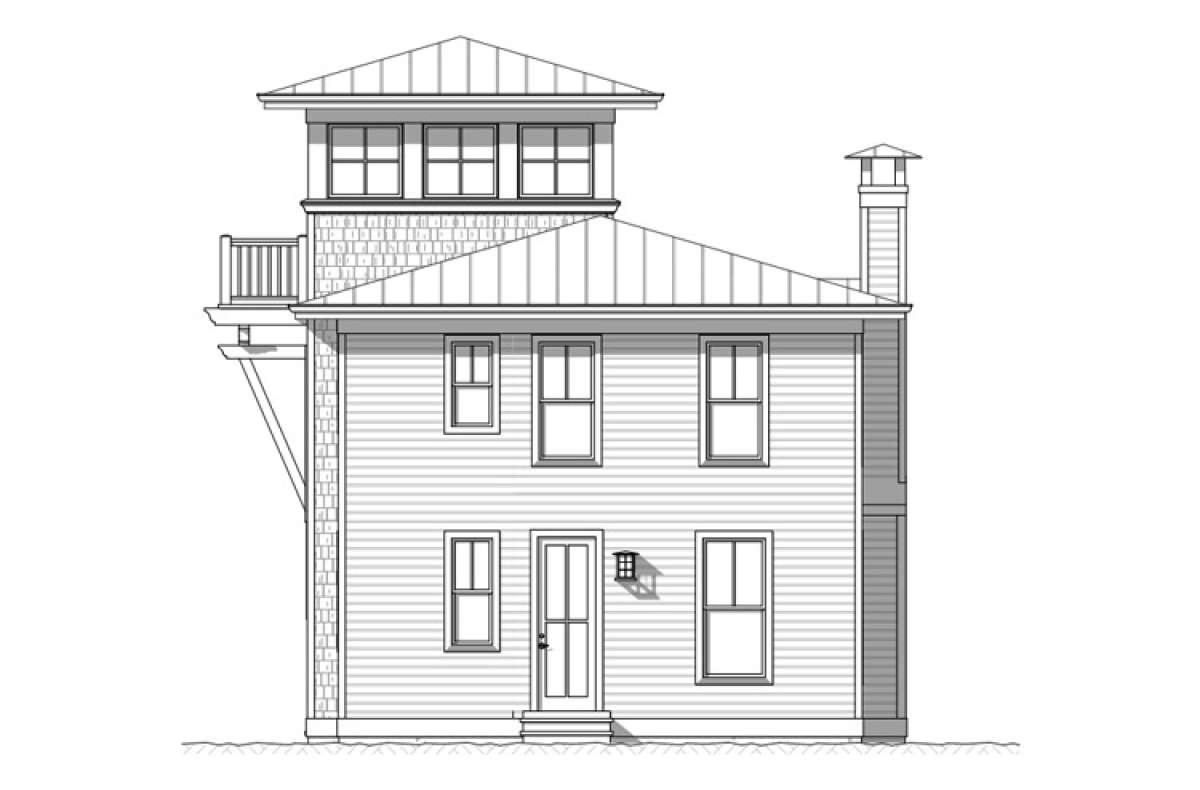

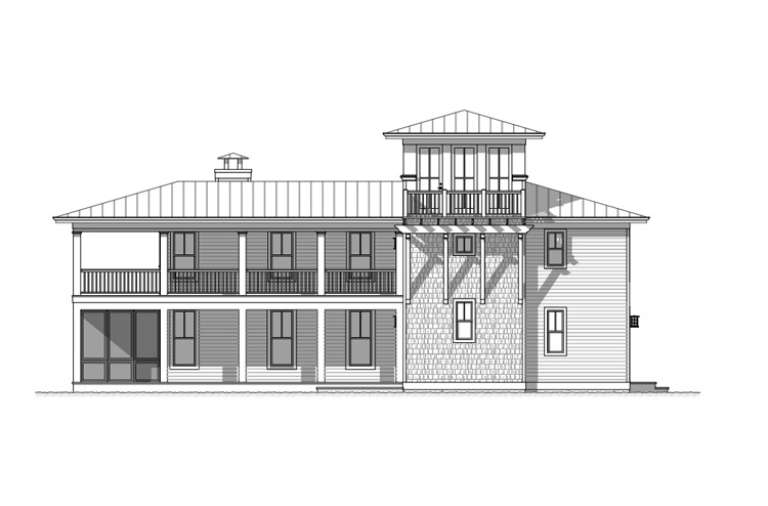

  • Construction Ready Elevations (all four) with Materials, Wall Heights, Details, etc noted (1/4"=1')
  • Building Sections/Wall Sections/Eave Details
  • Exterior Details of Railings, Columns, Shutters, Flowerboxes etc.
  • Roof Overview Plan


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

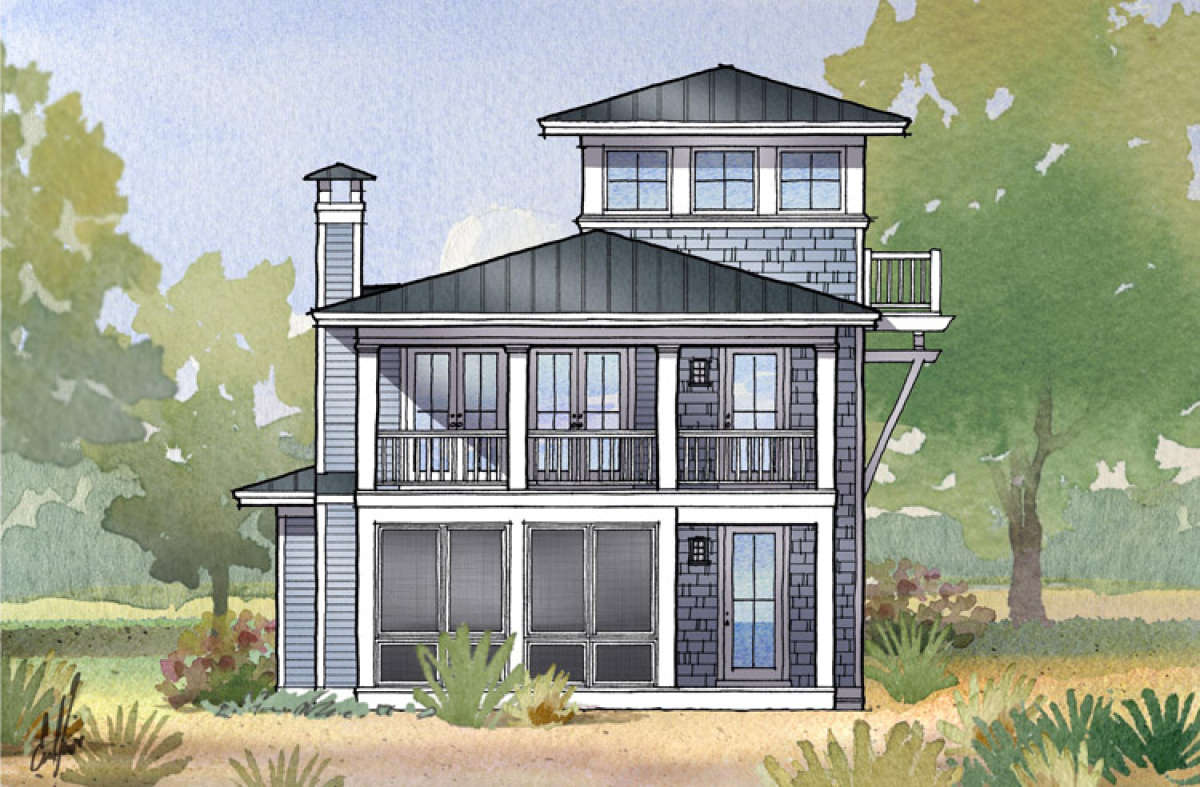

This Coastal house design offers an abundance of outdoor space, a spacious interior and a third floor viewing tower. There are approximately 2,157 square feet of living space within the home’s interior containing three bedrooms and three baths. The home’s drawings are perfectly designed for a narrow lot with its 25’ plus width dimensions. The first floor’s entry features 9’ ceiling heights and a large coat closet before accessing the main hallway. There is a large bedroom/study with great floor space, plentiful closet space and an adjacent full bath. The spacious laundry room is located on the main floor and the T-shaped staircase offers access to the second floor. Outdoor space includes an extended covered porch which spans the side of the home and culminates into a huge screened porch at the rear of the home. The main common rooms provide access and views onto the outdoor spaces for ease of entertaining and relaxing. The grand kitchen features a large center island with breakfast bar adjacent to the dining space where there are additional seating arrangements. The living room is located at the rear of the home and features a warming fireplace, a spacious footprint and a double set of French doors leading to the screened porch.

Bedroom two and the master suite are situated on the second level for privacy. The second bedroom measures in excess of 11’x15’ and offers great window views, a walk-in closet and a private bath with double sinks. The master suite is positioned at the rear of this level and features a sumptuous suite of rooms that include a large bedroom with double French door access to the covered porch which wraps around the suite. There is an attached walk-in master closet and en suite bath; the master bath is highlighted with dual vanities, a separate shower and a large soaking tub. The third level viewing tower provides panoramic views onto the nearby scenery and there is an open balcony as well for sunbathing, star gazing or enjoying natural wildlife. This eclectic home features a casual yet, luxurious living style with a functional and versatile interior and outstanding indoor/outdoor space.
