Name: House Plan 1502-00023 - Cottage Plan: 531 Square Feet, 1 Bedroom, 1 Bathroom
Brand: America's Best House Plans
SKU: 1502-00023
Price: 675.00 USD

Cottage House Plan #1502-00023 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 531

Beds 1

Bath 1

1/2 Baths 0

Car 0

Stories 1

Width 26'

Depth 31' 4"

See What's Included

Select Package

PDF (Single Build)

$675.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$775.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,475.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $40.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $175.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

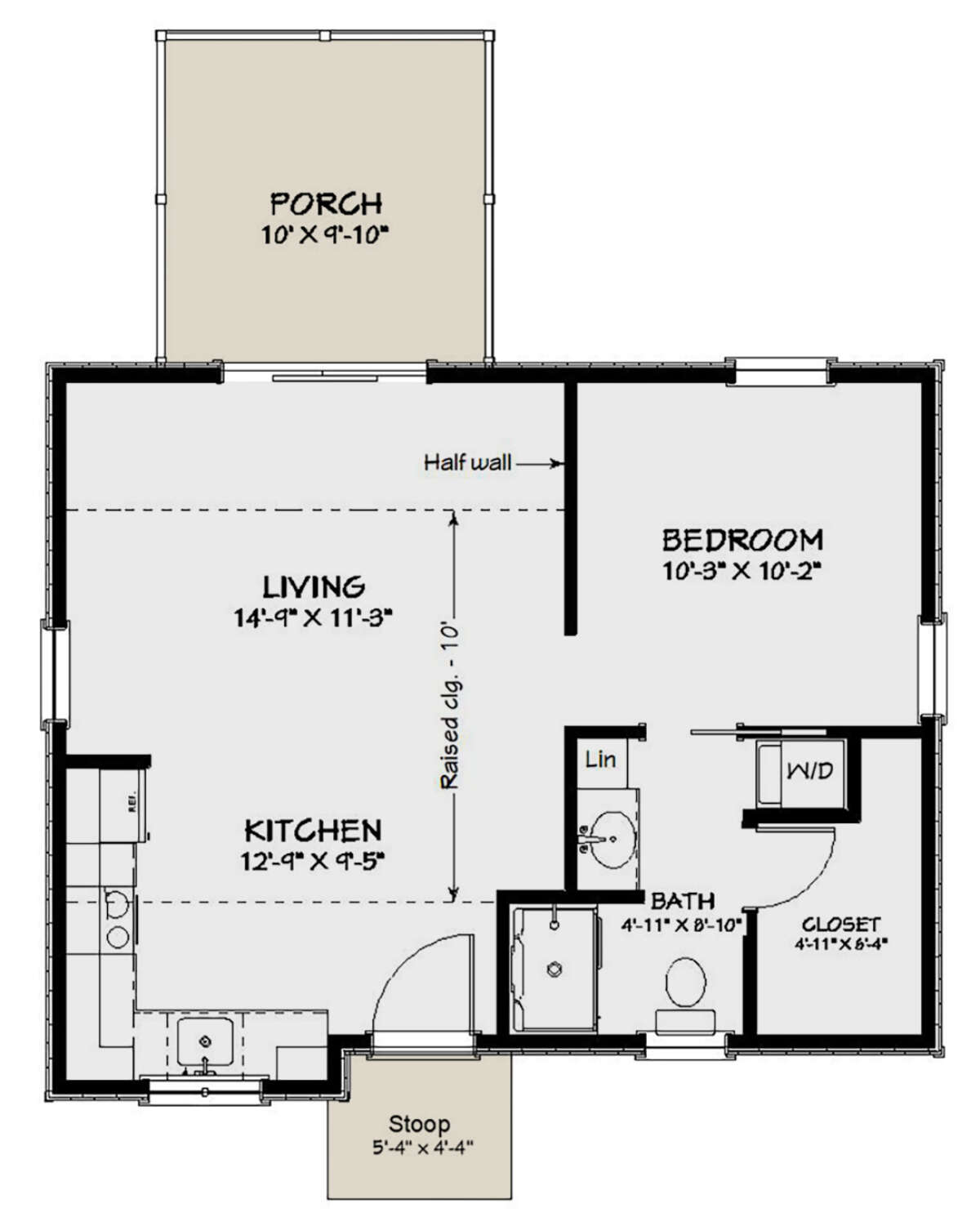

Main Floor

Images copyrighted by the designer.

What's Included in these plans?

Sheet 1 - COVER SHEET
Artistic rendering of cottage, 3D perspective views showing all exterior sides, an interior view, an interior dollhouse view. Also, design criteria, misc. notes and specifications and some individual plan data.

Sheet 2 - FOUNDATION PLAN
Foundation plan in ¼" scale, 3D view, construction details and notes.

Sheet 3 - FLOOR PLAN
Floor plan in ¼" scale, wall framing plan, top down roof view showing roof pitches. Window and door schedules.

Sheet 4 - CEILING & ROOF FRAMING
2D and 3D views of framing.

Sheet 5 - FRAMING DETAILS
Generic wall, ceiling and roof framing details. Lumber and framing notes.

Sheet 6 - ELEVATIONS
Front, rear, right and left side elevations. Notes on windows and doors. Miscellaneous notes.

Sheet 7 - CROSS SECTIONS
Cross section views with framing details.

Sheet 8 - KITCHEN PLAN
Kitchen and bath plans, elevations and schedule.

Sheet 9 - ELECTRICAL PLAN
Electric layout plan, schedule and notes.

Ask Us A Question

About This Plan

This 1 bedroom, 1 bathroom Cottage house plan features 531 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
