Cottage Plan 1502-00002

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 550
Beds 1
Bath 1
1/2 Baths 0
Car 0
Stories 1
Width 25'
Depth 28'

Floorplan Drawings

Main Floor

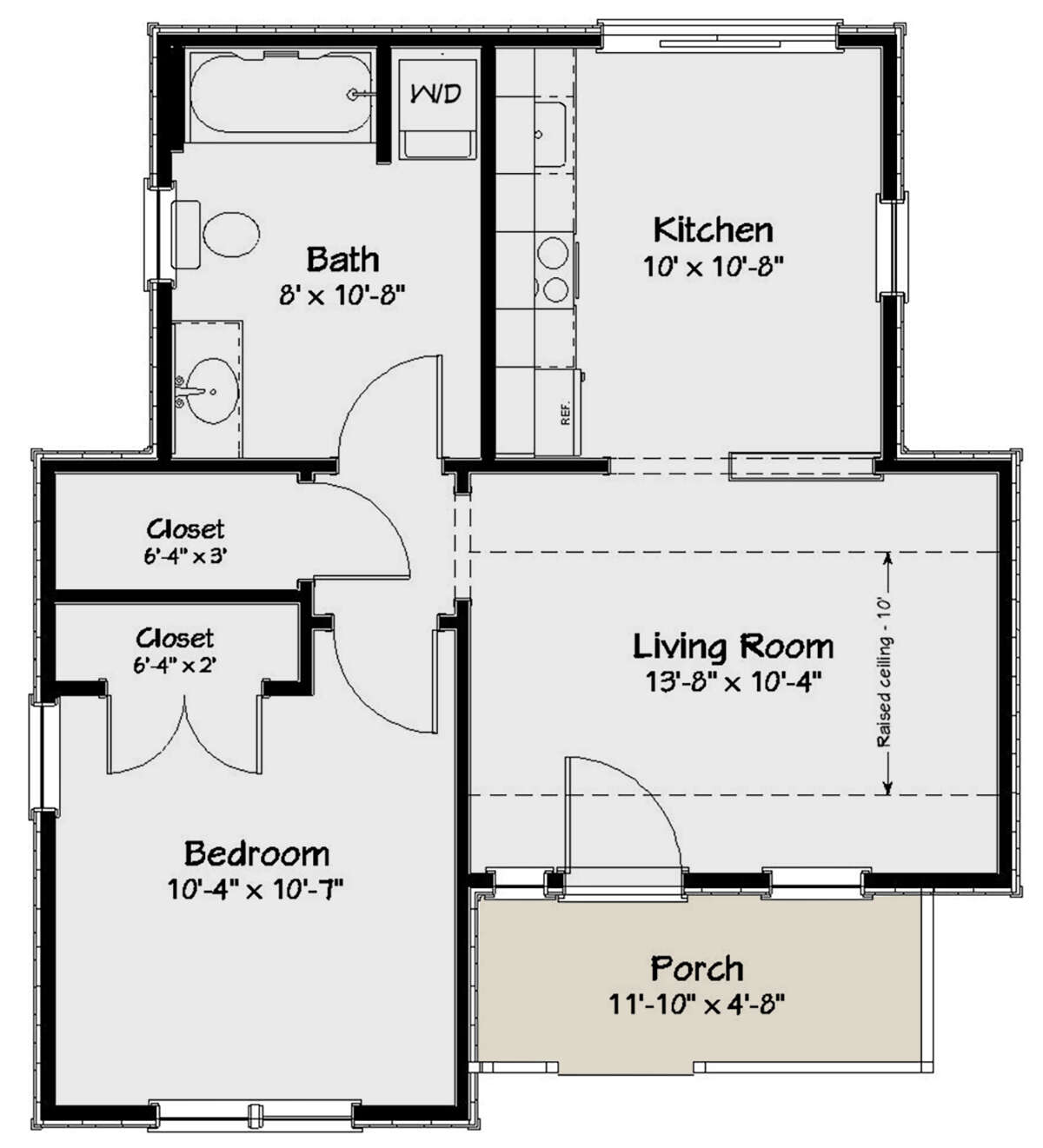

Main Floor for House Plan #1502-00002


What's Included in these plans?

Sheet 1 -   COVER SHEET
Artistic rendering of cottage, 3D perspective views showing all exterior sides, an interior view, an interior dollhouse view. Also, design criteria, misc. notes and specifications and some individual plan data.

Sheet 2 - FOUNDATION PLAN
Foundation plan in ¼" scale, 3D view, construction details and notes.

Sheet 3 - FLOOR PLAN
Floor plan in ¼" scale, wall framing plan, top down roof view showing roof pitches. Window and door schedules.

Sheet 4 - CEILING & ROOF FRAMING
2D and 3D views of framing.

Sheet 5 - FRAMING DETAILS
Generic wall, ceiling and roof framing details. Lumber and framing notes.

Sheet 6 - ELEVATIONS
Front, rear, right and left side elevations. Notes on windows and doors. Miscellaneous notes.

Sheet 7 - CROSS SECTIONS
Cross section views with framing details.

Sheet 8 - KITCHEN PLAN
Kitchen and bath plans, elevations and schedule.

Sheet 9 - ELECTRICAL PLAN
Electric layout plan, schedule and notes.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 1 bedroom, 1 bathroom Cottage house plan features 550 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
