Cottage Plan 110-01038

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 691
Beds 2
Bath 1
1/2 Baths 0
Car 0
Stories 1
Width 24'
Depth 39'

Floorplan Drawings

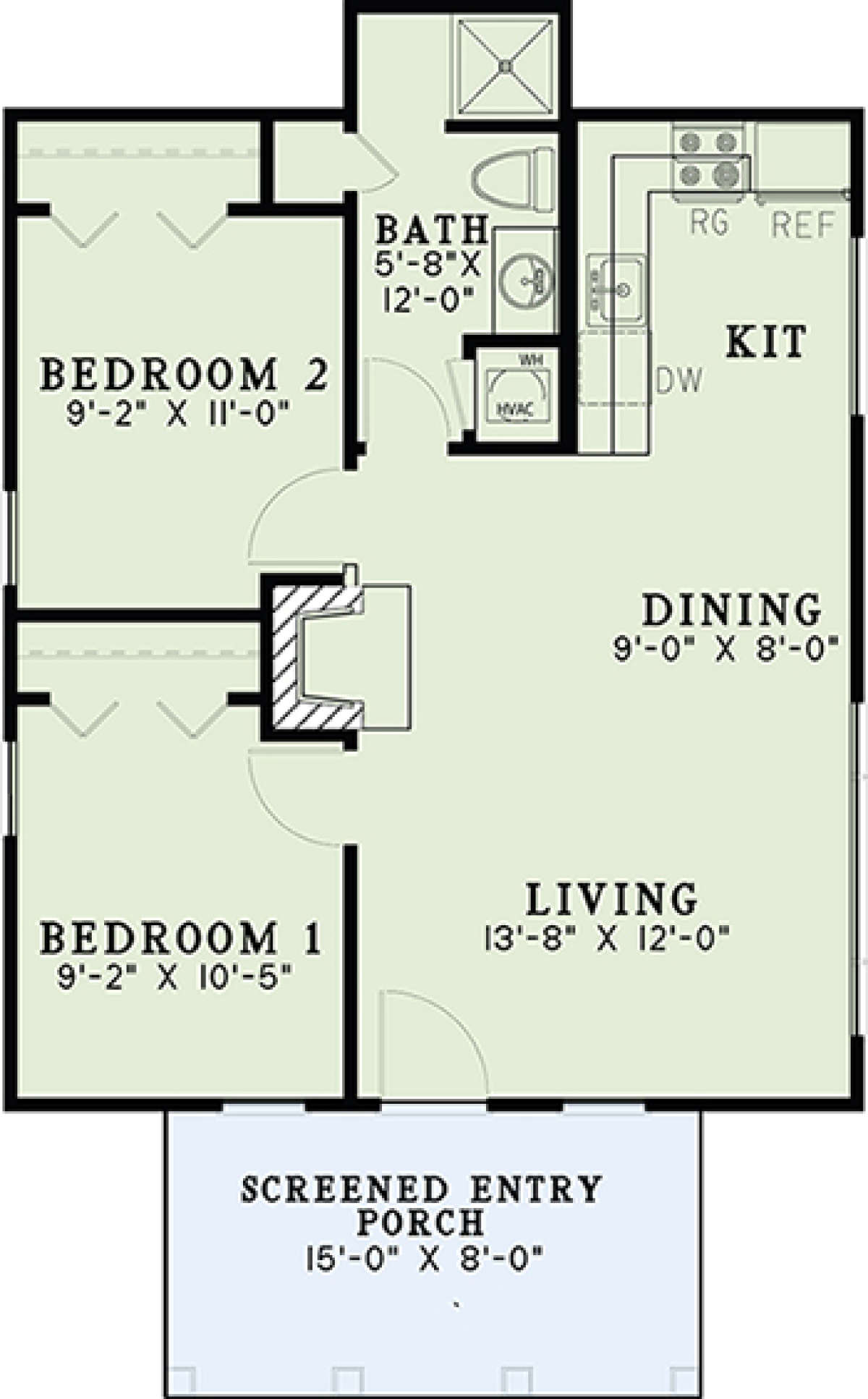

Main Floor Plan
Main Floor Plan for House Plan #110-01038


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Cottage house plan features a compelling exterior and a great layout for a small family, a young couple or retirees. The exterior is highlighted with simple construction featuring cedar shakes, a gabled roof, plentiful window views and a front covered porch. The porch, measuring 15’ x 8’ is perfect for relaxing, enjoying Mother Nature and greeting guests. The interior floor plan features approximately 691 square feet of usable space that incorporates an open floor plan, two bedrooms and a bath into the home’s interior. The house design is perfect for a narrow and/or small property lot with its 24’ width and 39’ depth dimensions. Imagine relaxing on a lakefront or mountain property lot with panoramic views from the front porch or the interior floor plan. There is also a choice of either a slab or crawl space foundation included with this design and the 9’ ceiling heights create a spacious quality to the interior space.

The open floor plan boasts of great relaxing and entertaining space; there is a large living room with wonderful window views once you enter the home from the front porch. Beyond the living room is the dining space; spacious and containing a warming centrally located fireplace. The kitchen is highlighted with window views making the space bright and airy and there are plentiful cabinets and counter space. Bedroom one is highlighted with a window view overlooking the front covered porch and additional window views; there is generous closet space as well. The second bedroom is similarly sized and also features a large closet space. The shared hall bath is quite spacious with vanity space, a toilet area and there is a large shower. Great value and versatility is found in this Cottage styled home where relaxing from a long day fishing, hiking or enjoying nature will be effortless and enjoyable.
