Cabin Plan 110-01035

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 828
Beds 1
Bath 1
1/2 Baths 0
Car 0
Stories 1
Width 58'
Depth 18'

Floorplan Drawings

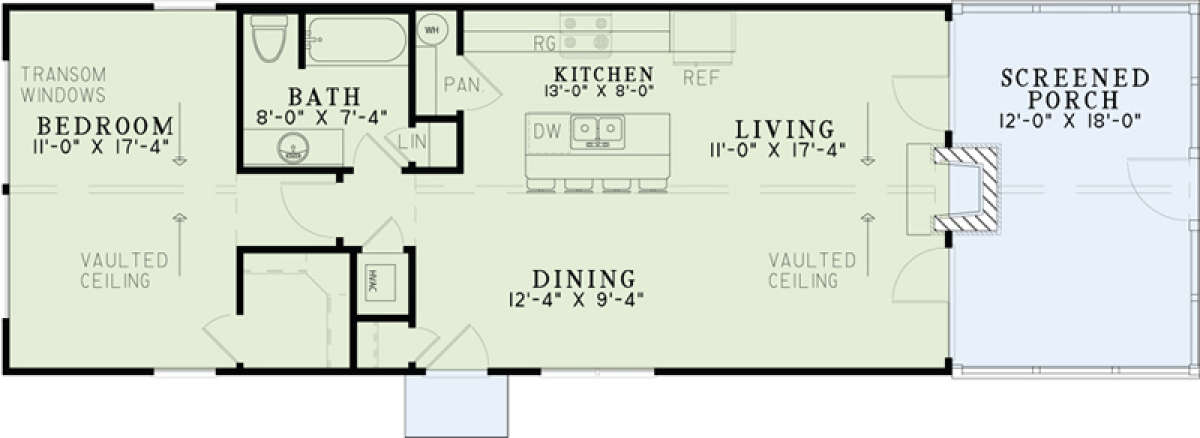

Main Floor Plan
Main Floor Plan for House Plan #110-01035


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

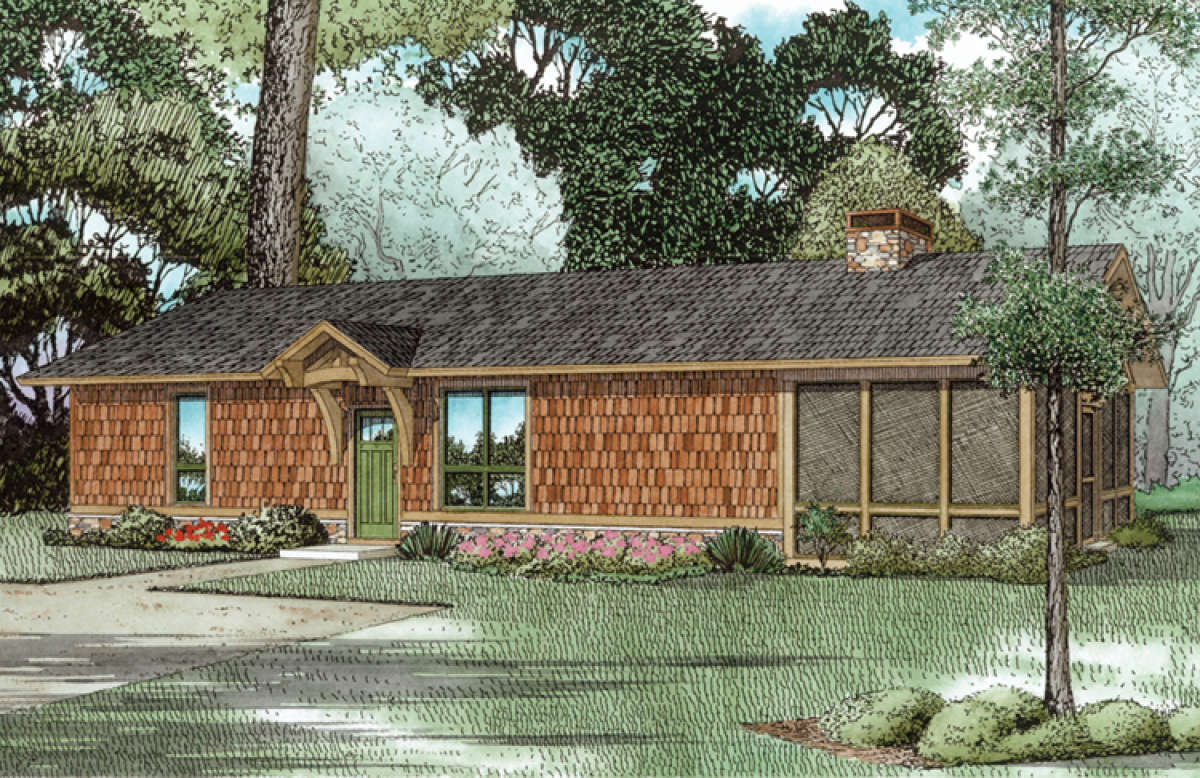

This Cabin house plan would be perfect as a vacation home or a permanent residence for young professionals or empty nesters. The exterior is comprised of lovely cedar shingles, beautiful window features, a covered entrance with an overhead gable and fantastic outdoor space. The interior floor plan is highlighted with approximately 828 square feet of living space that offers a large open floor plan, one bedroom and one bath. Wonderfully designed for a small property lot, the depth dimension is 18’ and there is a choice of a slab or crawl space foundation with no additional fees. Of course, a basement foundation could be added to the plan as well giving the home additional square feet and expansion space. The outdoor space of the home is positioned to the right side of the home’s exterior and features a large screened in porch measuring 12’ x 18’. The generously spaced area is perfect for entertaining, relaxing or hosting family events and an exterior door allows for easy access onto the accompanying yard. The interior floor plan reveals a large open floor plan through the front entryway that includes a coat closet, a dining room, kitchen and a living room. The dining room is spacious with plenty of room for family and special occasion meals to be served in comfort. The adjacent living room is highlighted with vaulted ceilings, a warming fireplace and double entry/exit points onto the outdoor porch. The kitchen is open to both the dining and living rooms and features a large center island with additional seating options, a separate pantry and plenty of additional counter and cabinet space.

Down the hallway of the one story home design, there is closet space, a bath and a bedroom. The bathroom features an enclosed linen closet, a large vanity space, a toilet area and a tub/shower combination. The bedroom is generously proportioned, measuring in excess of 11’ x 17’ with vaulted ceilings and beautiful window views that include overhead transom windows. The bedroom is quite spacious and could include sleeping arrangements for parents and several children. There is an attached oversized walk-in closet for clothing and assorted other household or personal items. This Cabin house plan, while compact, is big on amenities found in much larger homes and successfully allows for comfortable living for a small family, young professionals or empty nesters whether enjoying a Vacation home or permanent residence.
