Craftsman Plan 110-01025

SALE

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,917
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 54' 6"
Depth 71' 6"

Floorplan Drawings

Floorplan 1

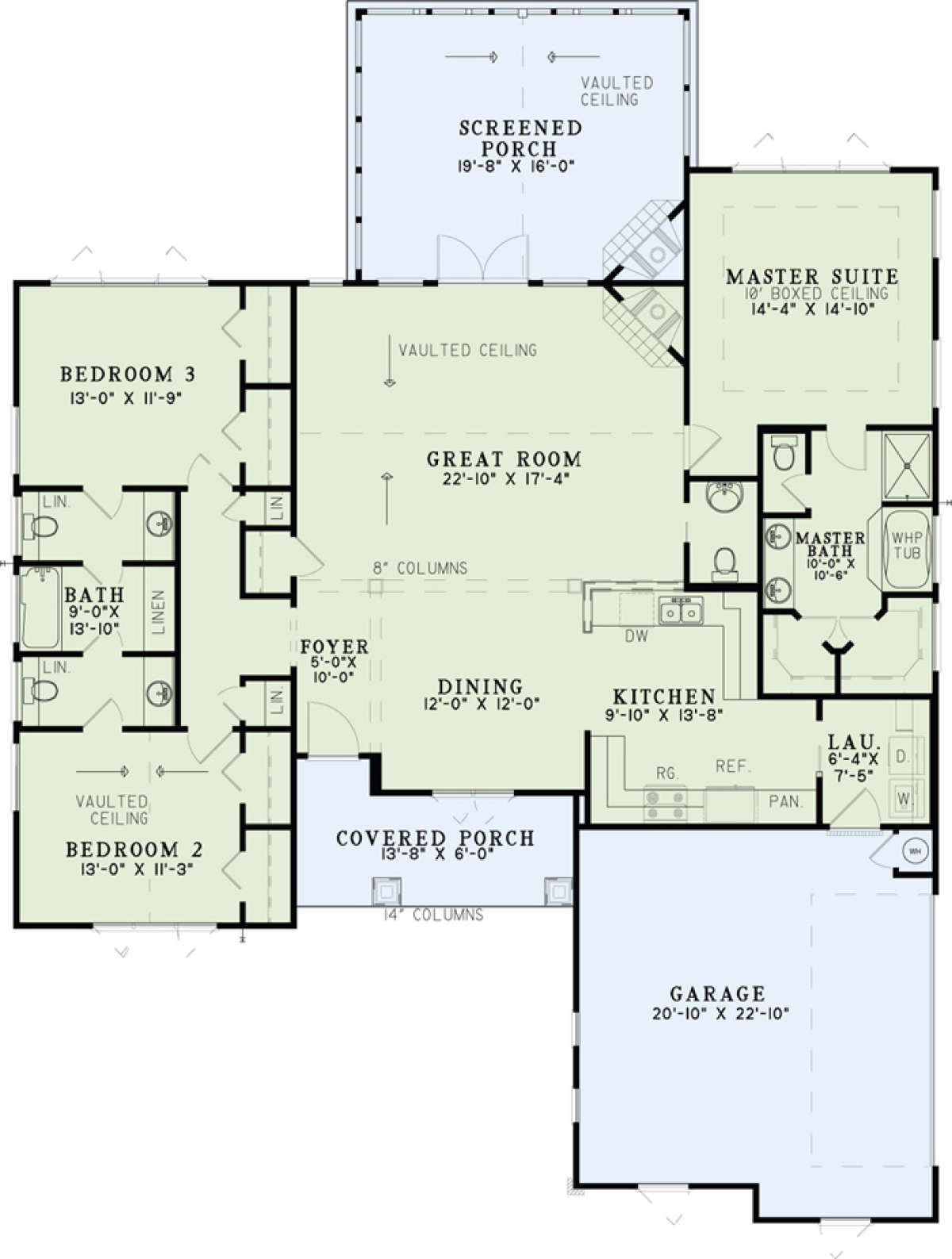

Floorplan 1 for House Plan #110-01025


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This single story Ranch home is a smart design choice with its open floor plan, split bedroom plan and stylish exterior. The exterior of the home showcases a natural, organic façade composed of simple construction and minimal ornamentation. There is a front covered porch for greeting guests before entering the home’s approximate 1,917 square feet of living space which incorporates three bedrooms and two plus baths into the interior. A large front covered porch and rear screened porch, which measures in excess of 19’x16’, is highlighted with vaulted ceilings and offers an outdoor fireplace are great outdoor entertaining spaces. French doors open onto the screened porch off the great room where there is a large amount of space, vaulted ceilings and a corner fireplace great for chilly mornings and evenings. The offset front foyer opens onto the great room, spacious dining room and large kitchen where there is loads of work/prep space, a separate pantry and the laundry room with direct access to the two car side entry garage.

There are two bedrooms located on one side of the home; each offers generous floor space and wall-to-wall closet space along with outstanding window views. Double linen closets line the hallway to the bedrooms and there is a shared jack and jill bath with private toilet and sink areas, a third linen closet and a tub/shower combination. The master suite is situated at the rear opposite side of the home and features a large master bedroom with a 10’ boxed ceiling and double entry/exit points onto the outdoor space. A spacious en suite master bath includes dual vanities, a whirlpool tub and a separate shower while the oversized master walk-in closet lies just beyond the bath. Great form and function is highlighted in this family friendly home which is perfectly suited for a small family or young professionals.
