Mountain Plan 110-01024

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,041
Beds 3
Bath 2
1/2 Baths 1
Car 0
Stories 2
Width 41' 6"
Depth 69' 8"

Floorplan Drawings

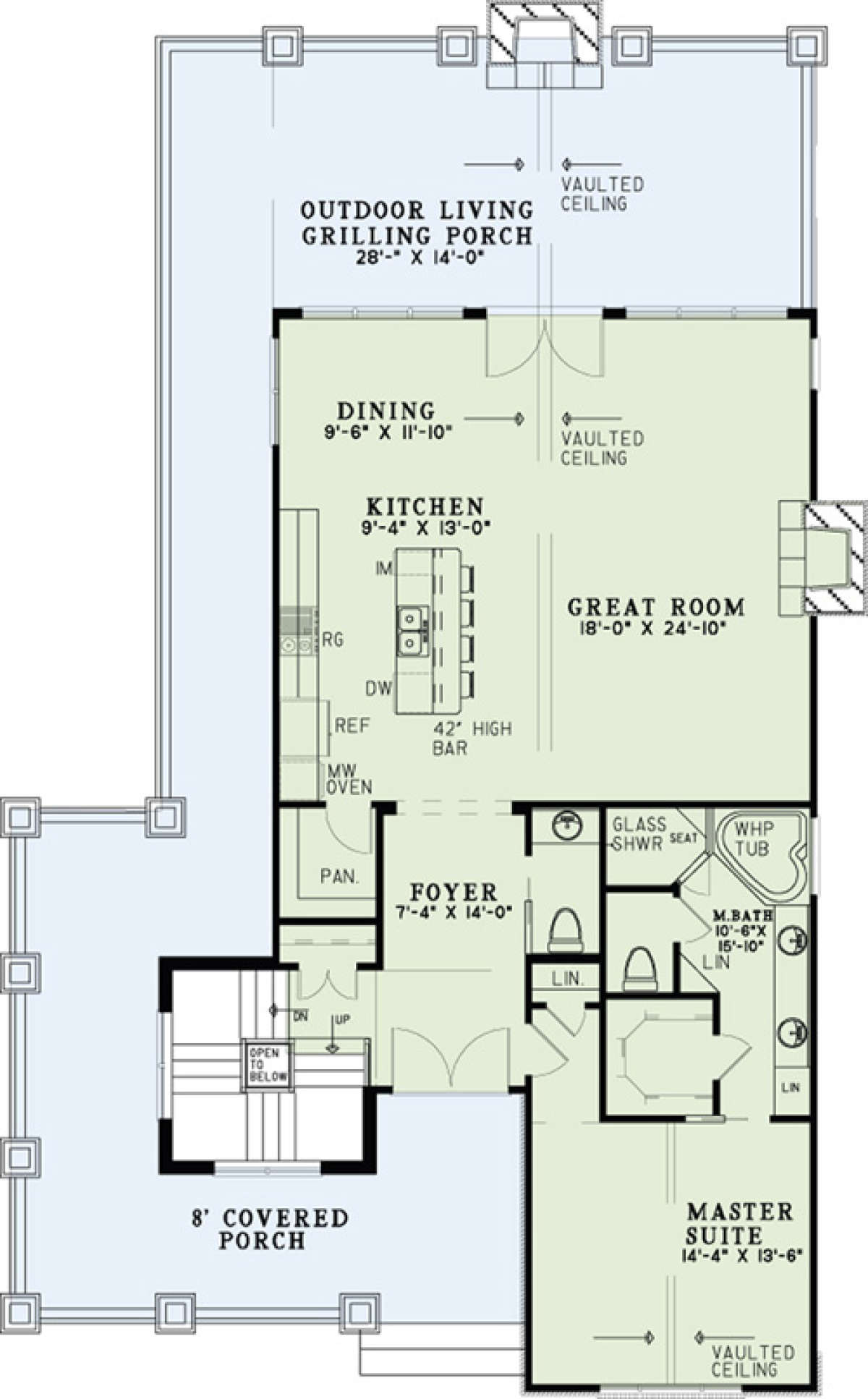

Floorplan 1
Floorplan 1 for House Plan #110-01024

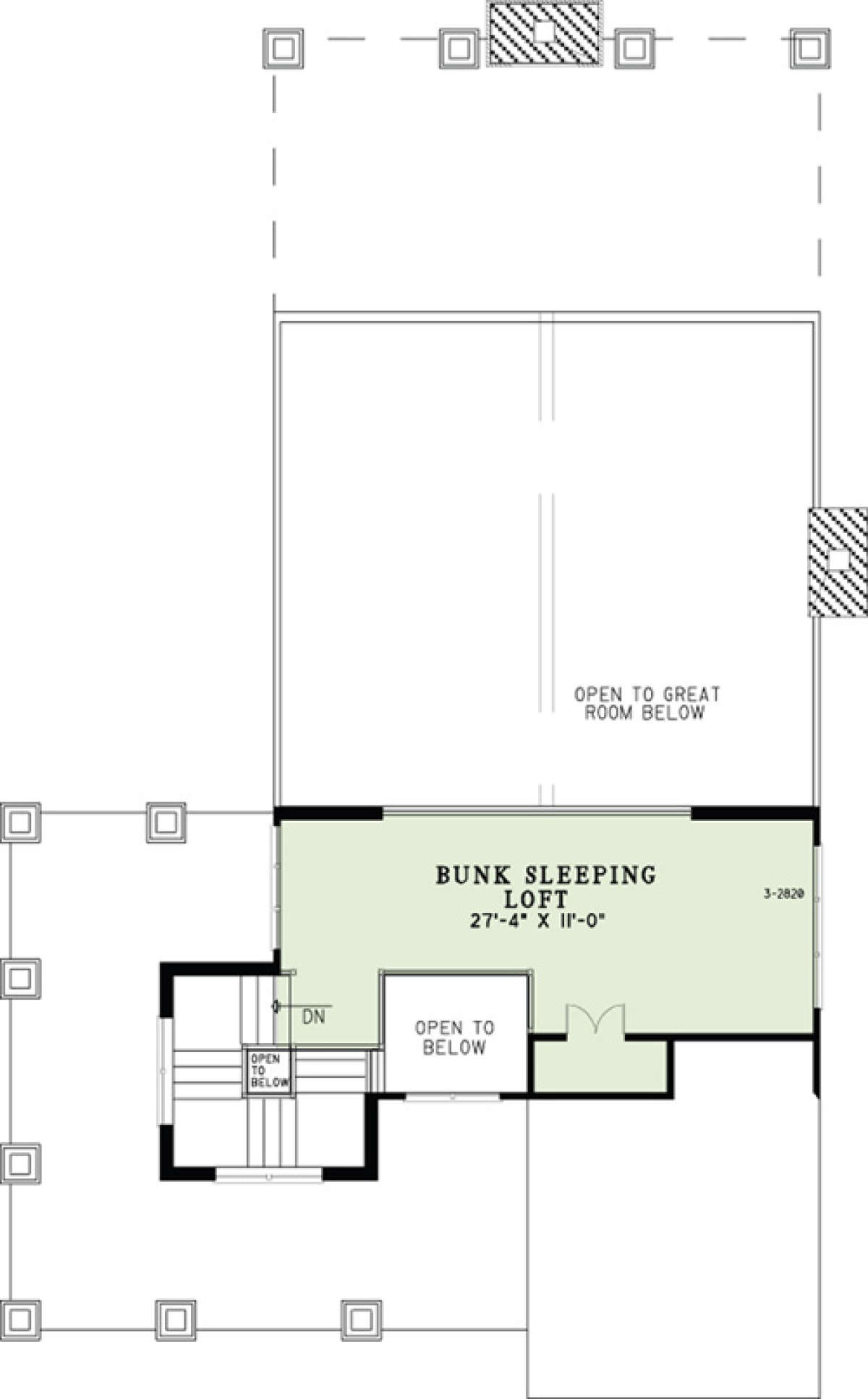

Floorplan 2
Floorplan 2 for House Plan #110-01024

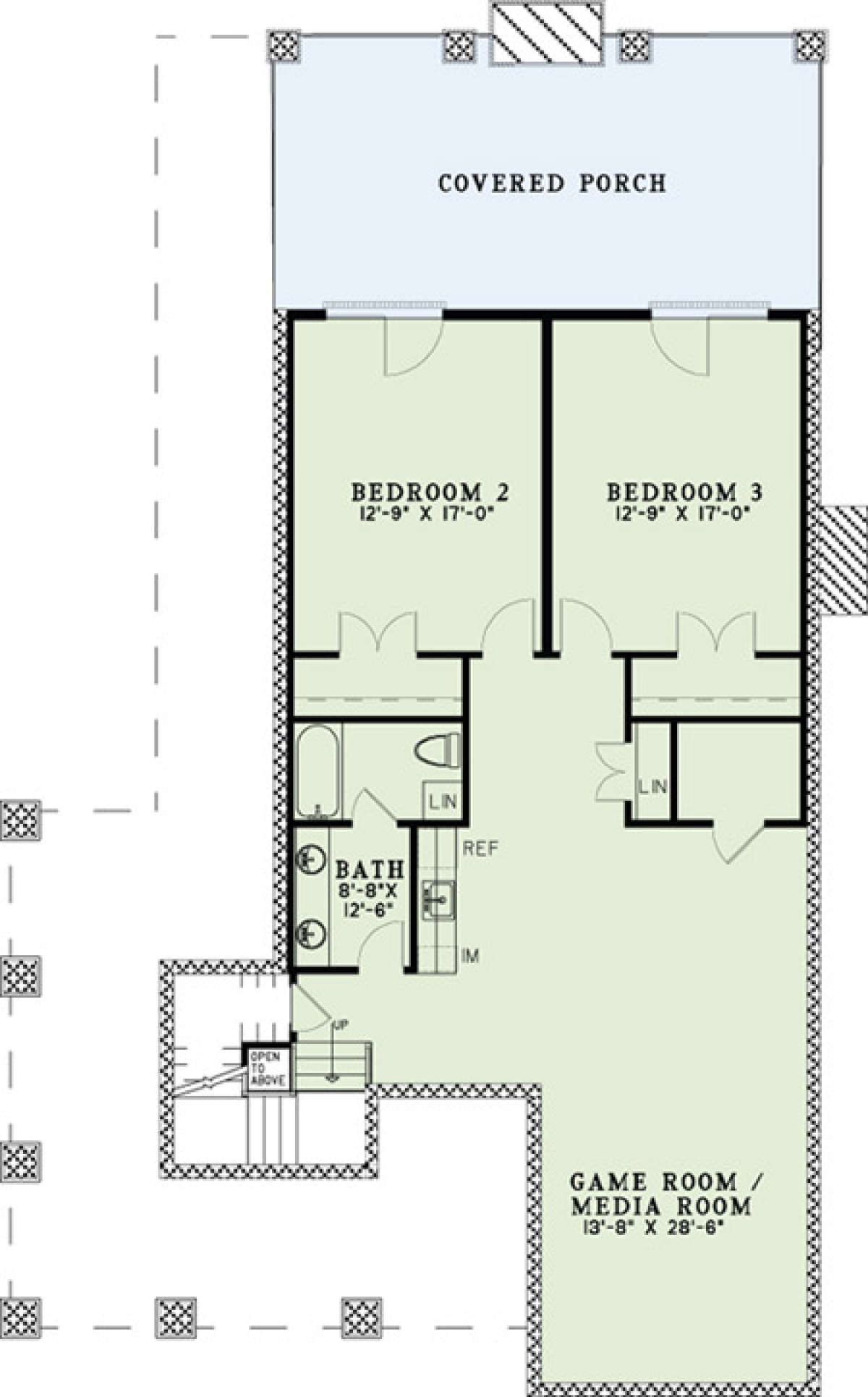

Basement Floor Plan
Basement Floor Plan for House Plan #110-01024


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

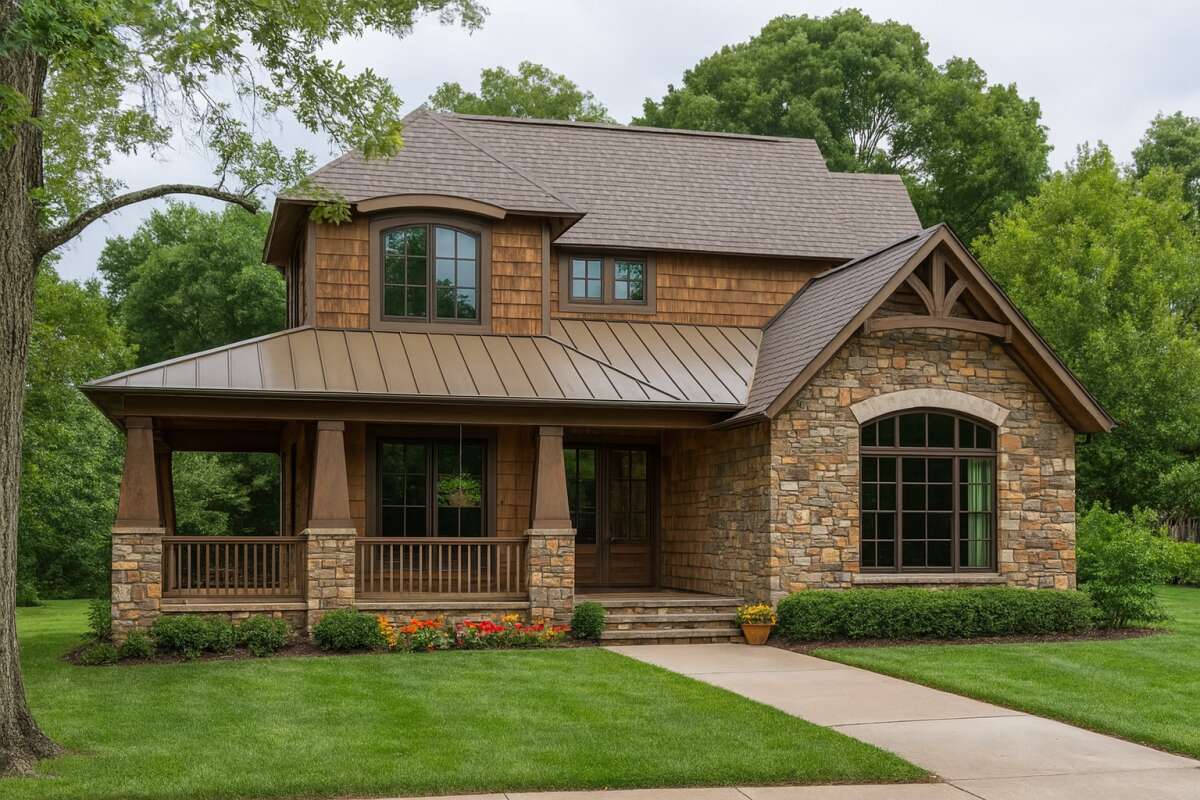

A beautiful exterior façade highlighted with stonework, cedar shakes and warm wood accents defines this Mountain house plan. Unbelievable outdoor space spans the exterior of the home to include a large front covered wraparound porch that defaults into an open deck and then ultimately includes an outdoor living and grilling porch that is vaulted, covered and features an outdoor fireplace. This home features approximately 3,041 square feet of interior living space which incorporates three bedrooms and two plus baths into the home. Double door entrance into the foyer reveals an open concept floor plan that includes a generous layout of family space, dining space and a gourmet kitchen. The kitchen features an oversized 42” high bar for relaxed dining, a walk-in food storage pantry and plenty of room to work and prepare meals. The additional dining space features a wall of windows overlooking the rear outdoor area and the great room is highlighted with phenomenal space, suitable for entertaining, a warming fireplace and French door access onto the rear porch. The main level master suite offers a large master bedroom with vaulted ceilings and wonderful window views. There is a master bath featuring dual vanities, a corner whirlpool tub and a separate glass enclosed shower with seating. The master walk-in closet lies between the bedroom and bath and offers excellent space for clothing and other accessories.

There is an overhead bunk sleeping loft with accompanying closet and overviews onto the main living spaces; this is a great space for overnight guests or conversely, the space could be used as a study/home office. The daylight basement features two large bedrooms with generous closet space and separate entry/exit points onto the covered porch. There is a hall linen closet and shared hall bath which feature double sinks and a private toilet and tub/shower combination. The game/media room boasts of a wet bar and plenty of space to “hang out” as a family or entertain guests. This fabulous home features a gorgeous exterior façade and a functional, versatile layout for superior family living.
