Craftsman House Plan 110-01022

Sq Ft2,091
1/2 Baths0
Width61' 0"
Depth69' 3"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

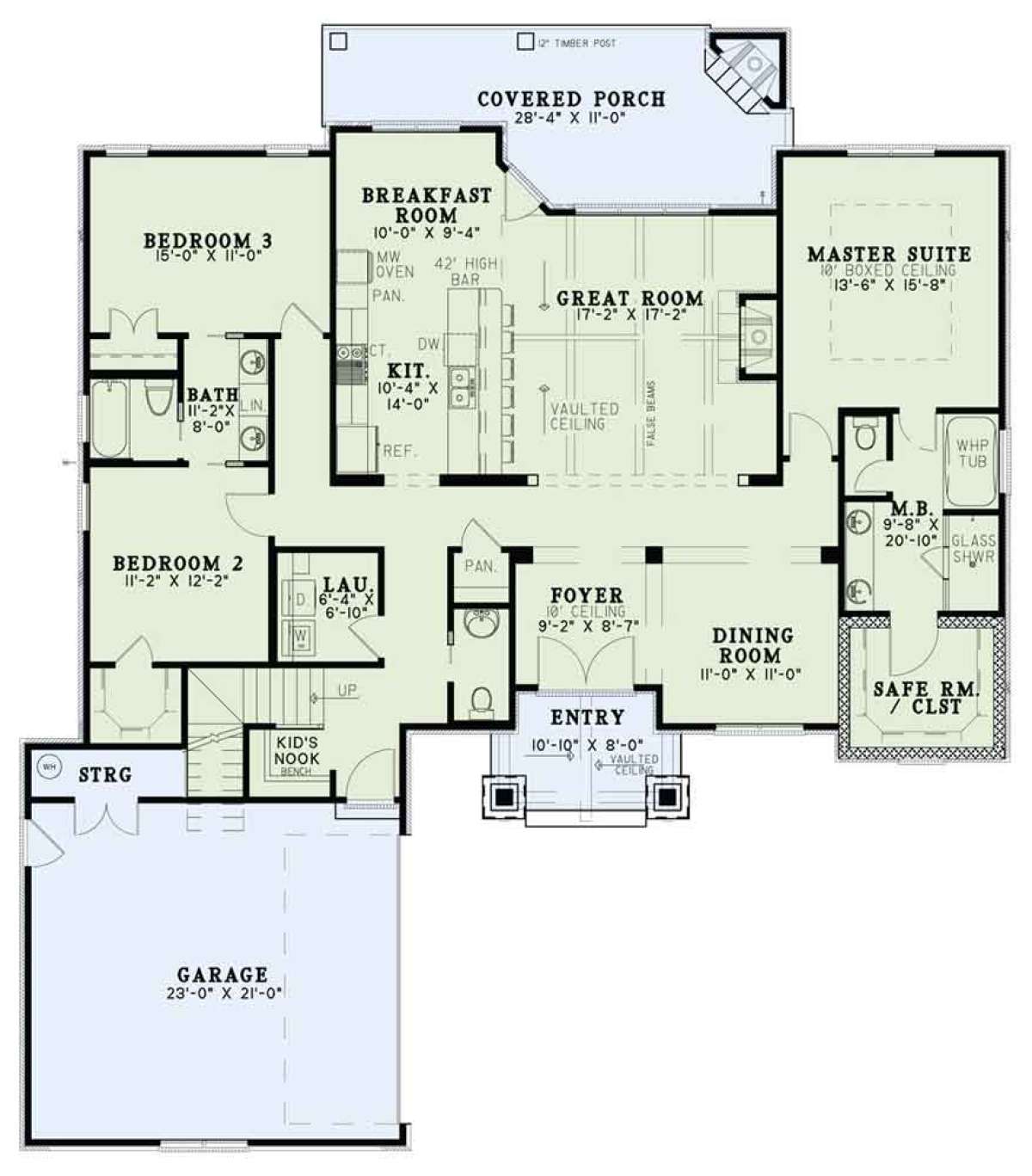

Floorplan 1 for House Plan #110-01022
Floorplan 2 for House Plan #110-01022
Floorplan 1
Floorplan 1 for House Plan #110-01022

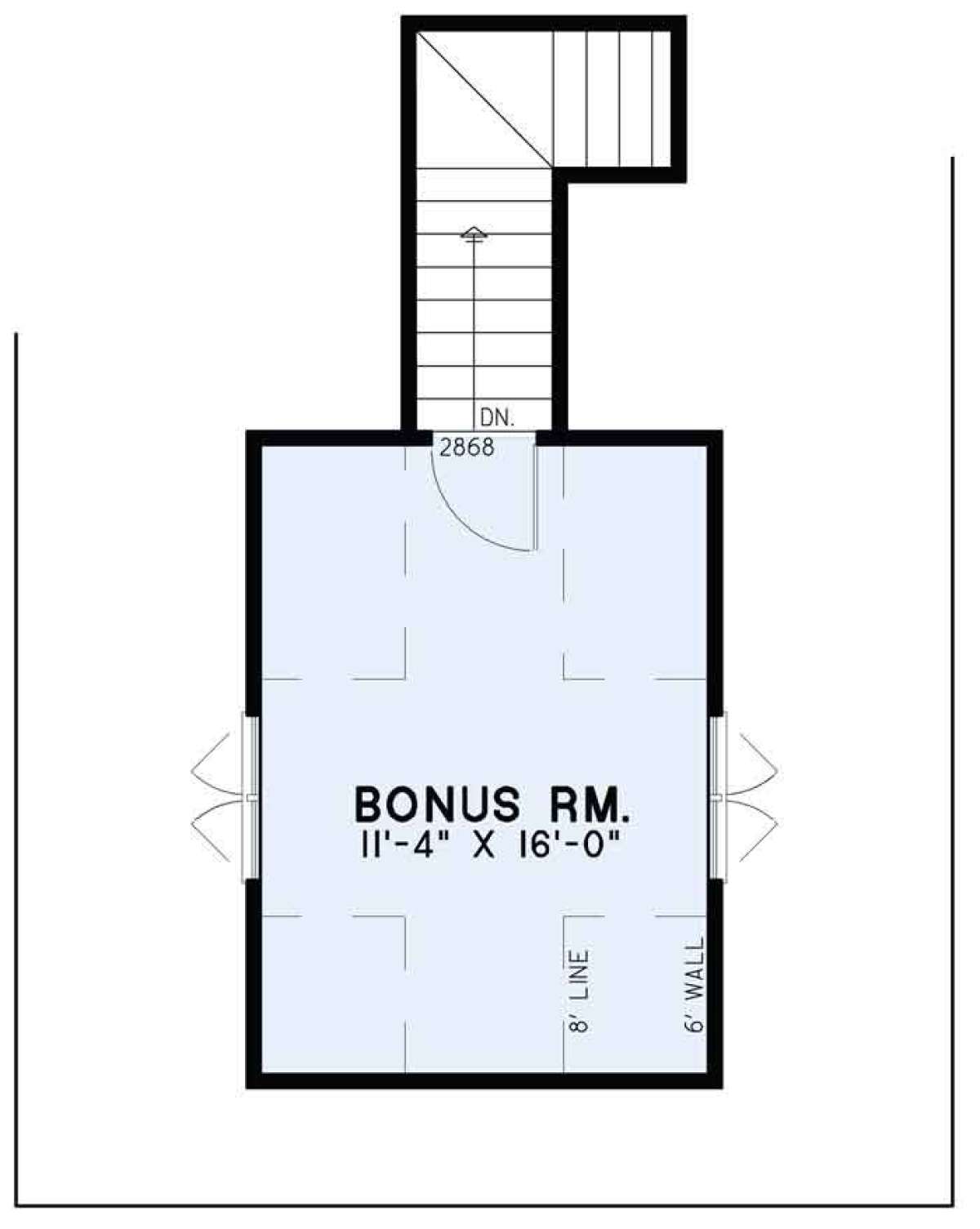

Floorplan 2
Floorplan 2 for House Plan #110-01022

Frequently Asked Questions


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    These are included for many interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

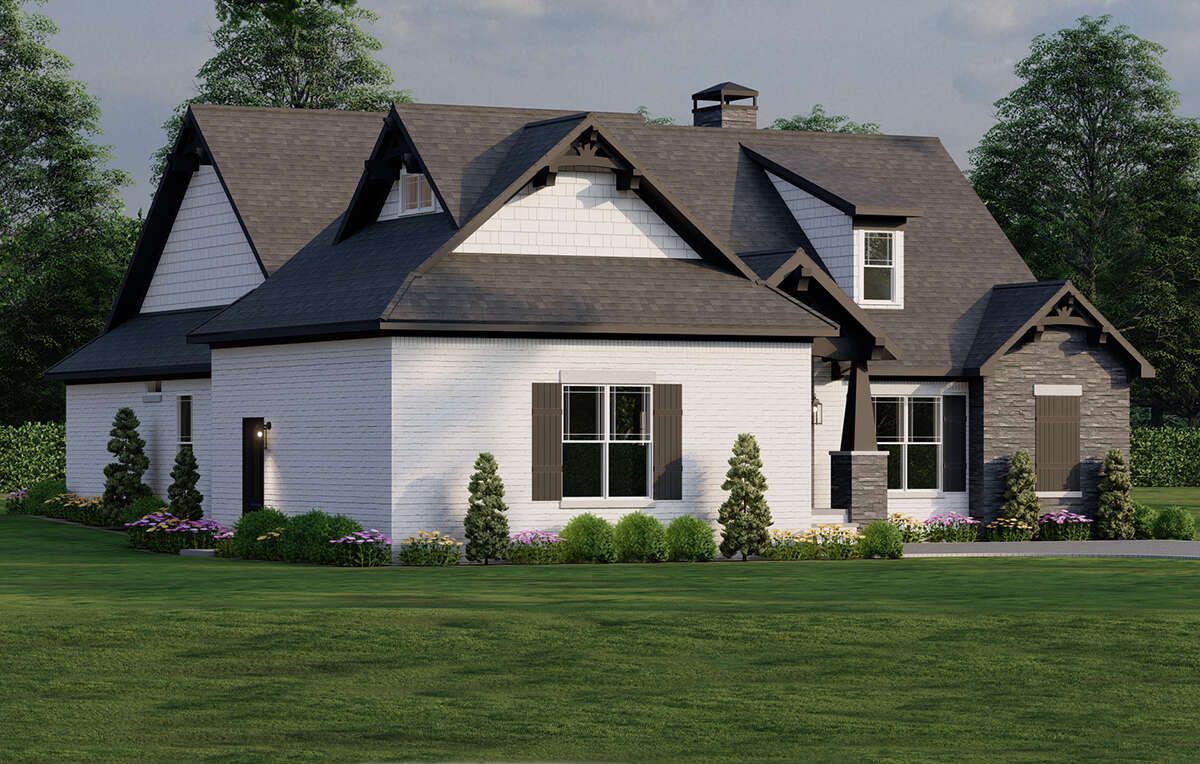

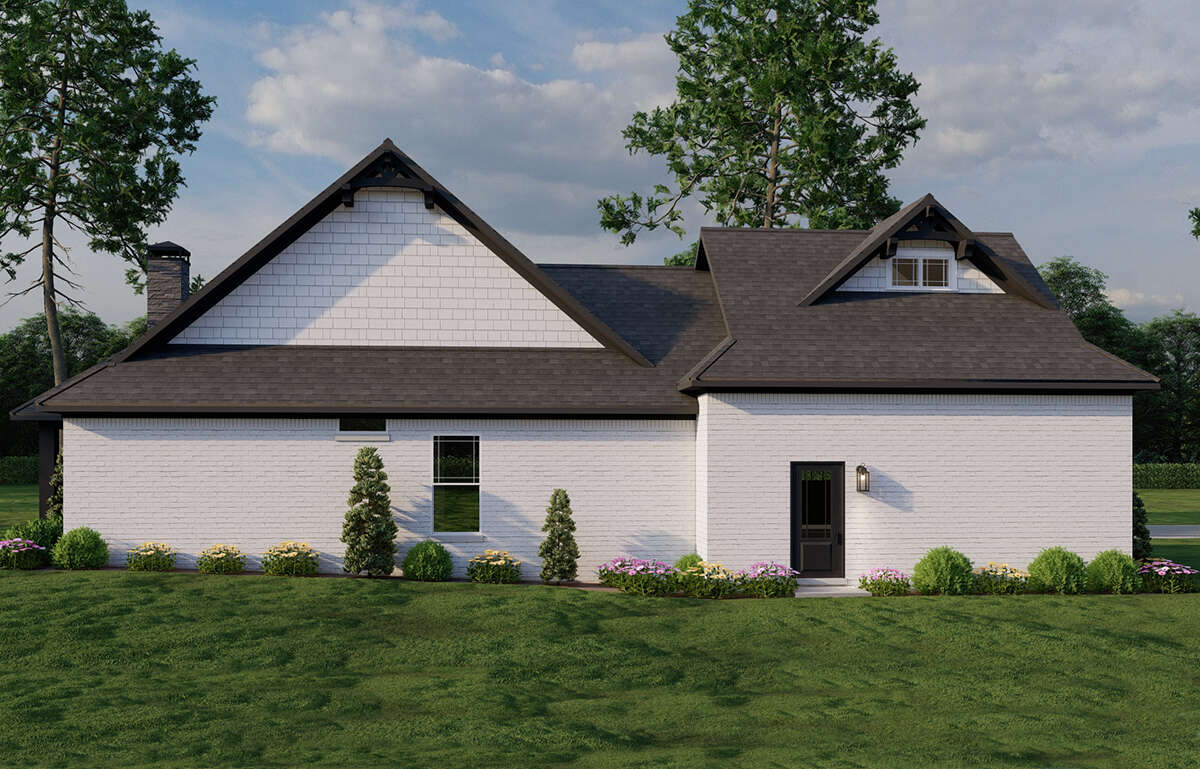

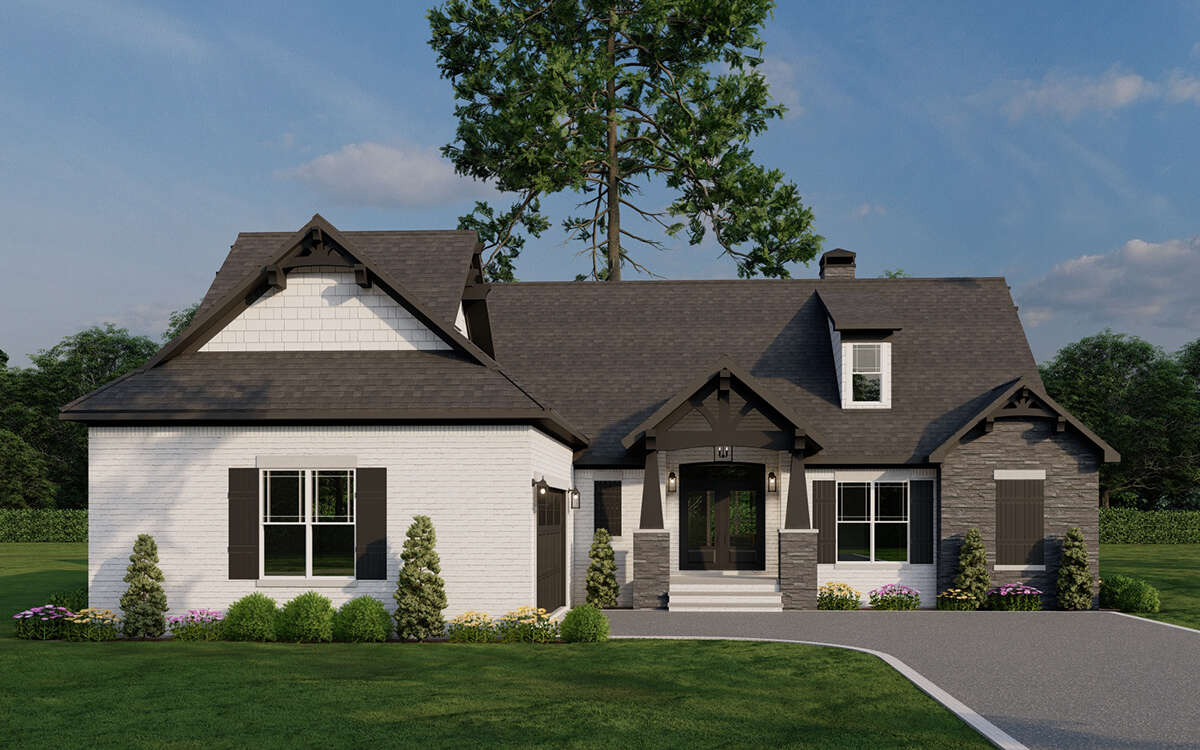

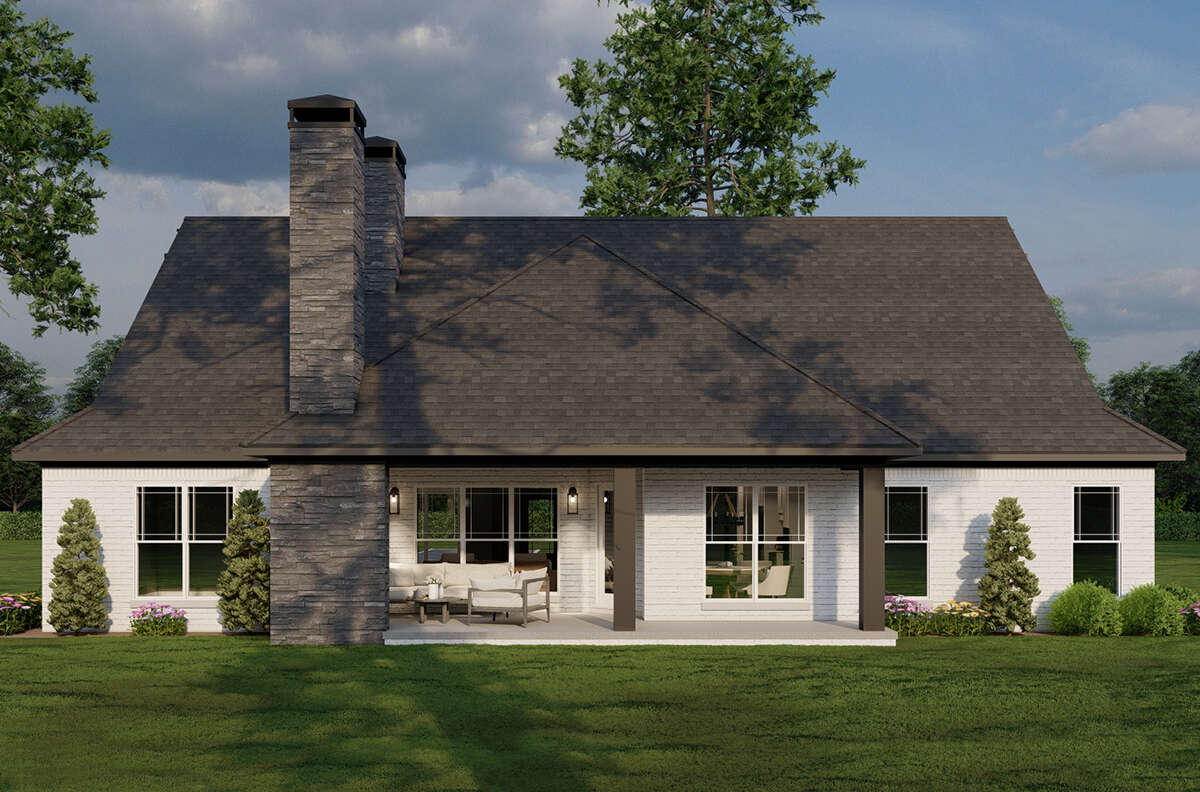

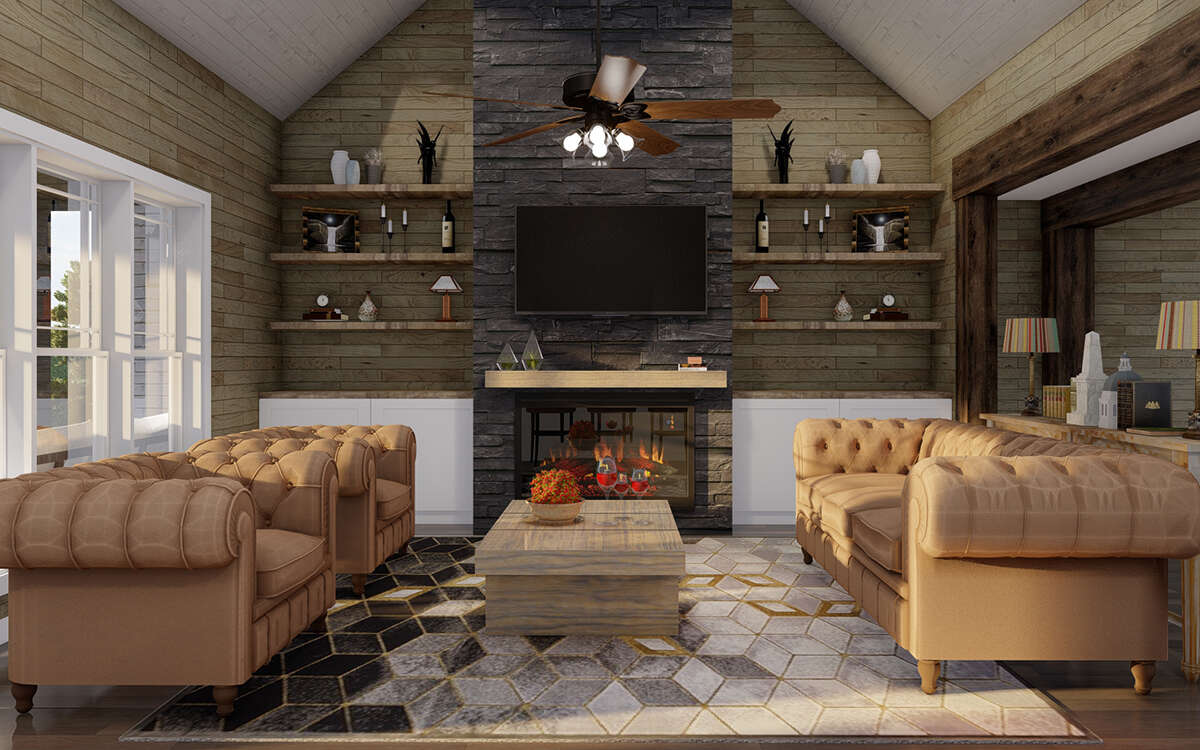

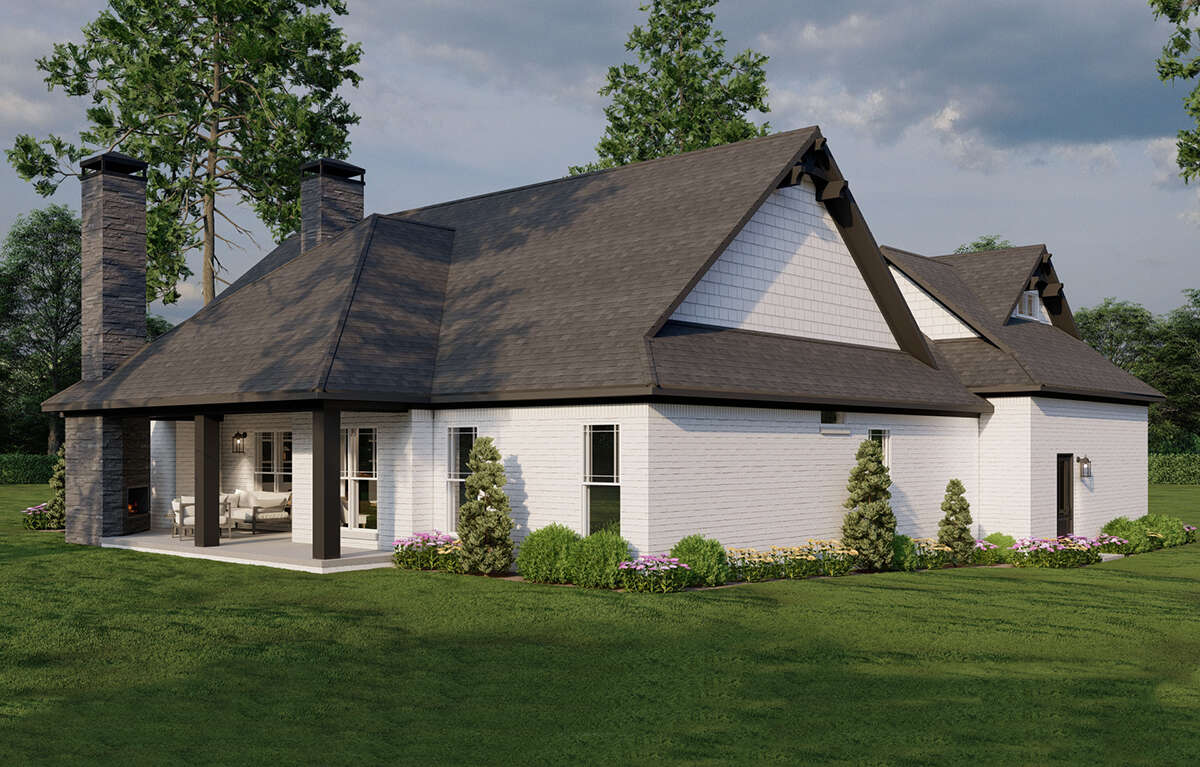

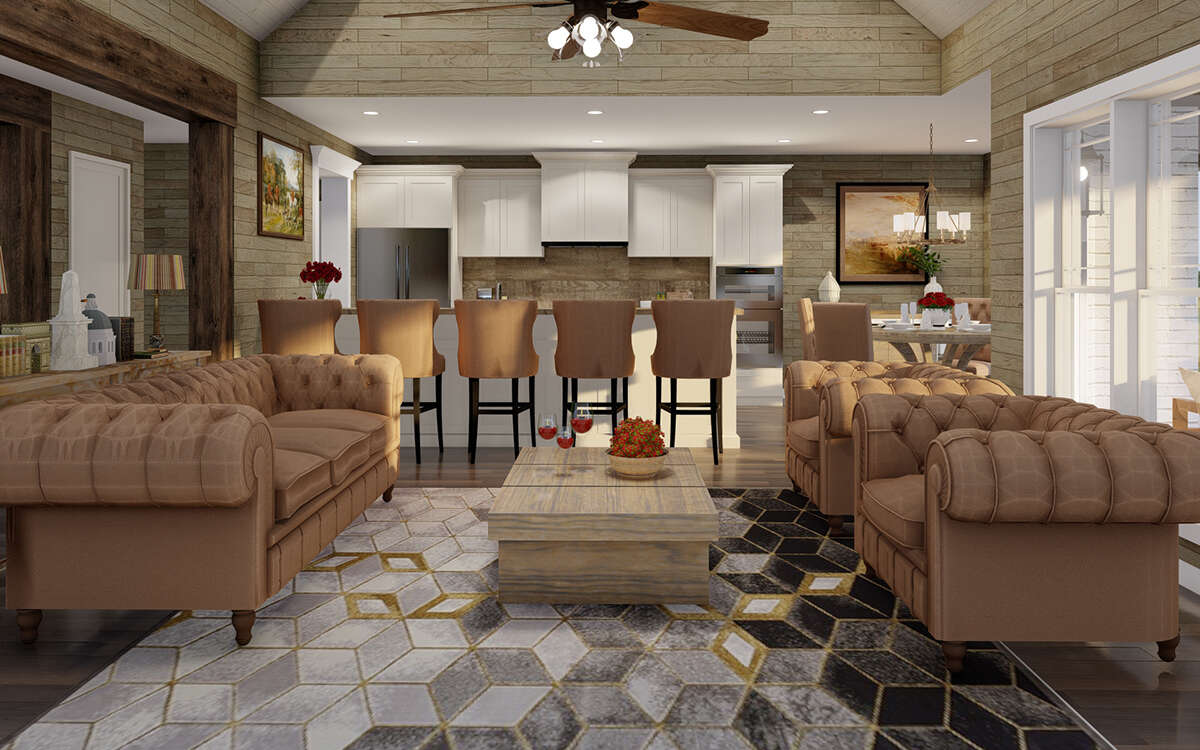

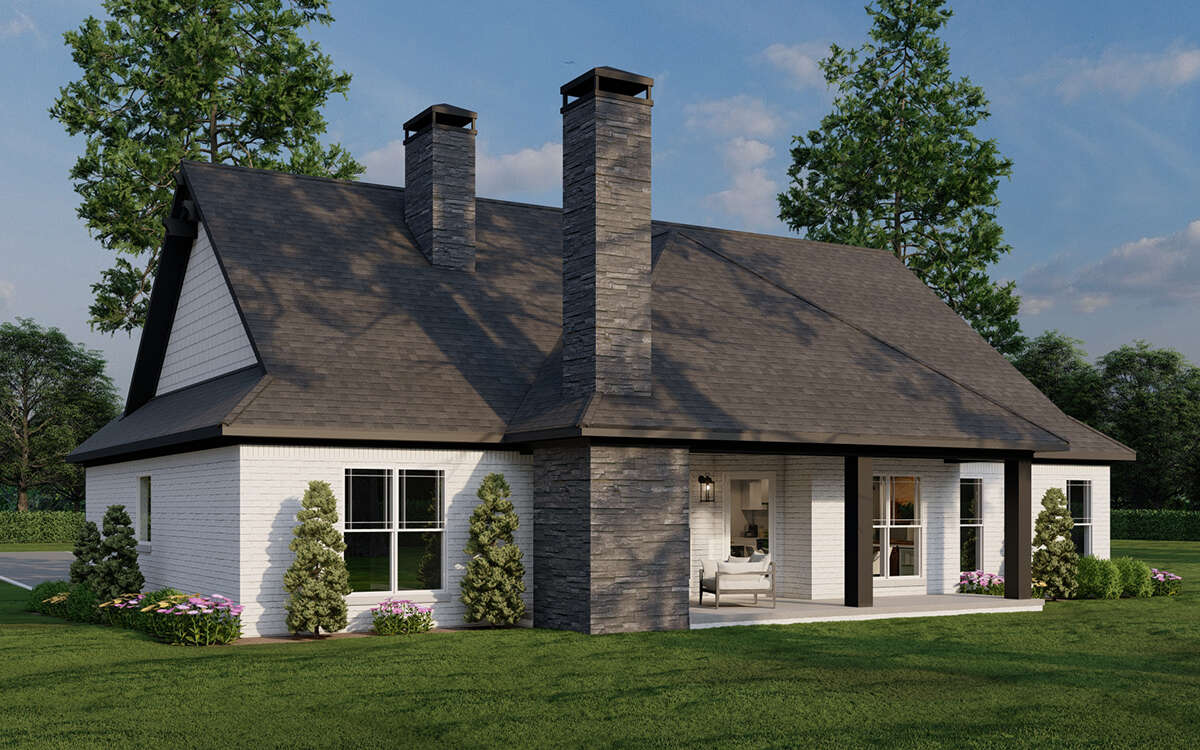

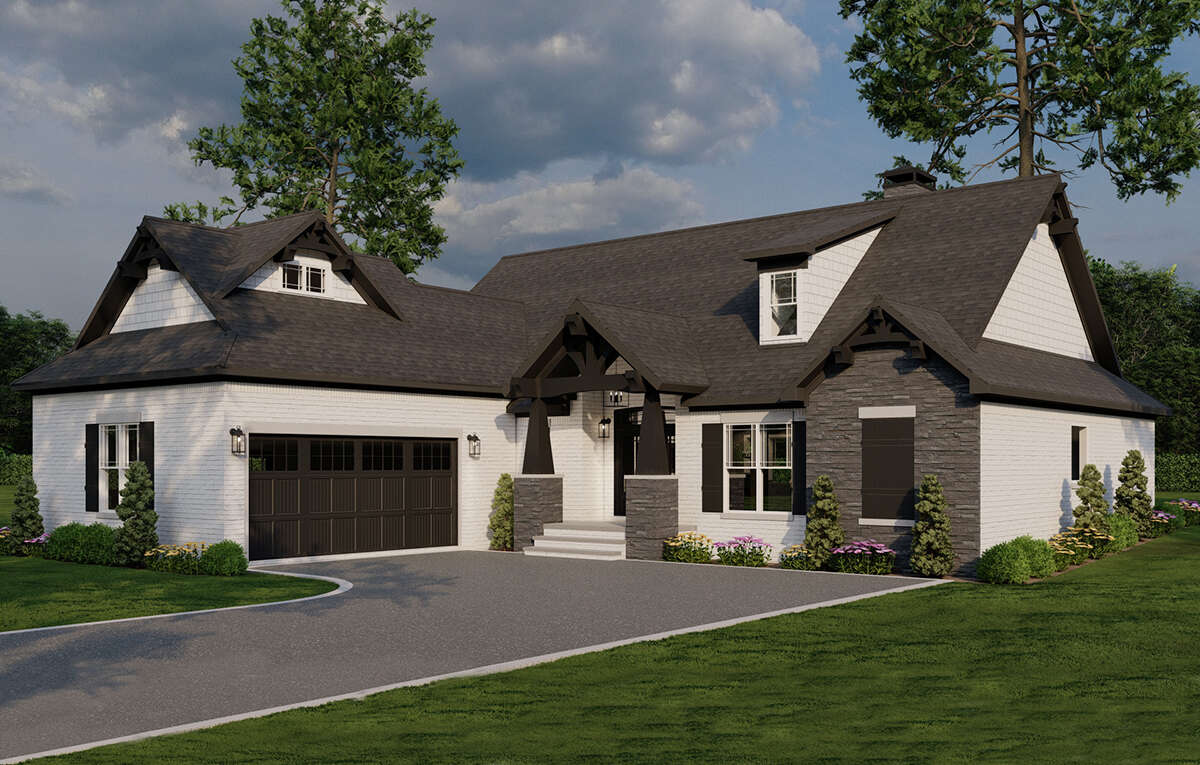

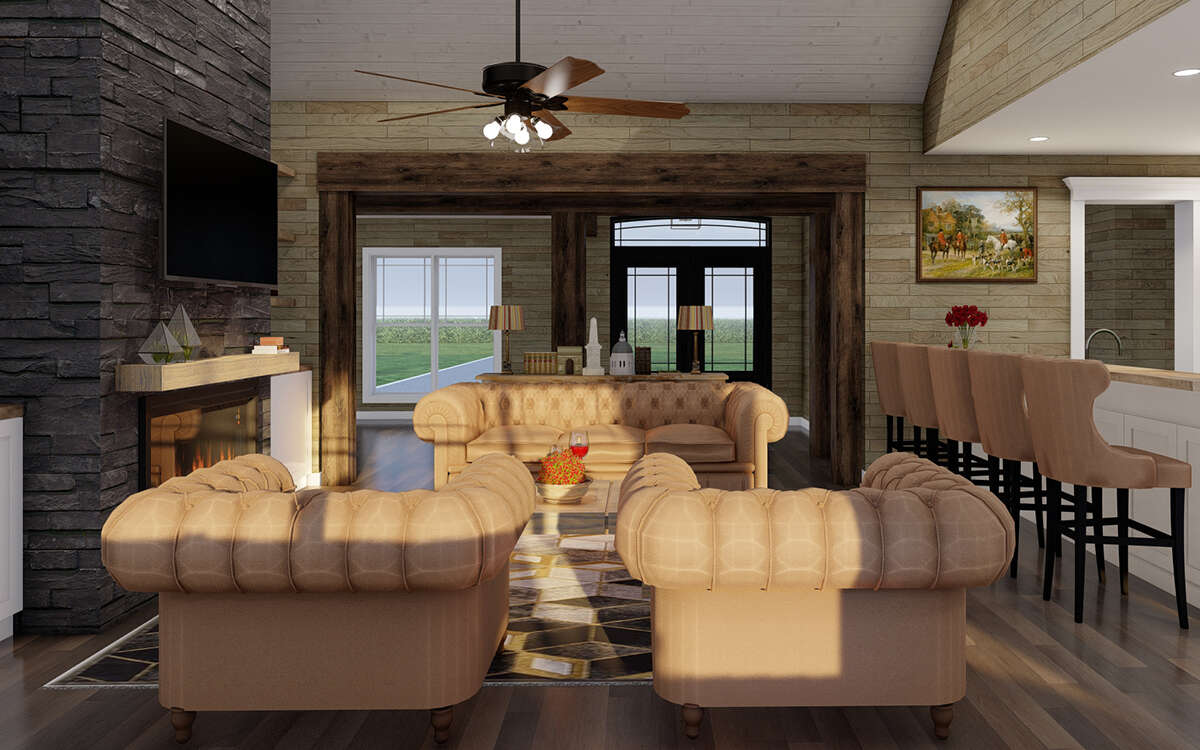

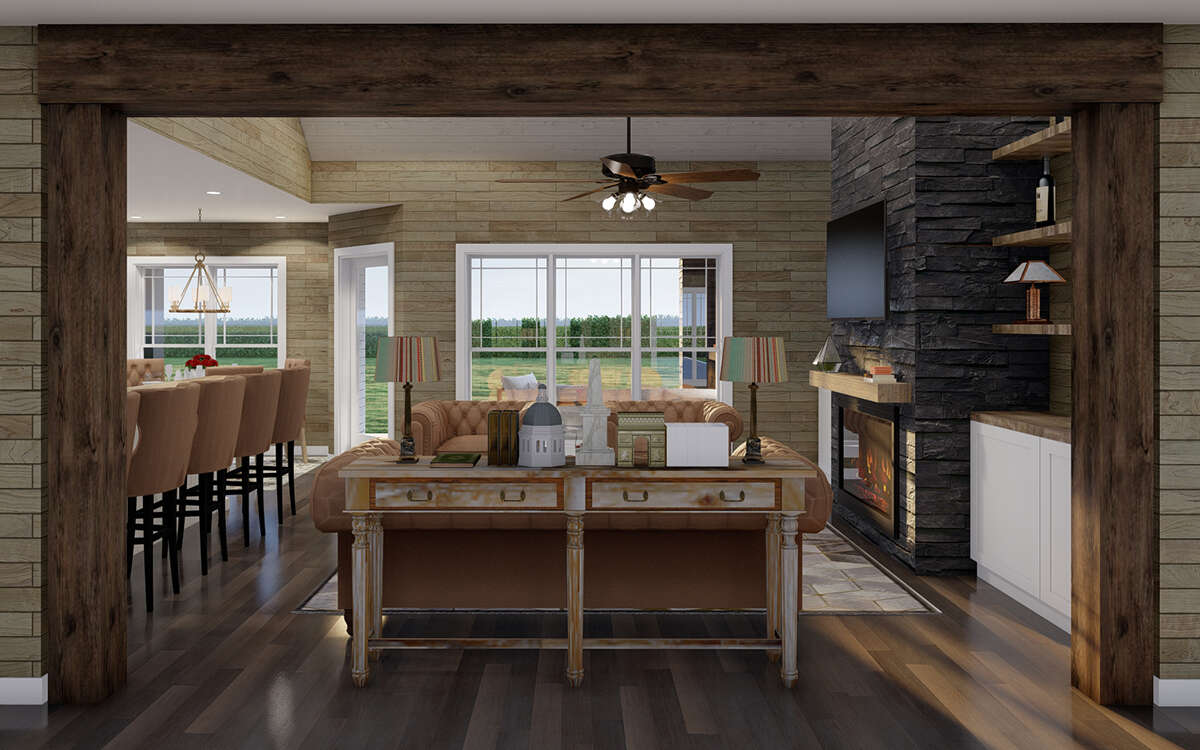

This Craftsman home design features a low maintenance brick and stone exterior with charming detail that offers tremendous curb appeal. There is an overhead window dormer, multiple decorative gables, a tidy courtyard entrance, and a front covered porch. The porch is highlighted with an overhead beamed gable, stone pillars, tapered beams and a double door entrance into the home’s interior. The interior space is defined with an open layout, a split bedroom plan, and approximately 2,091 square feet of living space. The single-story home is easily accessible and features a functional layout with great flow for entertaining. There is a second story bonus room which measures in excess of 13’x 22’; this space could function as numerous design spaces such as a home office, additional sleeping space or a craft/hobby room. The main floor features a spacious foyer with 10’ ceiling heights that opens onto the formal dining room and rear positioned great room. The dining space is highlighted with columned beams while the great room offers vaulted ceilings, a handsome fireplace, and a rear wall of windows overlooking the expansive covered porch. The rear covered porch is a spectacular outdoor space with a warming fireplace and plenty of room to relax and entertain. The open kitchen features an extensive 42” high bar with loads of casual dining space, two separate pantries, and an adjoining breakfast room. There is a two-car garage with attached storage space that leads into the kid’s nook, a guest bathroom and the staircase to the second-floor bonus room. The split bedroom plan offers a private oasis in the homeowner’s suite where there is a large bedroom highlighted with a 10’ boxed ceiling, an en suite bath featuring modern amenities that include a separate shower, whirlpool tub, and dual vanities while the oversized walk-in closet lies just beyond the bath. Bedrooms two and three enjoy good floor space, window views and a walk-in closet in one bedroom while the other features generous closet space. There is a Jack and Jill bathroom situated between the two bedrooms that feature double vanities, a linen closet and a tub/shower combination. This Craftsman family home is highlighted with a functional and versatile floor plan and a gorgeous exterior façade.
