Traditional Plan 110-01015

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,252
Beds 3
Bath 2
1/2 Baths 1
Car 3
Stories 1
Width 79' 6"
Depth 59' 2"

Floorplan Drawings

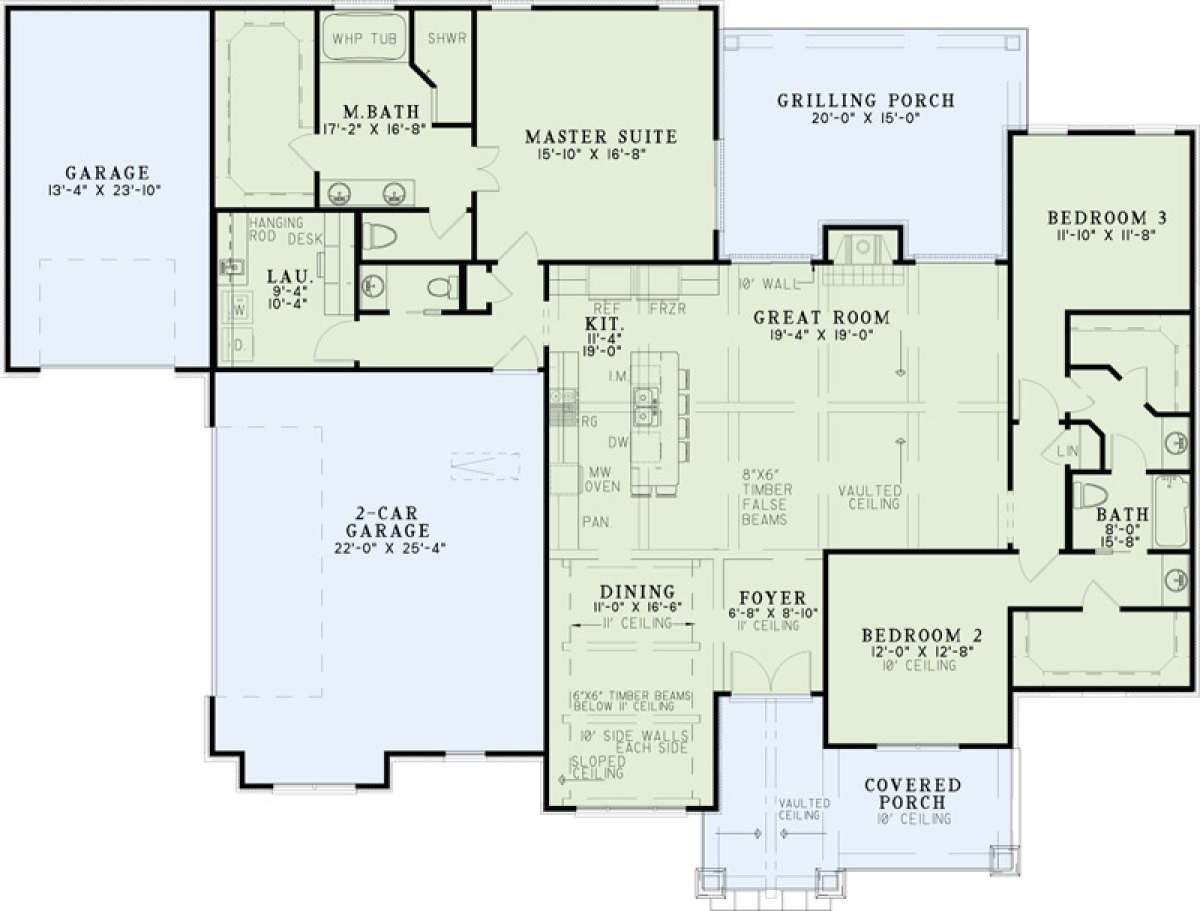

Floorplan 1

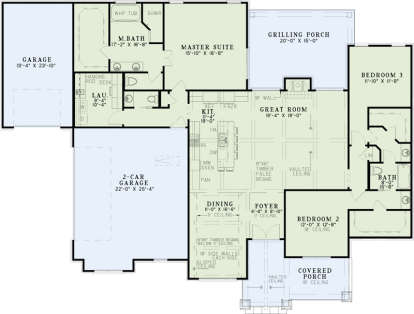

Floorplan 1 for House Plan #110-01015


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

An open concept floor plan and split bedroom design highlights the interior of this fabulous Traditional home. The exterior features a warm and inviting façade characterized by the use of brick and stone work, cedar shakes, diverse gables and rooflines and a front covered porch. Vaulted ceiling heights and expansive space enhances the porch where there is also a double door entrance into the home. The interior features a great layout for entertaining with approximately 2,252 square feet of living space, three bedrooms and two plus baths. Additionally, there is a three car garage which includes a side entry double bay and a front loading single bay. The home’s drawings come complete with a choice of slab, crawl space or basement foundation making this home a perfect design for versatility. Eleven foot ceiling heights dramatically open the foyer and the soaring ceiling heights continue into the main common rooms. There is a spacious dining room with timbered beams, a solid wall of windows and enough space to host special occasion family meals and/or holiday get-togethers. The open kitchen boasts of a separate pantry, great counter/cabinet space and a wraparound breakfast bar with loads of additional seating options and plenty of prep and work space. The great room continues the theme of large vaulted spaces; it measures in excess of 19’x19’, has a warming fireplace and double access points onto the rear grilling porch. The minimal hallway features a powder room for guests and a massive laundry/mudroom designed to keep the home tidy. The split bedroom plan features two spacious bedrooms on one side of the home; these bedrooms each contain unbelievably large walk-in closets, great window views and a shared jack and jill bath with separate vanities. The master suite is private and rear positioned featuring a large master bedroom with private access onto the porch, a tremendous walk-in closet and an elegant en suite bath designed with modern amenities which include a whirlpool tub, a separate shower and dual vanities. Beautiful, versatile and family friendly, this home is an outstanding value in terms of floor plan and lifestyle.
