European Plan 110-01004

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 4,187
Beds 3
Bath 3
1/2 Baths 2
Car 4
Stories 1
Width 109' 6"
Depth 92' 9"

Floorplan Drawings

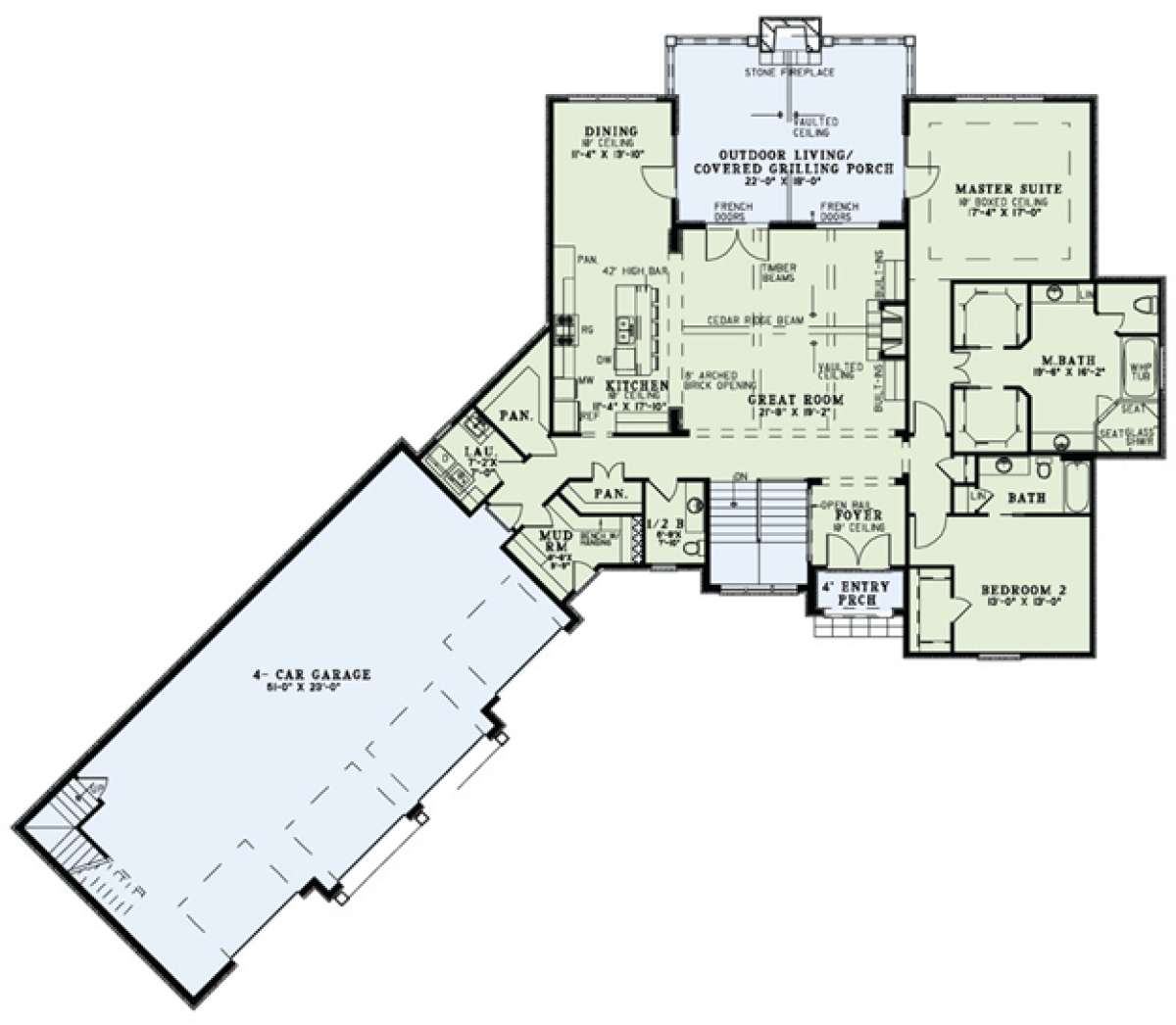

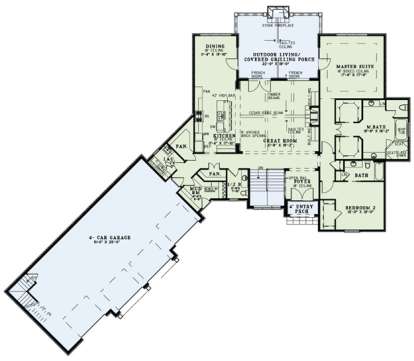

Floorplan 1
Floorplan 1 for House Plan #110-01004

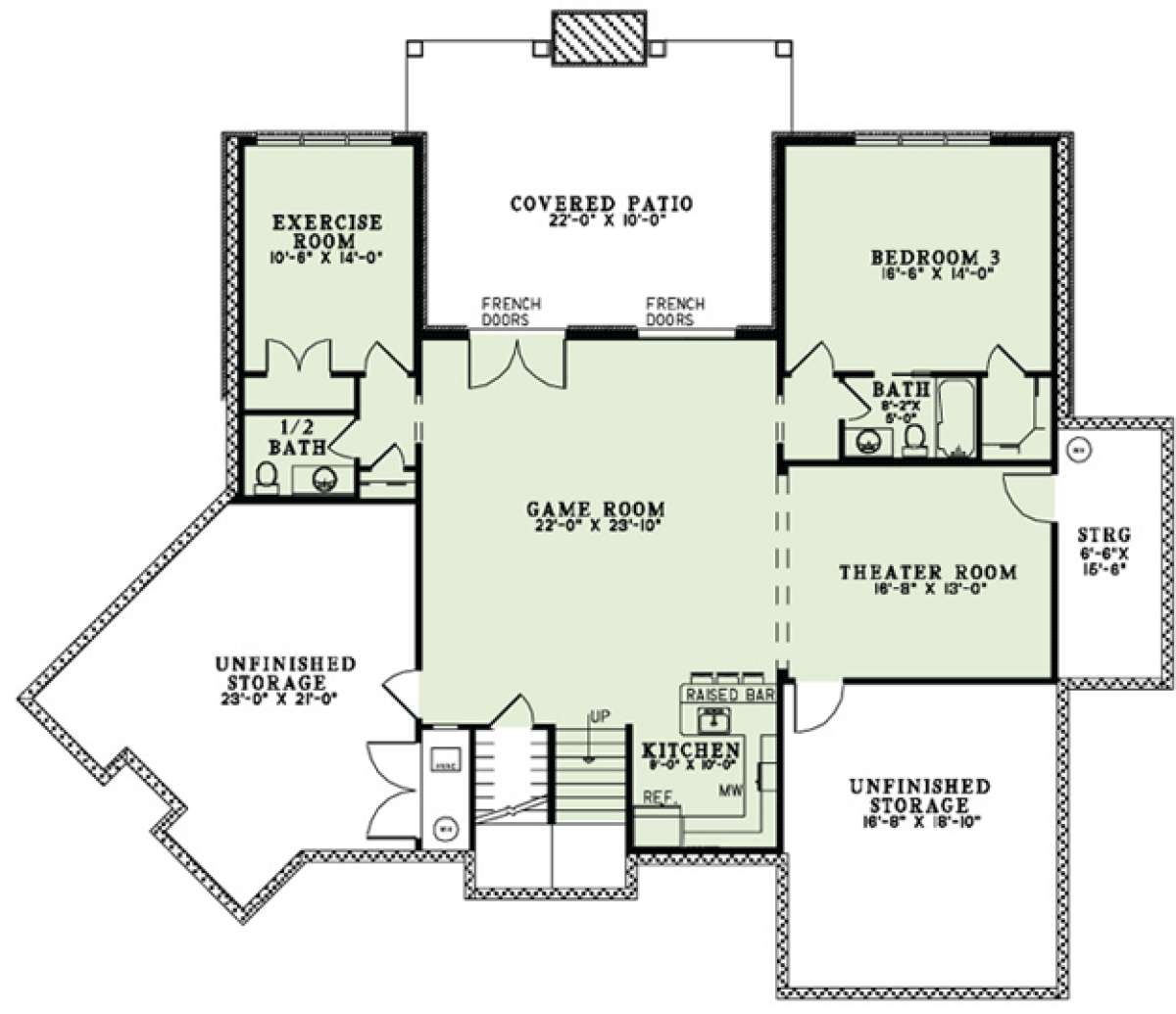

Floorplan 2
Floorplan 2 for House Plan #110-01004


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

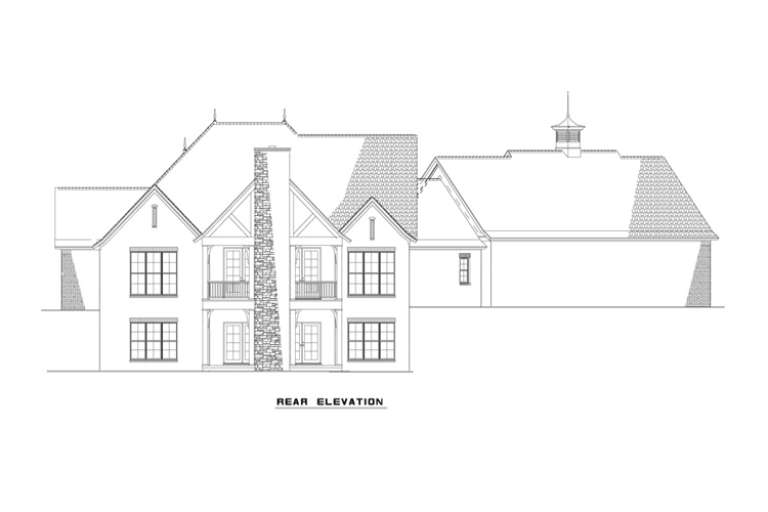

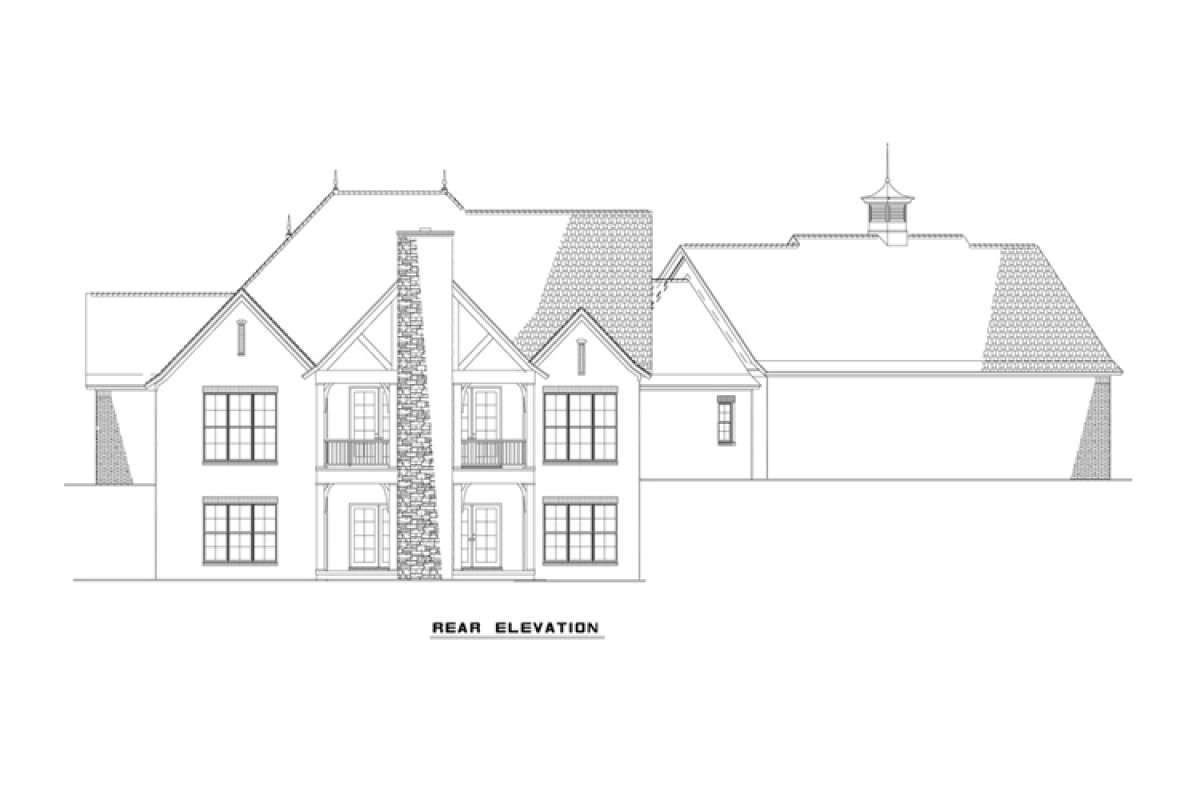

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This single story Ranch with walk-out basement foundation is generously proportioned both on the exterior and interior. The sprawling exterior is in excess of 109’ in width and offers attractive elements such as stone, wood and cedar. The addition of the shed and window dormers along with the wonderful window views beautifully tie into the organic nature of the home’s exterior. The interior floor plan features three bedrooms and four baths in approximately 3,815 square feet of living space. There is a four car garage which offers in excess of 1,305 square feet of vehicle and other storage items/gear and a large amount of storage space is also found in the basement foundation. A huge game/recreation room is centrally located on the terrace level where French doors lead to the covered patio. The opposite end of the game room features a raised bar area and small kitchen where snacks and light fare can be prepared. Flanking the game room is the media room and exercise room; both rooms are quite large and the exercise room includes a half bath and closet. The third bedroom suite is perfect for guests, teen-agers and/or a mother-in-law suite with its large bedroom, private access to the full bath and a walk-in closet. The main floor of the home’s interior features double door entry into the foyer with 10’ ceiling heights. Beyond the foyer is an enormous great room featuring vaulted ceiling with timber beams, a warming fireplace, built-in cabinetry and double French door sets leading onto the outdoor living space. This outdoor living space is highlighted with vaulted ceiling heights, a stone fireplace, plenty of entertaining and grilling space and access into the dining room on one side of the home and the master suite on the opposite side. The dining room is spacious with a three window wall feature and open access to the kitchen. The grand kitchen is highlighted with a large center island bar with plenty of additional seating, plentiful cabinet and counter space and there are double walk-in pantries directly off the kitchen. There is also a guest powder room, large laundry room and spacious mudroom located off the garage; perfect for easy clean-up and a tidy home environment. The two remaining bedrooms are situated across the home’s interior where the second bedroom features a private full bath with linen closet and a large walk-in closet. The master suite is a private oasis solely designed for the homeowner’s pleasure and comfort; a large boxed ceiling bedroom features private access onto the covered porch and a wall of windows on the exterior wall. Double, oversized his and hers walk-in closets line the hallway to the elegant master bath. The en suite bath offers an abundance of space, separate dual vanities, a garden tub, an oversized corner shower and a compartmentalized toilet area. This beautifully designed family home features an attractive exterior and an interior floor plan that is well laid-out and functional.
