Lake Front Plan 110-00996

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,752
Beds 4
Bath 3
1/2 Baths 1
Car 3
Stories 1.5
Width 101' 8"
Depth 86' 8"

Floorplan Drawings

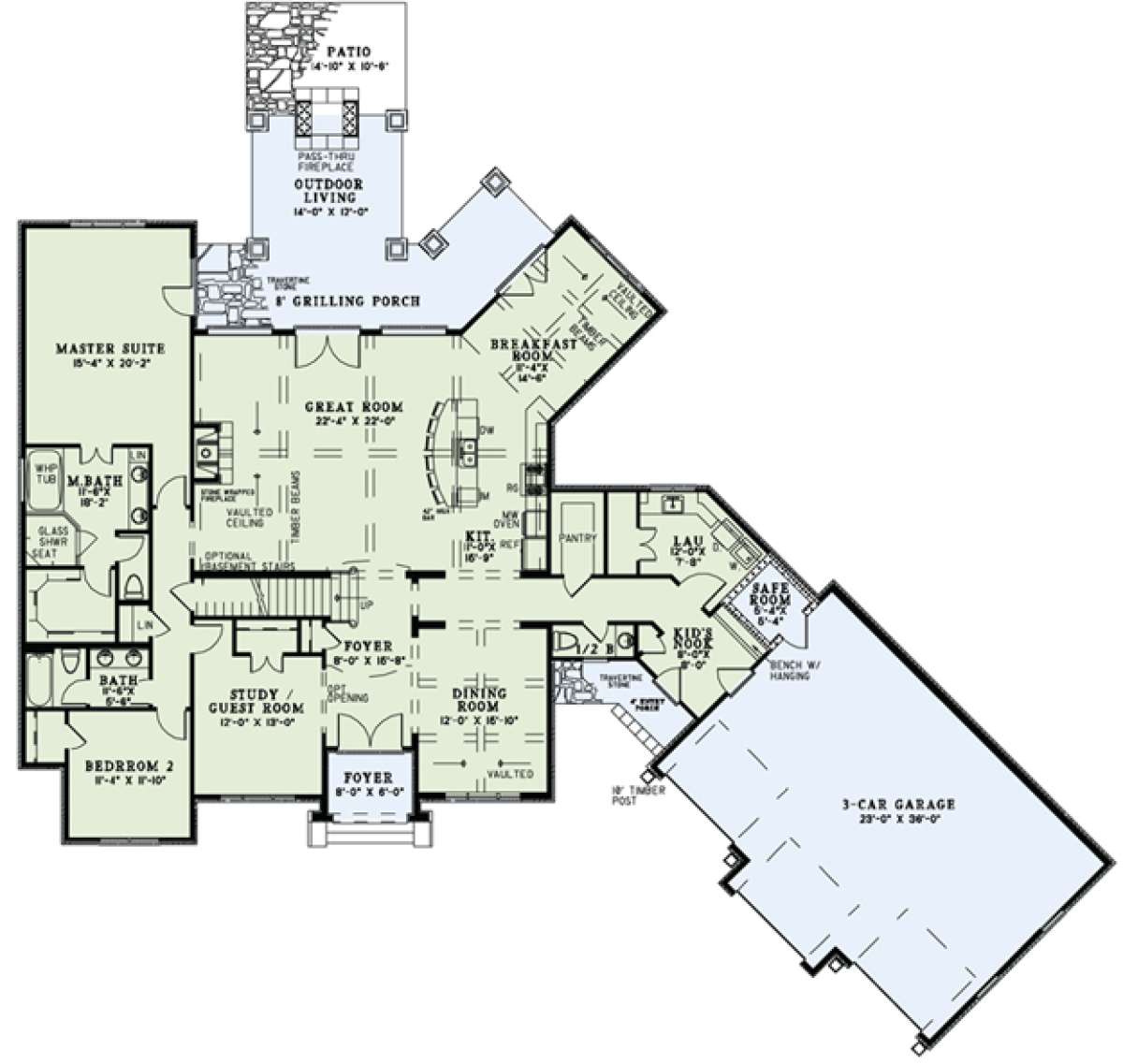

Floorplan 1
Floorplan 1 for House Plan #110-00996

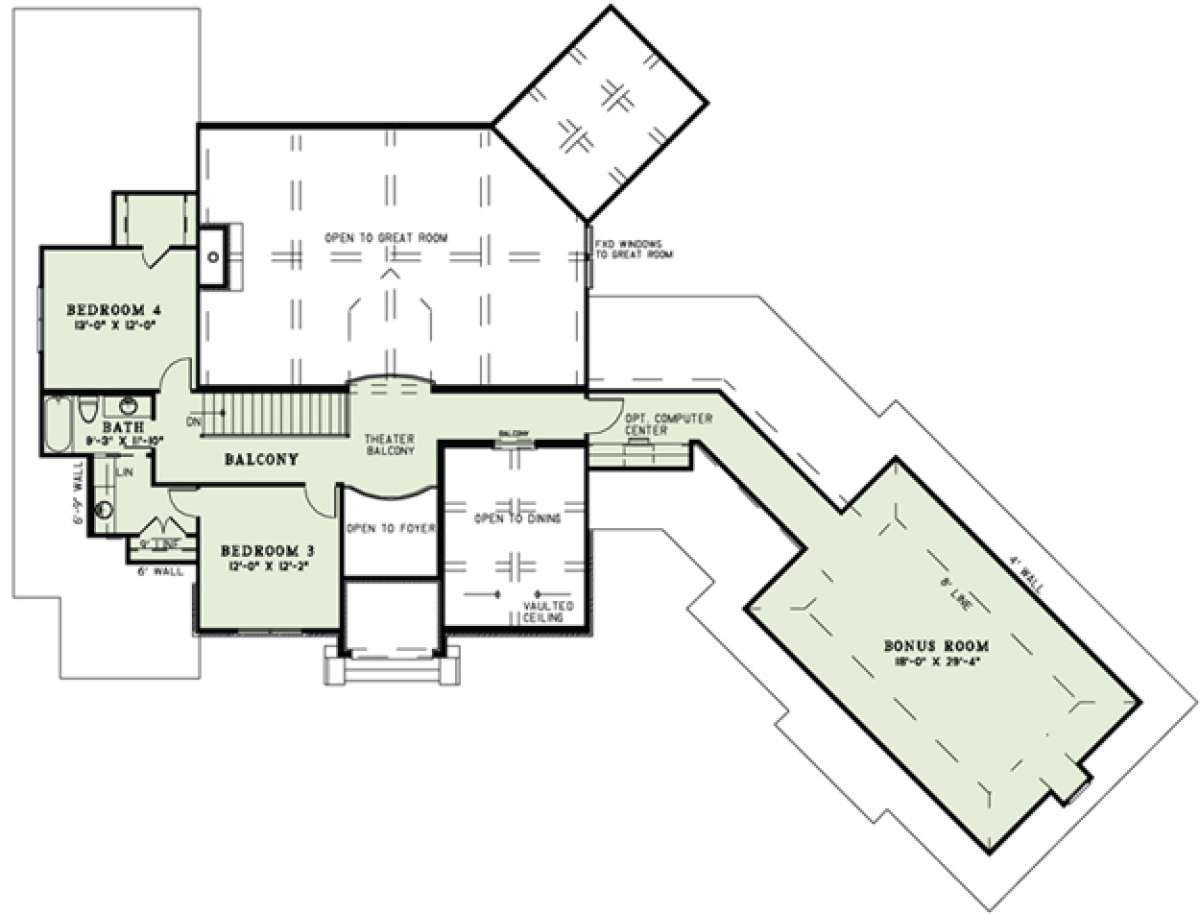

Floorplan 2
Floorplan 2 for House Plan #110-00996


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This beautiful Lakefront house plan showcases a striking organic exterior and an equally stunning interior floor plan. Design elements consisting of stone and brick work, wonderful window views and attractive curb appeal outline the home’s exterior. The interior layout offers approximately 3,752 square feet of living space which incorporates four bedrooms and three plus baths into the 1.5 storied home. The front alcove entrance is highlighted with a double door entryway, there is a side/friend’s porch entry and the three car garage is nicely trimmed to match the home’s exterior without detracting from the home’s curb appeal. The spacious foyer is flanked by the formal dining room and guest/study; both rooms offer fabulous window views and the dining room features vaulted ceilings and a hall pass-thru to the kitchen. Beyond the foyer is an enormous great room which features timber beamed ceilings, vaulted heights, a warming fireplace and French door access onto the grand outdoor space. There is a large angled grilling porch and the pass-thru fireplace is on either side of the outdoor living space and subsequent patio area. This is great space for entertaining, family fun and hosting outdoor bar-b-ques. The far end of the grilling porch features a second pair of French doors that lead into the breakfast room which is impressively sized, features timber beams overhead as well as vaulted ceilings. The adjacent kitchen is a pleasurable space to prepare meals, gather with family and friends and casually dine. There is a large center island, plenty of counter and cabinet space and an enormous food storage pantry is located directly off the kitchen. A guest powder room, large laundry room, kid’s drop-off zone and a safe room are situated between the kitchen and entrance to the three car family garage. The opposite wing of the main floor features a second bedroom with walk-in closet and nearby access to a full bath with double lavatories. The master suite occupies the remainder of the wing and features a large master bedroom with private access onto the outdoor space. The master bath is highlighted with dual vanities, a whirlpool tub, separate shower, a compartmentalized toilet area and a large master walk-in closet is located at the rear of the bath. Upstairs, there is a balcony hallway with overlooks onto the dining and great rooms below. Bedroom three is spacious with double window views and separate vanity and closet space while the fourth bedroom offers a walk-in closet and a separate vanity before accessing the remainder of the jack and jill bath. Located at the opposite endcap of the hallway is an optional computer center and a huge bonus room, perfect as a playroom, family entertaining space or teen-age lounge. This gorgeously designed Lakefront house plan features amazing family and entertaining space, a lovely exterior and excellent outdoor space.
