Craftsman Plan 110-00980

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,307
Beds 3
Bath 2
1/2 Baths 1
Car 3
Stories 1
Width 68' 2"
Depth 100' 9"

Floorplan Drawings

Floorplan 1

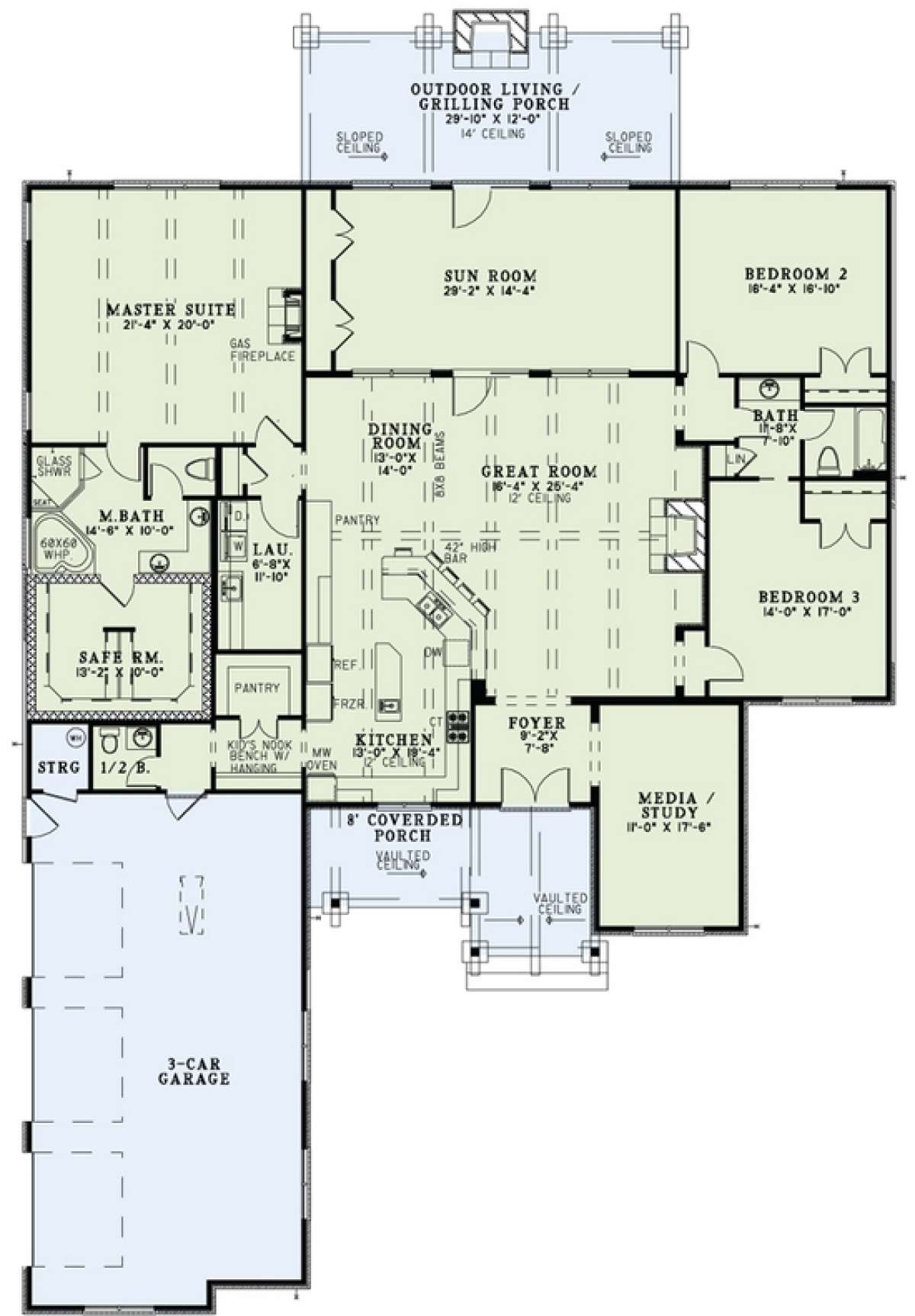

Floorplan 1 for House Plan #110-00980


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS

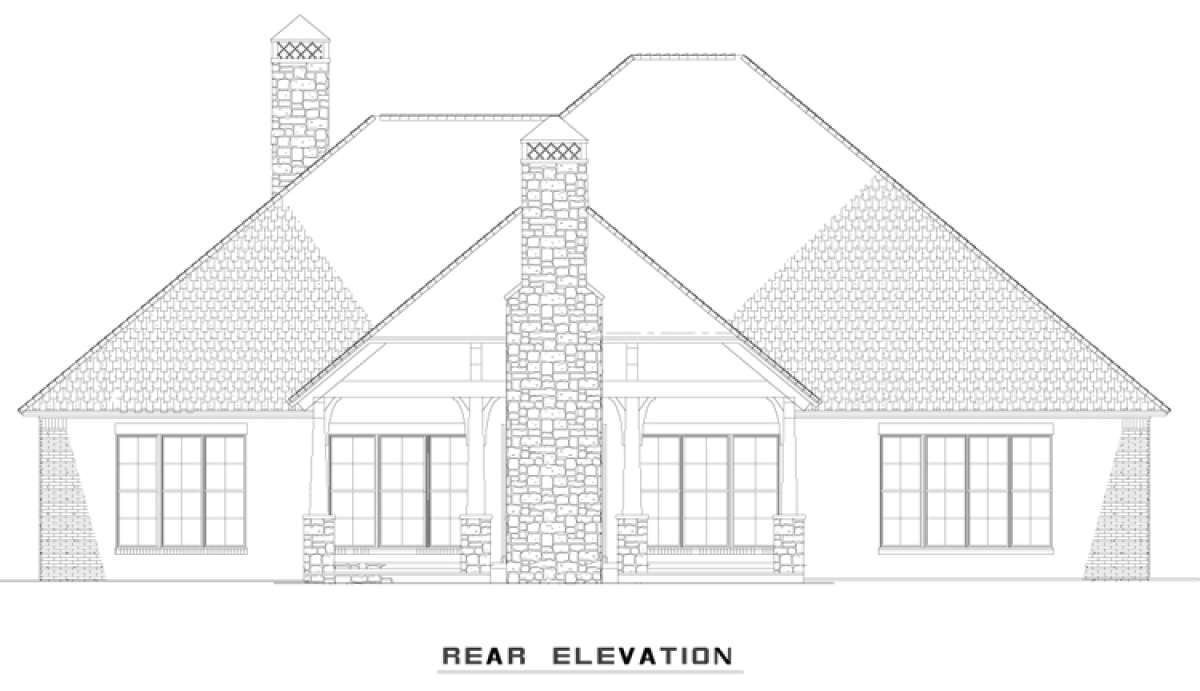

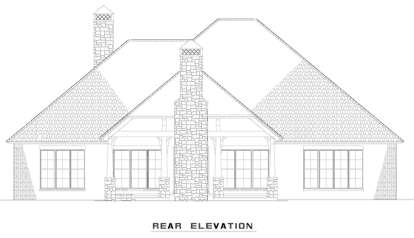

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Craftsman inspired house plan features a lovely front exterior that includes low maintenance brick work, stone pillars with tapered wood beams and supports, and an overhead open A-frame gable. The spacious interior floor plan includes approximately 3,307 square feet of living space that incorporates three bedrooms and two plus baths into the one story home. There is a huge three car side entry garage with additional storage space that directly leads into the home where a half bath, mudroom and food storage pantry are located. The family laundry room is situated on the rear wall of the food pantry and offers a sink and counter space along with the W/D space. The front foyer entrance features a side media/study room, perfect for viewing movies, reading and/or a study room. Beyond the foyer, is the great room and open concept layout where large spaces with overhead timber trusses trim the ceiling. The great room features a handsome fireplace, an adjoining dining space with access to an enormous sun room, which measures in excess of 29’x14’ and there is a subsequent outdoor living/grilling porch. An angled 42” breakfast bar, a large center island and a plethora of counter and cabinet space are featured in the gourmet kitchen. This combination of comprehensive indoor and outdoor space is perfect for family relaxing and enjoyable hosting of large gatherings of family and friends.
The split bedroom plan features two oversized family bedrooms and one bath located on one side of the home. Both bedrooms enjoy generous floor space, great window views and a shared bath with private access from bedroom three. A luxurious master suite is situated on the opposite side of the floor plan for privacy and includes an elegant master bedroom with incredible square footage, a gas log fireplace and plentiful window views. There is an adjoining master bath with a whirlpool tub, a glass shower, dual lavatories, a compartmentalized toilet area and attached walk-in closet/safe room. A classic exterior and spacious interior combine to form a lovely family home.
