Mountain Plan 110-00972


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,579
Beds 4
Bath 4
1/2 Baths 1
Car 2
Stories 2
Width 93' 6"
Depth 70' 9"

Floorplan Drawings

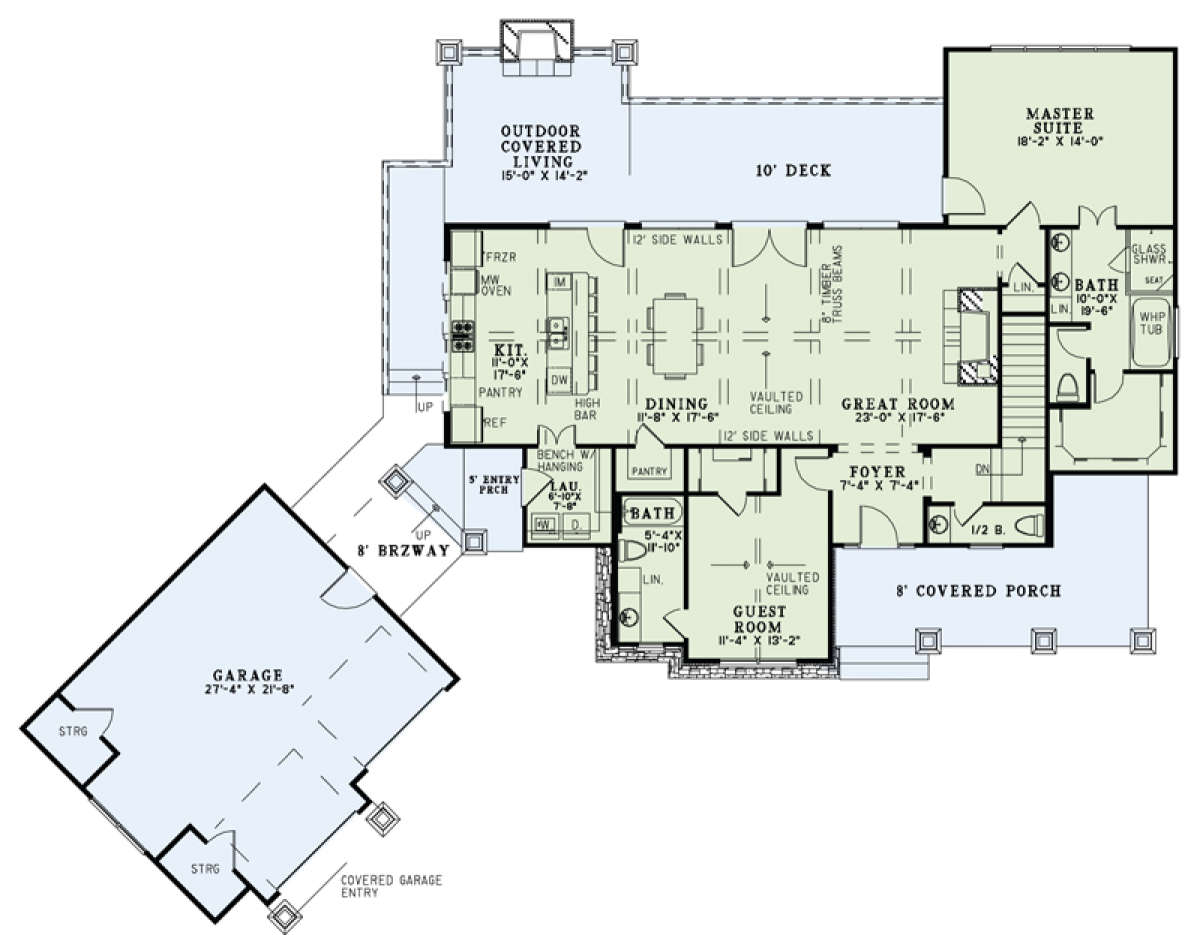

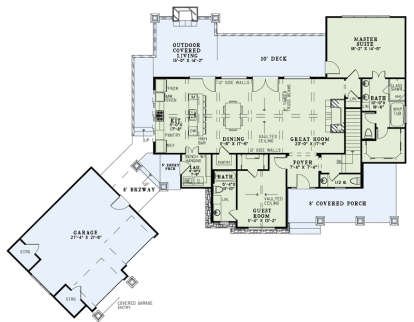

Floorplan 1
Floorplan 1 for House Plan #110-00972
Basement Floor Plan
Basement Floor Plan for House Plan #110-00972

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    These are included for many interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

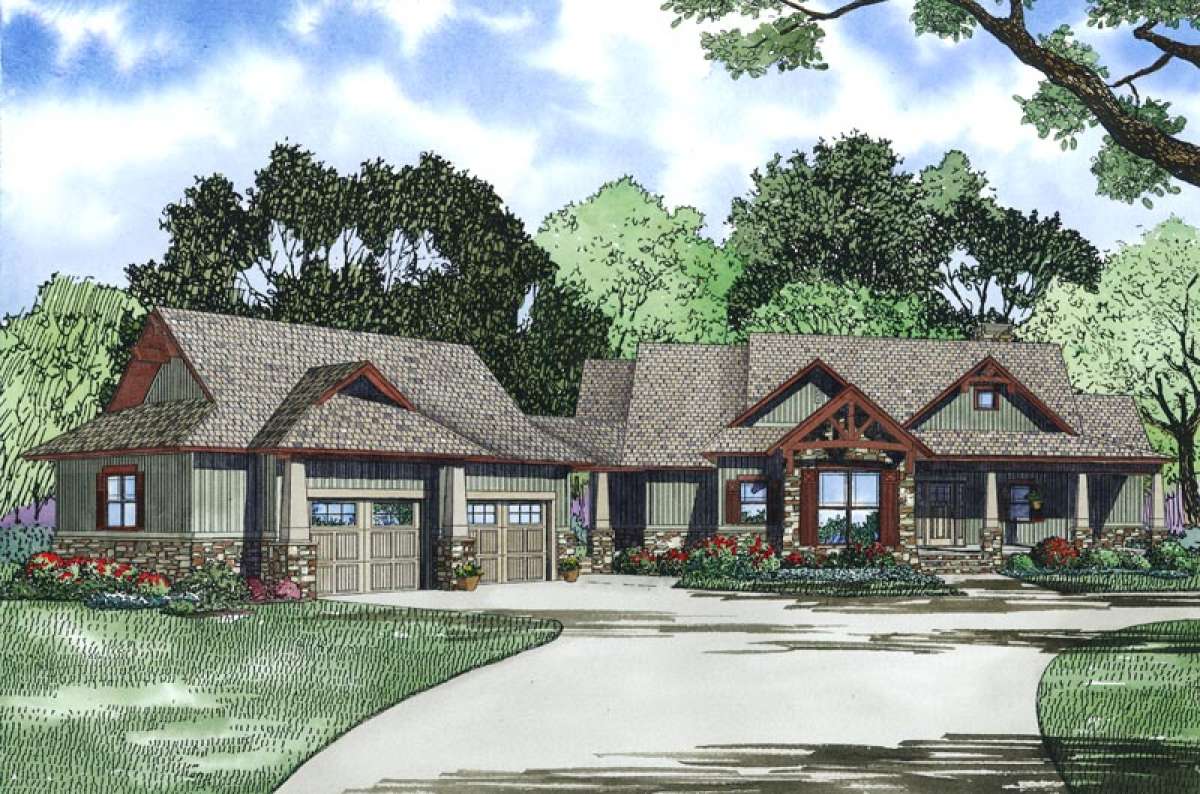

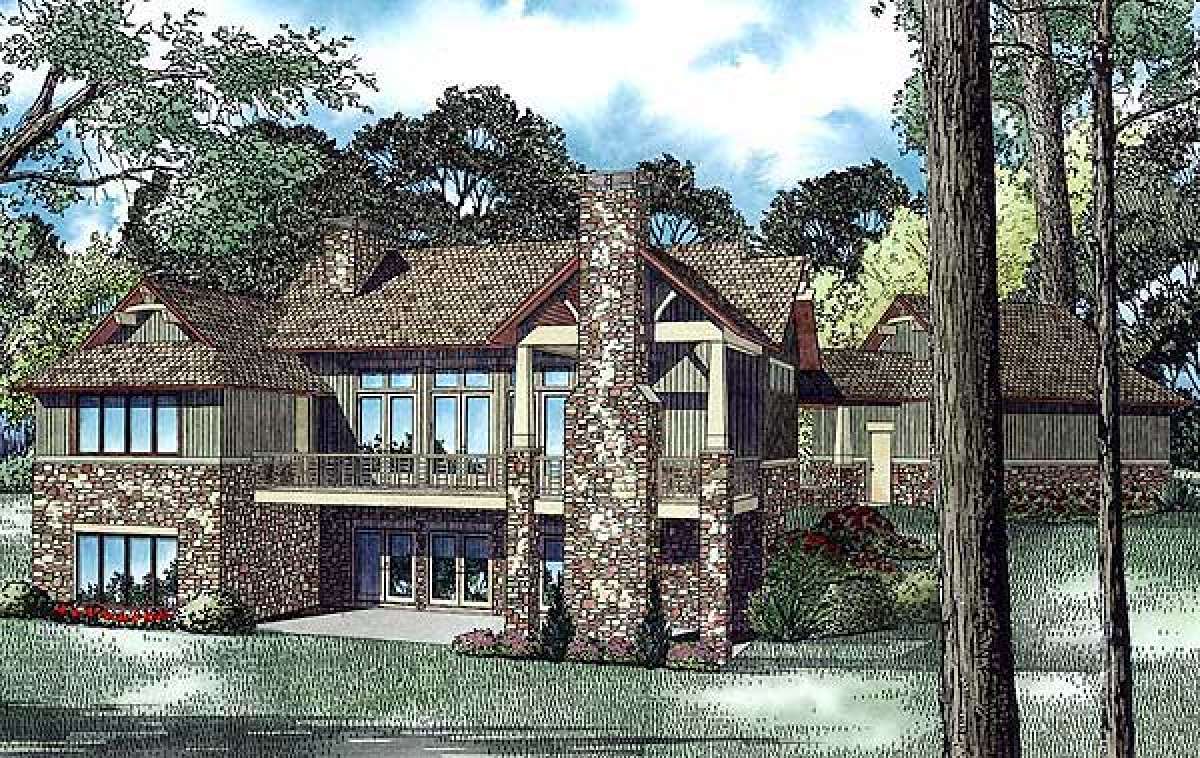

Artful exterior construction composed of a variety of architectural design elements such as an expansive roofline, stacked stone and vertical siding, stone supported tapered beams and a front covered porch provide the framework for this Mountain house plan. Stacked stone continues around the rear of the home framing two thirds of the home while also outlining the chimney wall and there is an extensive amount of outdoor space and window vista views. A comprehensive floor plan features approximately 3,574 square feet of space which includes four bedrooms, four plus baths and a daylight basement foundation. The L-shaped front covered porch leads to the spacious foyer which, in turn, opens onto a massive open layout that includes a great room, dining room and grand kitchen. The vaulted great room measures in excess of 23’x17’, with timber truss beams overhead, a warming fireplace and French door access onto the outdoor space. This space is expansive with an open deck, an outdoor covered living room with fireplace and a side deck leading to the breezeway which connects the home and detached garage. The garage features vehicle space for two automobiles and double storage areas and there is a small entry porch on the front side of the breezeway, as well, leading to the laundry room for ease of clean-up. The dining room and kitchen are open to the great room and feature outstanding space and an impressive array of modern amenities including a huge breakfast bar, separate double pantries and a second exit point onto the outdoor space. There is a main level guest suite with vaulted ceilings, a walk-in closet and a private bath. The master retreat is located on the main level, as well and contains a master bedroom with private deck access, an enormous walk-in closet and an en suite bath featuring a glass shower with seating and a whirlpool tub.

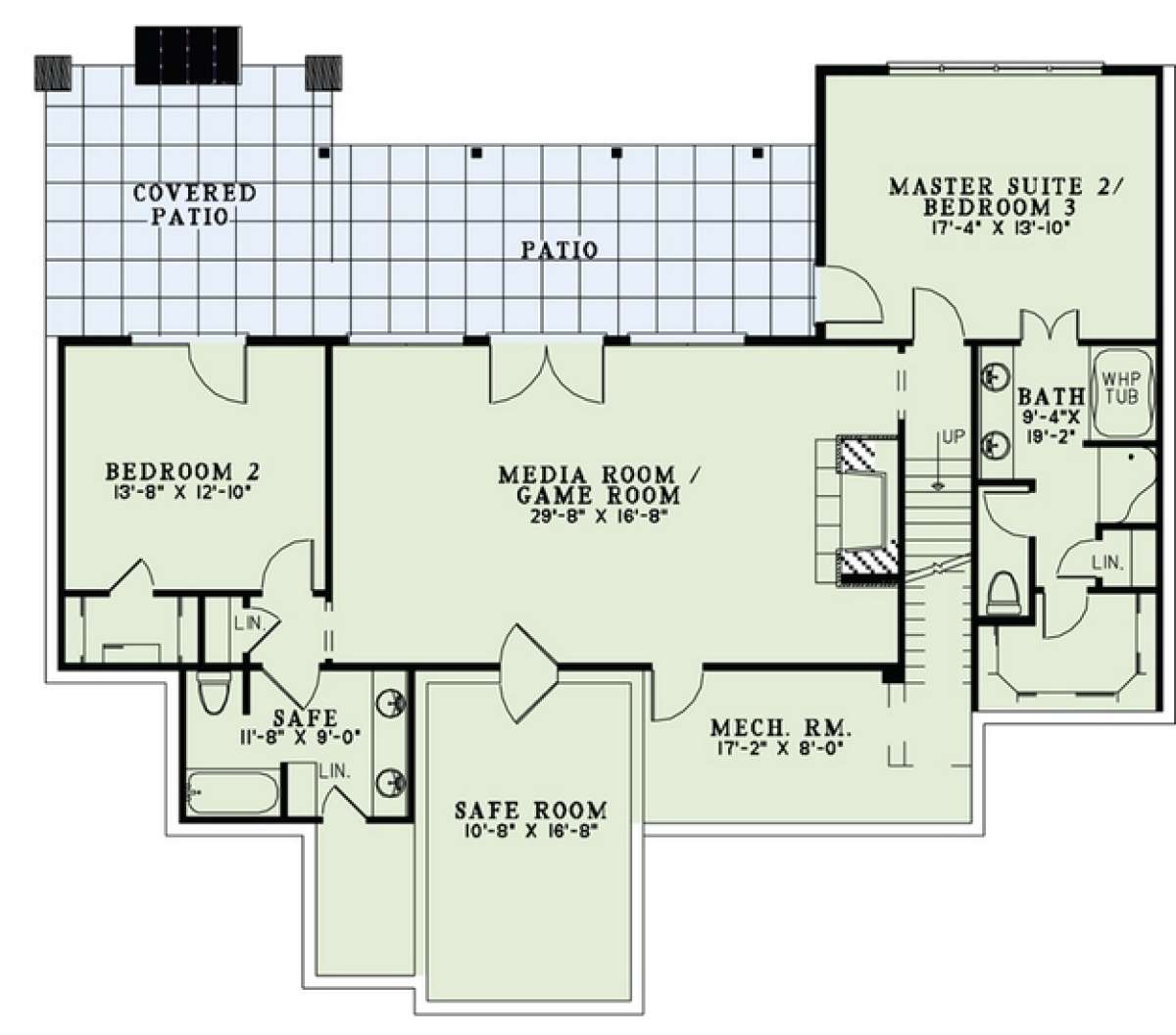

The terrace level features a large centrally located recreation/media room with fireplace and French door access onto the patio. A second master suite features equally inviting floor space, a walk-in closet, private patio access and an elegantly designed en suite bath. There is a fourth bedroom as well that is highlighted with private patio access, a walk-in closet and an adjacent full bath. The home also contains a safe room for security and a mechanical room. This home features an attractive exterior, beautiful outdoor space and an interior floor plan made for entertaining.
