Craftsman House Plan 110-00902

Sq Ft3,345
Beds4
Baths3
1/2 Baths0
Stories1.5
Cars3
Width93' 8"
Depth71' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

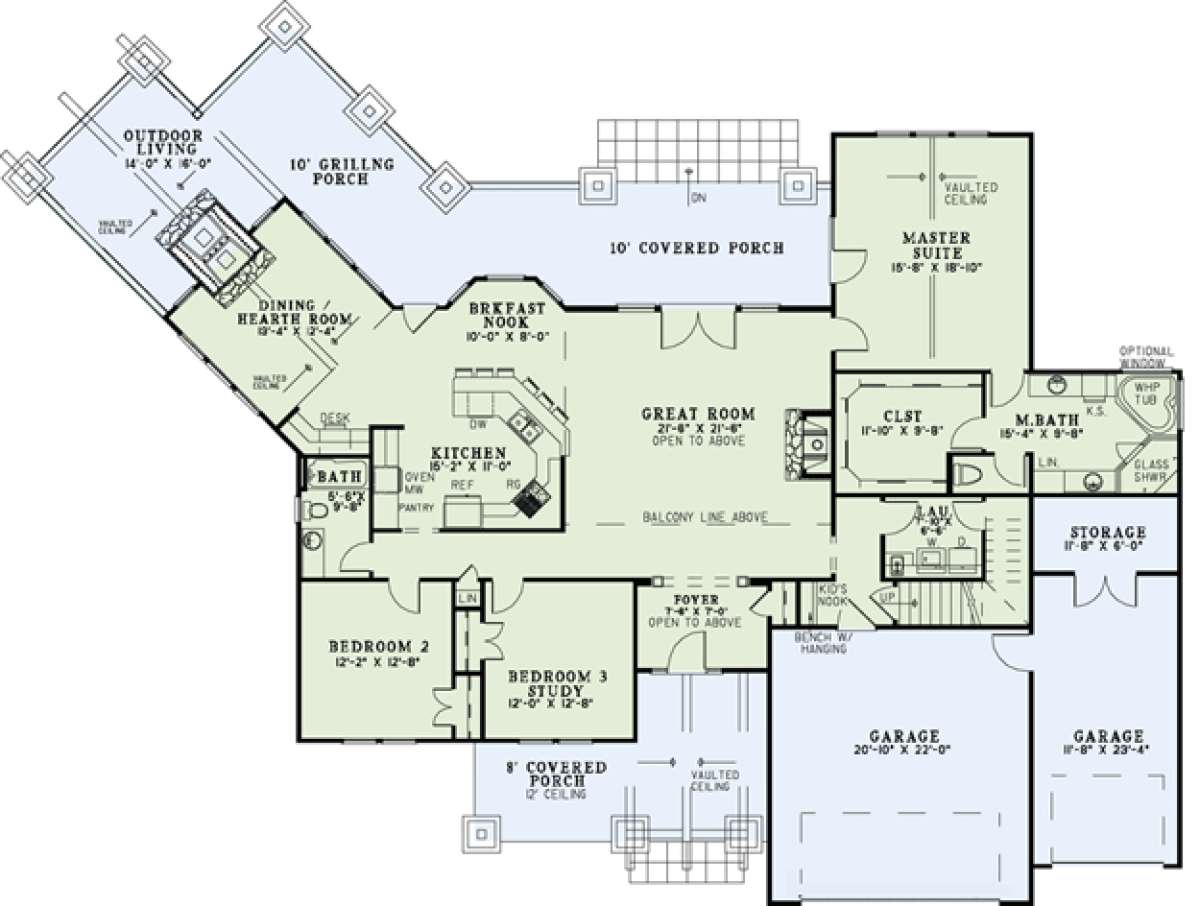

Floorplan 1 for House Plan #110-00902

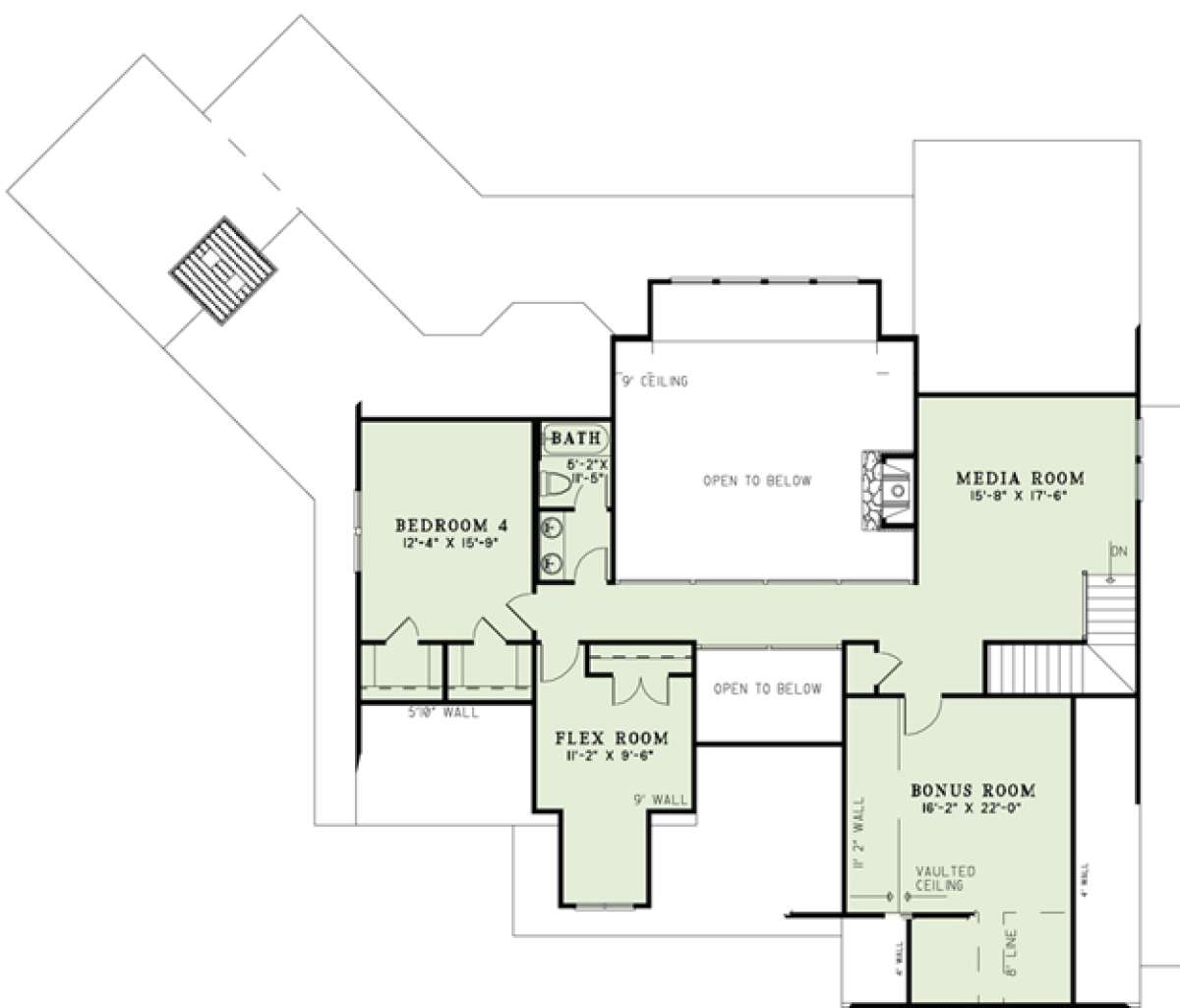

Floorplan 2 for House Plan #110-00902
Floorplan 1
Floorplan 1 for House Plan #110-00902
Floorplan 2
Floorplan 2 for House Plan #110-00902


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This lovely Craftsman house plan features an organic exterior and spacious interior for excellent family living. The façade of the home is highlighted with cedar shakes, exposed rafters, enormous stone pillars and beautiful outdoor space perfect for entertaining family and friends. The interior floor plan houses approximately 3,345 square feet of living space that includes four bedrooms, three plus baths and a huge open floor plan. Additionally, the second floor of the home offers a large bonus room, measuring nearly 335 square feet; perfect for an extra bedroom, a multi-purpose family room or hobby/craft room. There is a three car front loading garage with a double and single bay where the single bay features a large storage room at the rear of space. The vaulted ceiling front covered porch with overhead decorative gable is such a great space for relaxing and greeting family and guests. Stepping into the home’s interior, a two story foyer and open floor plan are revealed. The great room is also vaulted, features a handsome fireplace and French doors lead to the rear covered porch which extends nicely at an angle to include a covered grilling porch and outdoor living room. This space is massive, there is a cozy outdoor fireplace for chilly mornings/evening and the space is perfectly designed for family fun, enjoyable cook-outs and relaxing. There is a grand kitchen with an angled breakfast bar, a separate pantry and plenty of additional counter and cabinet space. The adjoining breakfast nook is situated inside a bay window for a sunlit area and there is convenient access onto the grilling porch. Located directly off the kitchen is space for either a formal dining room or hearth/gathering room with a warming fireplace.

The split bedroom plan features a large master suite with vaulted ceiling bedroom and private access onto the rear covered porch. The master bath offers modern amenities which include dual vanities, a whirlpool tub, separate shower, a private toilet area and linen closet. There is a massive walk-in master closet situated off the bath. Bedrooms two and three feature good floor space, double window views and plentiful closet space. There is a hall linen closet and the nearby shared bath features a large vanity, a toilet area and a tub/shower combination. The second level of the home features a fourth bedroom which is quite large with double walk-in closets and access to the nearby full bath. In addition to the bonus room, there is a flex space with closet which could be utilized as a fifth bedroom if needed and a large media room lies at the rear of the floor. This fabulous home is highlighted with an attractive exterior, massive outdoor space and a floor plan that is flexible and functional.
