Craftsman House Plan 110-00828

Sq Ft1,874
Beds3
Baths2
1/2 Baths1
Stories1.5
Cars0
Width42' 2"
Depth45' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

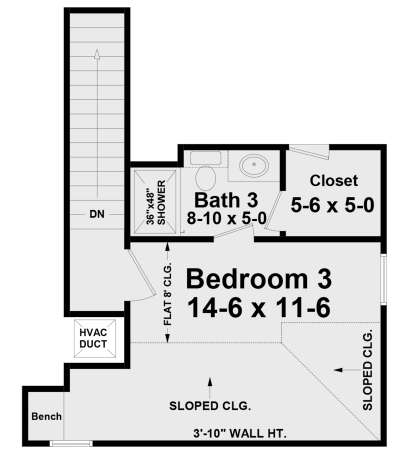

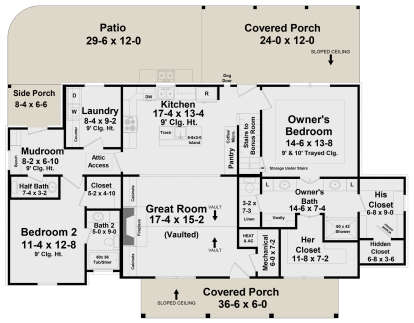

Floorplan 1 for House Plan #110-00828
Floorplan 2 for House Plan #110-00828
Floorplan 1
Floorplan 1 for House Plan #110-00828
Floorplan 2
Floorplan 2 for House Plan #110-00828


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

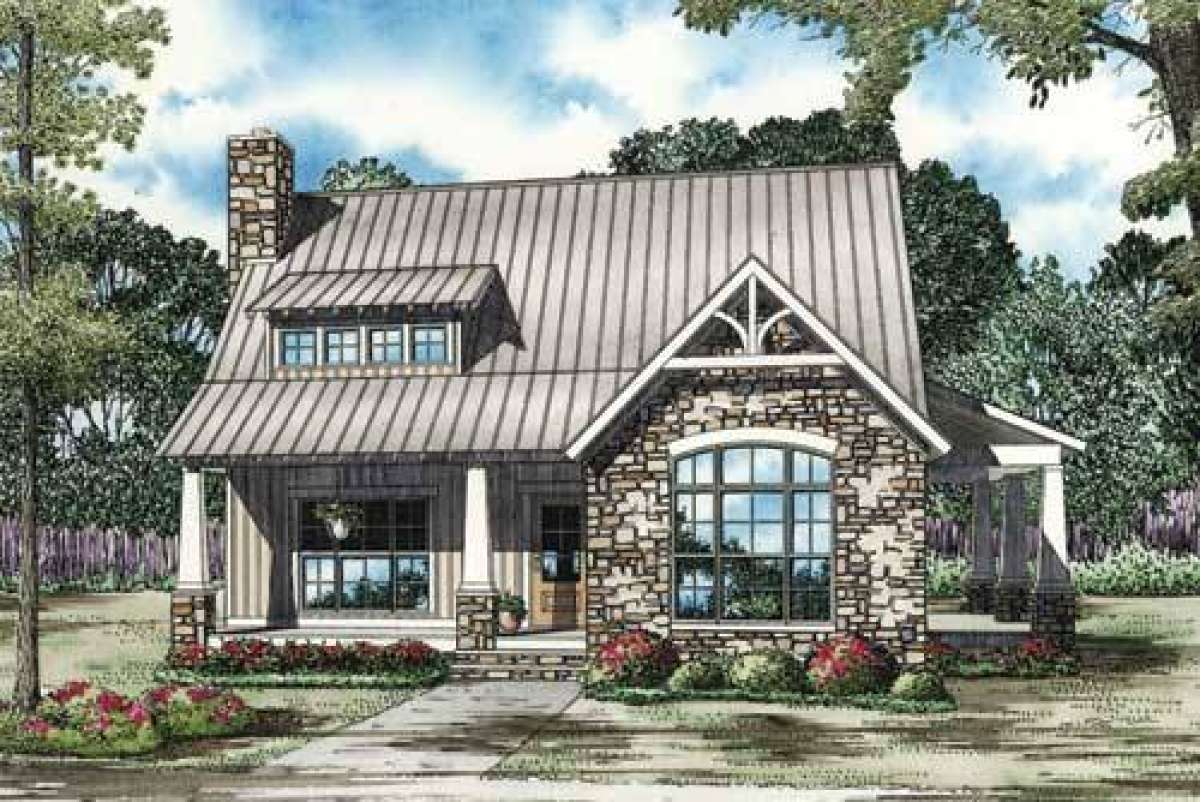

This Craftsman inspired home features abundant outdoor space and an attractive exterior façade highlighted with stacked stone work, tapered beams and a triple window dormer. There is a front covered porch, a side porch and rear deck with grilling porch; this unbelievable outdoor space is the perfect accompaniment to superior entertaining and family relaxing space. Imagine family and friends gathered together while enjoying a summer’s day cookout and/or celebrating special occasions on the spacious outdoor space. There are in excess of 1,870 square feet of living space within the home’s interior with three bedrooms and two plus baths. Walking into the 1.5 storied home off the front porch is an enormous great room with vaulted ceilings and a handsome fireplace. Beyond the great room, the open concept continues with a family friendly kitchen that features a wraparound high bar for additional seating whether the children are having afternoon snacks or meal preparation is taking place. The sun drenched breakfast room features a triple window wall and access to the grilling porch. There is a half bath for guests, a large laundry room and storage space at the rear of the home. A main level master suite is perfect for taking advantage of all the outdoor space as it features private access onto the side porch. The master bedroom, itself, is vaulted with wonderful window views and there is an attached walk-in master closet and en suite bath. A large corner whirlpool tub offers overviews onto the porch and there are dual vanities, a separate shower and a compartmentalized toilet as well. The second story staircase and balcony hallway feature overlooks into the great room below. Two huge bedrooms feature double window views; one offers an enormous walk-in closet while the other boasts of wall-to-wall closet space. There is a hall linen closet and a shared bath with an extended vanity and a tub/shower combination for the bedroom’s use. This home boasts of a spectacular façade outlined with incomparable outdoor space and plenty of interior space as well.
