Craftsman House Plan 110-00716

Sq Ft2,129
1/2 Baths1
Width60' 0"
Depth74' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #110-00716
Floorplan 2 for House Plan #110-00716

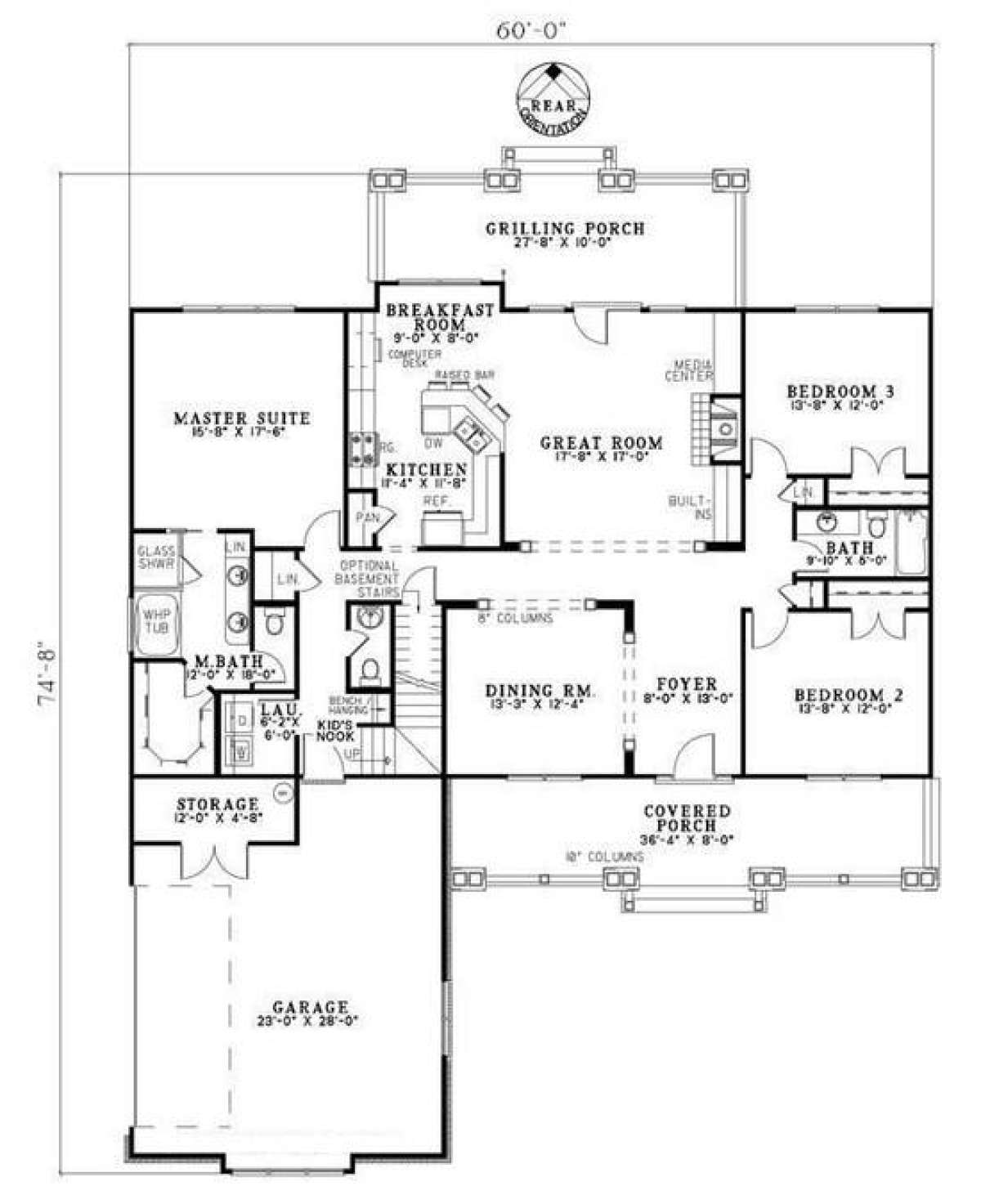

Floorplan 1
Floorplan 1 for House Plan #110-00716

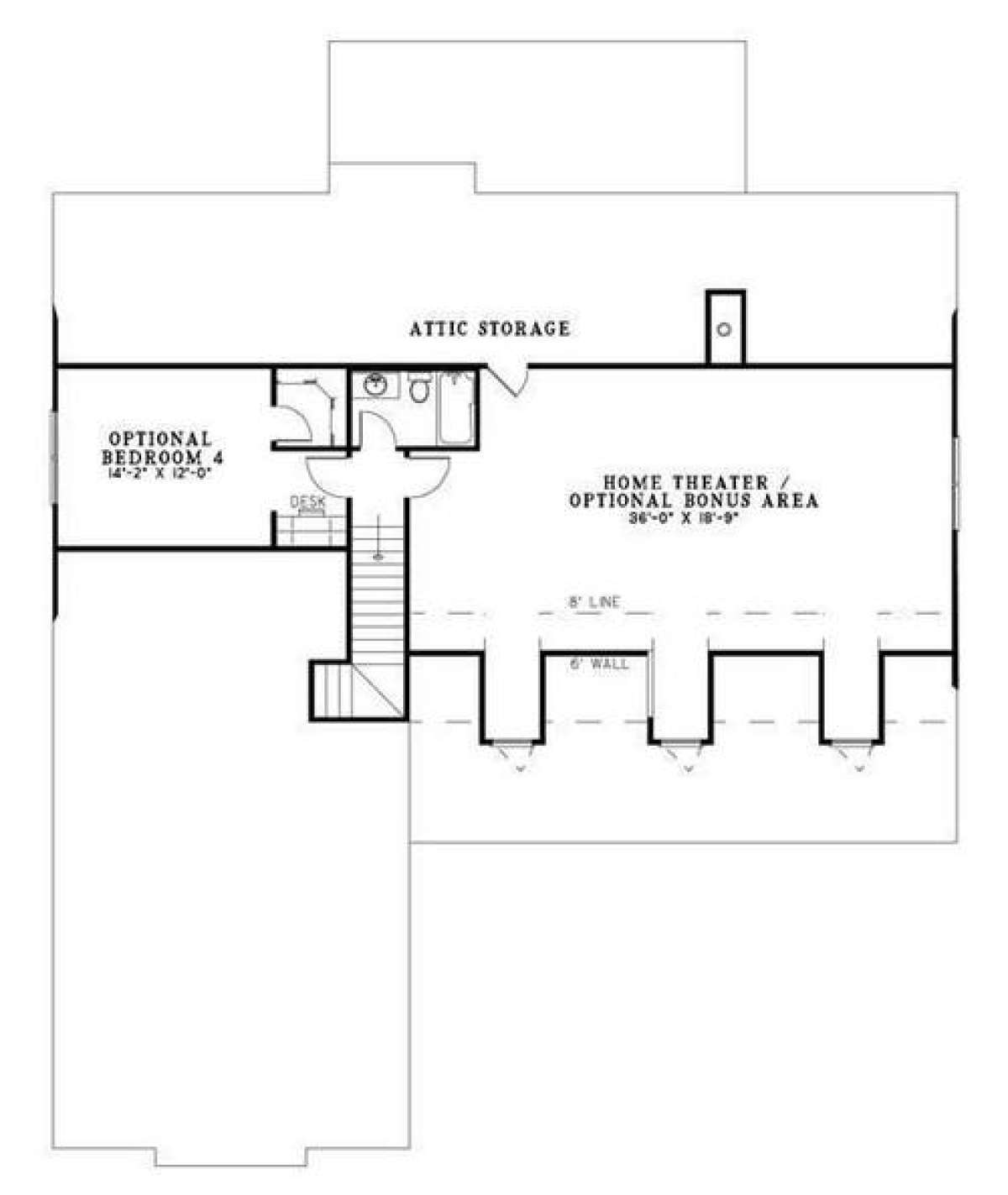

Floorplan 2
Floorplan 2 for House Plan #110-00716

Frequently Asked Questions


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    These are included for many interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Craftsman house plan features an attractive exterior with loads of curb appeal and an interior layout that families will love. The exterior features a lovely front covered porch for family and friends to gather in comfort featuring stone pillars and double beamed columns. Window dormers are found overhead and there are stone highlights surrounding the garage exterior for complementary accents to the home. The interior floor plan is highlighted with good family space as well as private space for family members consisting of three-to-four bedrooms and three plus baths in approximately 2,129 square feet. The upper floor houses an optional fourth bedroom, bonus space and a bathroom along with an enormous amount of storage space. The potential fourth bedroom is spacious with a walk-in closet and built-in desk area and there is a hall bath nearby featuring vanity space, a toilet area and a tub/shower combination. The adjacent bonus room is huge, measuring in excess of 36’ x 18’; perfect for a bunk room for grandchildren and/or overnight guests, a multi-purpose family room, a home office or numerous other options suitable for family living.

The expansive front covered porch grants access into the main level of the home which offers a great family flow with centrally located common rooms and a split bedroom plan. There is a spacious foyer which is open to the formal dining room where columns and a front window view onto the porch are showcased. The great room is beyond the foyer and features a large great room with built-in cabinetry, a warming fireplace and a rear exit onto the grilling porch. The porch is quite large, covered and offers great space to host family get-togethers, cook-outs and special occasion events with large groups of friends. Back inside, the great room is open to the gourmet kitchen and nesting breakfast room; the kitchen features an angled breakfast bar, a separate pantry and a command desk while the breakfast room features rear window views onto the grilling porch. There is a two car side entry garage with separate storage space before entering the home where a kid’s nook, the powder room and laundry room are located. The master suite features a large bedroom with rear window views, an elegant master bath with dual vanities, a separate shower and whirlpool tub along with a private toilet room. The master walk-in closet lies beyond the bath for privacy. The two remaining bedrooms are located on the opposite side of the home; both feature window views and spacious closets. Between the two is a shared hall bath with a tub/shower combination, an extended vanity and a toilet area and there are two hall linen closets as well. This beautiful Craftsman home features a lovely exterior, great outdoor entertaining space and a family friendly layout.
