Traditional Plan 110-00585


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,525
Beds 4
Bath 3
1/2 Baths 0
Car 2
Stories 1
Width 67' 2"
Depth 55' 10"

Floorplan Drawings

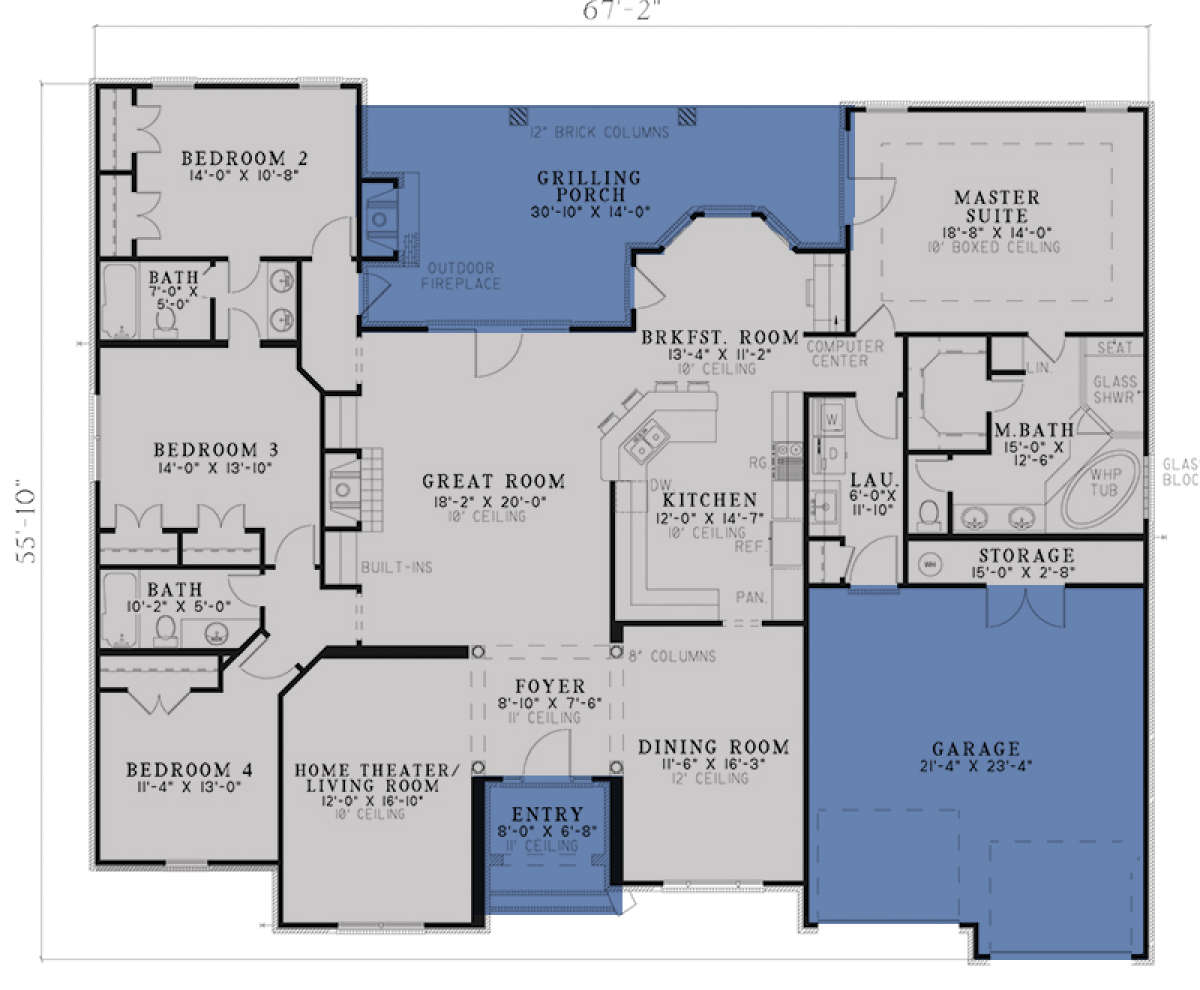

Main Floor

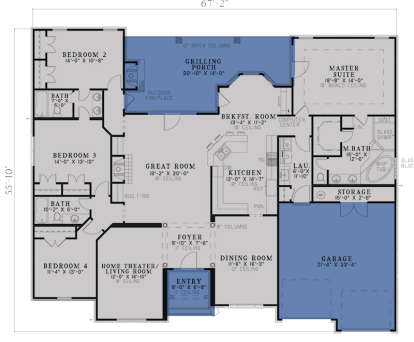

Main Floor for House Plan #110-00585

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    These are included for many interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

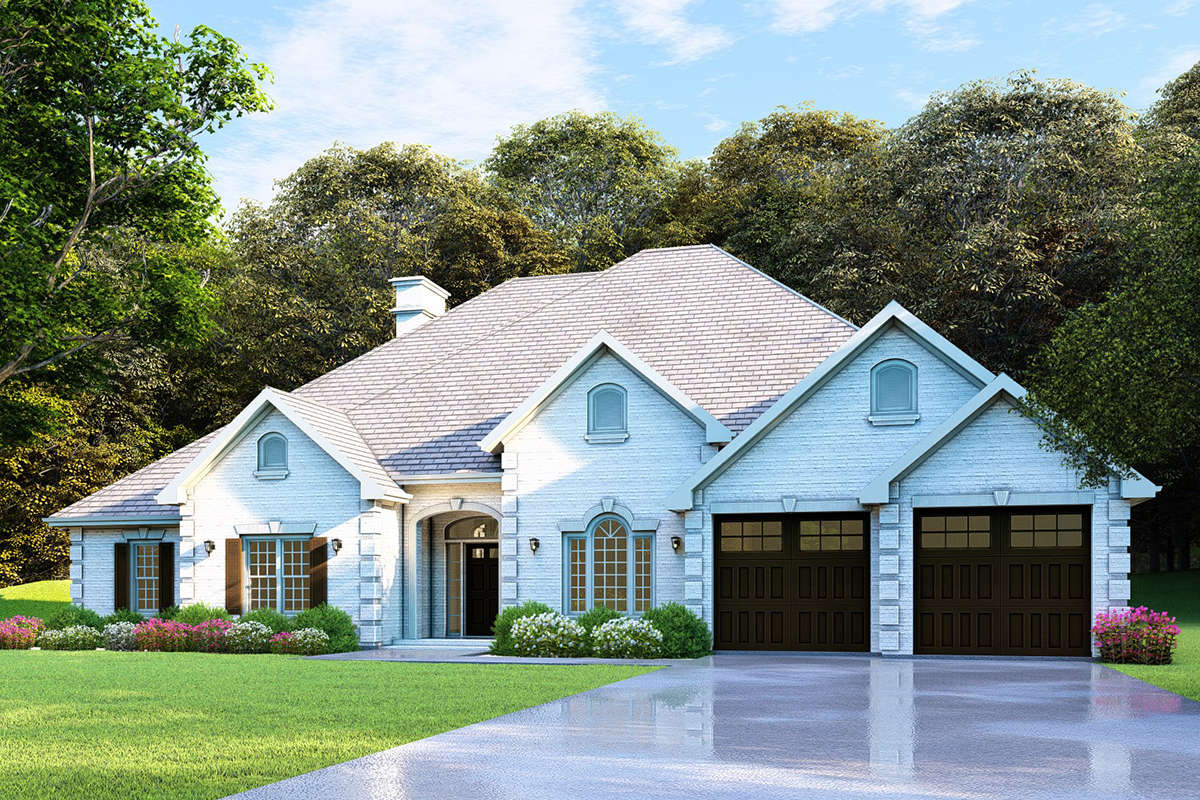

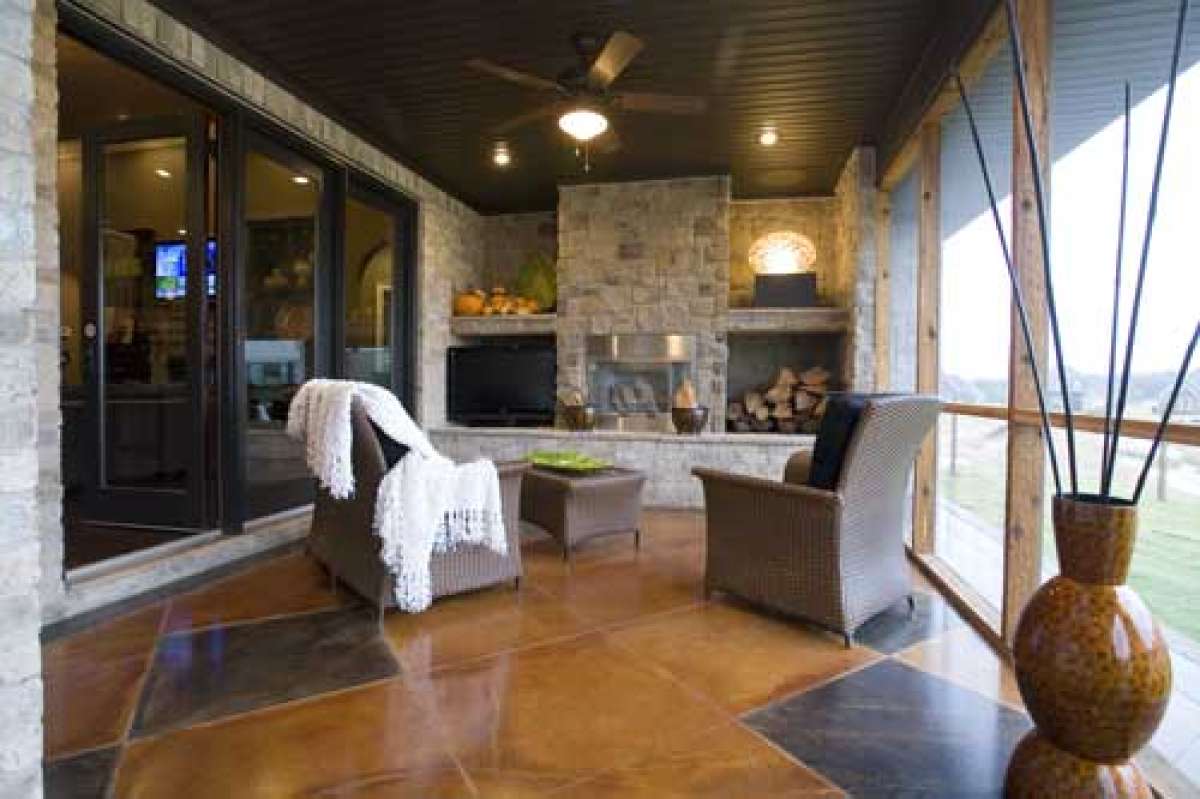

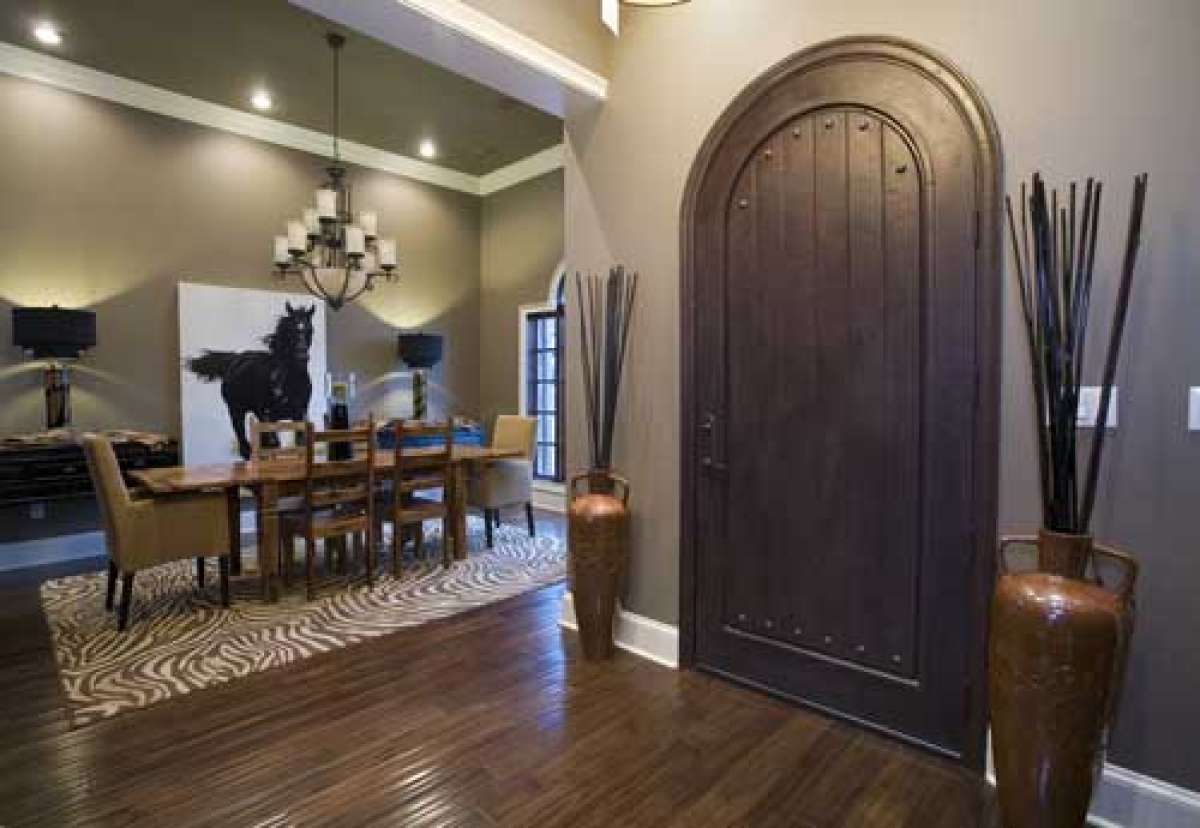

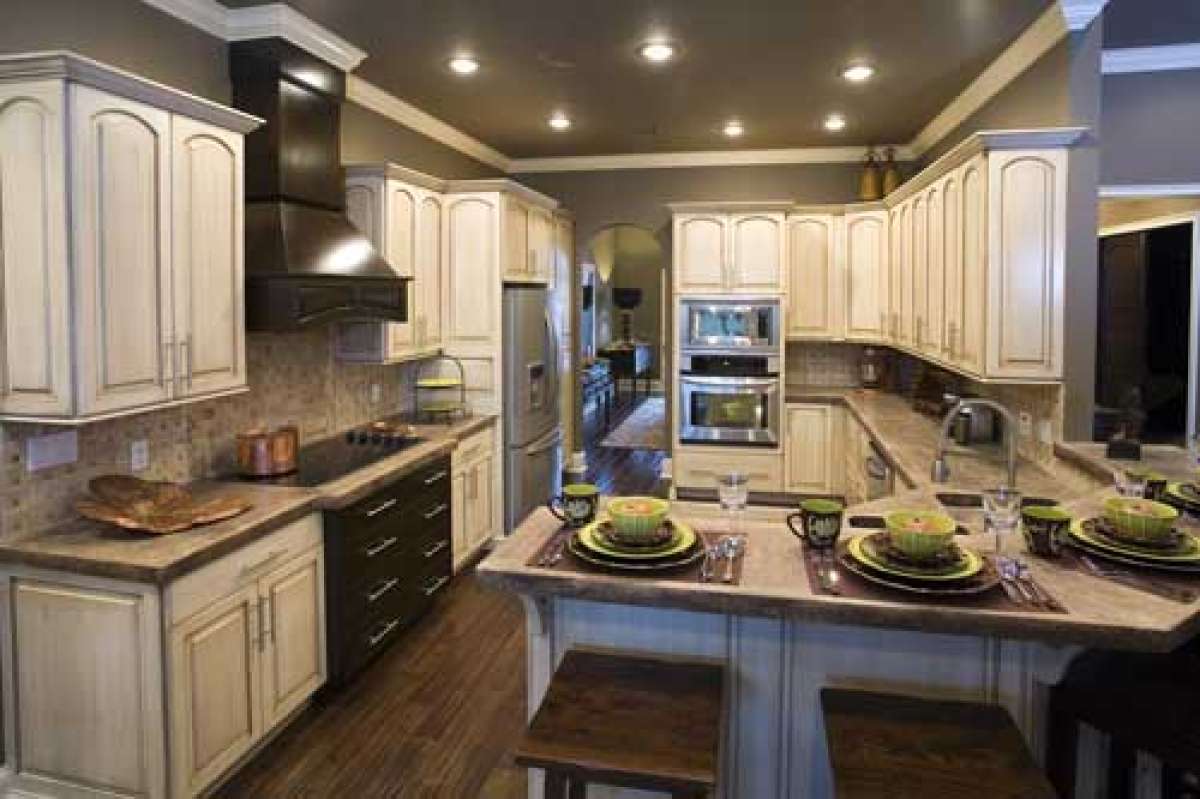

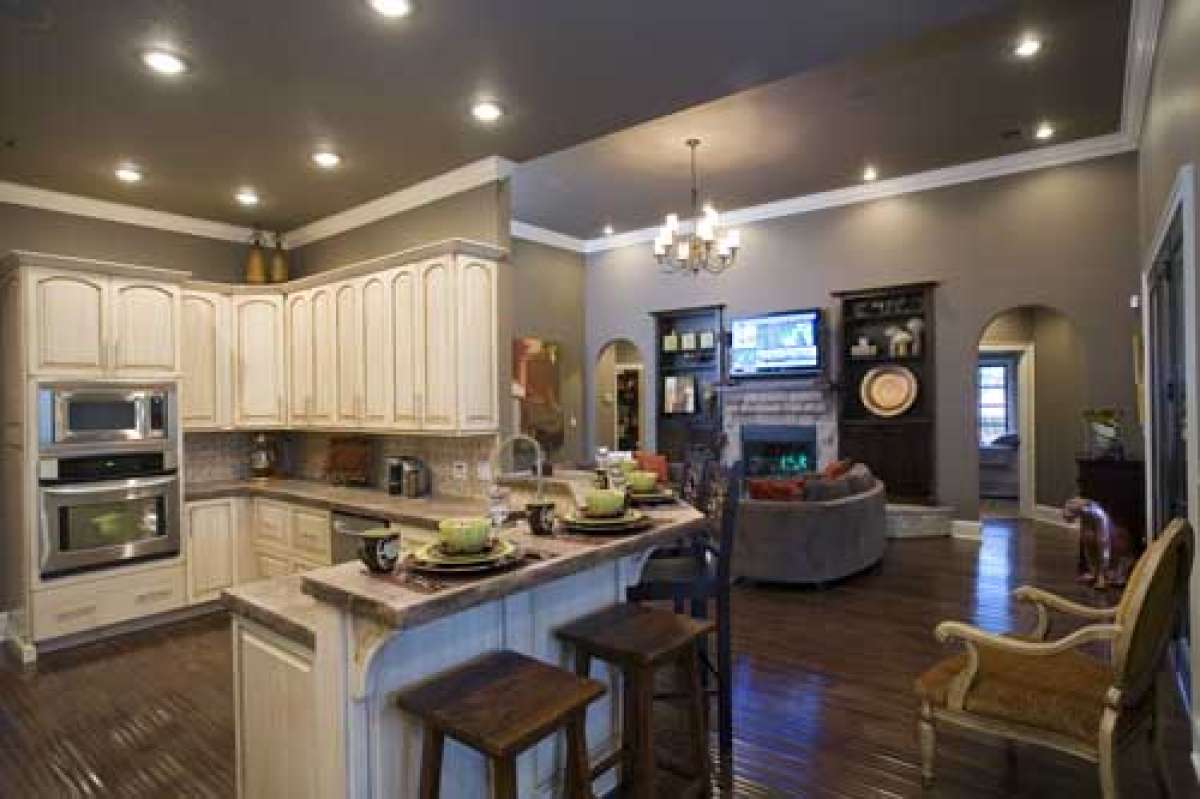

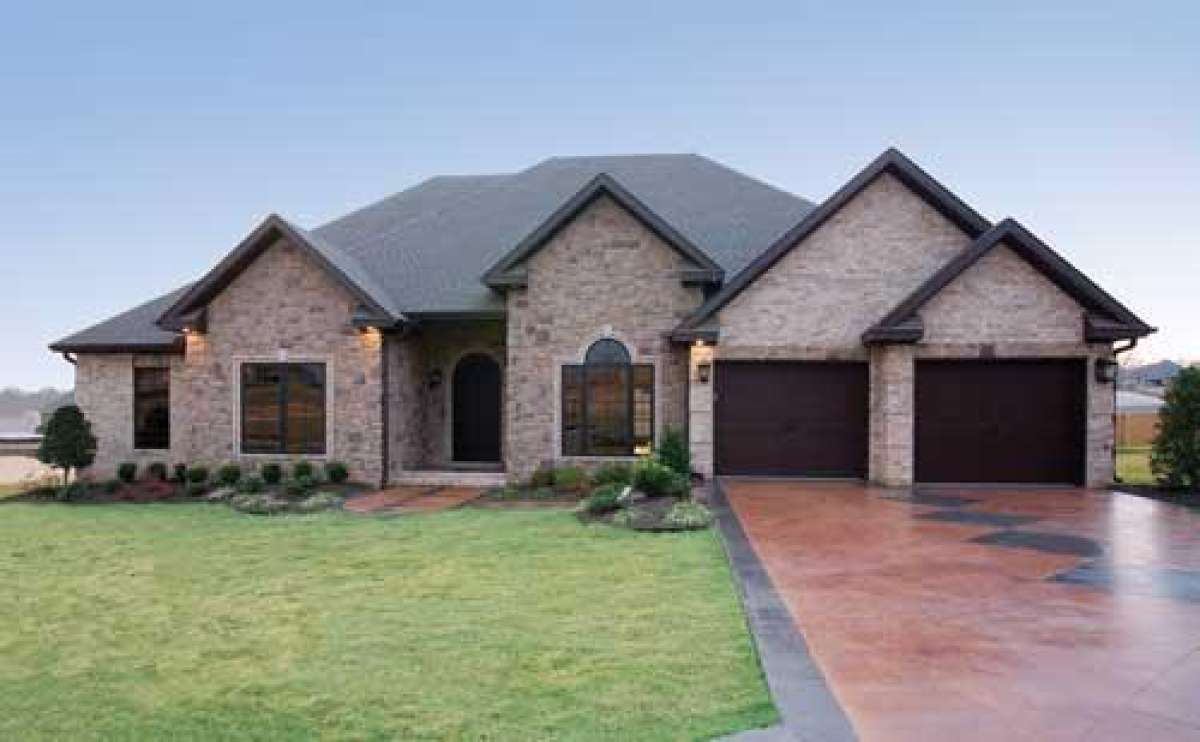

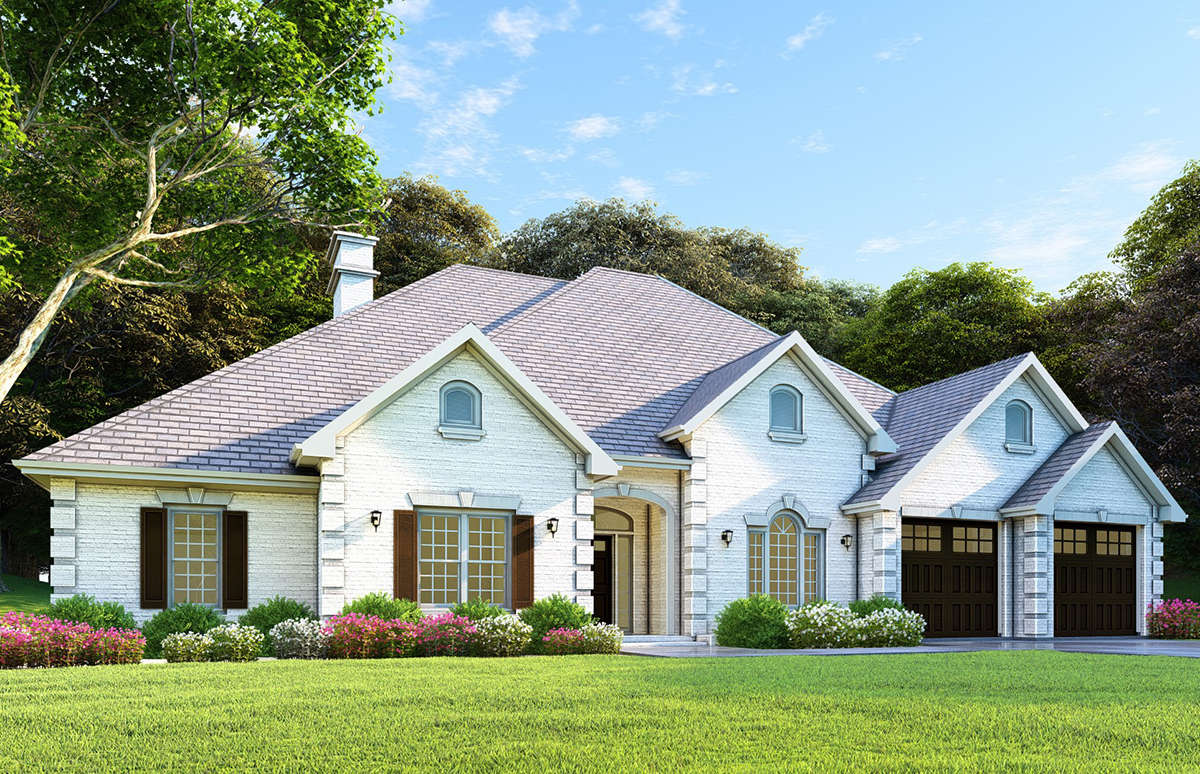

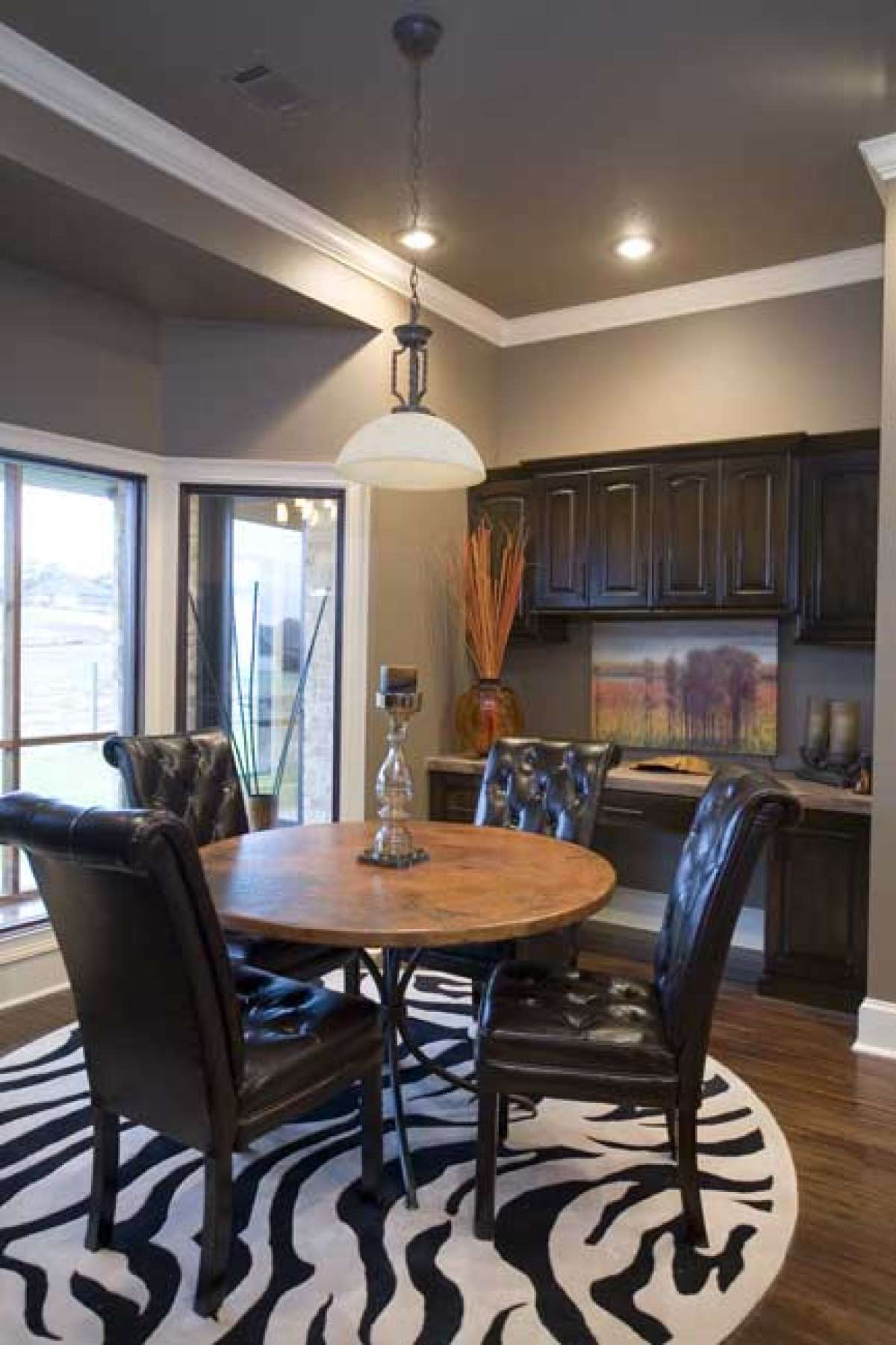

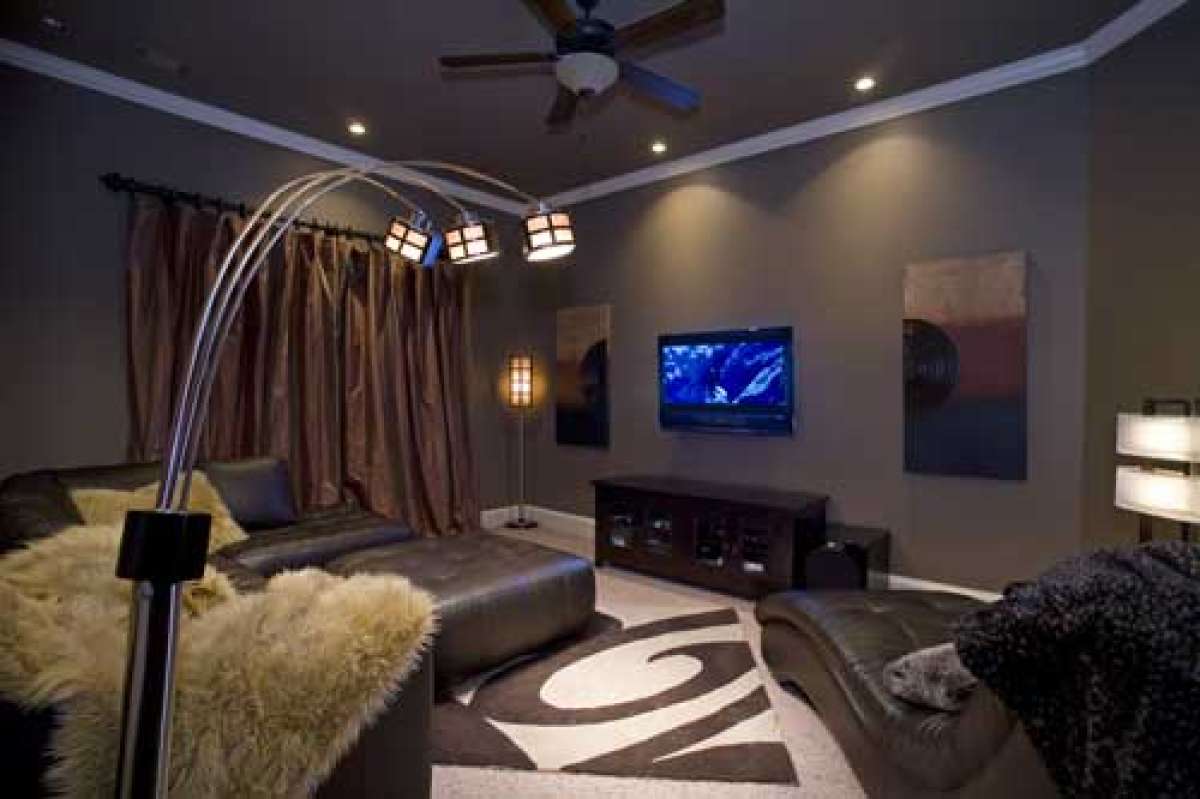

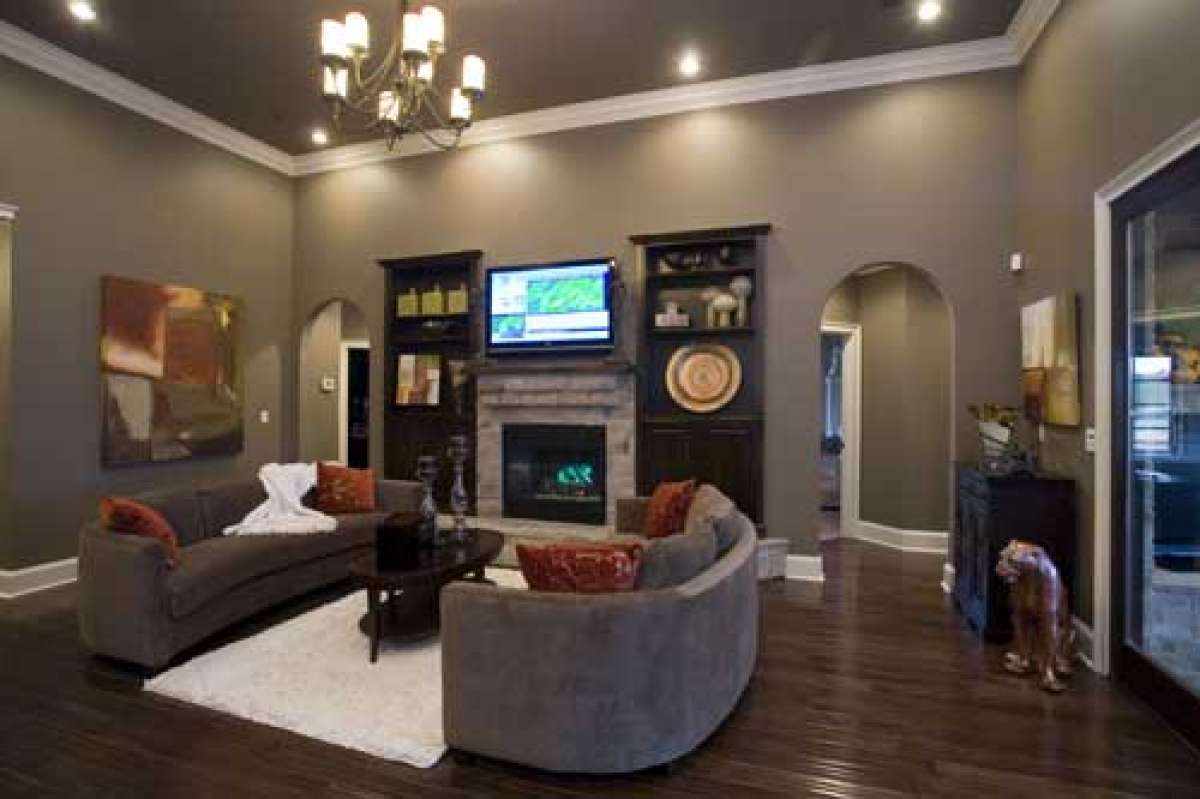

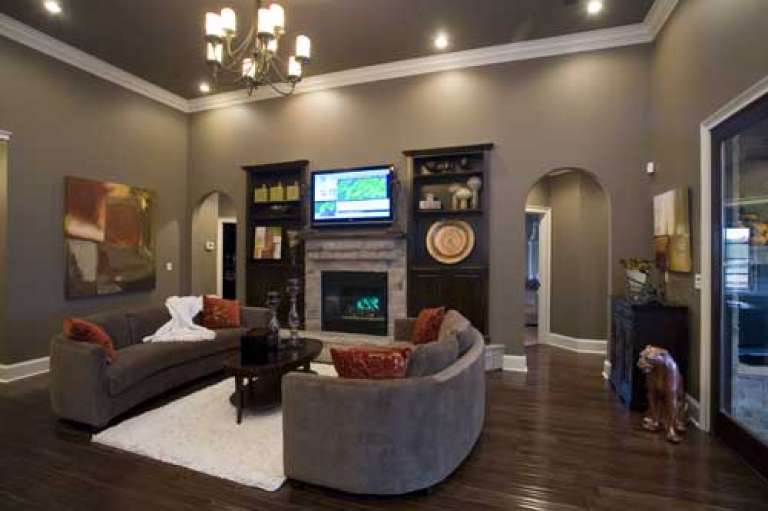

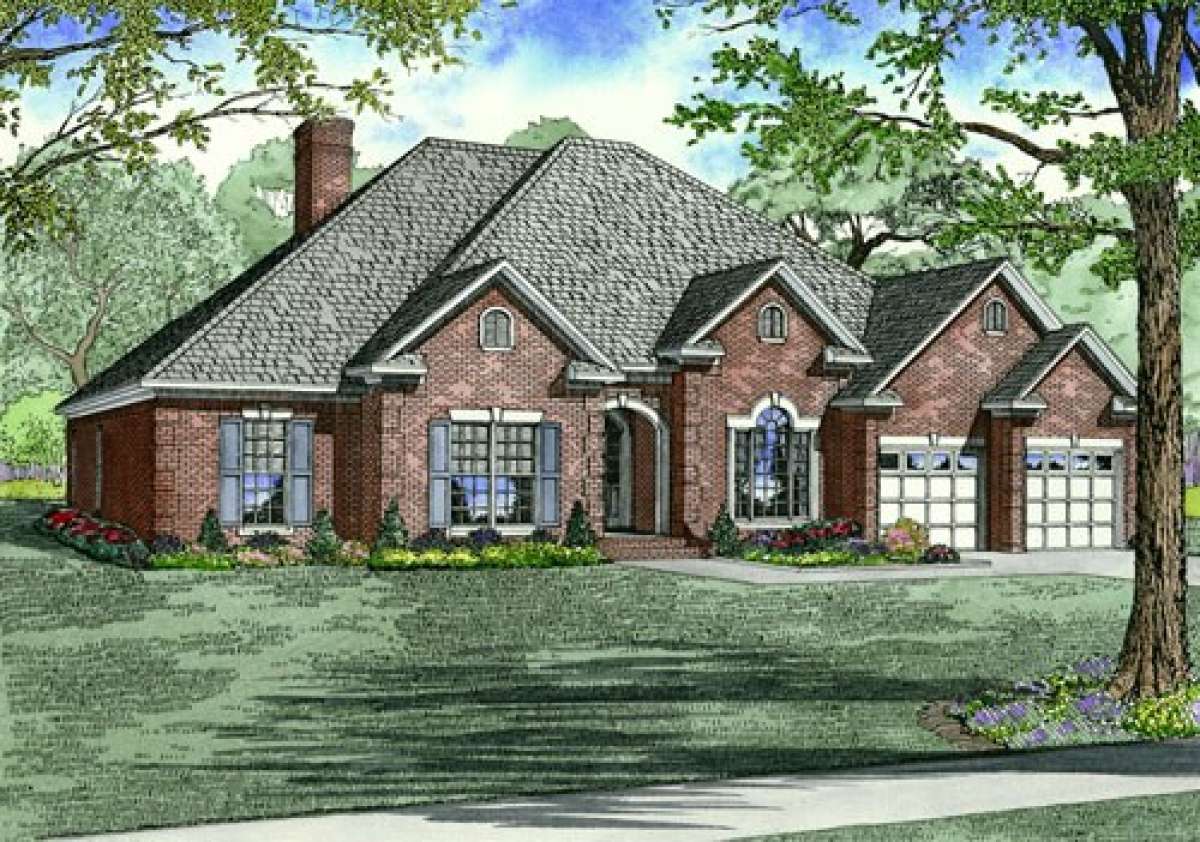

A Traditional home full of high-quality exterior design elements and spacious, well-appointed interior rooms are highlighted in this 2,525 square foot home. A low maintenance brick exterior with multiple split gables highlighted with wide eaves presents a classic and timeless façade. The one-story home contains four bedrooms and three bedrooms along with an additional 534 square foot garage. There is a front covered entrance that allows guests and family to step into the foyer which is flanked by the dining room and home theatre/living room. Soaring ceiling heights and column detailing are features in both rooms and the dining room has a pass-thru to the kitchen. The grand kitchen offers specialized detailing and heightened ceiling volumes; there is a separate pantry, an angled breakfast bar and a gallery hall that leads into the adjacent breakfast room. Built-in cabinetry and a bay window line the sun-drenched breakfast room and there is access onto the spacious grilling porch. The covered porch is extensive and is highlighted with a measurable space in excess of 30’x14’ and contains an outdoor fireplace for chilly mornings and nights. Access off the porch into the centrally located great room reveals a large space with a warming fireplace, built-in cabinetry, and the room is open to the kitchen. The two-car garage features additional storage space and conveniently leads into the oversized laundry room with a sink area and nearby closet.

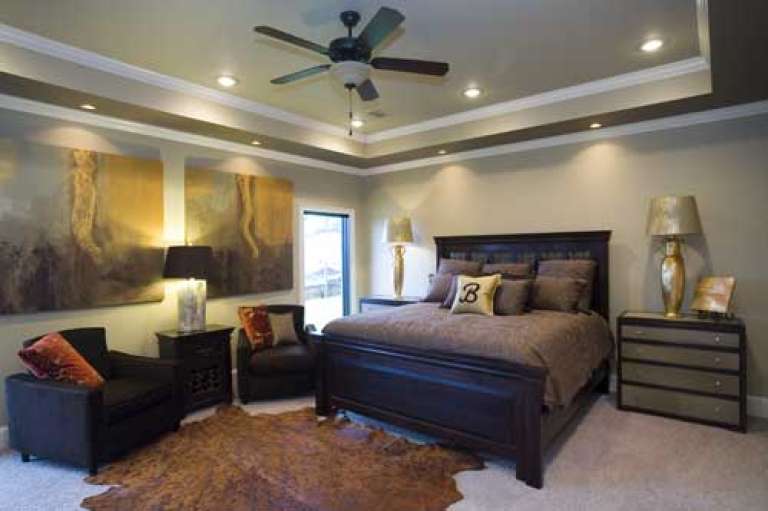

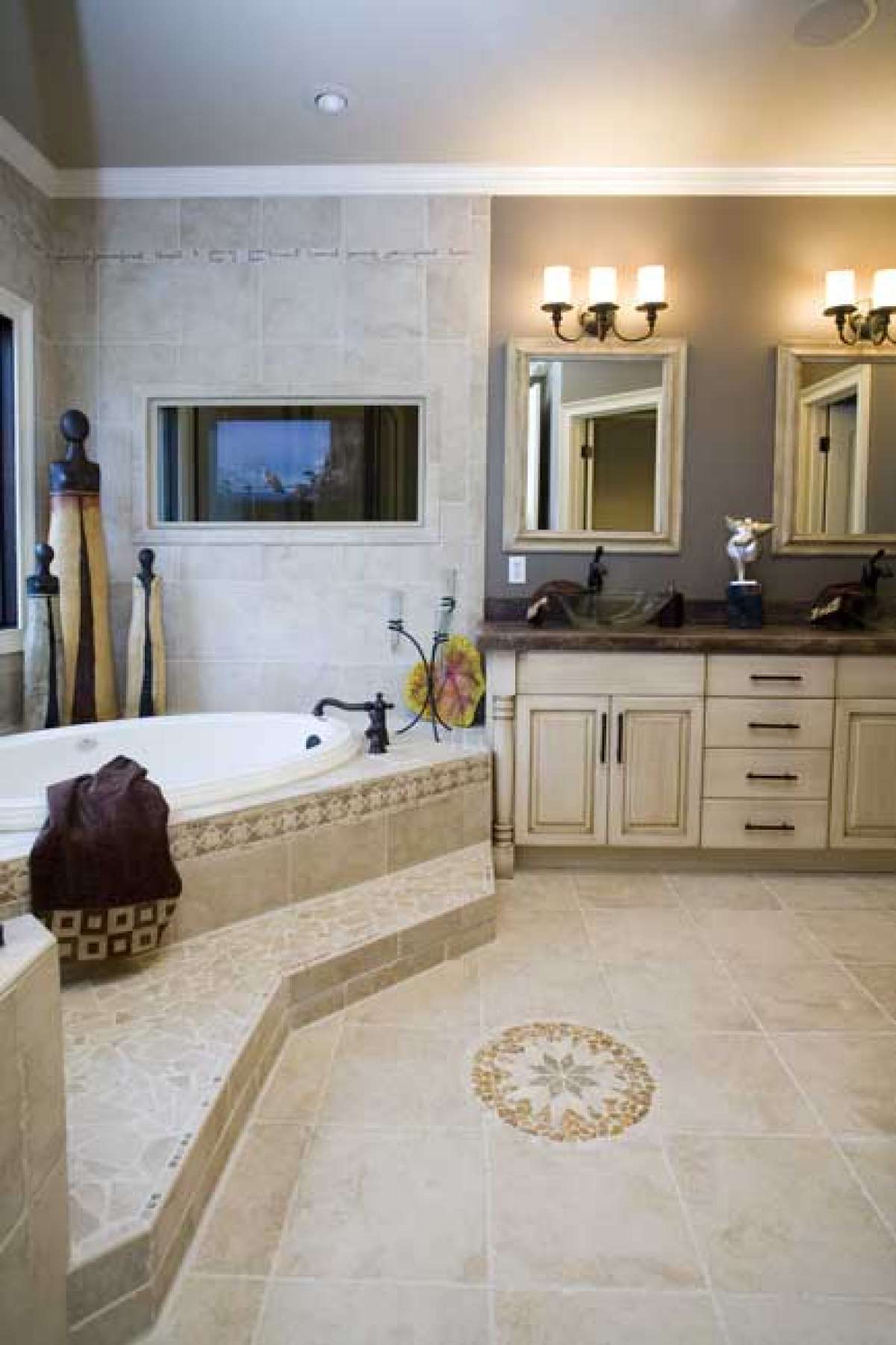

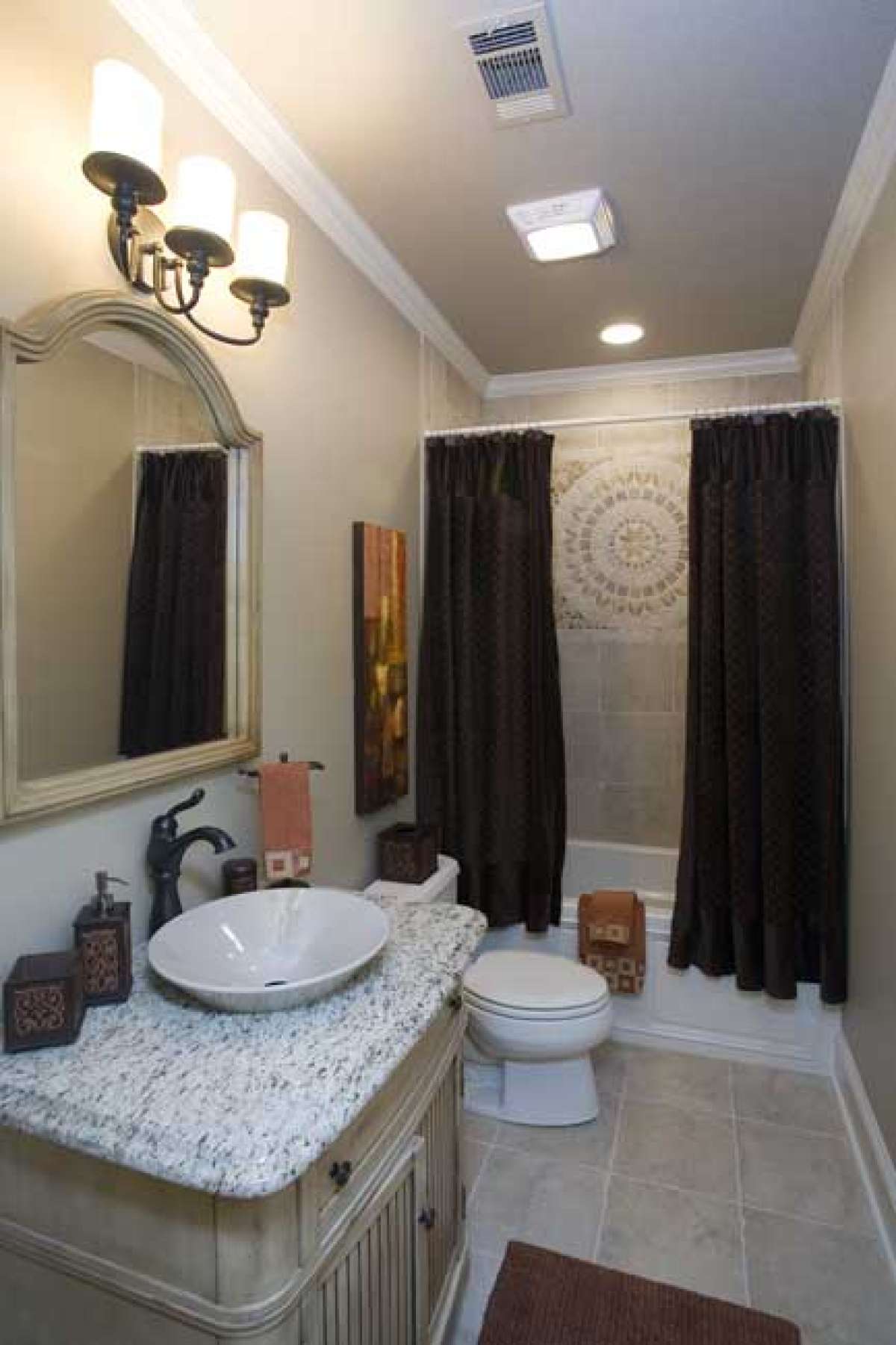

The split bedroom plan features three bedrooms and two baths on one end of the home. Bedroom two is large with double window views, double closets, and adjacent access onto the rear porch. A shared bath is positioned between bedrooms two and three and is highlighted with dual lavatories. The third bedroom is of equivalent size to the second and also contains plentiful closet space. The fourth bedroom is spacious with an adjacent full bath featuring a large vanity. The owner's suite location on the opposite side of the home provides a private oasis full of uncompromising luxury. The primary bedroom enjoys a large footprint with a soaring boxed ceiling accent and private access onto the rear porch. An en suite bath features a glass shower with seating area, a linen closet, corner whirlpool tub encased in glass block window views and dual vanities. The owner's walk-in closet is offset from the bath and features generous closet space. This traditional home features a spectacular exterior façade and an interior that is fully functional and comfortable.
