Traditional Plan 110-00500


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,373
Beds 4
Bath 3
1/2 Baths 0
Car 2
Stories 1.5
Width 76' 10"
Depth 53' 4"

Floorplan Drawings

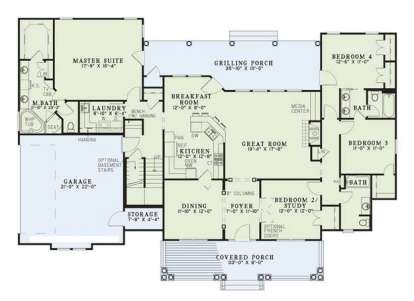

Floorplan 1
Floorplan 1 for House Plan #110-00500

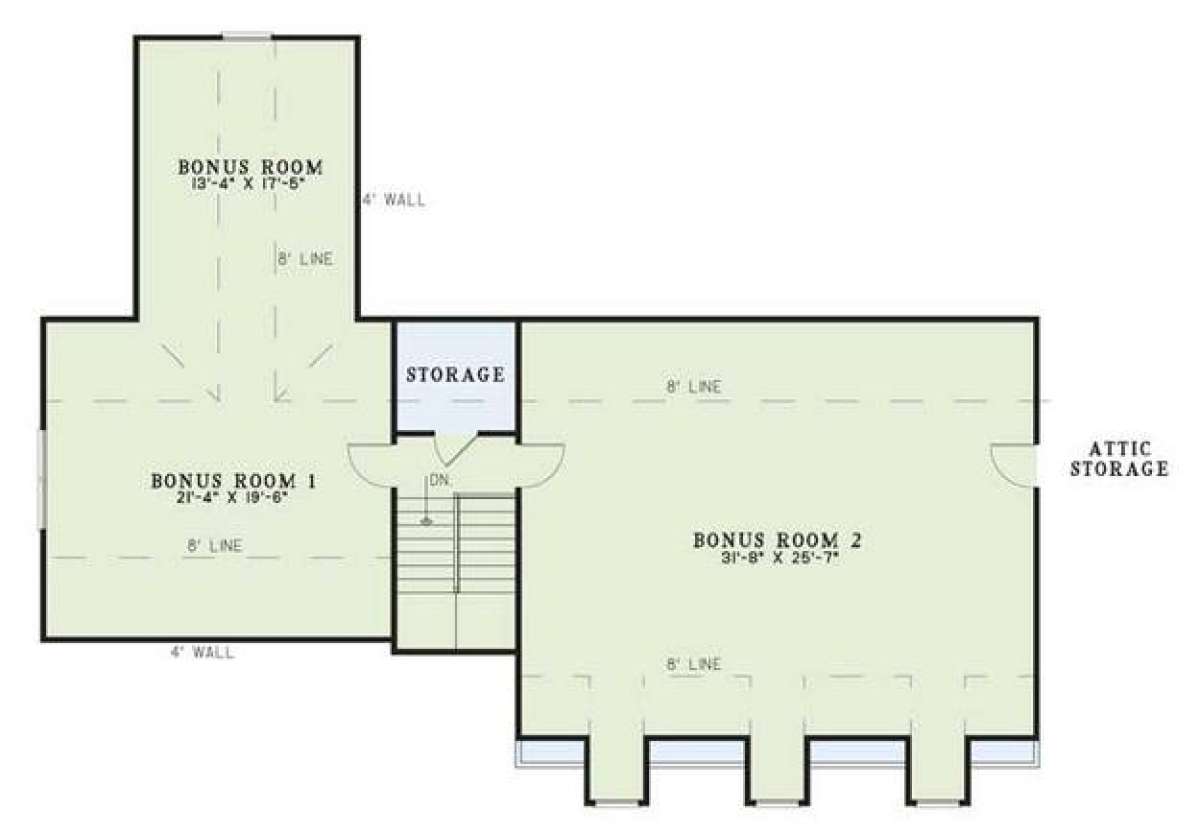

Floorplan 2
Floorplan 2 for House Plan #110-00500

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

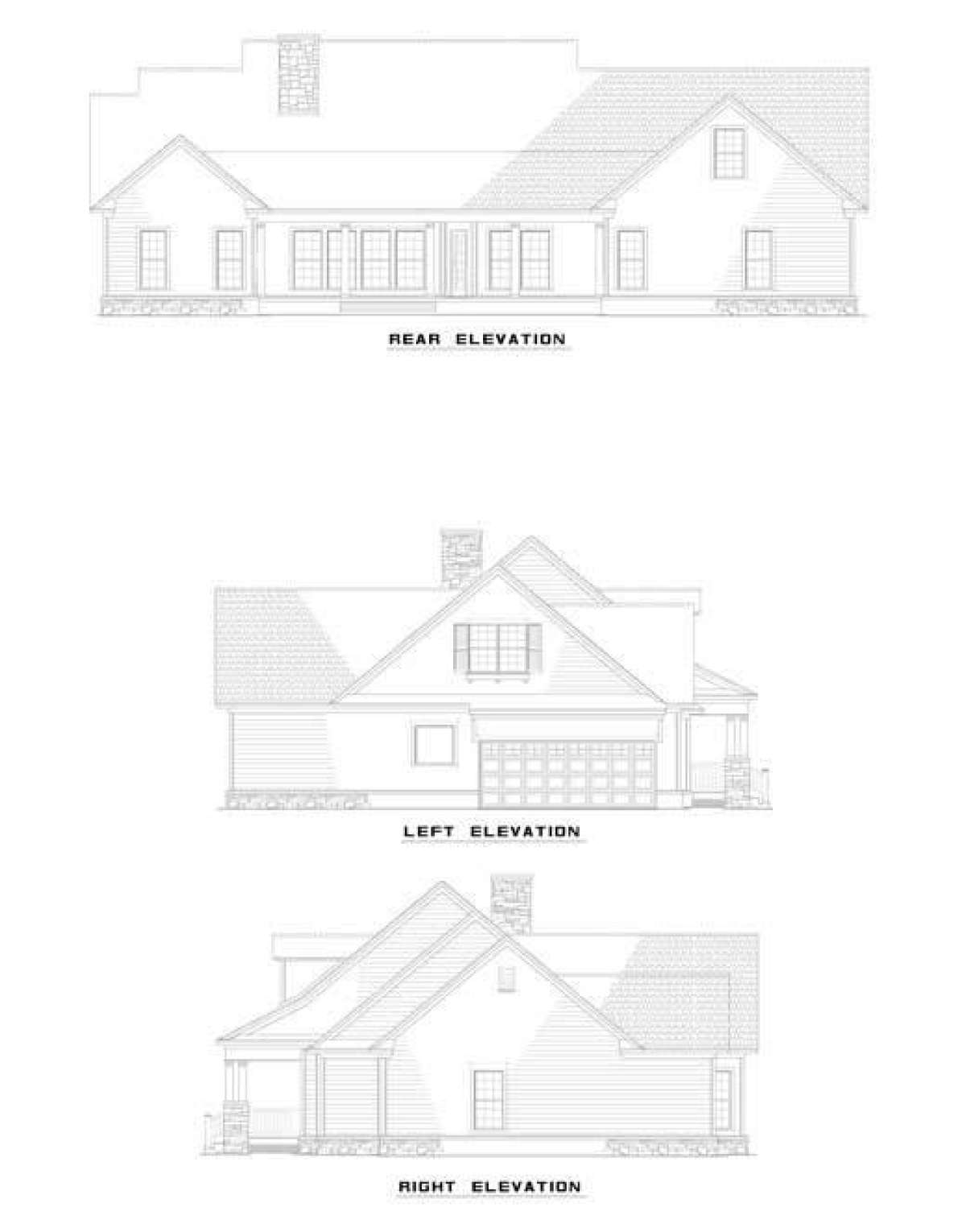

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    These are included for many interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

A house plan with outstanding outdoor space, a gorgeous exterior and an interior floor plan including approximately 2,373 square feet of living space is highlighted in this Traditional design. The home’s expansive front covered porch is trimmed with double columned beams that run the length of the porch atop stacked stone supports and highlighted with open railing. A triple set of window dormers and balanced brick walls flank the front porch and offset the home beautifully. The interior floor plan is spacious and efficient with the living spaces and bedrooms lining the main floor of the home and the bonus space on the second floor of the home. This second story bonus space features amazing square footage, approximately 776 square feet of usable space which is further split into separate areas. At the foot of the second story landing are a large storage closet and flanking bonus rooms; both are quite large with different layouts and one bonus room features accessible attic space. This separation makes for excellent configuration of family spaces whether a home office/study, an artist’s studio or home theatre. The main floor features an open layout, four bedrooms and three baths in the 1.5 storied home. The front covered porch, measuring 33’x8’ features front door entry into the home’s spacious foyer which then opens to the formal dining room and study. The study is accessible from the foyer through French doors and could alternatively be used as a second bedroom as it features a walk-in closet and accessibility to the main hallway and adjacent bath. There are two additional bedrooms down the hallway; each is spacious, one has a walk-in closet, the other features double closet spaces. Two bathrooms are featured on the main hallway; one is directly accessible from the study/bedroom while the second bathroom is a shared jack and jill styled bedroom that lies between the third and fourth bedrooms. The master retreat is situated on the opposite side of the home for privacy and features a huge master bedroom with private rear porch access and an elegantly designed en suite bath. The master bath is composed of modern amenities that include dual vanities, a linen closet, a separate shower with seating, a corner whirlpool tub and a corner T.V. cabinet all in a copious amount space. At the rear of the bath is an oversized walk-in closet.
The open main rooms feature an enormous great room with fireplace, built-in cabinetry and a wall of windows overlooking the rear grilling porch. Access to the porch is through the breakfast room; this covered porch is quite large and is ideal for family and friends to relax and enjoy cook-outs and al fresco dining. The grand kitchen is open to both the great room and breakfast room where there is a large angled breakfast bar, a separate pantry and a pass-thru to the formal dining room. The two car side loading garage features dedicated storage space and directly leads into the interior laundry/mudroom where there is a bench area, a sink and a large amount of counter space. This spacious and versatile floor plan, striking exterior and excellent outdoor space is perfectly designed for a large and active family who enjoys entertaining.
