Cottage Plan 110-00184

Sq Ft 2,501
Beds 1
Bath 1
1/2 Baths 2
Car 0
Stories 1.5
Width 50'
Depth 75' 6"

Floorplan Drawings

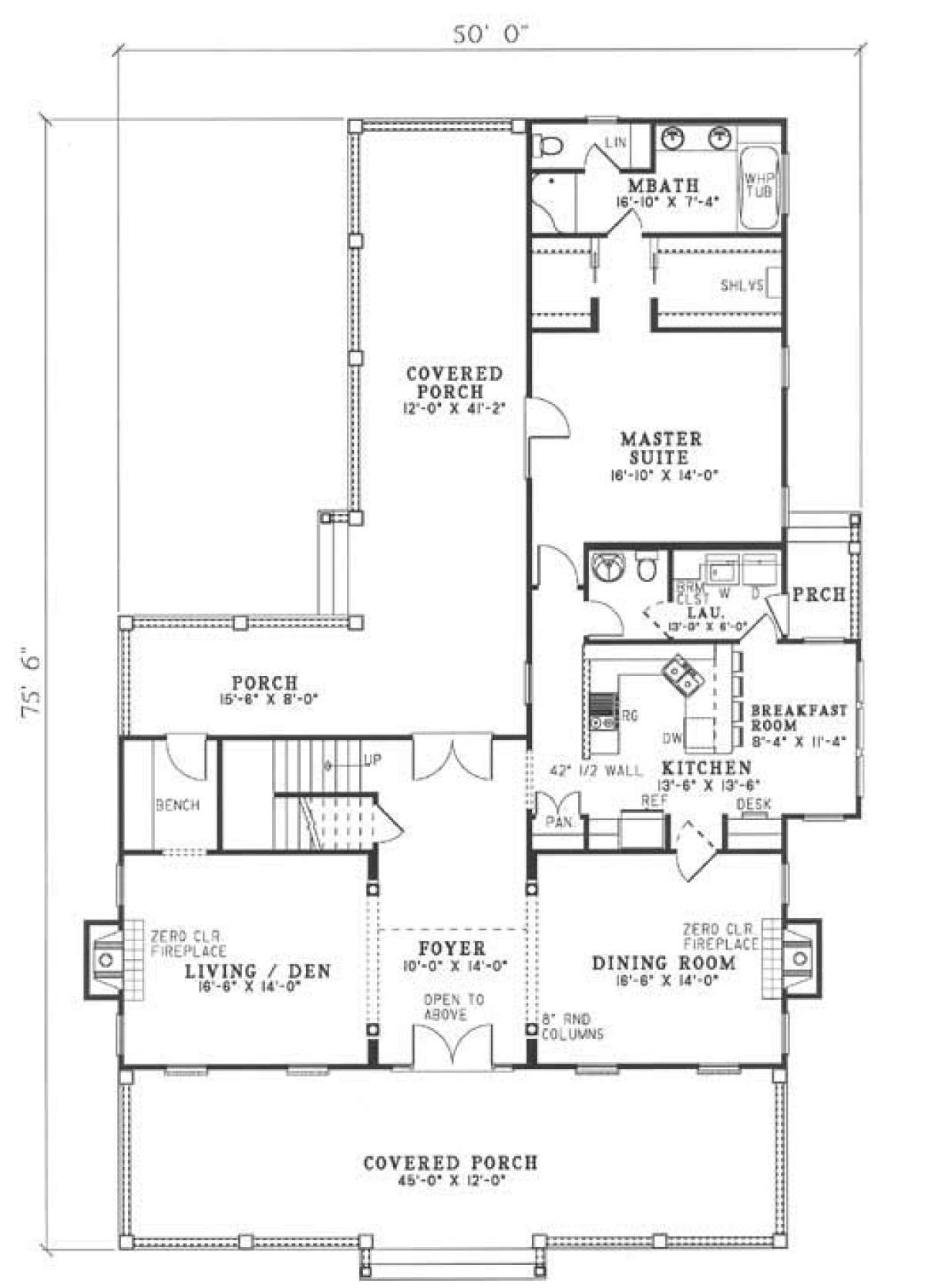

Main Floor
Main Floor for House Plan #110-00184

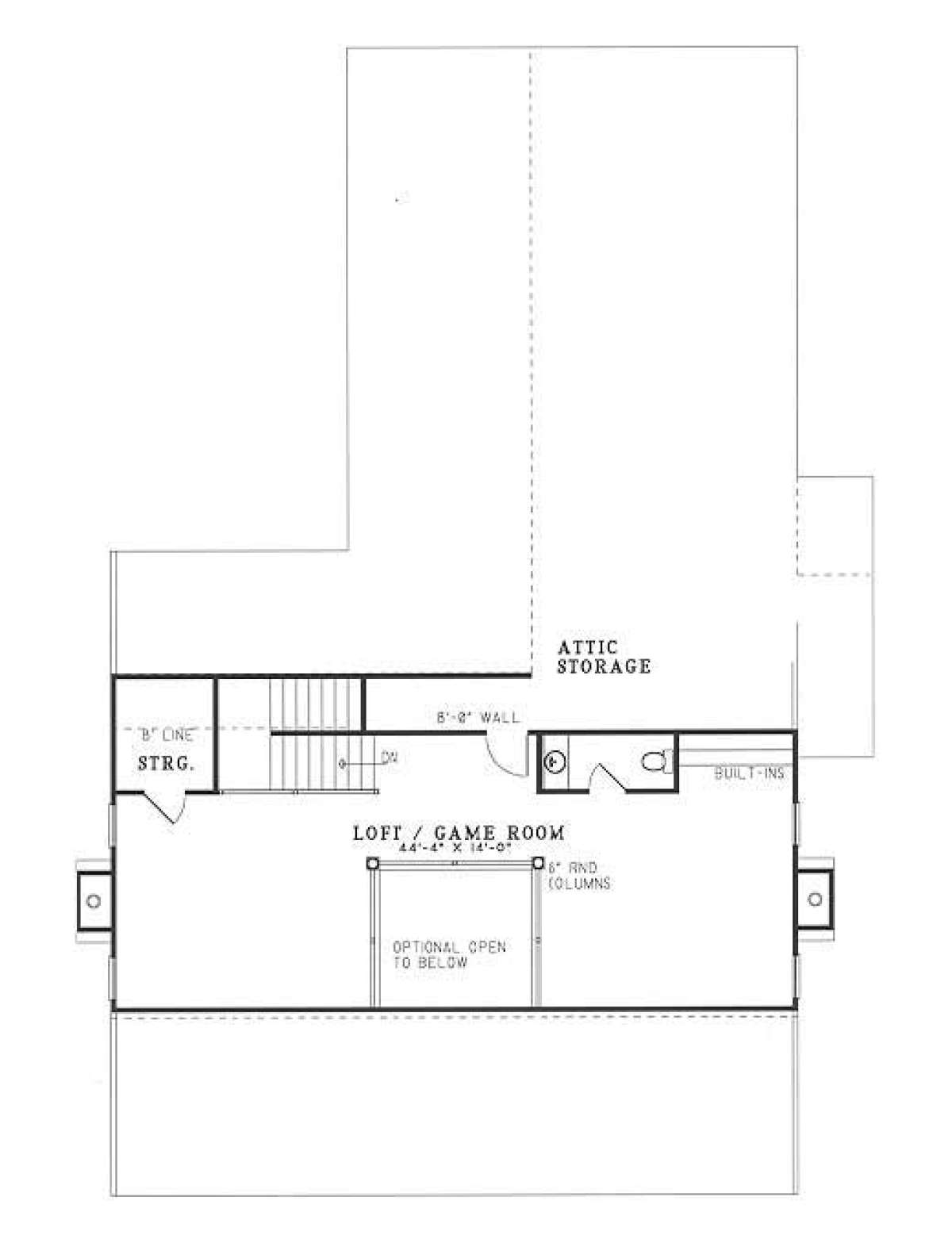

Upper Floor
Upper Floor for House Plan #110-00184
Images copyrighted by the designer.

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    These are included for many interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Picture yourself on the front porch of this Cottage home as you sip lemonade with the neighbors. Welcome them inside to your beautiful foyer as your guests retreat to the dining room for an enjoyable meal by the fire. The rear porch will be perfect for those summer cookouts as the children anticipate cooking hamburgers and hot dogs. After everything is put away, you can retire to your secluded master suite for relaxation. You'll find the perfect office located upstairs for work-at-home moms.
