Ranch House Plan 110-00135

Sq Ft2,096
Beds3
Baths2
1/2 Baths1
Stories1
Cars3
Width69' 2"
Depth74' 10"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

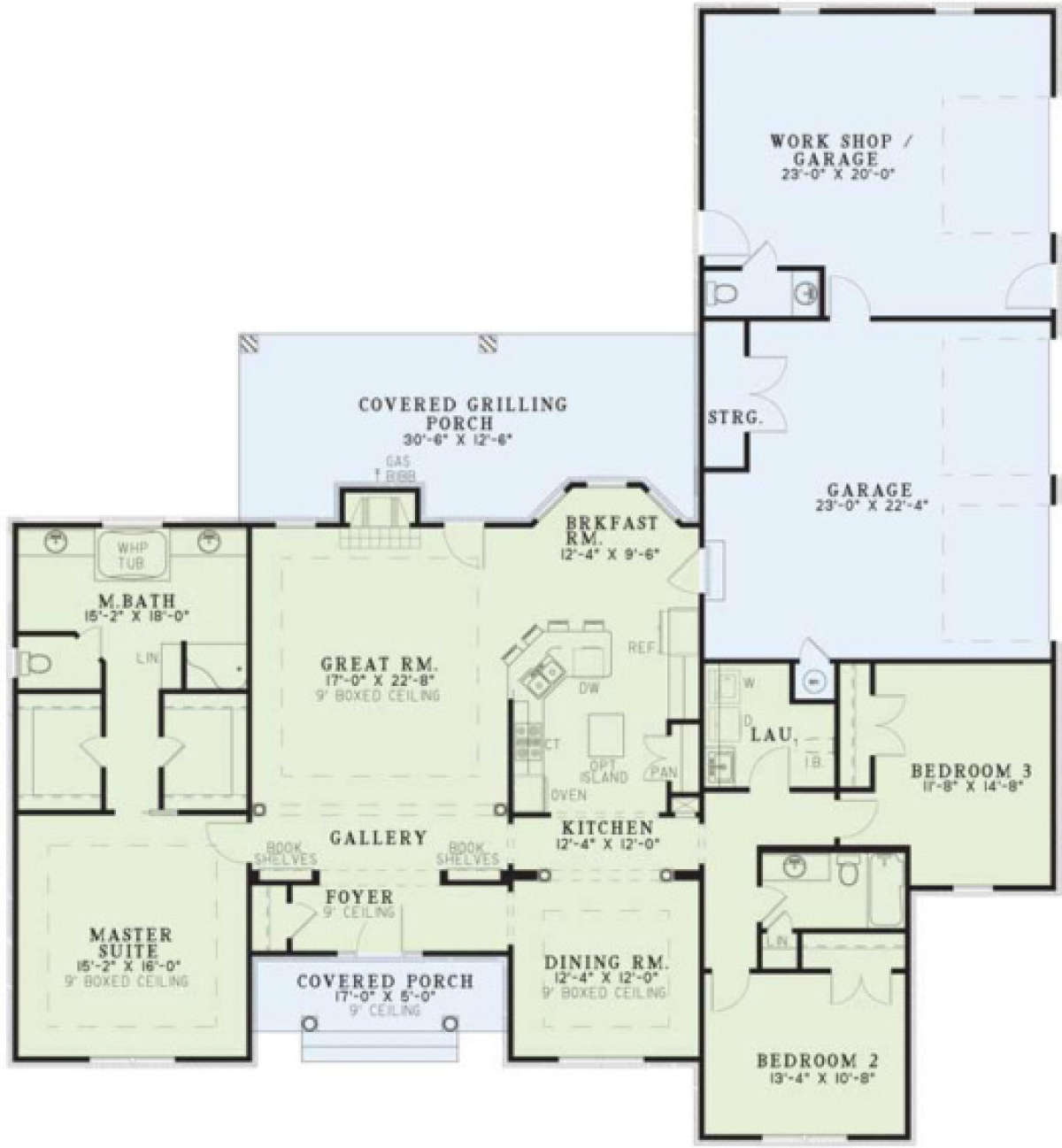

Main Level for House Plan #110-00135
Main Level
Main Level for House Plan #110-00135


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Kitchen and Bath Elevations (1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

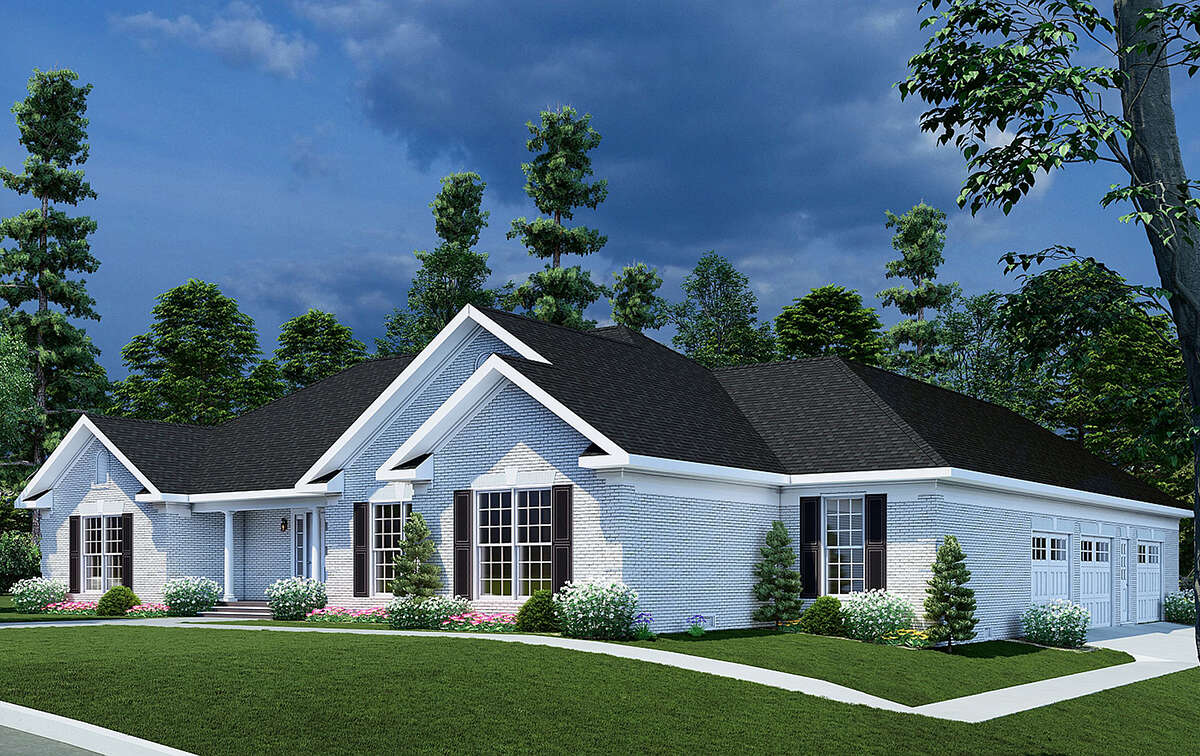

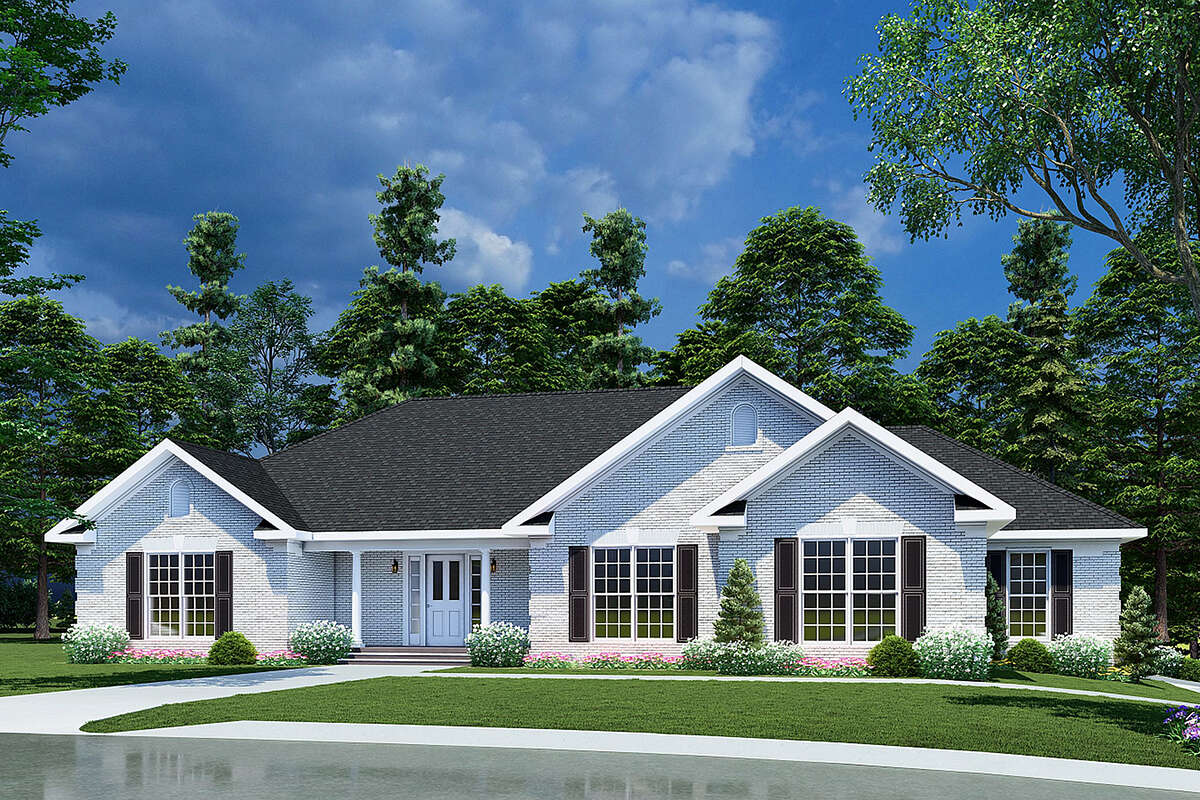

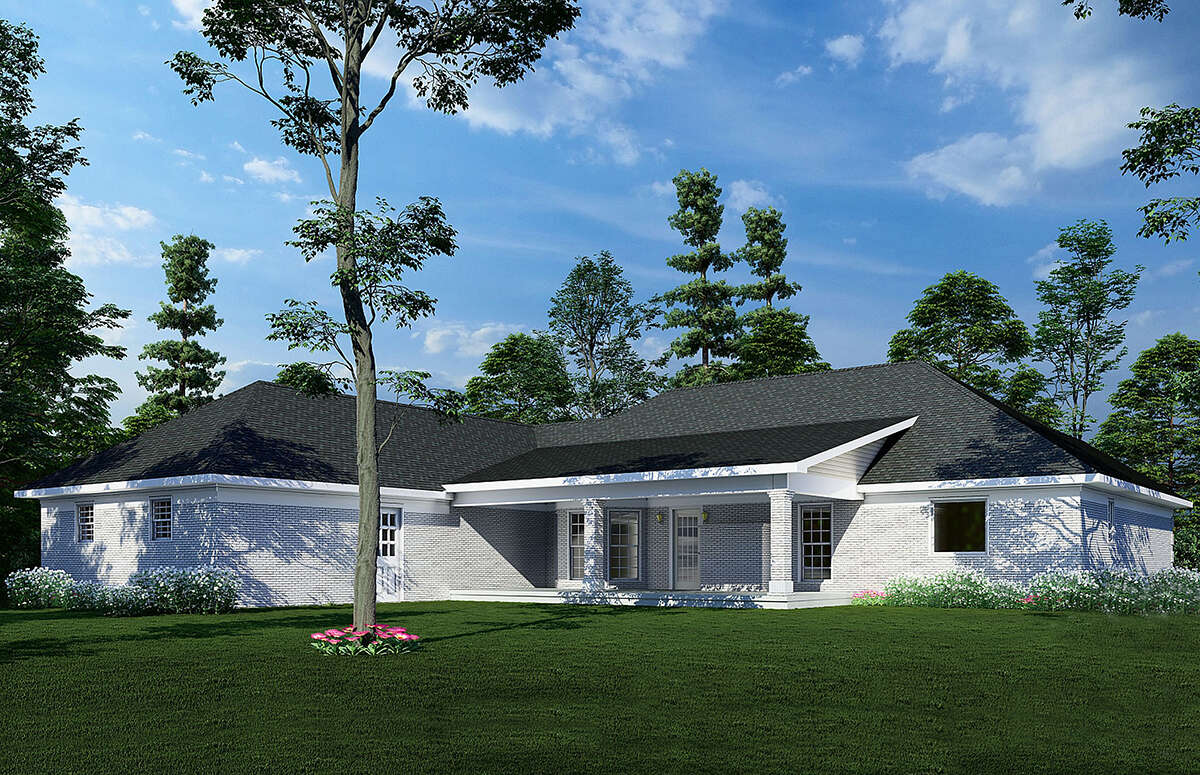

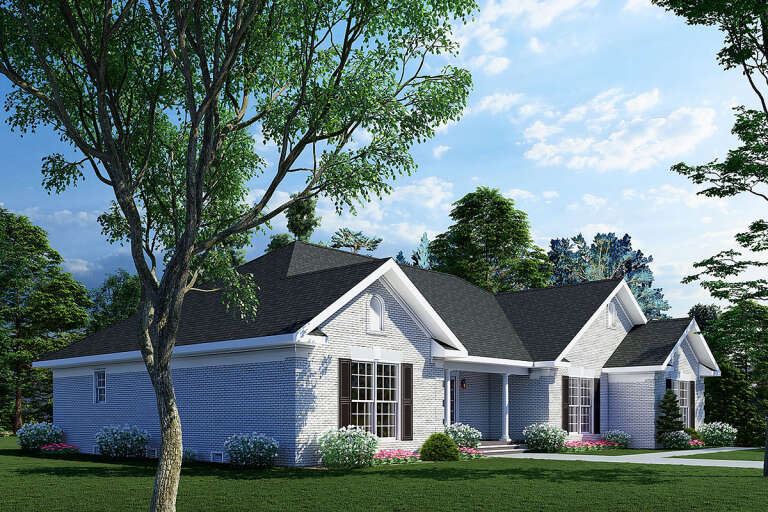

This Ranch house design features a low maintenance brick exterior and a spacious well-designed floor plan. The exterior is comprised of multiple gables with wide eaves, beautiful window views and a front covered porch with columned beams. The interior layout is open with a split bedroom plan that is perfect for family living. There are approximately 2,096 square feet of living space with three bedrooms and two plus baths. There is a three car side loading garage; double bays on one end and a large adjacent single bay with pedestrian door access between the two. There is also a rear pedestrian door on the single bay which could be used as a workshop/garage combination or workshop/hobby room. Within the single bay, there is a half bath as well and the double bay contains an additional storage room. The front covered entrance leads to the foyer and coat closet before opening onto the gallery hallway and subsequent open floor plan. The centrally located great room is spacious with a 9’ boxed ceiling, a warming fireplace and access to the rear grilling porch. This outdoor area is large and is the perfect spot for family fun and gatherings, summer cook-outs and relaxing. There is a casual breakfast room that is bright and sunny situated in a bay window and the formal dining room is located at the opposite end of the kitchen beyond the gallery hall. The grand kitchen is highlighted with an angled breakfast bar, a large walk-in pantry, an optional center island and plenty of additional counter and cabinet space. The laundry room is right around the corner and features counter space and a sink area.

The split bedroom plan offers two secondary bedrooms on one side of the home. Both bedrooms are generously sized with window views and plentiful closet space. There is a shared hall bath situated between the bedrooms that contains an oversized vanity, linen closet, toilet area and a tub/shower combination. The opposite wing of the home houses the master suite where a large master bedroom features a 9’ boxed ceiling and double window views. His and her walk-in closets line the hallway leading to the master bath and provide great clothing and accessory storage. The master bath is elegantly designed with dual, separate vanities, a separate shower, whirlpool tub, a compartmentalized toilet area and a linen closet. This home features a classic façade, a spacious interior and outstanding outdoor space.
