Traditional Plan 110-00017

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,698
Beds 5
Bath 3
1/2 Baths 0
Car 2
Stories 1.5
Width 70' 2"
Depth 51' 4"

Floorplan Drawings

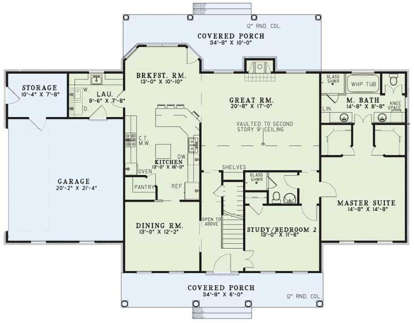

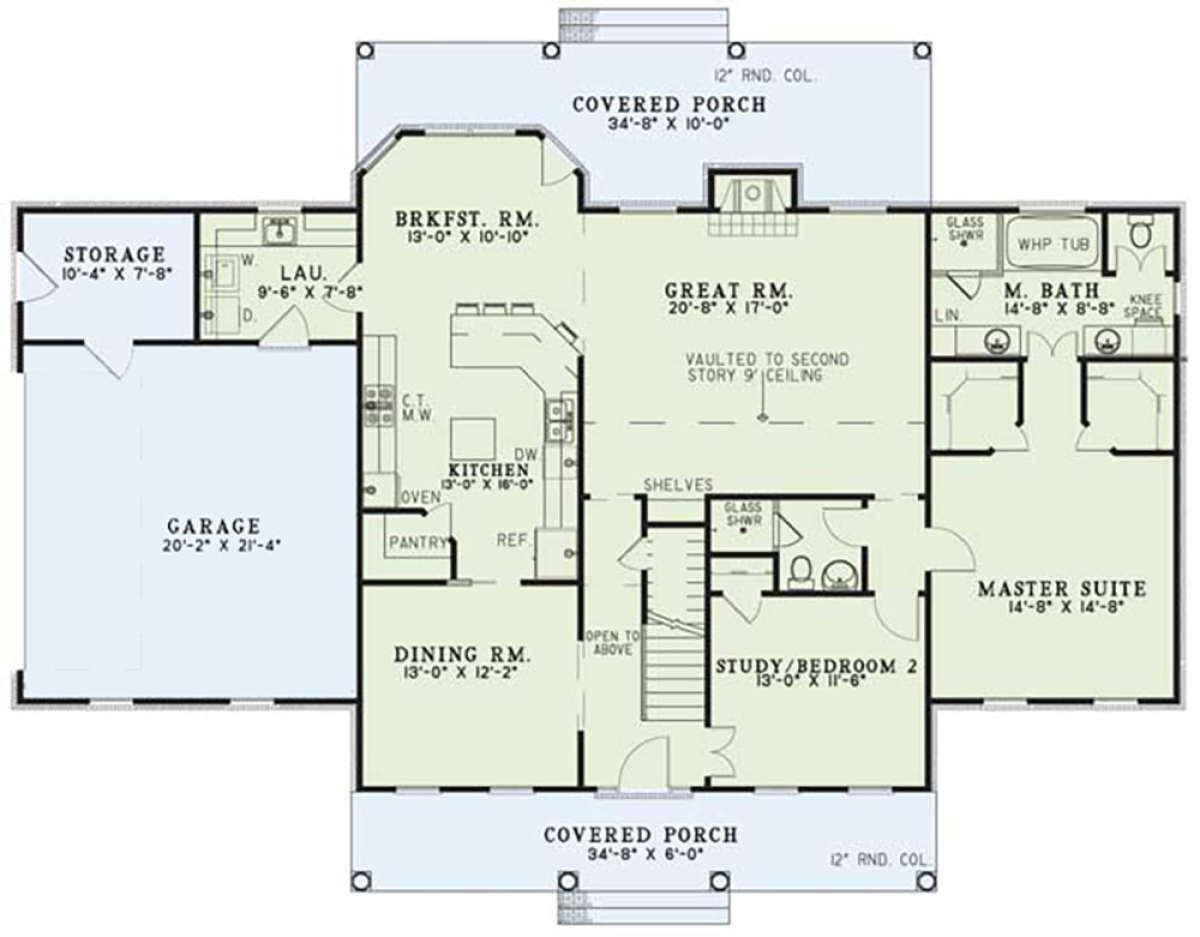

Main Floor
Main Floor for House Plan #110-00017

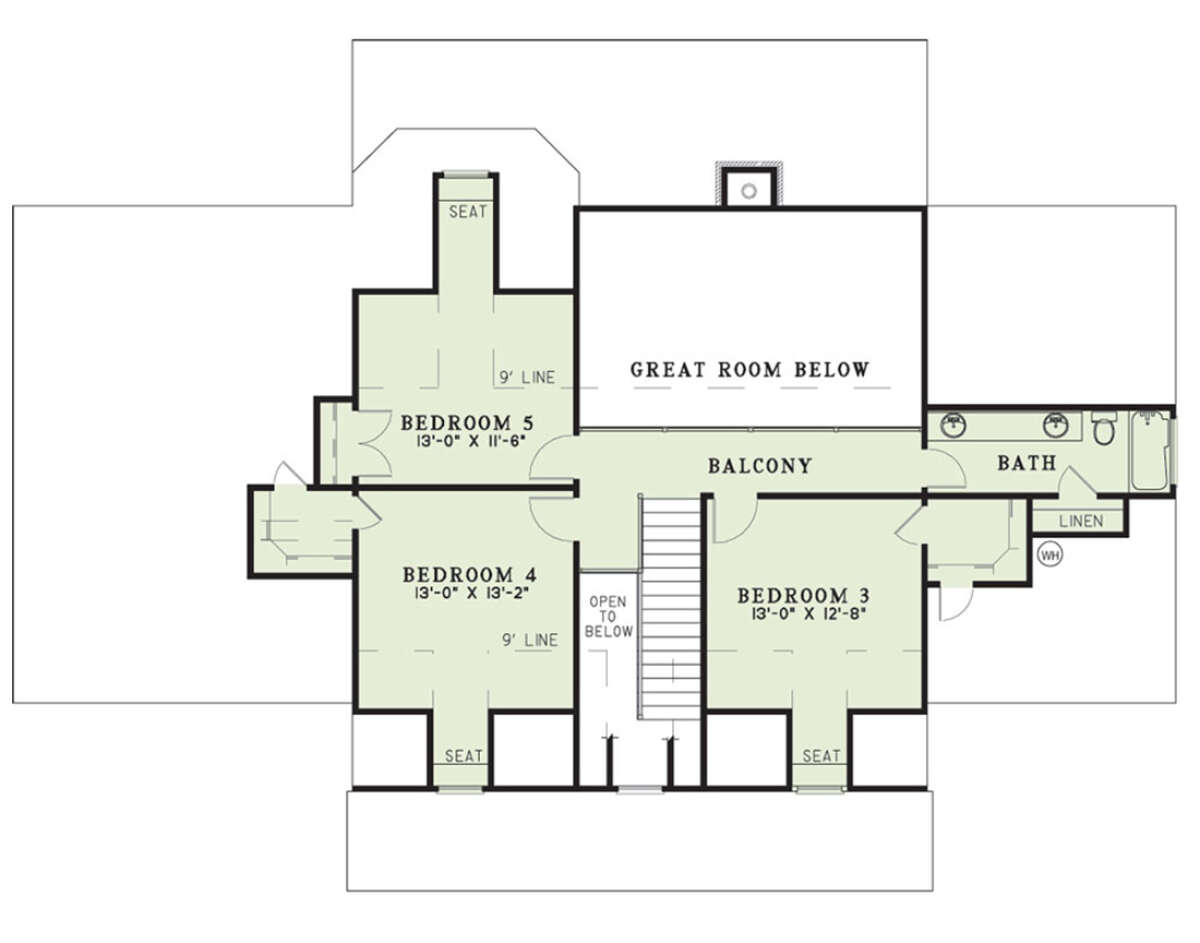

Second Floor
Second Floor for House Plan #110-00017


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

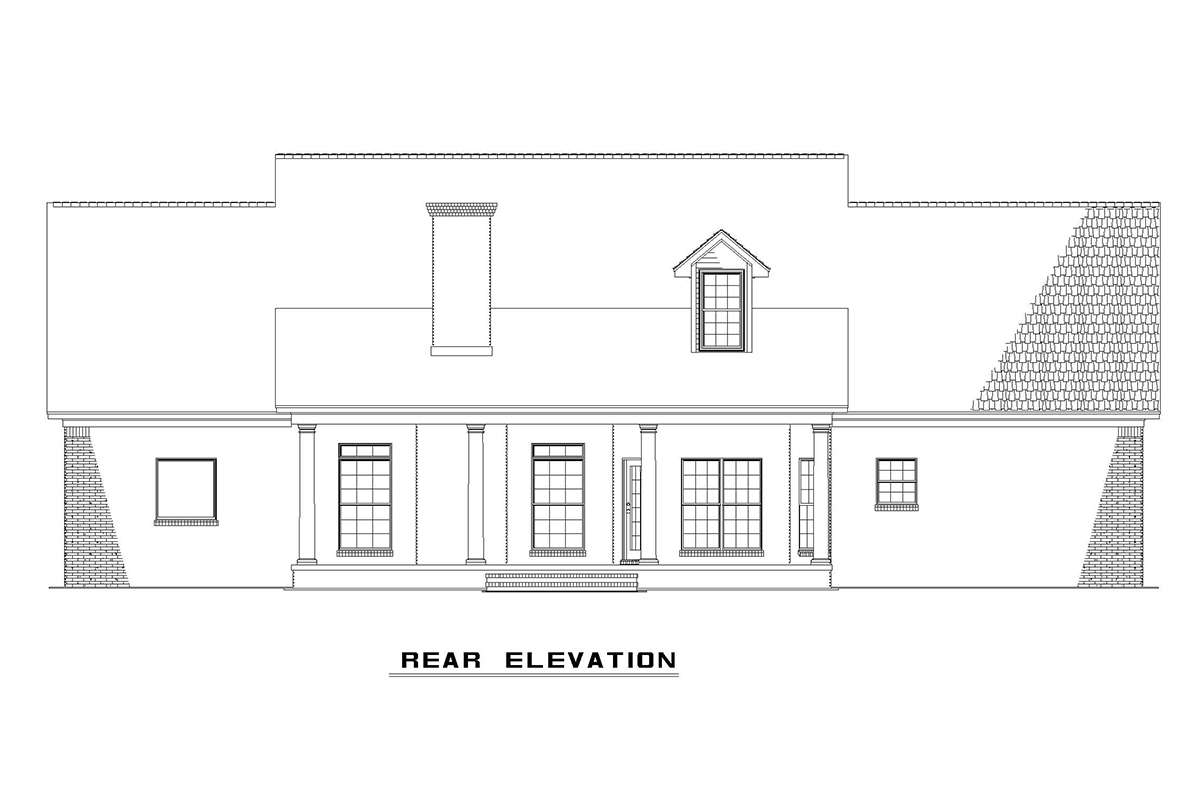

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Country house plan is highlighted with an attractive exterior reflective of a bygone era with its use of substantial columns, a sprawling front covered porch and a triple set of overhead dormers. The exterior façade also features a low maintenance, mostly brick exterior, offering a classic and timeless look and feel to the home. Five bedrooms and three bathrooms are highlighted in the approximate 2,698 square feet of living space in the 1.5 storied home. The expansive front covered porch measures in excess of 34’x6’ and provides great space for entertaining or relaxing before entering the home’s dramatic open foyer. There is a large formal dining room for special occasion meals off the foyer and a pass-thru to the kitchen reveals a grand space to prepare and enjoy family meals. The kitchen features a center island and an angled breakfast bar as well as a plethora of counter/cabinet space along with a separate walk-in pantry. The casual breakfast room is large and sun drenched with surrounding window views and access to the rear covered porch; another large outdoor space where cook-outs and family fun will be enjoyed. The centrally located great room features a handsome fireplace, vaulted ceilings and enormous space to relax or entertain. The second bedroom/study is entered through French doors and features ample closet space and a nearby full bath. There is a main level master suite which features a large bedroom with wonderful window views and his and her walk-in closets line the hallway to the master bath. The master bath is an elegant compilation of modern amenities which include dual vanities, a centrally located whirlpool tub and a glass enclosed shower. The two car side loading garage is highlighted with additional storage room and conveniently leads to the family laundry room which is oversized and contains a sink area and loads of counter space.
Overviews into the foyer and great room are accented on the balcony hallway where the remainder of the bathrooms and bedrooms lie. Bedrooms three and four feature great floor space, walk-in closets and dormer window views while the fifth bedroom enjoys a spacious room, generous closet space and a dormer window view as well. One end cap of the hallway features the shared hall bath where there are double lavatories within the extended vanity space, an enclosed linen closet and a tub/shower combination. This family friendly home features a large amount of space both for entertaining and relaxing along with a timeless exterior and outstanding outdoor space for the ultimate in home design.
