Craftsman Plan 1070-00294

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,410
Beds 5
Bath 5
1/2 Baths 1
Car 2
Stories 1.5
Width 74' 5"
Depth 81' 6"

Floorplan Drawings

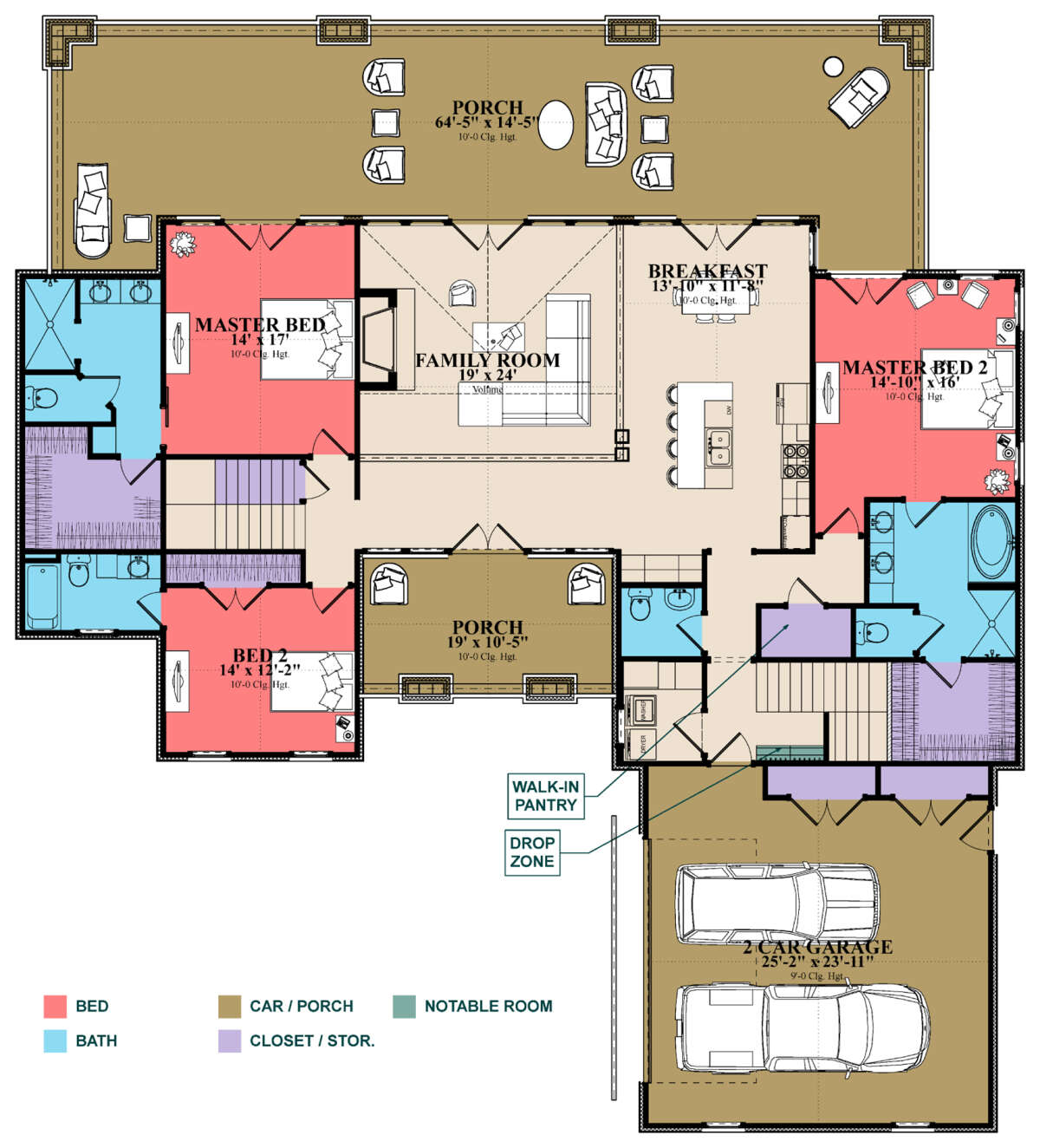

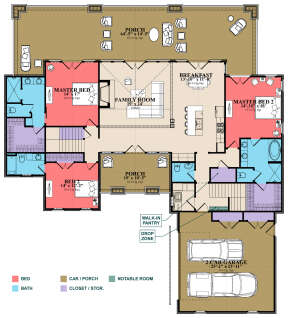

Main Floor
Main Floor for House Plan #1070-00294

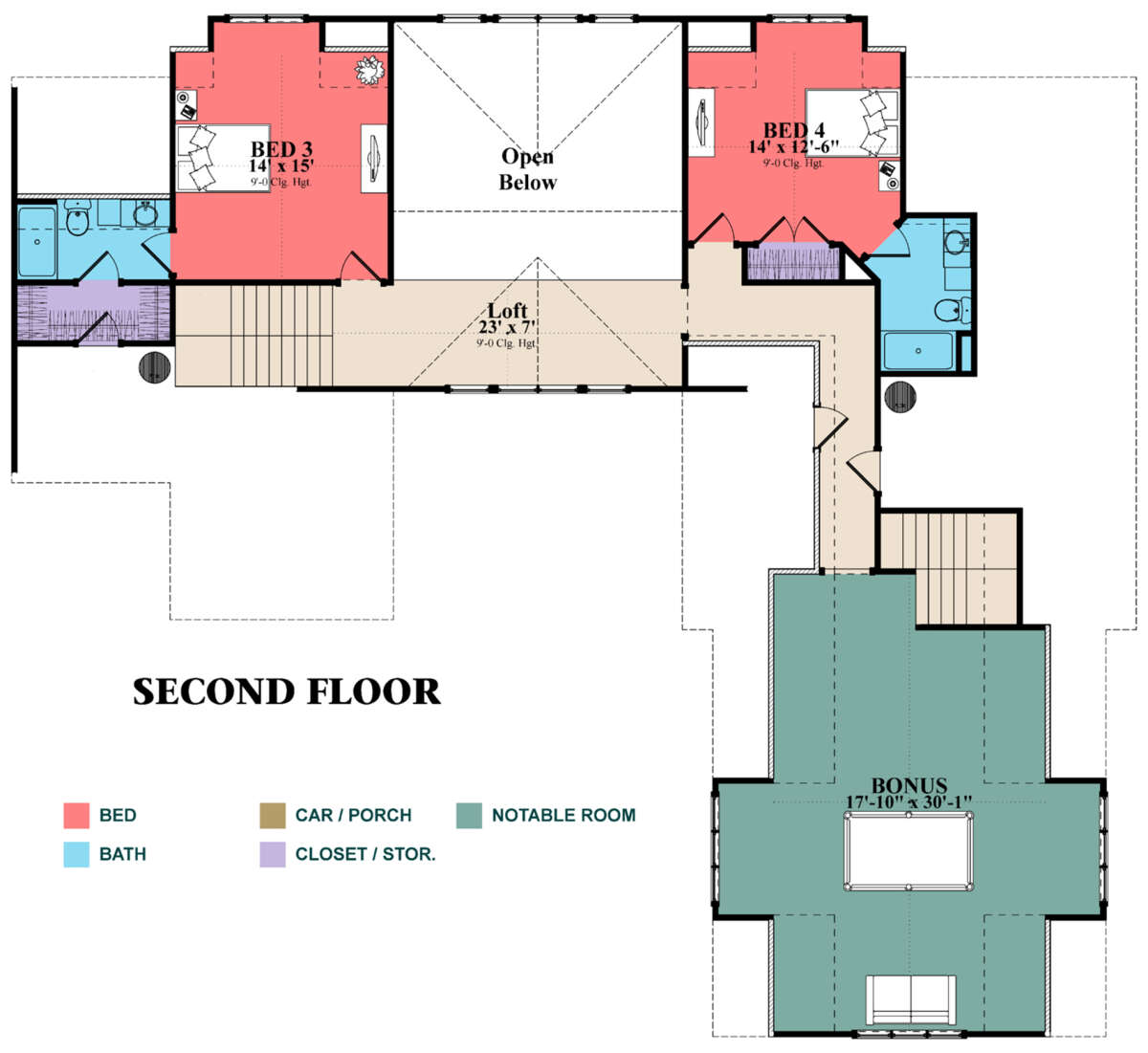

Second Floor
Second Floor for House Plan #1070-00294


What's Included in these plans?

  • Cover
    Sheet:  Including 3-D perspectives of the
    exterior of the house. Also protects the rest of the documents within the
    project set.
  • Foundation:  Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations:  Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s):  Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan:  Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter Plan:  Complete with rafter lengths and separate rafter cut list.for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details:  Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations:   Including applicable cabinets, electrical, and special construction notes.
  • Floor Joist:  Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist:  Complete with spans, sizes and direction
  • Sections:  Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This outstanding Craftsman house plan details a charming home design featuring a mix of stone and vertical siding with stylish window and roofing designs. Complimenting this wonderful design is the courtyard entry to the two-car garage with good vehicle space, a pedestrian door, two storage closets, window views, and entrance into the home’s interior through the mudroom, where the laundry room, a bench, and the guest powder room can be found. The front covered porch is deep-set, measuring approximately 19-feet wide by 10.5-feet deep, making it spacious enough to greet guests and sit out and enjoy a conversation with the neighbor. The rear porch highlights a nearly house-wide entertaining area ready to create the outdoor living area of your dreams with a 10-foot ceiling height. This perfectly shaded space will encourage dining al fresco, lounging in the fresh air after a long day, and supervising the kids play in the backyard.


From the main entrance, the open floor plan allows for comfortable and effortless entertaining with its large open spaces. Following an open hallway from the front door, the family room features soaring ceiling heights with a decorative vaulted ceiling, a warming fireplace, and access to the rear porch. Adjacent to the family room is a grand kitchen and breakfast nook that also doubles as a dining area. The kitchen will surely excite the family chef as the large center island serves as a functional eating bar across from the sink. The configuration allows for those cleaning dishes to continue engaging with those in the family room and dining room. Along with the functional island, there is a separate walk-in pantry off the corner of the kitchen and good counter and cabinet space.


The split bedroom plan features two master suites on opposite ends of the home. The first is located on the left, across the hall from Bedroom 2. The first master bedroom is complete with private access to the rear porch, a large walk-in closet, and a 4-fixture en suite bathroom. where there is generous floor space, beautiful window views, and a grand walk-in closet. Bedroom 2 also enjoys plenty of closet space and its own full bathroom with a tub/ shower combination. The second master bedroom, on the right side of the home, also features private access to the rear porch, a large walk-in closet, and a 5-fixture en suite bathroom.


On the second floor, there are two additional bedrooms that are similarily-sized and are on opposite ends of the second-story to allow for more privacy. Each bedroom has bump-out window views and private en suite bathrooms. Between the two bedrooms is a loft overlooking the main floor family room and leading to the bonus room. The large bonus room measures approximately 605 square feet of space which could be configured as a multi-purpose family room or a study/home office. Designed for exceptional indoor and outdoor living, this Craftsman house plan offers an ideal family home to raise your children, invite aging in-laws to live, and still enjoy private spaces. The interior floor plan showcases approximately 3,410 of living space with five bedrooms and five-plus bathrooms.
