Country Plan 1070-00201


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,481
Beds 5
Bath 4
1/2 Baths 0
Car 2
Stories 1
Width 64' 11"
Depth 61'

Floorplan Drawings

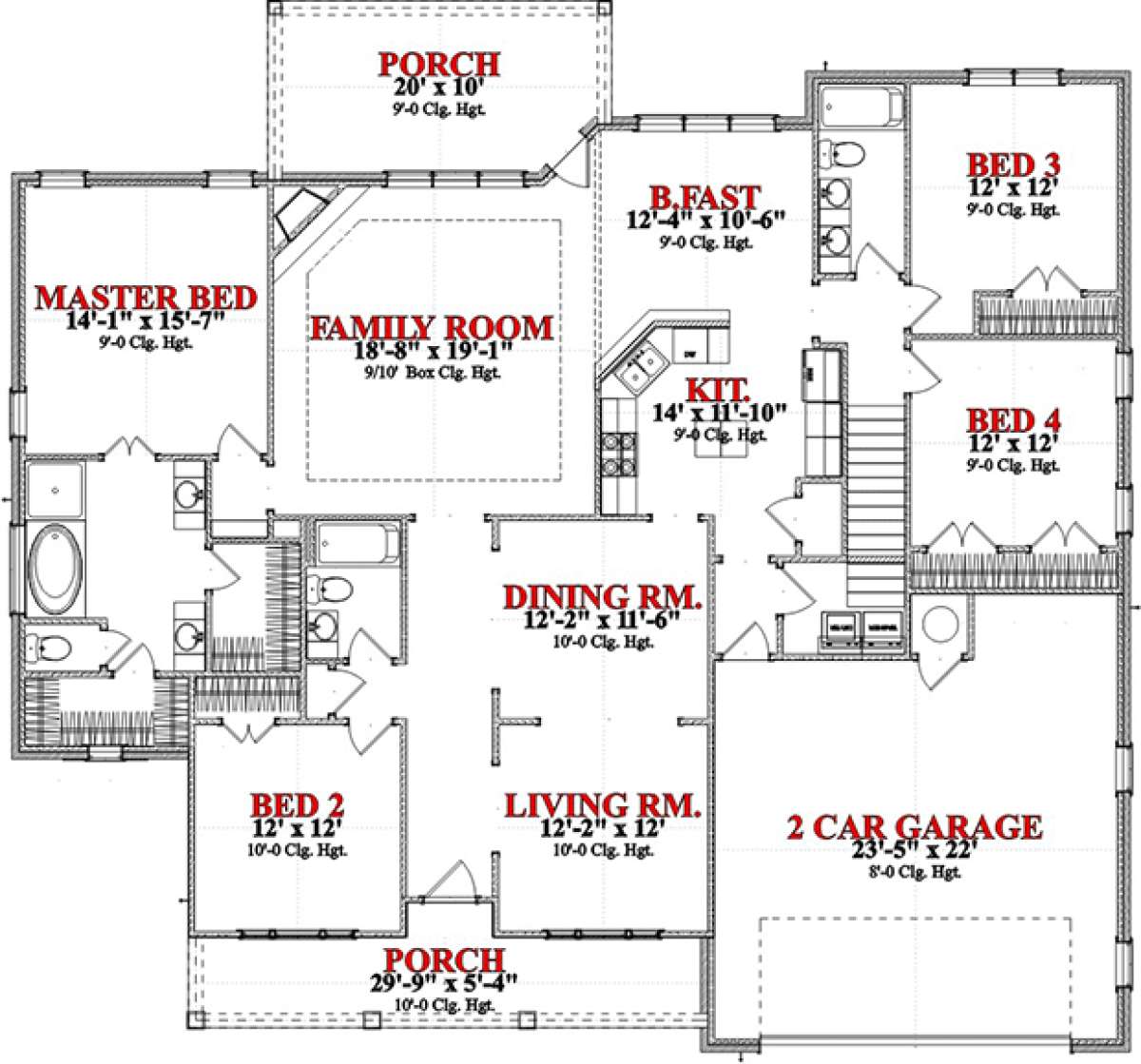

Floorplan 1
Floorplan 1 for House Plan #1070-00201

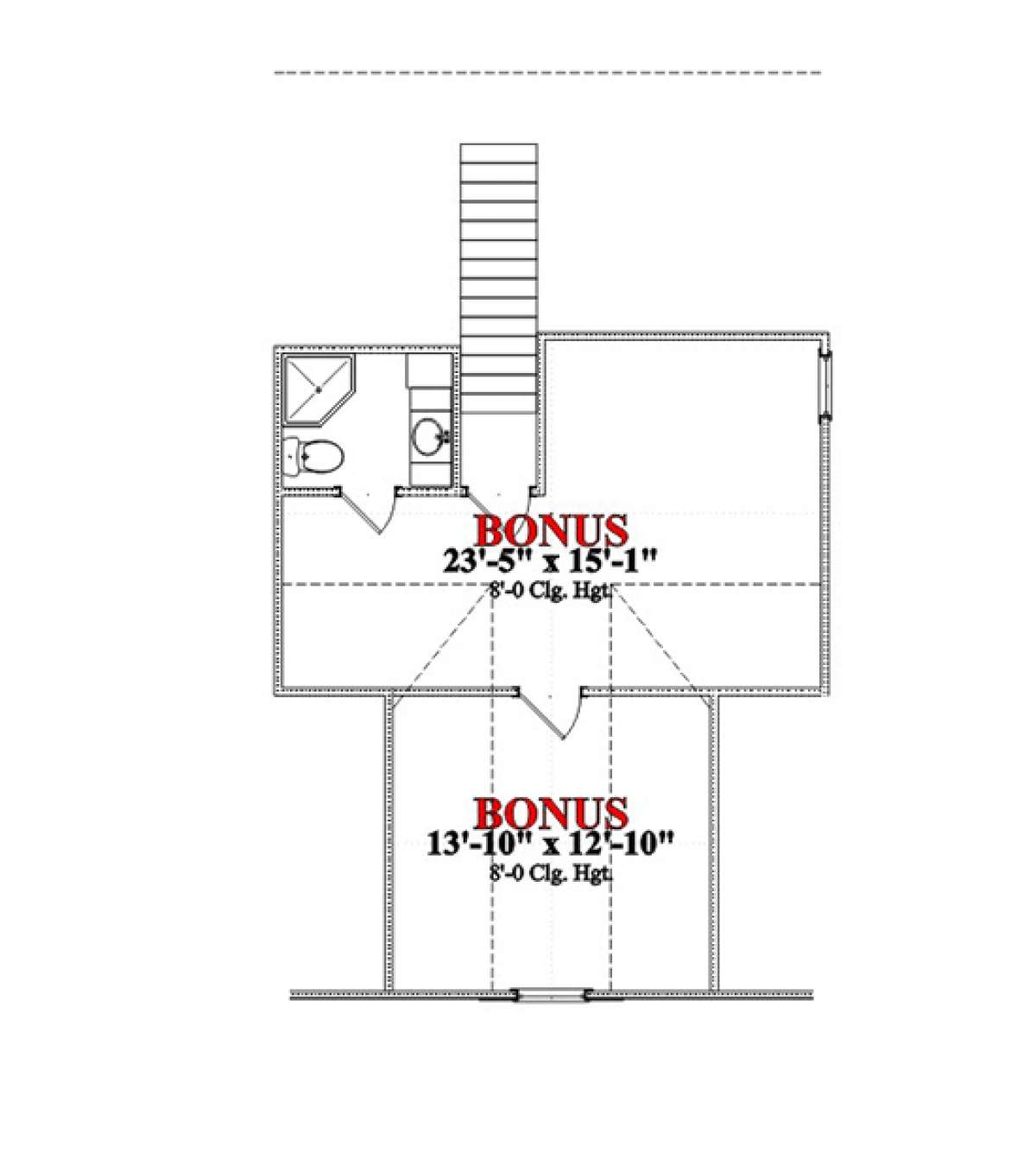

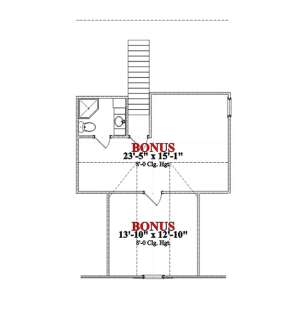

Floorplan 2
Floorplan 2 for House Plan #1070-00201

What's Included in these plans?

  • Cover
    Sheet:  Including 3-D perspectives of the
    exterior of the house. Also protects the rest of the documents within the
    project set.
  • Foundation:  Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations:  Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s):  Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan:  Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter Plan:  Complete with rafter lengths and separate rafter cut list.for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details:  Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations:   Including applicable cabinets, electrical, and special construction notes.
  • Floor Joist:  Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist:  Complete with spans, sizes and direction
  • Sections:  Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

An amazing amount of space is featured in this Florida house plan; there are in excess of 15,000 square feet of usable living space containing five to six bedrooms and five plus bathrooms. This magnificent estate is highlighted by an exterior façade reminiscent of medieval times where regal living was revered by nobility and the upper class. A courtyard entrance, stonework, stucco and turret inspired design elements highlight the exterior giving it visual interest and Old World character. Multiple roof lines, interesting window features and arched openings blend beautifully to soften the edges of the manor while maintaining the essence of the structure. The home contains a formal foyer entrance and a friend’s foyer entrance; the formal entrance is accessed through French doors and leads to the formal living room featuring a rear wall of windows and good space to entertain business associates and family. The family room lies off the living room and is an enormous space highlighted with a wet bar, a stately fireplace, a trey ceiling accent and there is double French door access onto the loggia, the deck and subsequent outdoor lounge with fireplace. This outdoor space is expansive and allows for continued entertaining in style. A formal dining room features a double step trey ceiling, rear deck overviews and opens onto the gourmet kitchen. The kitchen is unbelievably efficient and stylish with state-of-the-art amenities including double center islands, a fireplace, loads of counter and cabinet space and a separate pantry. A second pantry is situated off one of the back walls in the kitchen and allows for massive food storage for future use. There is a rear office that is cozy and private for business meetings or entertaining intimate guests. The three car garage is conveniently located near the laundry/mudroom for ease of clean-up and there is additional storage and a men’s room in the garage itself. The guest suite is strategically placed on the far corner of the home for privacy and features a spacious bedroom, double closets, an adjacent full bath and access to the outdoor space. The main level master retreat is wholly contained with a bevy of elegantly designed and spacious rooms; there is a cozy library and a sitting room that is situated across the hallway that contains a warming fireplace and French door access onto the private covered balcony. The master bedroom is highlighted with a spacious footprint and a triple wall of windows overlooks the rear yard. The master bath features amazing space and luxurious spa accommodations featuring his and her private bathing quarters, separate vanities and toilet areas and enormous walk-in closets for the both.
The winding staircase to the second level of the home features gorgeous overlooks onto the foyer below. The second floor of the home features entertaining quarters that include a loft space and separate living room that is a fabulous space for older children and/or guests. There is an additional laundry room for convenience situated on this floor along with three large bedrooms. Each bedroom has a walk-in closet, access to a full bath and private access onto the rear sun deck which measures in excess of 30’ x 18’; this is a comprehensive space for sun bathing, relaxing and enjoying friends. This magnificent manor features an aesthetically pleasing exterior and an interior floor plan beyond compare that is designed for the homeowner’s maximum pleasure and comfort.
