Craftsman Plan 1070-00169

Sq Ft 1,337
Beds 2
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 34'
Depth 69'

Floorplan Drawings

Floorplan 1

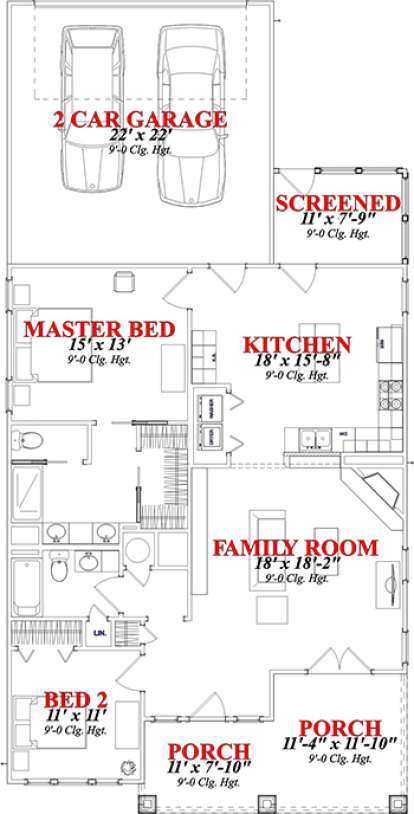

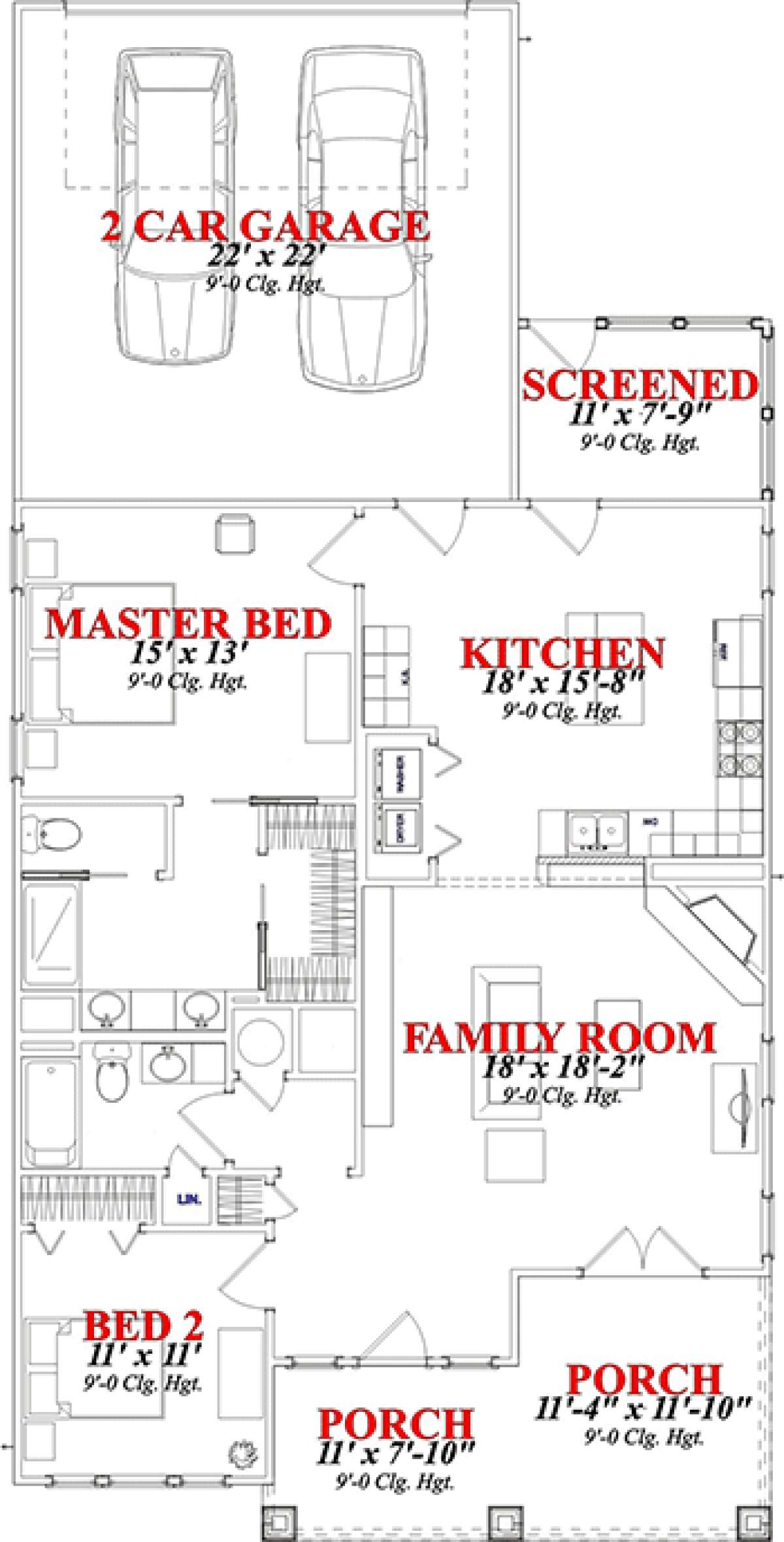

Floorplan 1 for House Plan #1070-00169
Images copyrighted by the designer.

What's Included in these plans?

  • Cover
    Sheet:  Including 3-D perspectives of the
    exterior of the house. Also protects the rest of the documents within the
    project set.
  • Foundation:  Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations:  Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s):  Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan:  Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter Plan:  Complete with rafter lengths and separate rafter cut list.for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details:  Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations:   Including applicable cabinets, electrical, and special construction notes.
  • Floor Joist:  Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist:  Complete with spans, sizes and direction
  • Sections:  Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Double gables and an inviting front covered porch with open railing and plenty of space for relaxing and welcoming friends and family are featured highlights of this Craftsman inspired house design. Simple construction offers clean lines and unnecessary adornments while maintaining a sense of home long associated with early home building skills that were defined with finely crafted materials and workmanship. The interior floor plan features in excess of 1,330 square feet of living space in a single story that manages to incorporate an open floor plan, two bedrooms and two baths into the space comfortably. Although a compact home and ideally suited for a small family, young professionals and/or empty nesters, this home features an abundance of interior space along with beautiful outdoor space and there are an additional 506 square feet of vehicle and other storage space. The rear loading two car garage is strategically placed at the back of the home for unobstructed sight lines from the front exterior of the home. The home’s renderings highlight the 34’width dimensions, perfect for a narrow lot and 9’ ceiling heights run throughout the home lending it a spacious and open atmosphere. The front porch features an L- shaped double covered space where access into the home is through the main entryway along with French door access into the family room. The main greeting entrance houses a coat closet and subsequent entry into the large family room where there is a corner warming fireplace and plenty of room for optimal furniture placement. The enormous kitchen features a center island with casual dining space, loads of counter and cabinet space, the laundry nook and access to the rear screened porch and garage. The screened porch offers excellent entertaining, relaxing and/or outdoor dining space.
Bedroom two is situated at the front of the home with window views overlooking the front porch, generous closet space and easy access to the adjacent hall bath. Within the bath are a linen closet, a spacious vanity area and a tub/shower combination. The master suite is situated at the rear of the home for privacy and is highlighted with a large amount of floor space, wonderful window views and an attached master walk-in closet and en suite bath. The master bath features dual vanities, an enclosed toilet area and a tub/shower combination. This Craftsman home is highlighted with an efficient and comfortable floor plan, outstanding outdoor space and an inviting exterior façade.
