Craftsman Plan 1070-00151


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,655
Beds 4
Bath 3
1/2 Baths 0
Car 2
Stories 2
Width 65' 5"
Depth 52' 5"

Floorplan Drawings

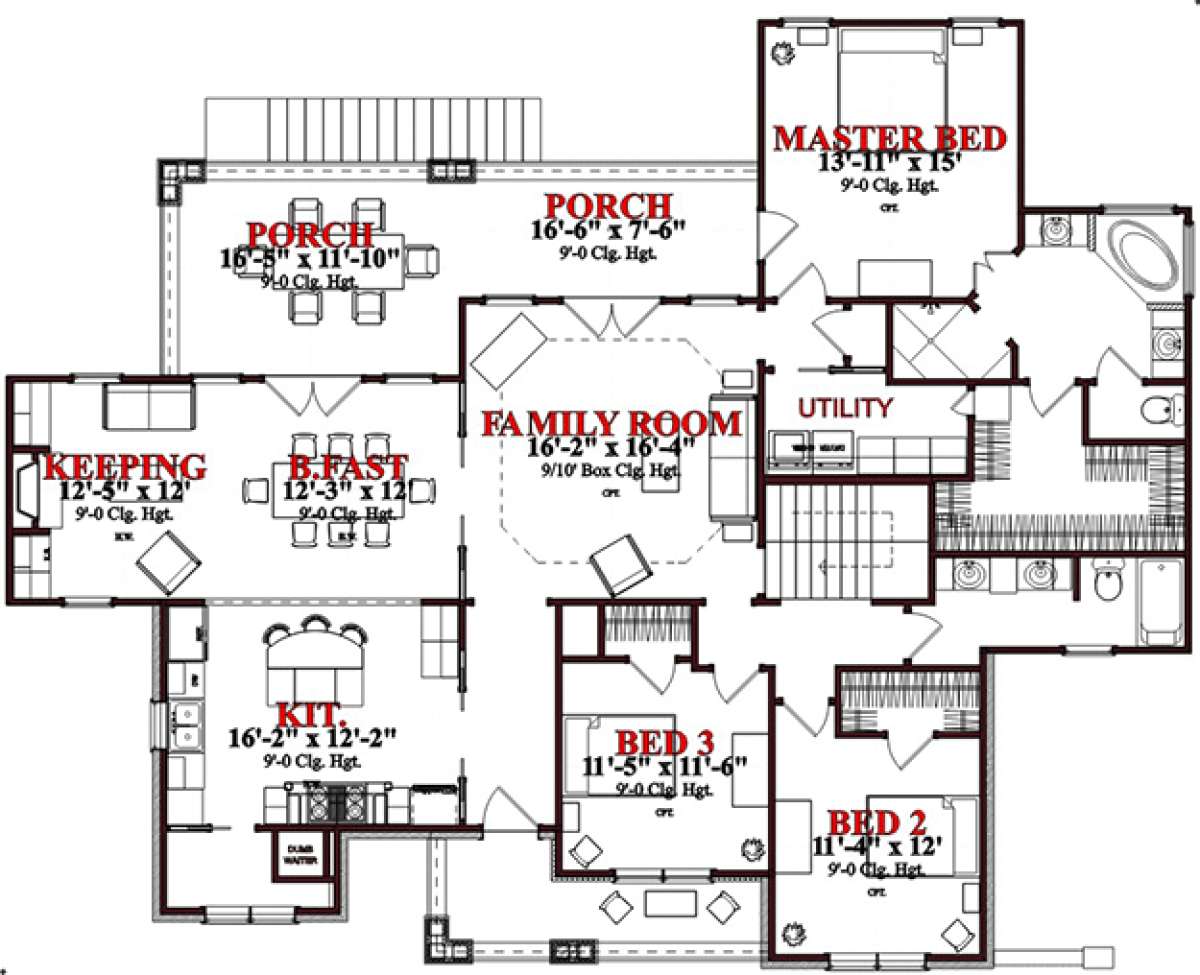

Floorplan 1
Floorplan 1 for House Plan #1070-00151

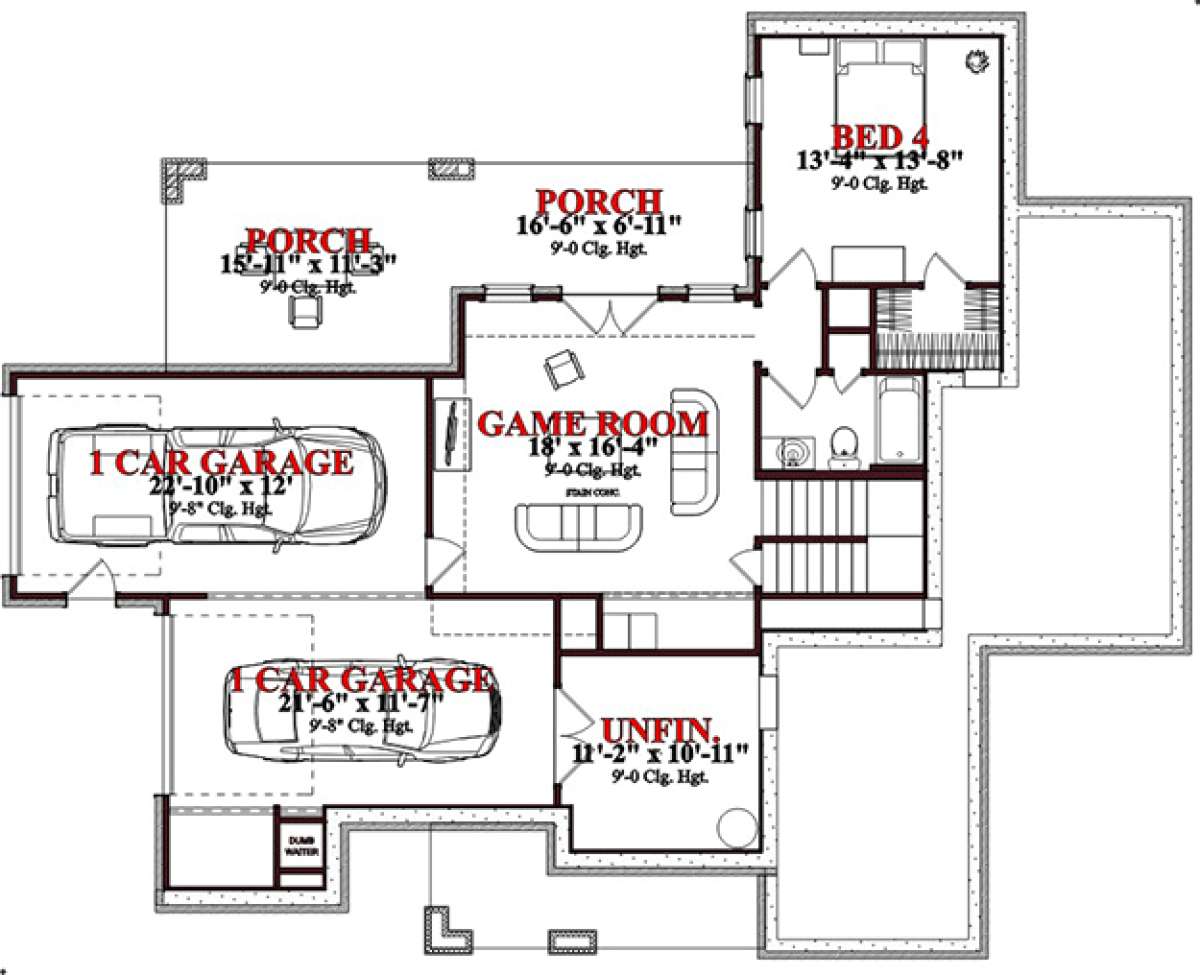

Floorplan 2
Floorplan 2 for House Plan #1070-00151

What's Included in these plans?

  • Cover
    Sheet:  Including 3-D perspectives of the
    exterior of the house. Also protects the rest of the documents within the
    project set.
  • Foundation:  Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations:  Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s):  Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan:  Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter Plan:  Complete with rafter lengths and separate rafter cut list.for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details:  Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations:   Including applicable cabinets, electrical, and special construction notes.
  • Floor Joist:  Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist:  Complete with spans, sizes and direction
  • Sections:  Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This enticing Craftsman house plan features a lovely exterior that is highlighted with varying aesthetically pleasing design elements. There is a board and batten decorative gable, horizontal siding, warm woods and an abundance of striking low maintenance brickwork. The front covered porch features a beautiful overhead gable, warm wood accents, open railing and brick pillars; the space is generously proportioned and presents the perfect opportunity to graciously greet family and friends and/or relax and watch “the world go by.” The interior floor plan is highlighted with approximately 2,655 square feet of living space that includes four bedrooms and three baths. There is a two car drive under garage in single bay fashion with an attached basement layout. One of the garage bays features double door entry into an unfinished space; perfect as a workshop, hobby room or for lawn/garden and/or sporting equipment. The other garage bay features entrance into the basement where there is a large recreation room, a nearby full bath and a fourth bedroom with a walk-in closet and window views overlooking the covered porch. This outdoor space offers a large amount of relaxing and entertaining space for family and friends to comfortably enjoy.

The main floor of the home is an open concept plan with large comfortable rooms and plenty of entertaining and private space. The grand kitchen features a center island breakfast bar, a separate pantry and plenty of counter and cabinet space. The kitchen is open to the breakfast and hearth room; these are great spaces to gather as a family and enjoy a meal and/or spend quality time. The hearth room has a warming fireplace and there are great surrounding window views and French door access onto the accompanying outdoor space. The rear covered porch affords a generous amount of outdoor living and entertaining space for large groups to gather and relax. The centrally located family room is quite spacious, features a trey ceiling overhead and there is French door access onto the rear porch. The master suite is located on the main floor and is positioned at the rear of the home for privacy. The master bedroom is spacious with wonderful window views and there is private access onto the outdoor space. The en suite bath is luxuriously appointed with dual vanities, a corner garden tub, a separate shower and a private toilet area. The attached walk-in closet is quite large and offers a large amount of clothing and other accessory space. Two secondary bedrooms and a bath are situated at the front of the home; the bedrooms are similarly sized with walk-in closets and double window views. The shared bath is located at the end of the small hallway and features double sinks, a toilet area and a tub/shower combination. This beautiful house plan is highlighted with an attractive exterior, great family and entertaining space and beautiful outdoor space.
