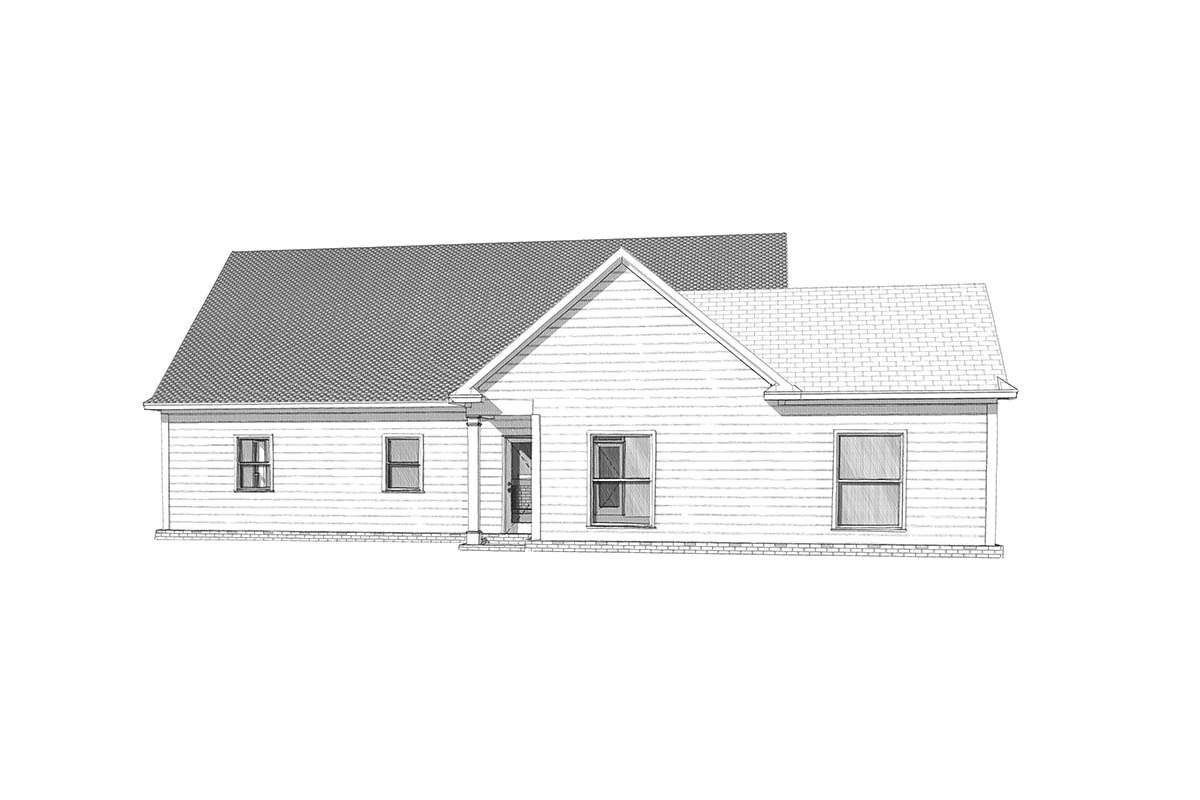

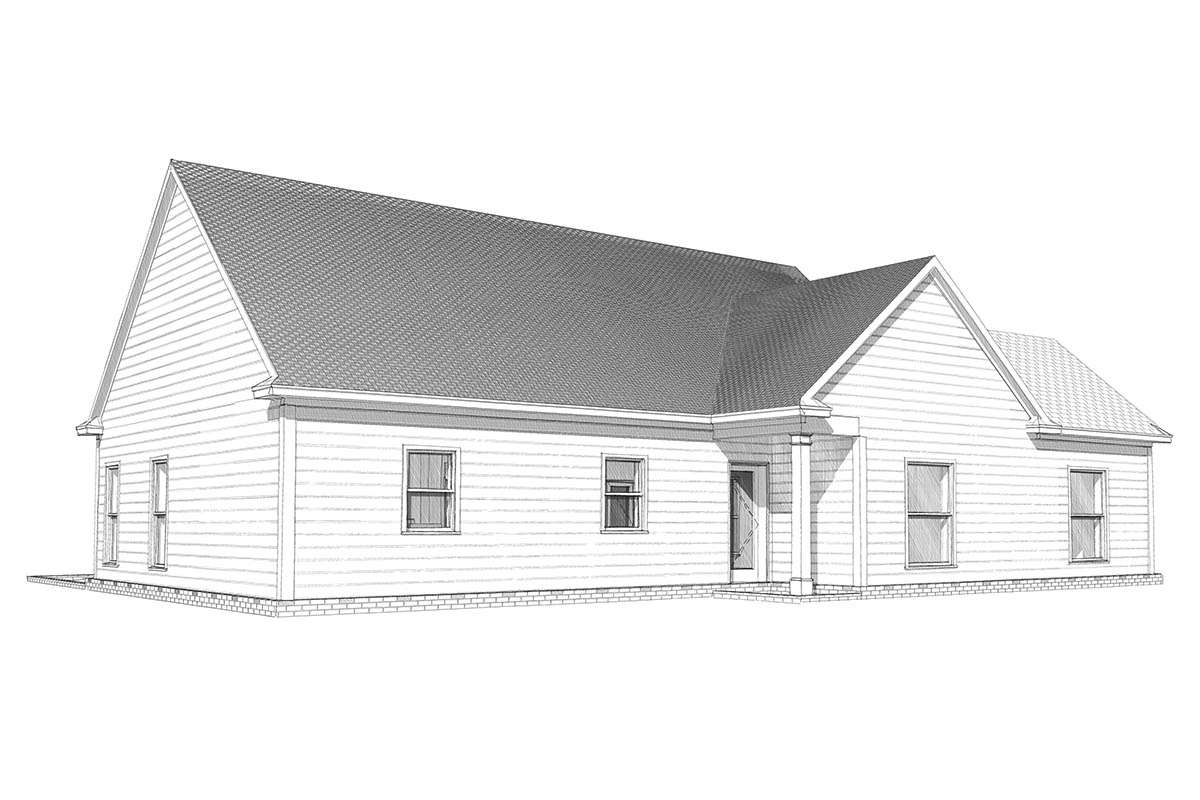

Ranch House Plan 1070-00130

Sq Ft1,711
Beds3
Baths2
1/2 Baths0
Stories1
Cars0
Width56' 8"
Depth52' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

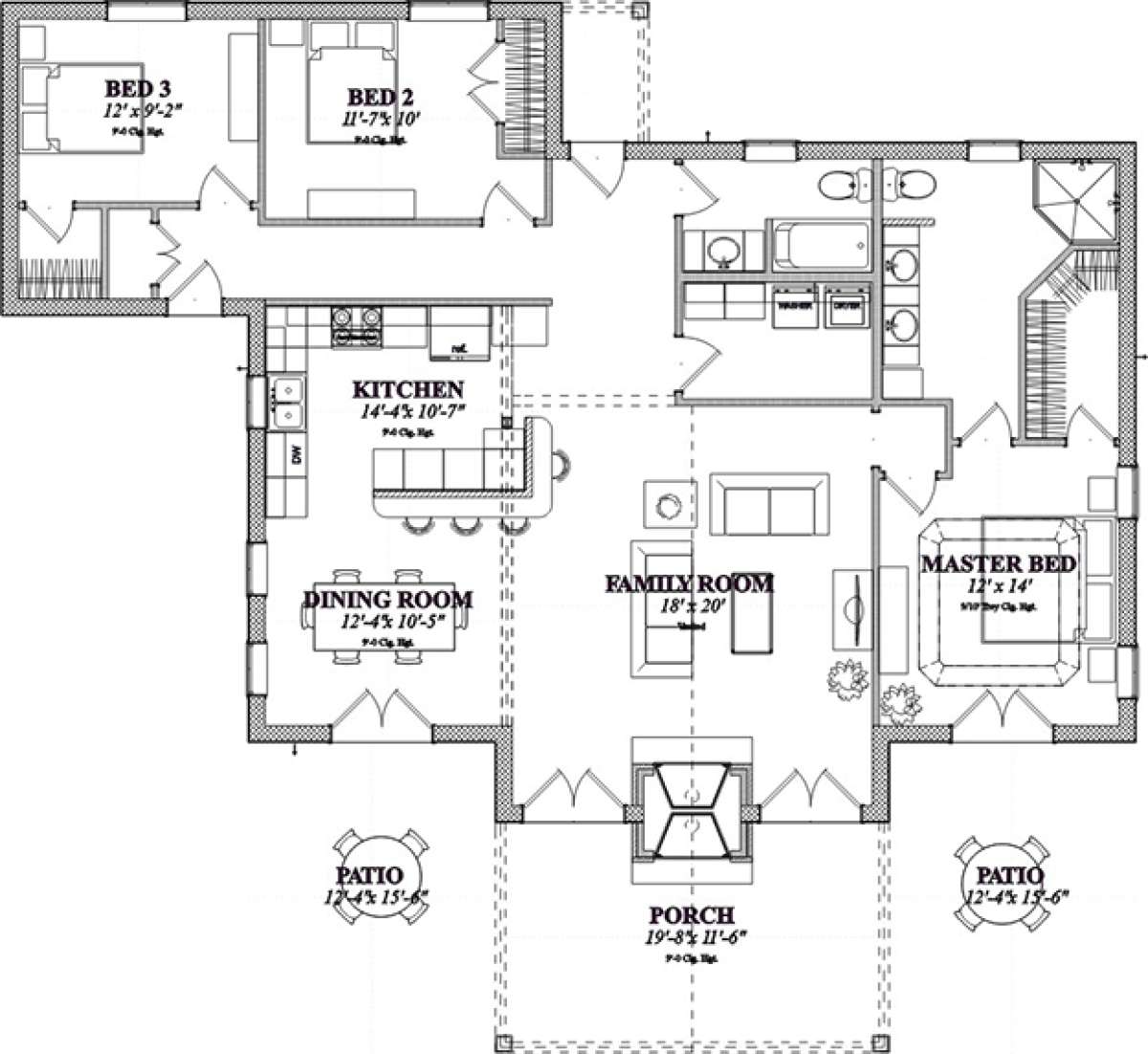

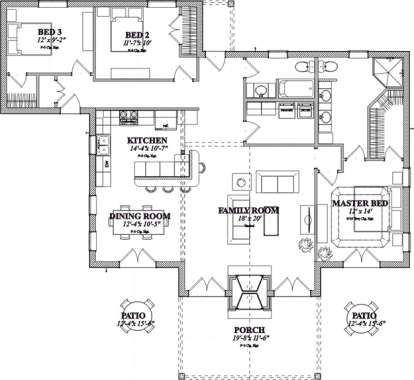

Floorplan 1 for House Plan #1070-00130
Floorplan 1
Floorplan 1 for House Plan #1070-00130


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover
    Sheet:  Including 3-D perspectives of the
    exterior of the house. Also protects the rest of the documents within the
    project set.
  • Foundation:  Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations:  Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s):  Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan:  Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter Plan:  Complete with rafter lengths and separate rafter cut list.for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details:  Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations:   Including applicable cabinets, electrical, and special construction notes.
  • Floor Joist:  Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist:  Complete with spans, sizes and direction
  • Sections:  Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

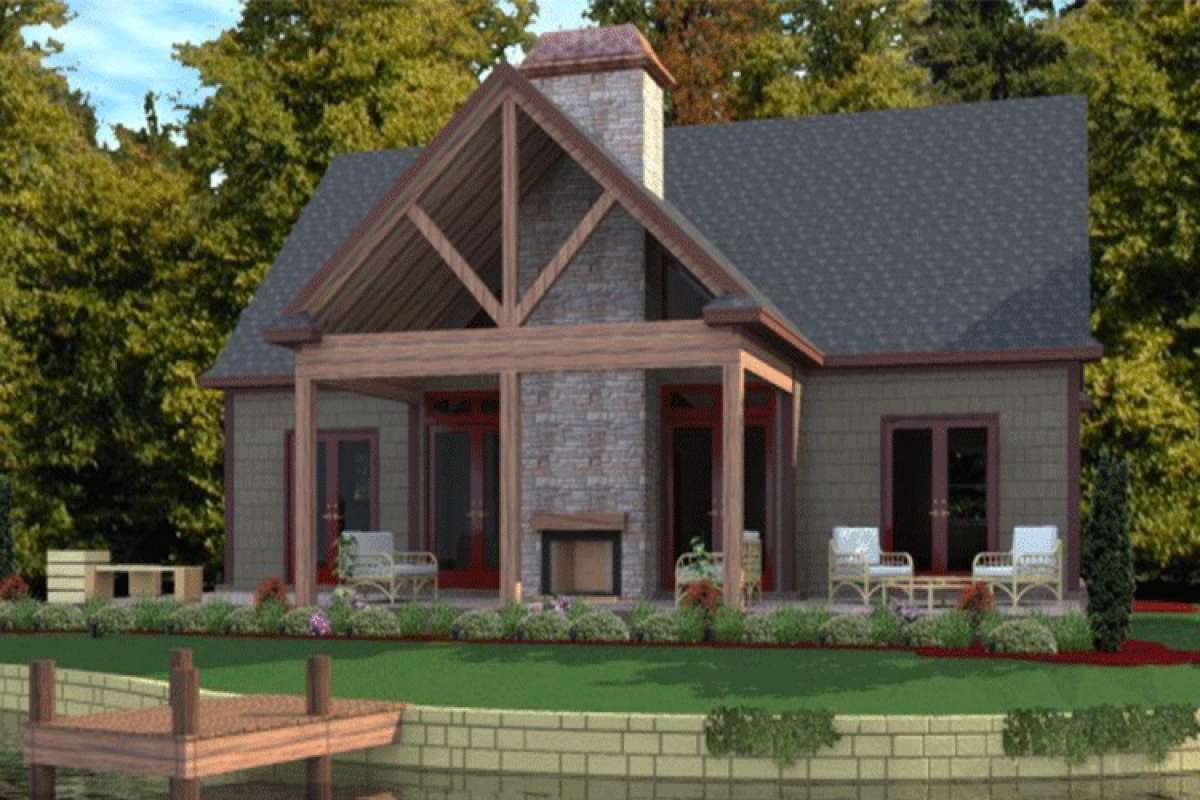

A spectacular façade features an exciting and bold exterior perfect for a serene lakefront or mountaintop viewing experience. The rising exterior chimney feature rises from the covered porch and extends beyond the roofline and contains an outdoor fireplace as well; ideal for superior outdoor living when sitting outdoors during chilly autumn mornings and evenings. There is an extended open patio that flanks the covered portion of the porch where a soaring A-frame composed of timber beams provides cover and a visually pleasing architectural design element. This Ranch style house plan is composed of a single story featuring three bedrooms, two baths and an open concept layout. Double French doors offer entrance into the enormous family room where the two sided fireplace is revealed. There is a formal dining space with front patio access through another set of French doors and the grand kitchen is highlighted with attractive and modern cabinetry, contains an L-shaped breakfast bar and is a friendly space in which to cook and visit with family and friends while creating lasting memories.
A spacious utility room with counter space, a linen closet and shared hall bath featuring a large vanity, toilet area and tub/shower combination line the hallway to the family bedrooms. Bedroom two is sizable with great closet space while the third bedroom features a walk-in closet. The master retreat is situated on the opposite side of the home for privacy and offers a uniquely designed double step trey ceiling that highlights the bedroom along with private French door access onto the patio and an oversized attached master walk-in closet. The en suite master bath features dual vanities, a toilet area and an oversized shower. This home features an attractive exterior façade which delivers a large impact and practical outdoor space and an interior floor plan that is efficient, comfortable and great for entertaining.
