Coastal Plan 1070-00066


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,444
Beds 4
Bath 3
1/2 Baths 1
Car 0
Stories 3
Width 46' 8"
Depth 47' 1"

Floorplan Drawings

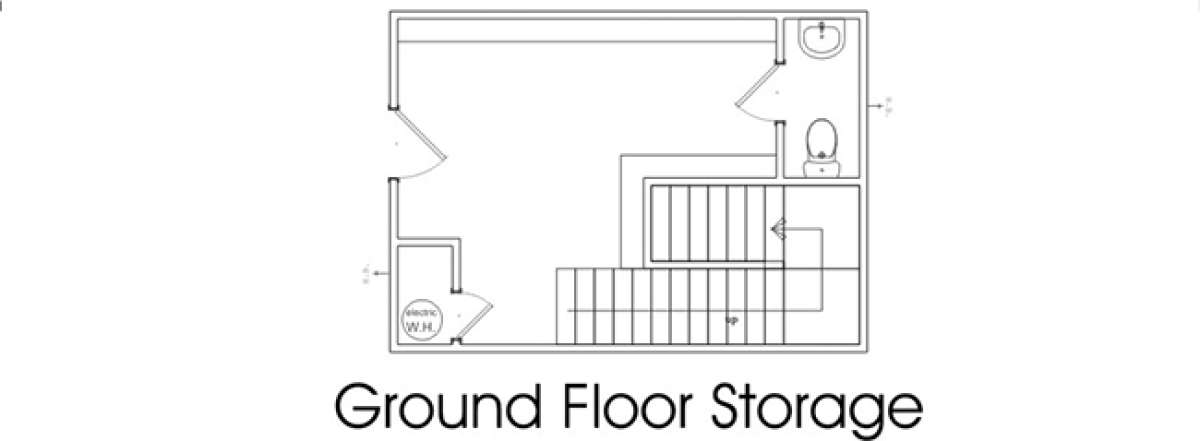

Floorplan 1
Floorplan 1 for House Plan #1070-00066

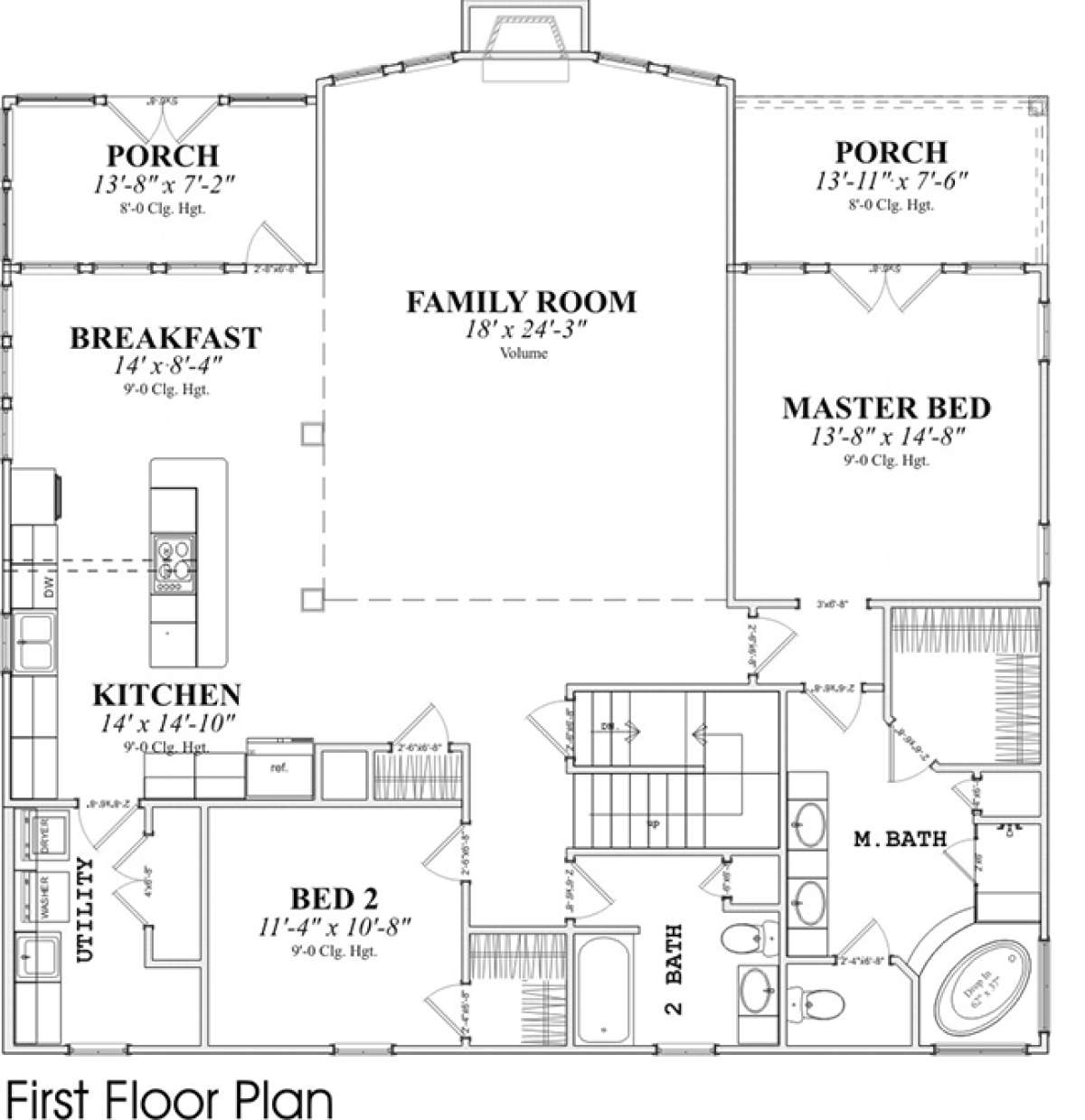

Floorplan 2

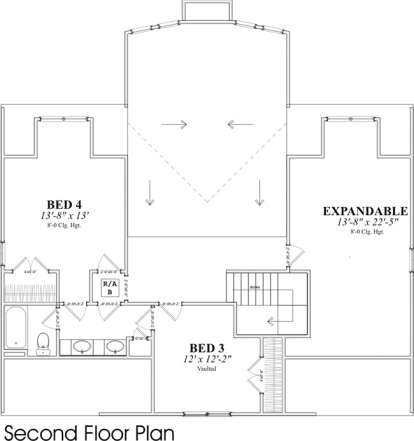

Floorplan 2 for House Plan #1070-00066

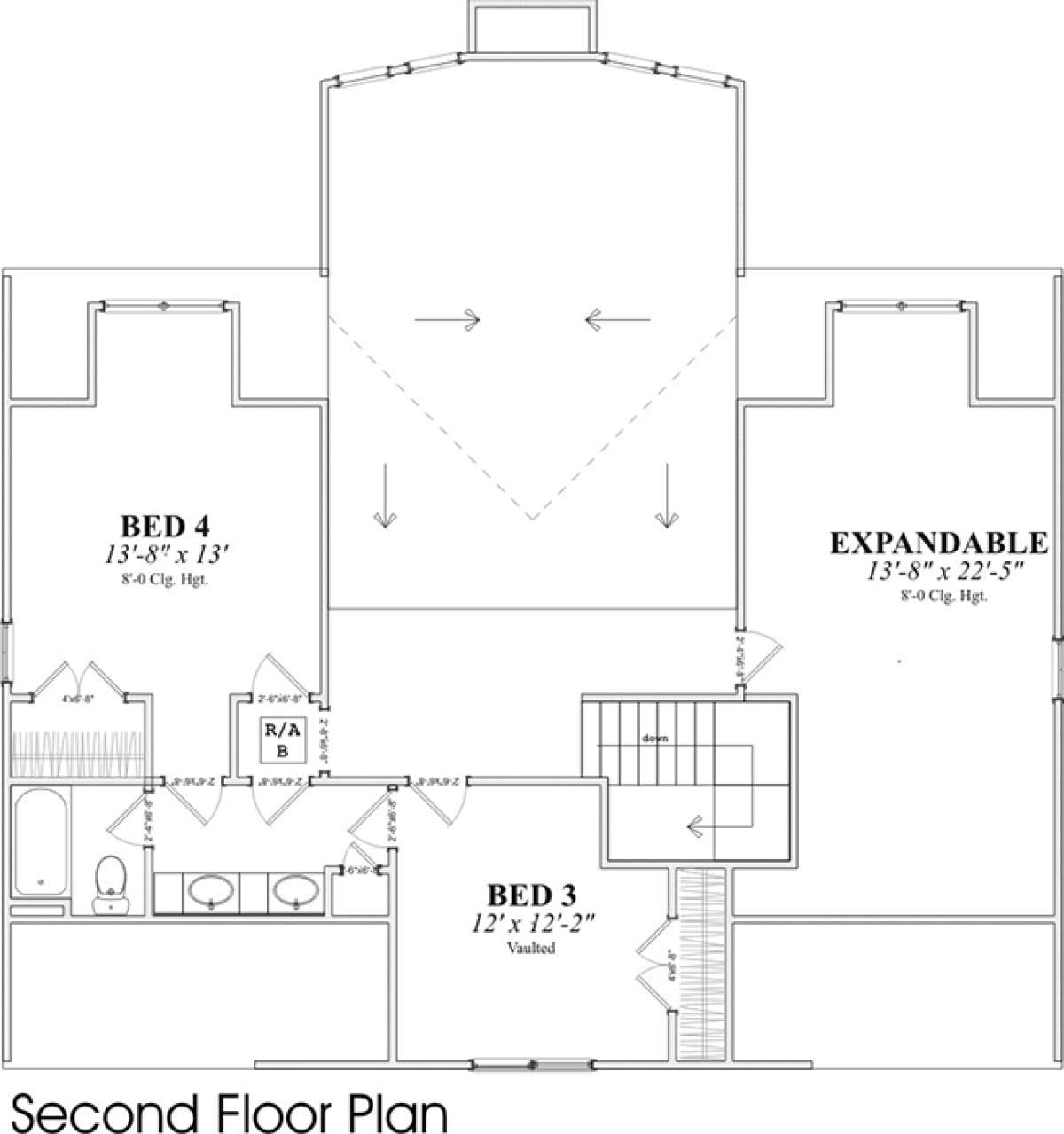

Floorplan 3
Floorplan 3 for House Plan #1070-00066

What's Included in these plans?

  • Cover
    Sheet:  Including 3-D perspectives of the
    exterior of the house. Also protects the rest of the documents within the
    project set.
  • Foundation:  Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations:  Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s):  Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan:  Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter Plan:  Complete with rafter lengths and separate rafter cut list.for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details:  Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations:   Including applicable cabinets, electrical, and special construction notes.
  • Floor Joist:  Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist:  Complete with spans, sizes and direction
  • Sections:  Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This beautiful Coastal plan could be utilized as a lakefront or mountain home as well with its pier foundation and fantastic ground level storage. In addition to the under level storage, the home features amazing outdoor space and an abundance of window views designed to take advantage of beautiful views, whether mountain or water side. The interior of the home features approximately 2,444 square feet of living space which incorporates four bedrooms and three plus baths into the home. The main floor of the home is highlighted with excellent space; there is a large open floor plan featuring the common rooms. Voluminous ceiling heights are showcased in the family room, which measures in excess of 18’ x 24’, features a lovely warming fireplace and the multitude of window inserts provide an expansive view onto the outdoors. The adjoining dining space is ensconced in window views, open to the kitchen and features access onto the rear covered porch where outdoor dining can be enjoyed. The grand kitchen offers a large center island with a wraparound breakfast bar and a large amount of additional counter and cabinet space. An enclosed, oversized laundry room is located directly off the kitchen where there is enough space for a sink, counter space and a huge closet as well. The guest room is located on the main floor as well as the master suite. The second bedroom features good floor space, window views and a walk-in closet with a full size bathroom containing a vanity, a toilet area and a tub/shower combination situated directly across the hallway. The master suite is private, spans the depth of the main floor and is conveniently located for the homeowner’s pleasure and comfort. The master bedroom features 9’ ceiling heights, beautiful window views and French door access onto the privately attached porch; a great space for morning coffee, reading and/or relaxing. The master bath is generously proportioned with double lavatories, a corner Roman inspired spa tub, a separate shower and a compartmentalized toilet area. There is an attached master walk-in closet located off the master bath. The second floor of the home is highlighted with a huge bonus/expandable space which could be utilized as a multi-purpose family room, a playroom for the children or a teen-age lounge. The third bedroom features good floor and closet space along with window views while bedroom four offers slightly more floor space, plentiful closet space and dormer window views. The jack and jill upstairs bathroom features dual sinks for alleviating morning chaos and a separate toilet and tub/shower combo area. This Coastal home features a lovely exterior, gorgeous outdoor space and a functional and versatile family layout.
