Ranch House Plan 1070-00020

Sq Ft1,892
Beds4
Baths2
1/2 Baths1
Stories1
Cars2
Width66' 0"
Depth60' 5"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

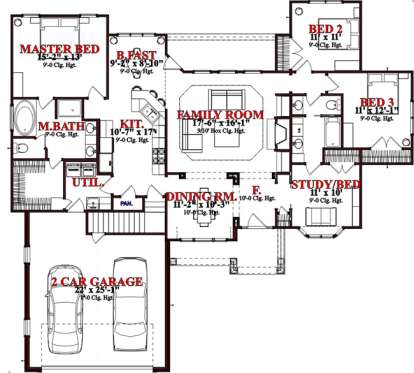

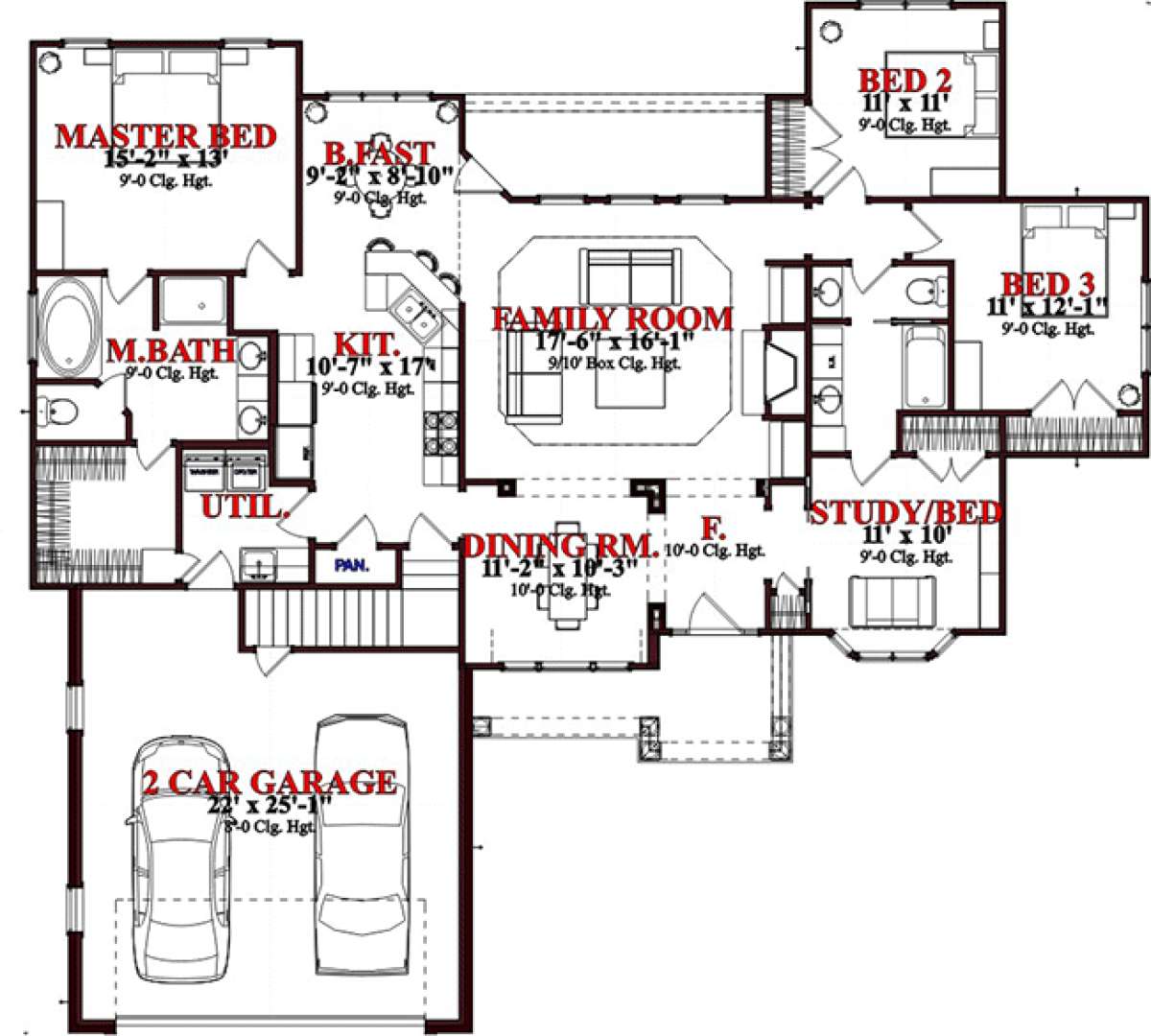

Floorplan 1 for House Plan #1070-00020

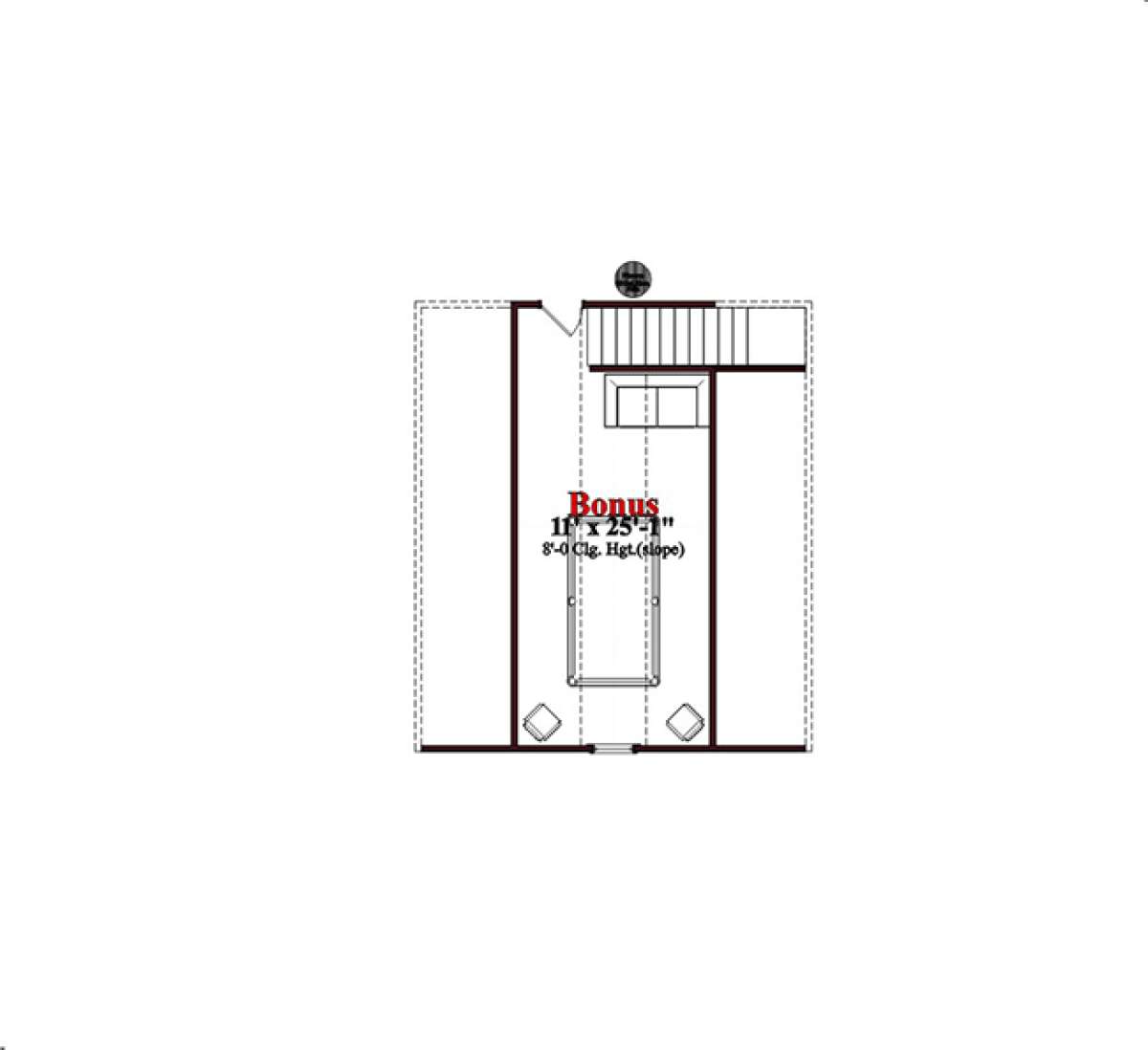

Floorplan 2 for House Plan #1070-00020
Floorplan 1
Floorplan 1 for House Plan #1070-00020
Floorplan 2
Floorplan 2 for House Plan #1070-00020


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover
    Sheet:  Including 3-D perspectives of the
    exterior of the house. Also protects the rest of the documents within the
    project set.
  • Foundation:  Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations:  Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s):  Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan:  Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter Plan:  Complete with rafter lengths and separate rafter cut list.for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details:  Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations:   Including applicable cabinets, electrical, and special construction notes.
  • Floor Joist:  Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist:  Complete with spans, sizes and direction
  • Sections:  Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Beautiful construction principles are revealed in this Ranch house design with its aesthetically pleasing exterior consisting of multiple gables, wonderful window views, and an extended front covered porch. The porch features an overhead gable, columned beams as well as a box vault entry gable for interest and charm and there is great space for greeting family and friends. The interior floor plan houses approximately 1,892 square feet of living space on one floor with four bedrooms and two plus baths. There is an overhead bonus room with an additional 273 square feet of living space which could be used as a home office, a hobby/craft room or a multi-purpose family room for watching television and spending time together as a family. The main front entry features a spacious foyer with 10’ ceiling heights that is open to multiple spaces. The formal dining room also features 10’ ceiling heights, boasts of a triple window wall overlooking the front porch and is perfect for hosting special occasion family and/or holiday meals. The opposite side of the foyer provides entrance into the study or fourth bedroom which features a light- filled bay window, a large closet, nine foot ceiling heights and private access to a full bath. Once beyond the foyer, a large family room is found with a box ceiling accent, a warming fireplace, built-in cabinetry and a rear window wall overlooking the covered porch. Nearby is the grand kitchen and casual breakfast nook; the nook features commanding rear yard window views and access to the rear porch. The kitchen is great family space to prepare and cook meals; there is an angled breakfast bar, plenty of additional counter and cabinet space and a walk-in food pantry. Access to the two car front entry garage is off the kitchen and there is good vehicle and storage space. The garage also includes an entrance into the laundry room where there is a sink area and counter space along with a second entrance into the master walk-in closet.

The split bedroom plan features two additional bedrooms on one side of the home while the master suite is located diagonally across the home’s footprint. Bedroom two and three are similarly sized; both feature double window views and offer plentiful closet space. The shared hall bath features two vanities for alleviating morning chaos, a toilet area and a tub/shower combination. The master suite is highlighted with a comfortably sized bedroom with 9’ ceiling heights and window views before accessing the attached master bath. There are modern amenities located in the bathroom; double vanities, a private water closet, a garden tub and a separate shower. A huge master walk-in closet features great clothing storage and access into the utility room. This beautiful home features one level living with accessible bonus space, a lovely family layout and an aesthetically pleasing front exterior.
