Craftsman Plan 1020-00357

Sq Ft 6,147
Beds 5
Bath 4
1/2 Baths 1
Car 3
Stories 2
Width 92' 8"
Depth 47' 8"

Floorplan Drawings

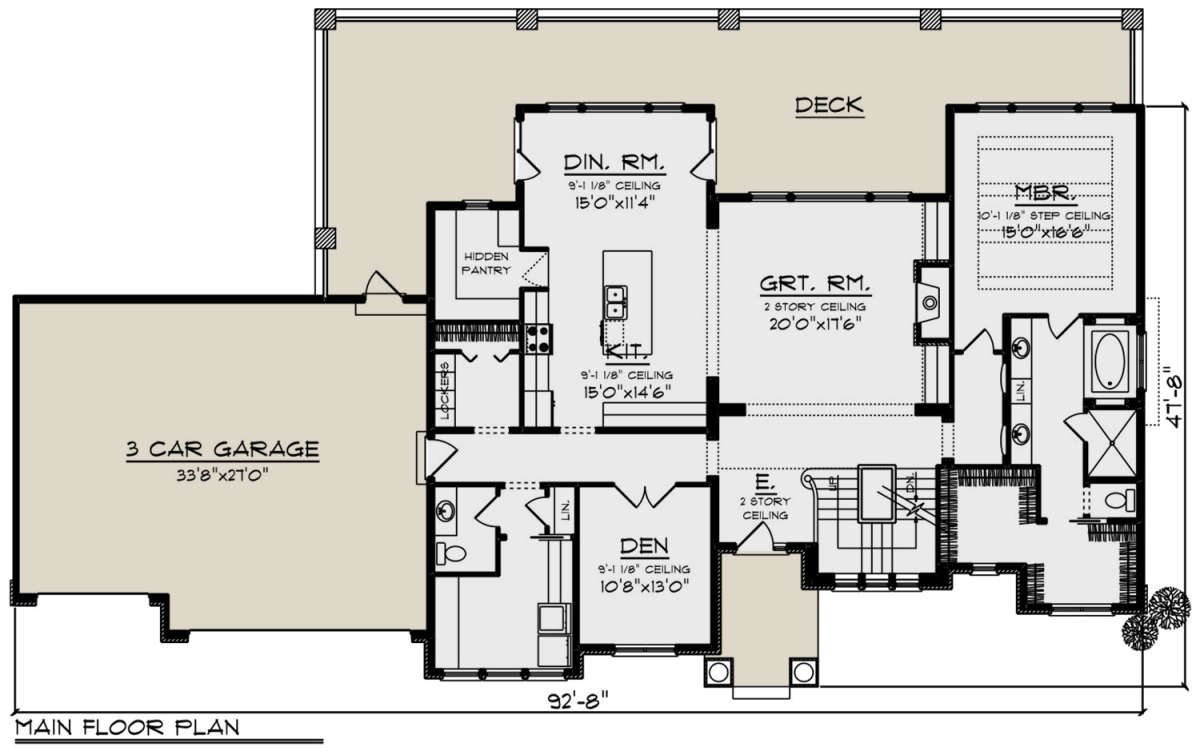

Main Floor
Main Floor for House Plan #1020-00357

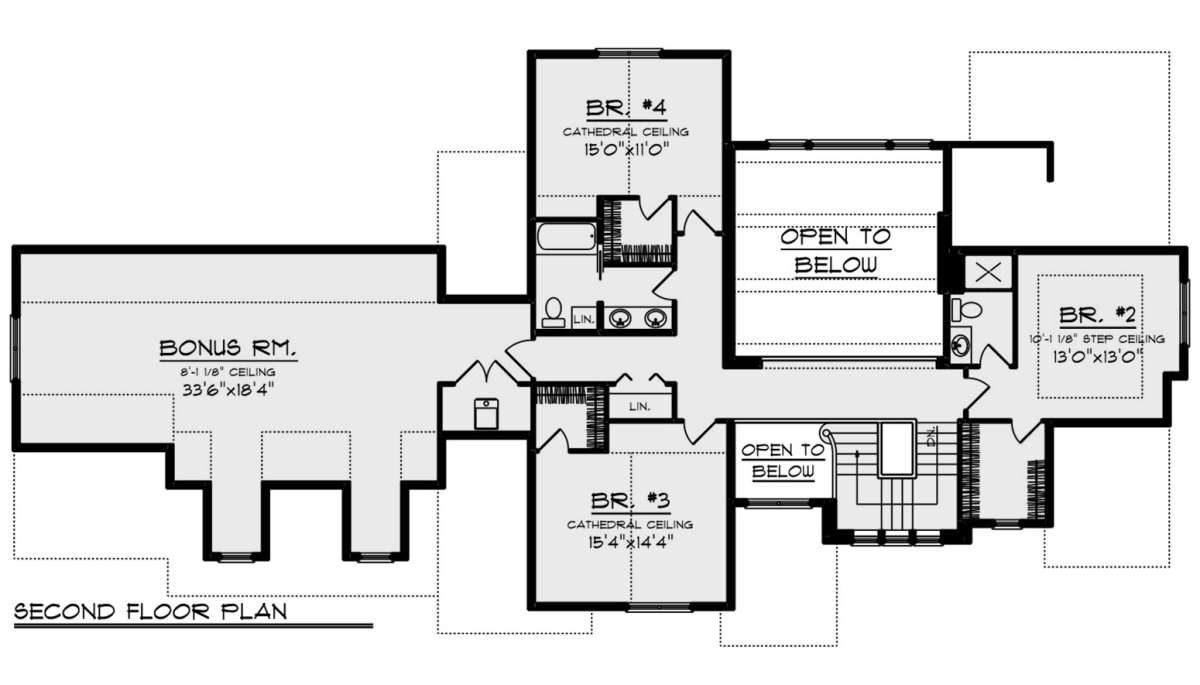

Second Floor
Second Floor for House Plan #1020-00357

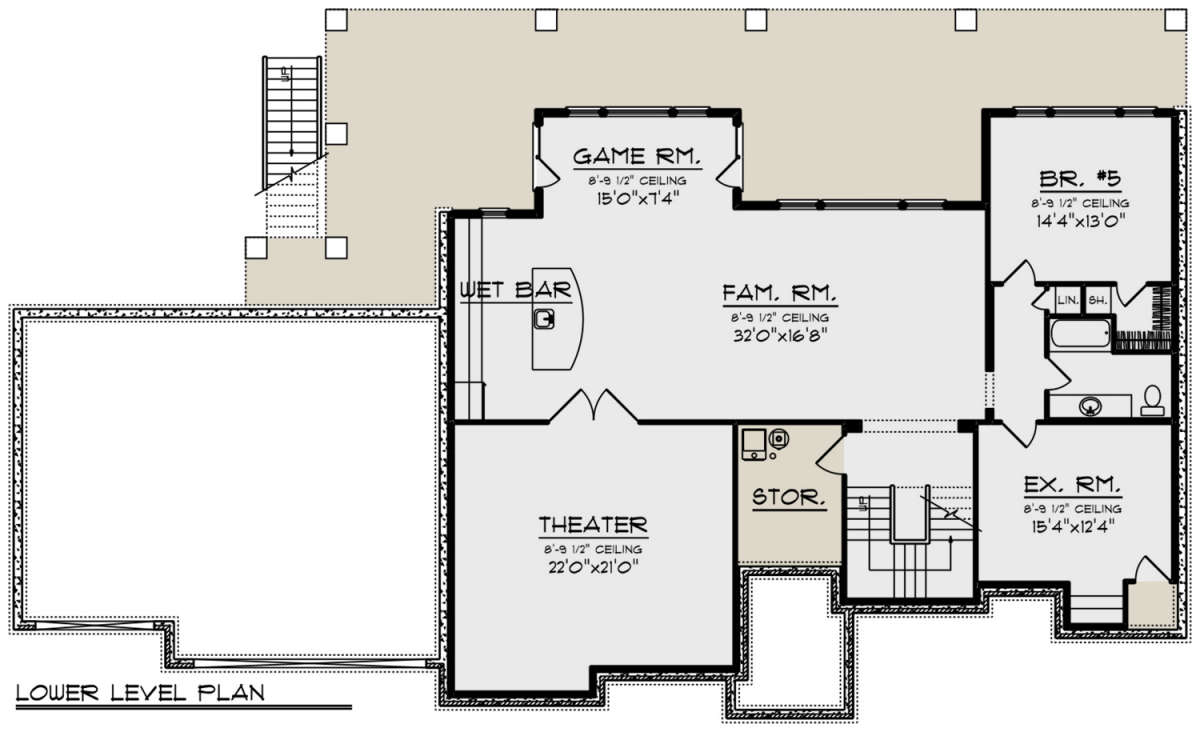

Basement
Basement for House Plan #1020-00357


What's Included in these plans?

  • Page One - General Notes
  • Page Two - Elevations (front, rear, left and right)
  • Page Three - Main Floor
  • Page Four - Second Floor (if applicable)
  • Page Five - Foundation
  • Page Six - Wall and Stair Sections
  • Page Seven - Cross Sections and Kitchen Elevations
  • Page Eight - Roof Plan and Electrical Plan

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 5 bedroom, 4 bathroom Craftsman house plan features 6,147 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
