Mediterranean Plan 1018-00006

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,786
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 65'
Depth 54'

Floorplan Drawings

Main Floor

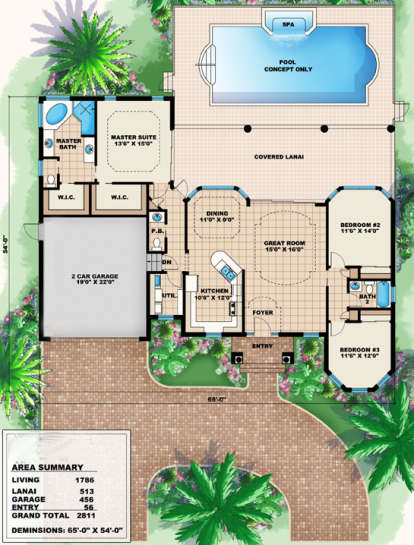

Main Floor for House Plan #1018-00006


What's Included in these plans?

  • Elevations: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Material Labels, Floor-to-Floor Heights, Roof Slope Indicators
  • Floor Plans: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes
  • Electrical Layouts: Building Section Markers, All Electrical Outlets, Fixtures, and Switching
  • Slab Plan: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable)
  • Roof Design Plan: Drawn at 1/8" to 1/4" = 1?-0"scale, and Includes, All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
  • Building Sections: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor Joist Size and Spacing, Floor-to-Floor Heights, Non-Typical Plate Heights Indicated
  • Typical Wall Sections: Drawn at 1/8" to 1/2" = 1?-0" Scale, and Includes, All Labels Indicating Wall Construction, Foundation Wall Thickness and Reinforcing, Insulation Type and Thickness
  • Miscellaneous Notes and Details: Miscellaneous General Notes, Stairway details (if applicable)

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Mediterranean house plan features an exciting exterior façade and an interior floor plan that is open and designed for entertaining. The exterior elements add focus and visually pleasing design elements which enhance the home’s curb appeal with its use of clay tiles, an octagonal window wall and a lovely entrance highlighted with spiral columns. The interior floor plan is composed of approximately 1,786 square feet of living space offering two to three bedrooms and two plus baths in the one story home. The front courtyard entrance grants access into the home’s foyer where the open concept layout unfolds beautifully. There is an enormous centrally located great room that provides access to the sweeping rear covered lanai where there is a pool/spa concept for future design purposes only. The open kitchen boasts of an angled breakfast bar and wraparound counter and cabinet space. There is an adjoining dining room ensconced in fabulous window views overlooking the covered lanai. The front loading two car garage features side entrance from the yard for easy storage of lawn and/or sporting equipment while also allowing entrance into the home’s laundry facilities and powder room.

The split bedroom plan features privacy and convenience for the master suite’s location. The master bedroom is highlighted with a large amount of floor space, rear window views overlooking the back garden and private access onto the lanai. There are his and her oversized walk-in closets and an en suite bath. The master bath is comprised of separate dual vanities, a compartmentalized toilet area along with a separate shower and a corner garden tub with views onto the rear garden. Two spacious bedrooms are situated on the opposite side of the home and both offer large bay windows; one overlooking the front garden/courtyard and the other overlooks the lanai. Both bedrooms feature generous closet space and there is a shared hall bath situated between the bedrooms. This warm and inviting home features excellent outdoor space and an open and functional interior floor plan.
