Luxury Plan 1018-00002

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 6,780
Beds 5
Bath 5
1/2 Baths 1
Car 4
Stories 2
Width 103'
Depth 126' 2"

Floorplan Drawings

Main Floor

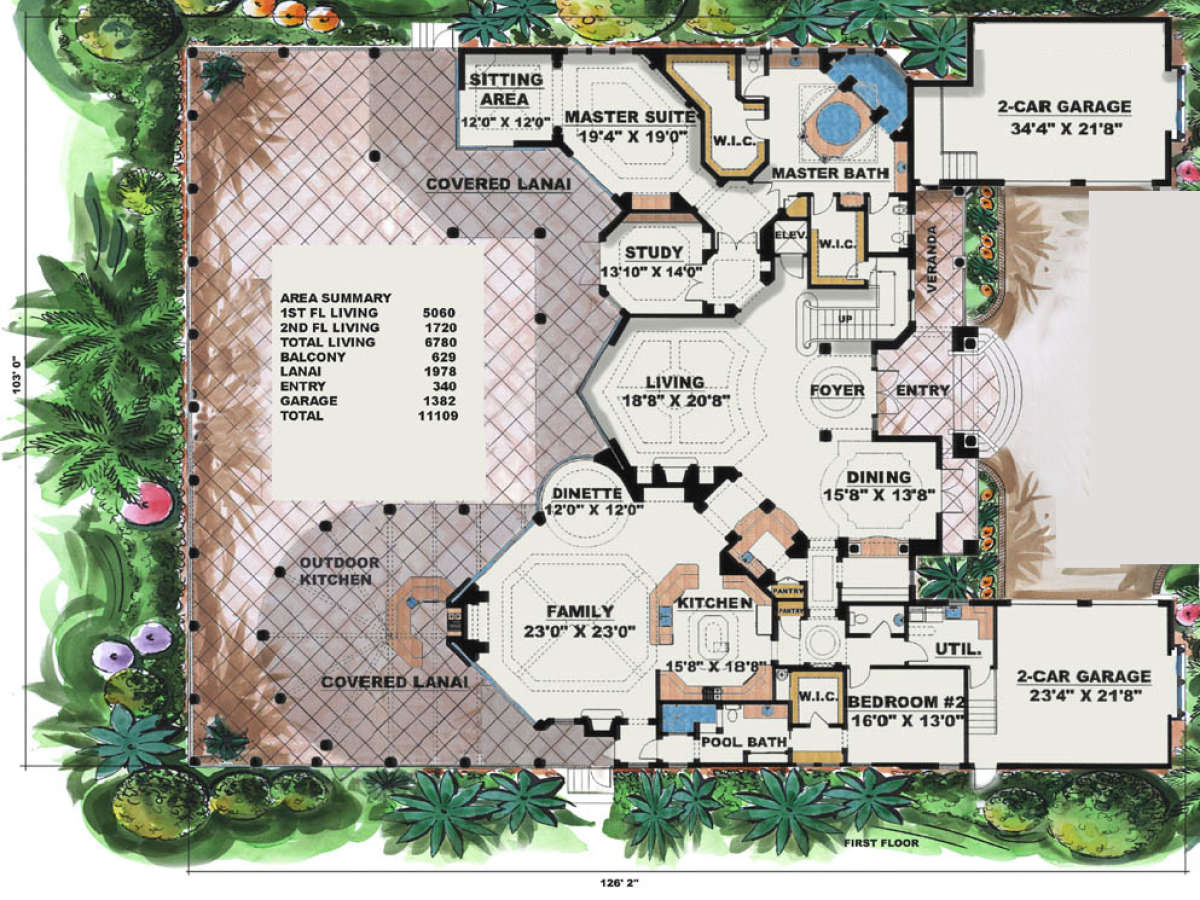

Main Floor for House Plan #1018-00002

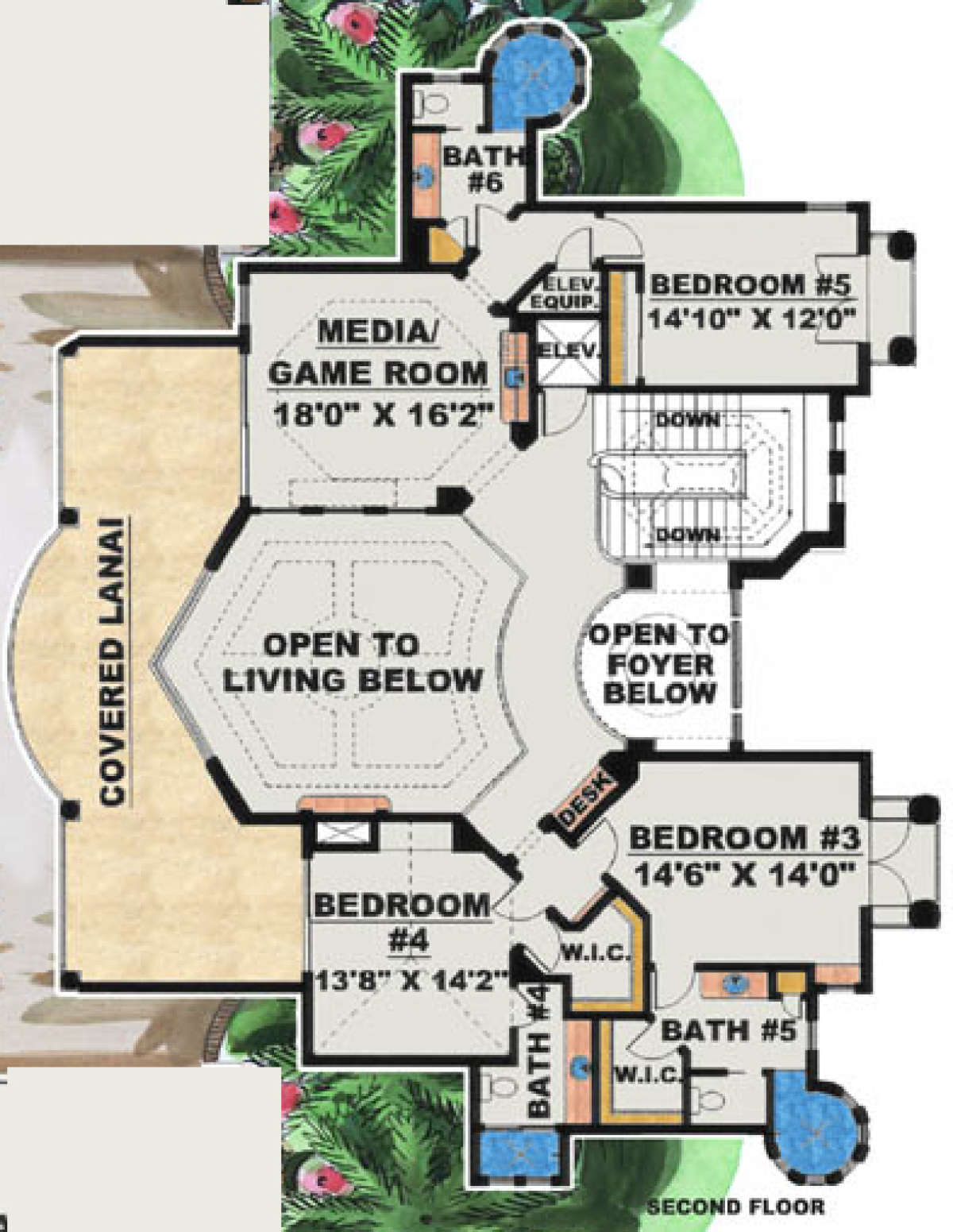

Second Floor
Second Floor for House Plan #1018-00002


What's Included in these plans?

  • Elevations: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Material Labels, Floor-to-Floor Heights, Roof Slope Indicators
  • Floor Plans: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes
  • Electrical Layouts: Building Section Markers, All Electrical Outlets, Fixtures, and Switching
  • Slab Plan: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable)
  • Roof Design Plan: Drawn at 1/8" to 1/4" = 1?-0"scale, and Includes, All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
  • Building Sections: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor Joist Size and Spacing, Floor-to-Floor Heights, Non-Typical Plate Heights Indicated
  • Typical Wall Sections: Drawn at 1/8" to 1/2" = 1?-0" Scale, and Includes, All Labels Indicating Wall Construction, Foundation Wall Thickness and Reinforcing, Insulation Type and Thickness
  • Miscellaneous Notes and Details: Miscellaneous General Notes, Stairway details (if applicable)

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 5 bedroom, 5 bathroom Luxury house plan features 6,780 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
