Mediterranean Plan 1018-00001

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 717
Beds 1
Bath 1
1/2 Baths 0
Car 0
Stories 1
Width 40'
Depth 27' 2"

Floorplan Drawings

Floorplan 1

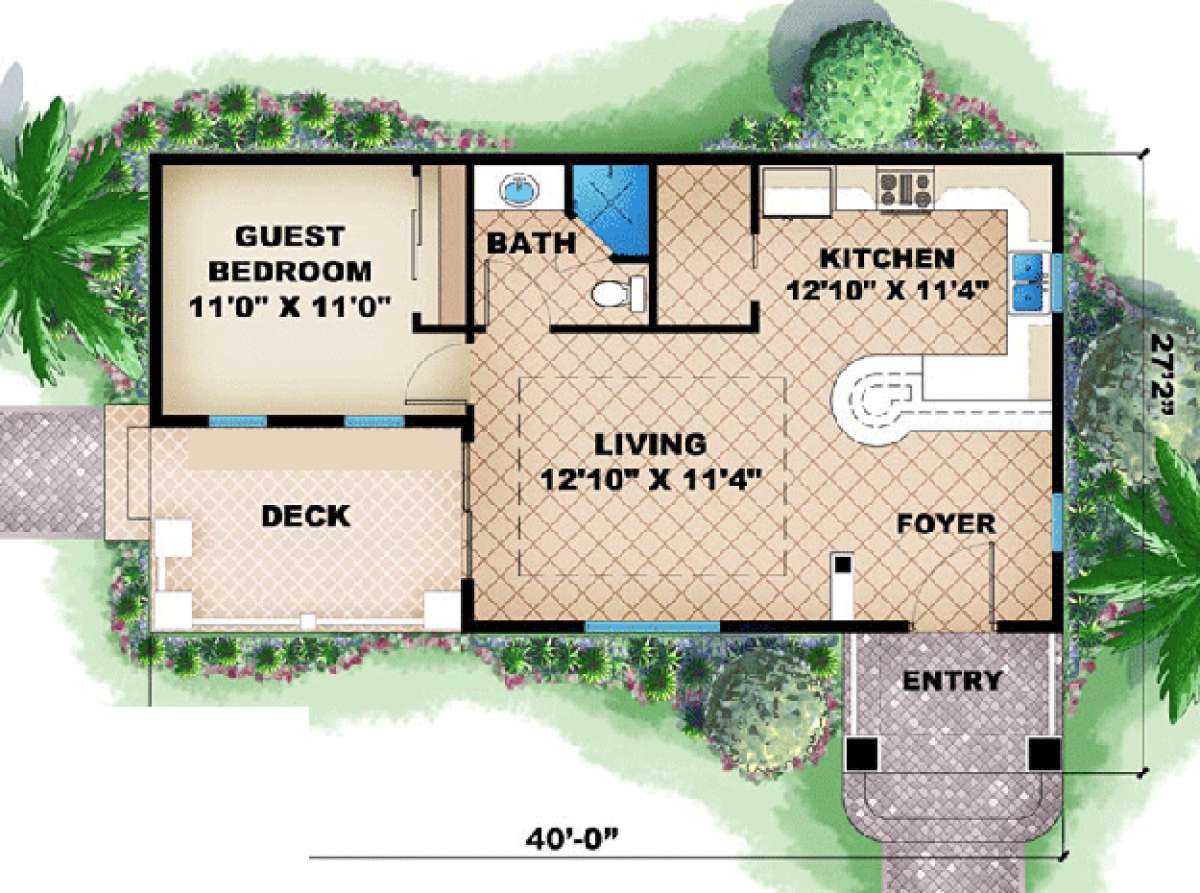

Floorplan 1 for House Plan #1018-00001


What's Included in these plans?

  • Elevations: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Material Labels, Floor-to-Floor Heights, Roof Slope Indicators
  • Floor Plans: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes
  • Electrical Layouts: Building Section Markers, All Electrical Outlets, Fixtures, and Switching
  • Slab Plan: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable)
  • Roof Design Plan: Drawn at 1/8" to 1/4" = 1?-0"scale, and Includes, All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
  • Building Sections: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor Joist Size and Spacing, Floor-to-Floor Heights, Non-Typical Plate Heights Indicated
  • Typical Wall Sections: Drawn at 1/8" to 1/2" = 1?-0" Scale, and Includes, All Labels Indicating Wall Construction, Foundation Wall Thickness and Reinforcing, Insulation Type and Thickness
  • Miscellaneous Notes and Details: Miscellaneous General Notes, Stairway details (if applicable)

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Mediterranean house design is perfect for a small family, young professionals or empty nesters looking for an open floor plan as well as outdoor space without compromising style and modern design elements. The exterior façade features heightened roof lines, great window views, wide eaves and a front covered entryway highlighted with stone pillars, substantial beams and an overhead decorative gable. The compact house design is ideal for a narrow and/or small lot with its respective width and depth dimensions of 40’ and 27’plus. The house is situated on a slab foundation with CMU framing for structural strength and resistance. The interior floor plan features approximately 717 square feet of living space with an open floor plan, one bedroom and one bath. Ten foot ceiling heights are found within the home’s interior allowing for a spacious quality and feel to the home’s layout. Entering the home from the front entryway, a large foyer with a knee wall and side window view is revealed. The large living room measures in excess of 12’ x 11’, includes a trey ceiling accent and there are picturesque window views overlooking the front yard. The U-shaped kitchen is highlighted with good floor space, a window sink view and plentiful cabinet and counter space. The peninsula bar beautifully wraps around and provides a barrier space in which to add plentiful counter seating for family and friends to dine comfortably. There is also a large laundry space which could possibly add food storage room as well for a complete kitchen setup.

The main bedroom is rear positioned for privacy and features good floor space, plentiful closet space and double doors onto the private deck. The deck is a large space perfect for relaxing, enjoying morning coffee or reading a book and the double doors allow for a bright and sunny bedroom. The deck continues with the exterior theme of stone pillars matching the front entry and there is wrought iron detailing for visual interest as well. The full bath is adjacent to the bedroom and features a large vanity, a toilet area and a corner walk-in shower. This small house plan “packs a punch” with its luxury exterior design elements and open floor plan conducive to casual entertaining and comfortable living.
