Northwest House Plan 098-00284

Sq Ft3,853
1/2 Baths1
Width64' 6"
Depth81' 0"

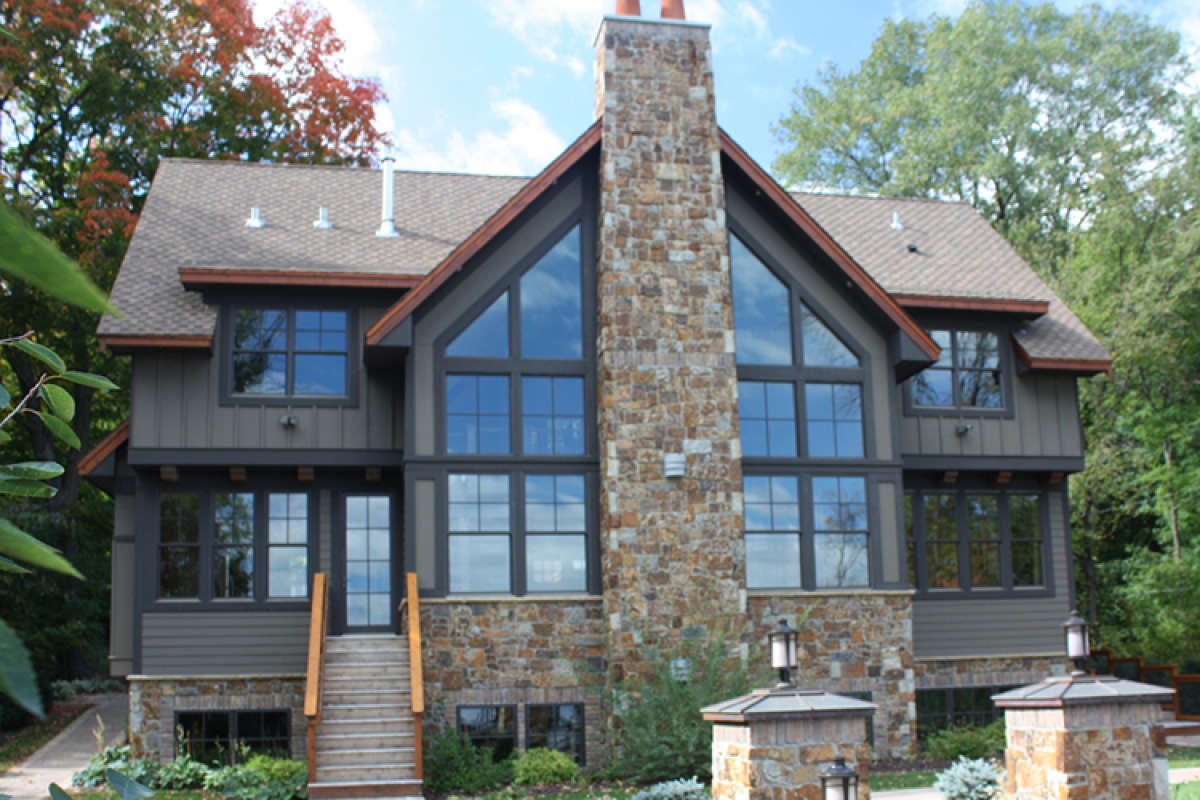

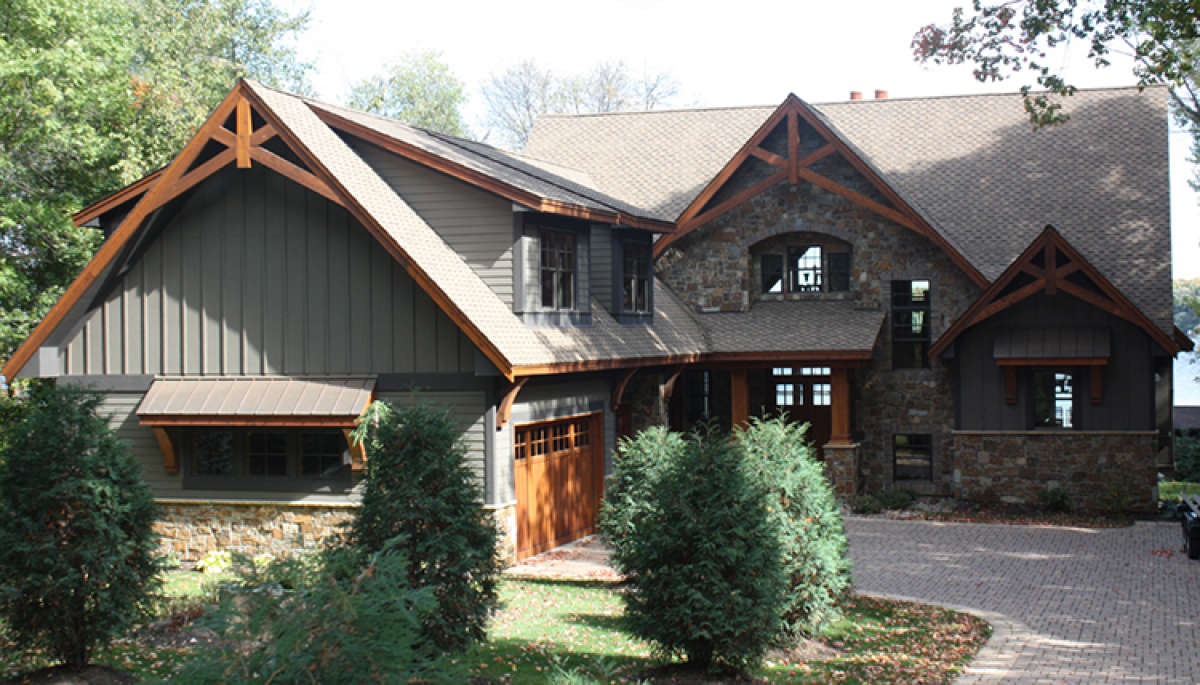

Northwest House Plan #098-00284 Elevation Photo

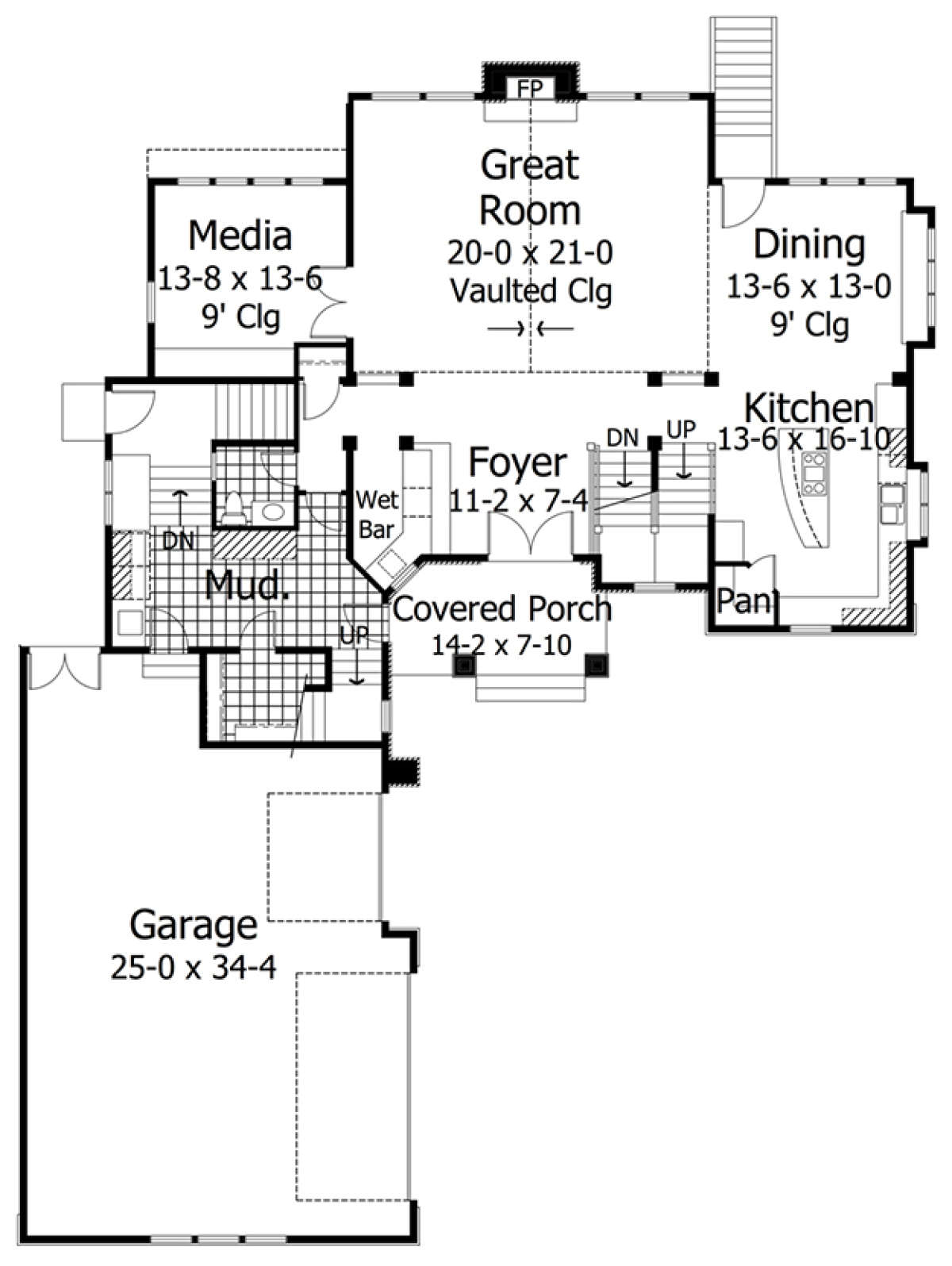

Main for House Plan #098-00284

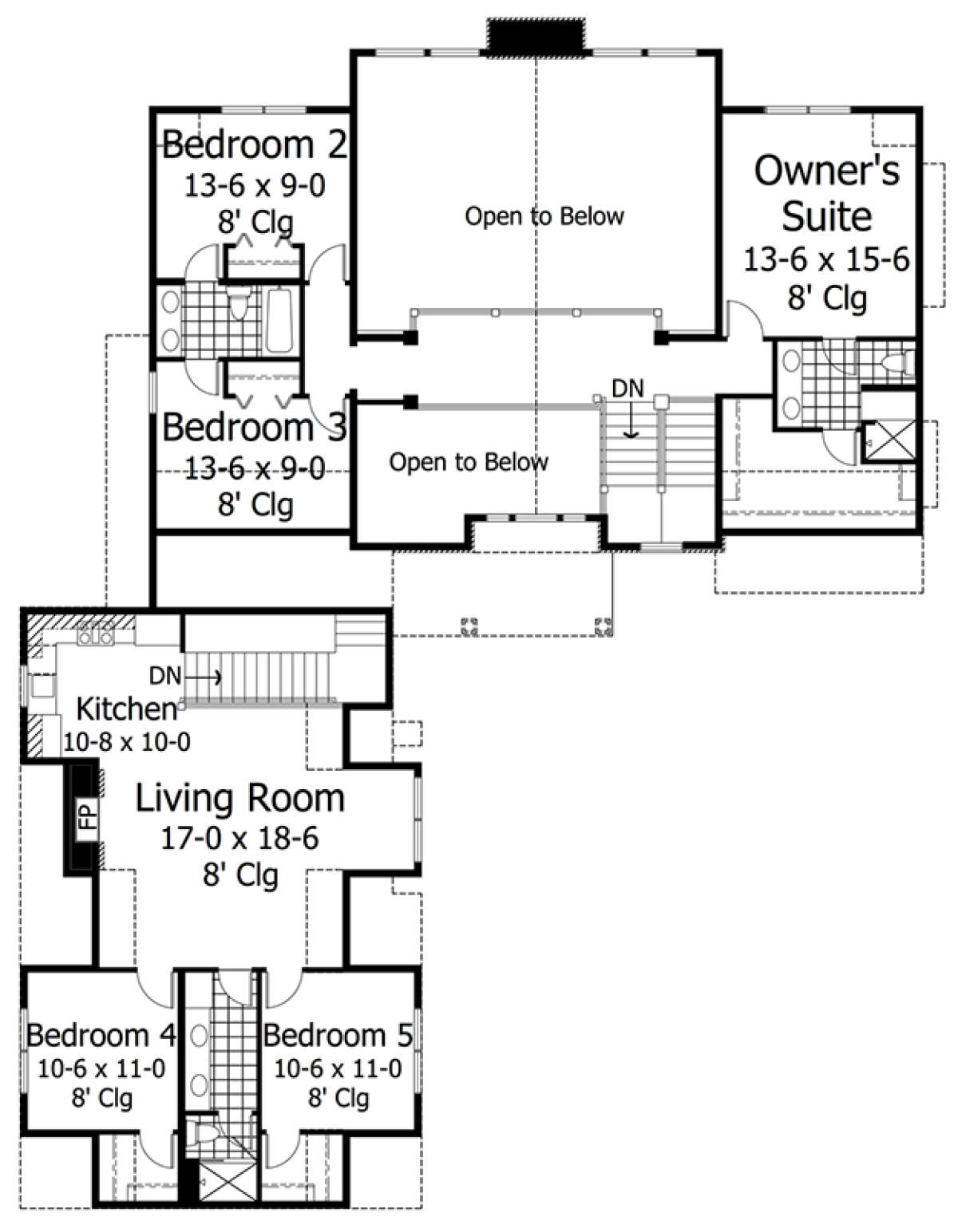

Upper for House Plan #098-00284
Northwest House Plan #098-00284 Elevation Photo
Northwest House Plan #098-00284 Elevation Photo
Main for House Plan #098-00284
Upper for House Plan #098-00284
Northwest House Plan #098-00284 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main for House Plan #098-00284
Upper for House Plan #098-00284
Main for House Plan #098-00284
Upper for House Plan #098-00284

Frequently Asked Questions


What's Included in these plans?

  • Exterior Elevation Views of front, side and rear elevations
  • Foundation Plan
  • Floor plan(s)
  • Roof Plan
  • Cross Section(s)
  • Electrical
  • General Notes


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Northwest house plan features contemporary rustic design elements and solid construction principles for an outstanding exterior façade. There is an abundance of stone work lining the perimeter and one wall feature, overhead dormer sheds and warm wood detailed gables that beautifully offset the dramatic essence of the home. The front covered porch is highlighted with matching stone pillars, warm woods and a double door entry that combines beautifully with the remainder of the home’s exterior features. The interior floor plan is large, comfortable and designed for family living and entertaining with its open floor plan and basement foundation. There are five bedrooms and three plus baths in approximately 3,853 square feet of living space making this home a great choice for families who value their privacy. Entering the home through the main foyer, there is a centrally located great room with vaulted ceiling heights and a rear positioned fireplace with adjoining window views as well as an open bar area. The dining room is spacious, surrounded by window walls and there is a “bump-out” window seat. The gourmet kitchen features a large center island, a separate corner pantry and plenty of additional counter and cabinet space. A spacious media room is situated on the opposite side of the great room and accessed through French doors. An enormous amount of space is devoted to the area located directly off the three car courtyard entry garage. There is a mudroom and drop-off zone for back packs, outer gear and assorted other items, a powder room and a large laundry space with a sink area and counter space. A separate entrance is provided off the side of the home to facilitate a clean and tidy home environment; a place which can entered from the yard without going through any part of the home’s interior space. The three car garage has a pedestrian door as well accessing the outdoors and there is a single and double bay garage entrance for plenty of vehicle and storage space.

Traveling the second story staircase are overlooks onto the foyer below and a balcony hallway that overlooks the great room. One side of the floor features two secondary bedrooms; each is equivalent in size with plentiful closet space and window views. The jack and jill bathroom is highlighted with double sinks, a toilet area and a tub/shower combination. The master suite is situated on the opposite wing of the home’s second floor where there is a spacious bedroom and double window views. The master bath features dual vanities, a toilet area and a large shower while the nearby walk-in closet is large and privately positioned. A separate suite of rooms are found above the three car garage and include a large living area with a fireplace, an adjacent kitchenette, two bedrooms and a bath. Both bedrooms are equal sized with walk-in closets and double window views while the shared hall bath features dual sinks in an extended vanity and a separate toilet area with a tub/shower combination. This beautiful home showcases a stunning exterior, great entertaining space and plenty of bedrooms and baths for superior family living.
