Craftsman House Plan 098-00002

Sq Ft1,598
1/2 Baths1
Width39' 0"
Depth72' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

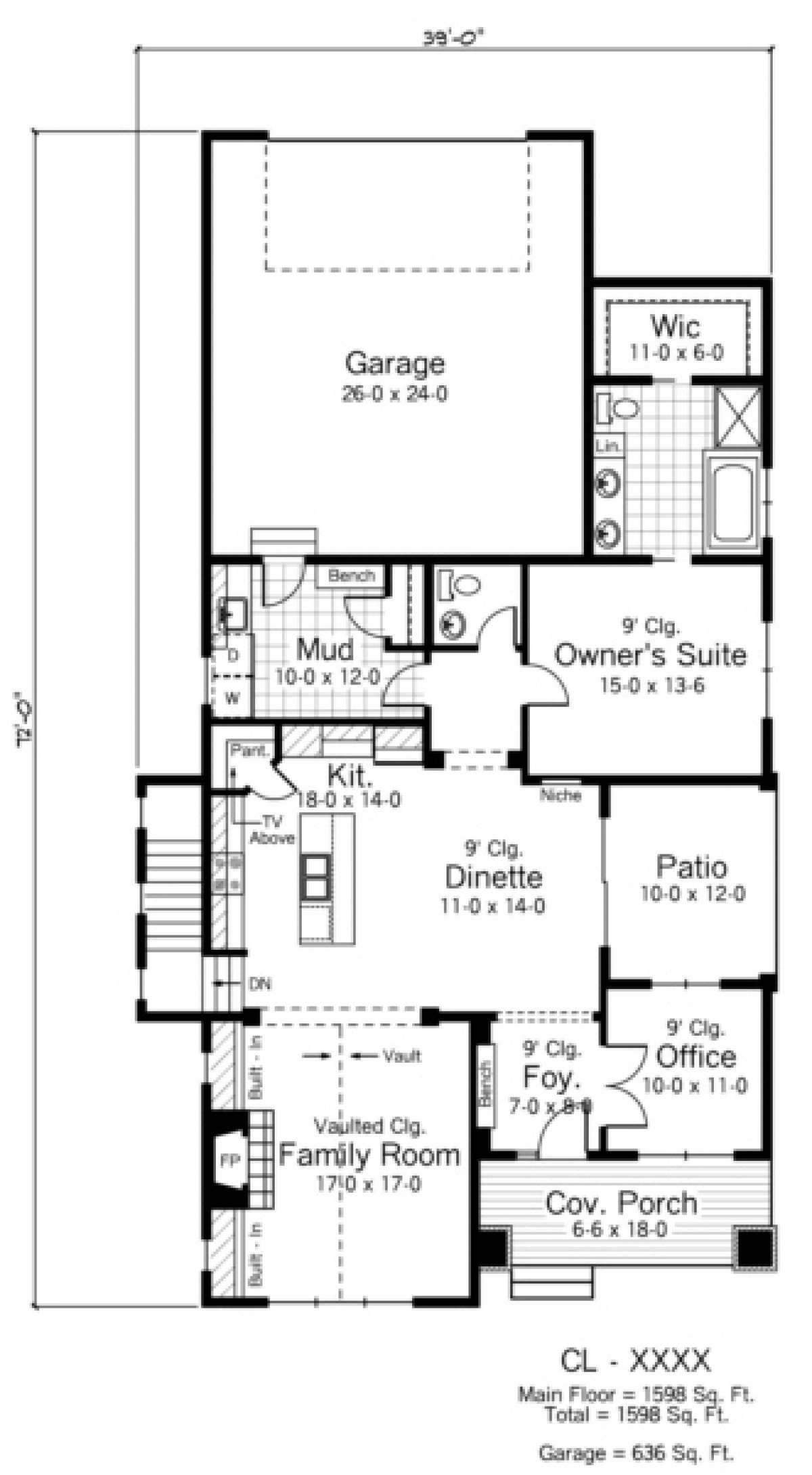

Main Floor for House Plan #098-00002
Main Floor
Main Floor for House Plan #098-00002

Frequently Asked Questions


What's Included in these plans?

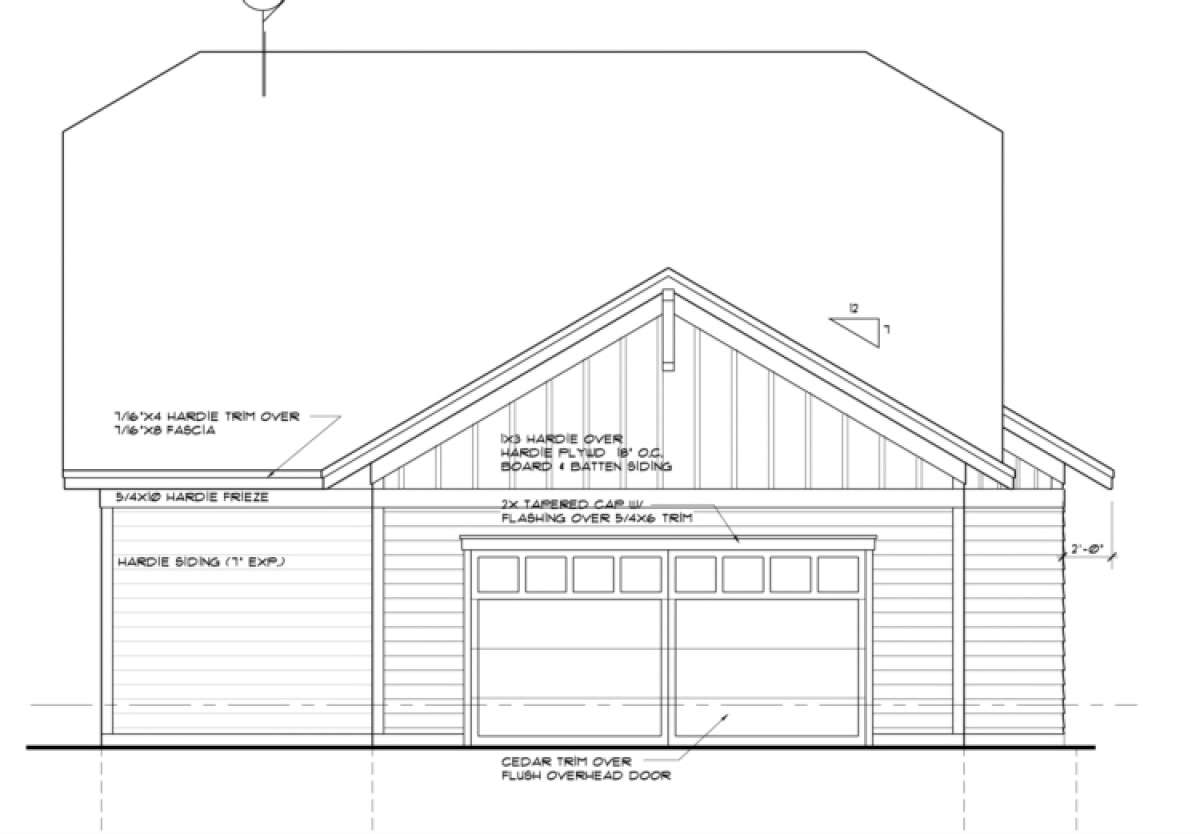

  • Exterior Elevation Views of front, side and rear elevations
  • Foundation Plan
  • Floor plan(s)
  • Roof Plan
  • Cross Section(s)
  • Electrical
  • General Notes


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

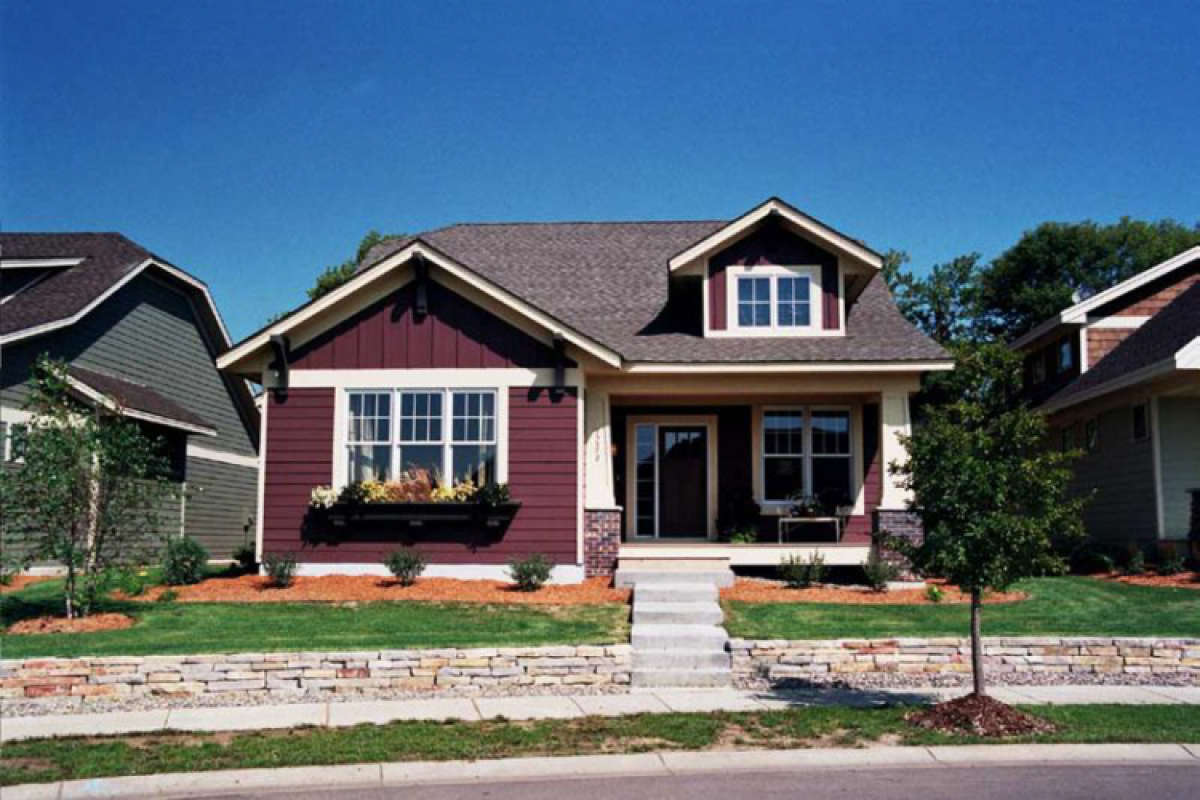

This warm and inviting Craftsman house plan features an exterior with exposed rafters, an overhead window dormer and a front covered porch, ideal for relaxing and greeting neighbors. Brick pillars, substantial tapered beams and wonderful window views adds charm and visual interest to the exterior façade. The interior floor plan offers approximately 1,598 square feet of living space on the main floor with 1-2 bedrooms, 1.5 baths and an open floor plan perfect for entertaining. There is an unfinished basement foundation which mirrors the first floor square footage, virtually doubling the interior footprint in excess of 3,000 square feet. The width of the home is 39’ and presents an ideal solution to a narrow property lot while not detracting from the spacious interior.

Entering the home off the front covered porch is the entrance foyer which offers a bench area for drop off items and French door access into the home office. The office features window views overlooking the front porch as well as a slider accessing the patio making this a great space for a home office, study or studio. The vaulted family room is spacious, features a handsome fireplace and built-in cabinetry. The grand kitchen and dining room are open to the family room; the kitchen is highlighted with a center island, a corner walk-in pantry and plenty of counter/cabinet space. The dining room features good space and there is a second entry/exit point onto the patio which is perfect for outdoor dining. The rear of the home houses the laundry/mudroom which is a big space with a closet, bench area, a sink and counter space. The half bath for family and guests is nearby and there is a two car rear loading garage located directly off the laundry/mudroom for easy access and a tidy home environment. The master suite lies at the rear of the home as well for privacy and offers modern amenities designed for the homeowner’s comfort and pleasure. There is a large master bedroom with window views and an en suite bath which features dual vanities, a linen closet, a separate shower and garden tub. The walk-in master closet is accessed through the master bath and offers plenty of room for clothing and assorted other items. This house plan features an iconic Craftsman exterior, lovely outdoor space and a flexible and functional floor plan.
