Contemporary Plan 048-00228


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,202
Beds 3
Bath 2
1/2 Baths 0
Car 0
Stories 1
Width 42'
Depth 34'

Floorplan Drawings

Floorplan 1

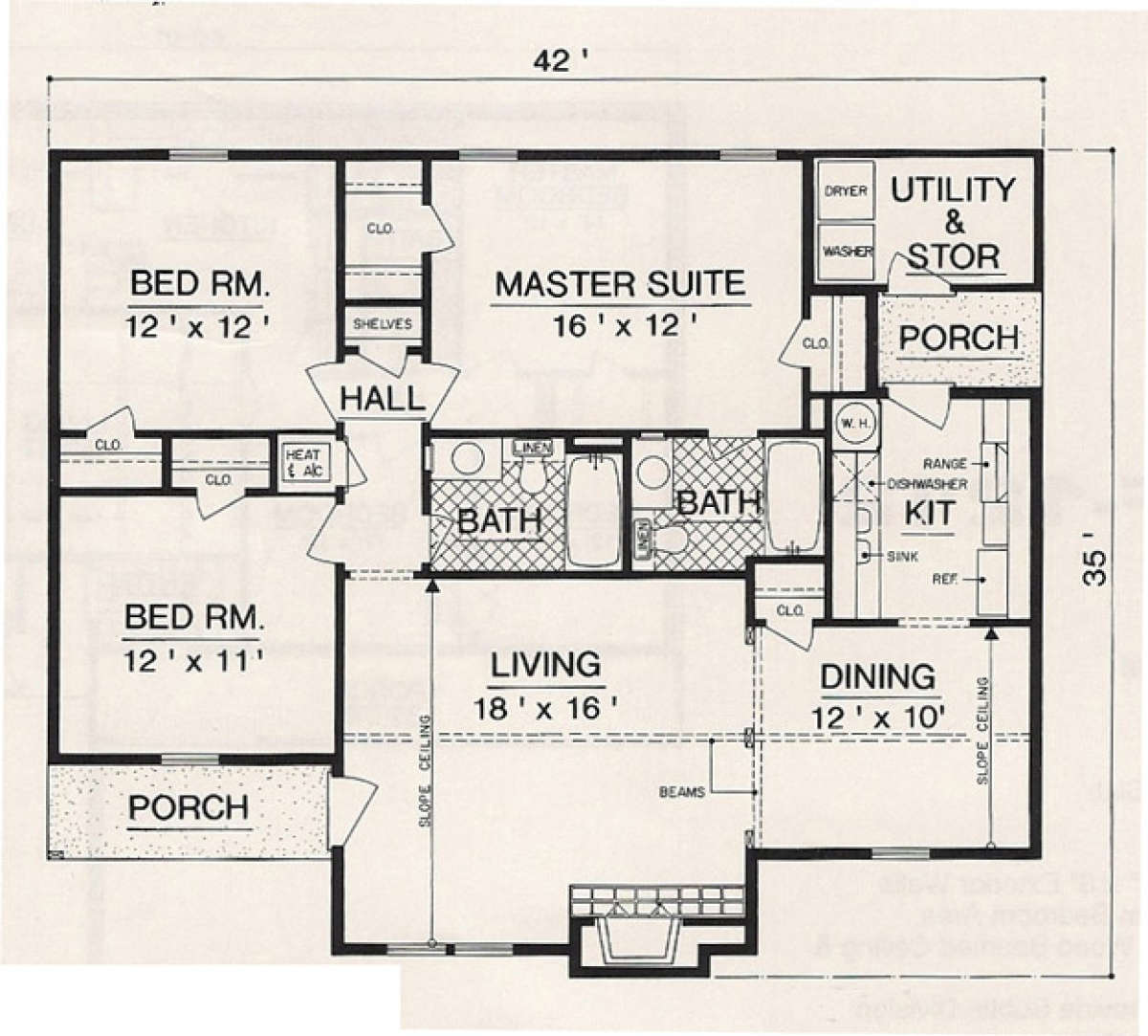

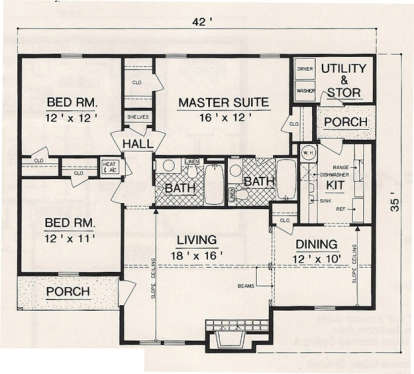

Floorplan 1 for House Plan #048-00228

What's Included in these plans?

  • Foundation plan - each plan is drawn on a particular type of foundation (crawl space, slab or basement).
  • Foundation details - includes details for all three foundations listed above.
  • Floor plan drawn to ¼" scale.
  • Door, window and square footage schedule.

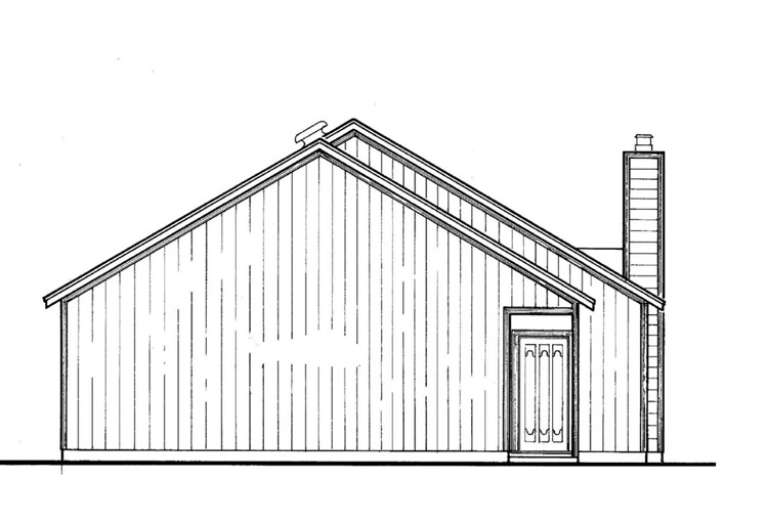

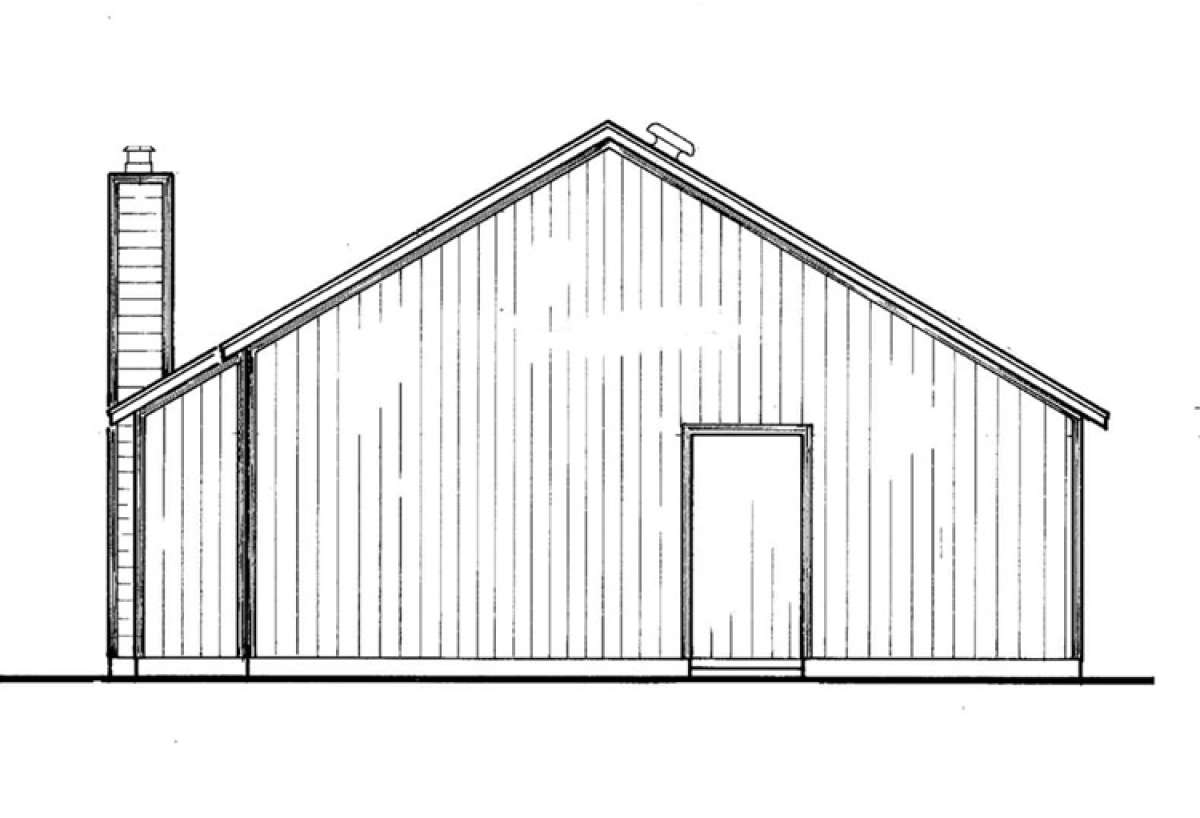

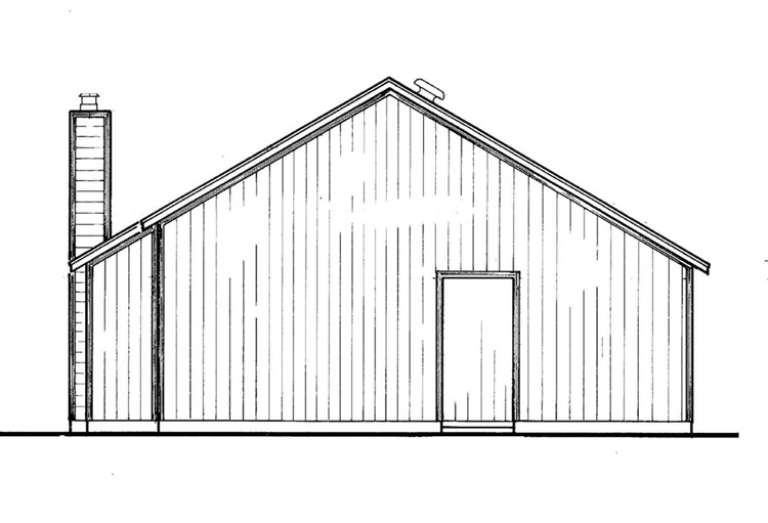

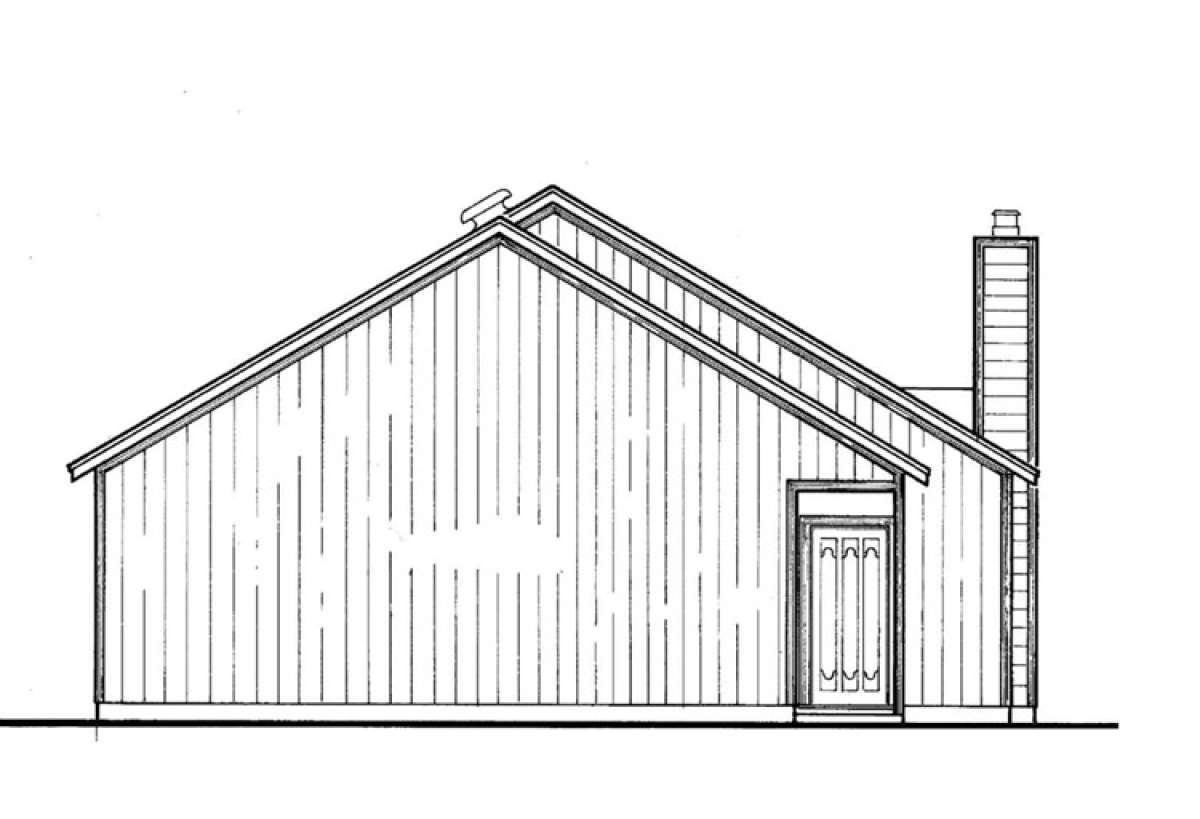

  • four exterior views - front, rear and both sides
  • interior elevations for all cabinets
  • electrical plan - may be included as part of floor plan but is usually a separate drawing
  • electrical symbols
  • Sections through the building that illustrates the construction configuration
  • Details - includes cornice, fireplace, typical section, cabinet construction and other items that may need special detailing
  • Specifications which includes the type materials specified in the construction plus interior finish schedules, cost allowance schedules, plumbing and electrical schedules.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Small house living is successfully attained in this Contemporary house plan featuring clean lines and an attractive exterior. Simple construction, a pitched roof line and multiple window inserts outline the façade of the home allowing for plenty of natural light to flood the home’s interior. There are approximately 1,202 square feet of living space in the one story home where three bedrooms and two baths are situated in the interior. The home’s drawings are perfect for a narrow and/or small lot, as indicated by the 42’ width and 34’depth dimensions making the home an ideal choice as vacation or forever home for a small family, young professionals or empty- nesters. There is a front covered entrance into the home where an open and functional floor plan is revealed. The large living room measures 18’x16’ and features overhead beams and a warming fireplace. There is a spacious dining room and adjoining kitchen where plenty of counter and cabinet space are located. Beyond the kitchen is a rear porch and the subsequent laundry room which also contains additional storage space for seasonal and other household items.

Two family style bedrooms are on the opposite side of the home; each enjoys a spacious footprint and generous closet space. There is a shared hall bath with a tub/shower combination and a hall linen closet nearby for the bedroom’s use. The master suite features a luxuriously sized bedroom with great window views along the rear of the home, his and her walk-in closets and an en suite bath. The master bath is highlighted with a vanity space, a toilet area and a tub/shower combination for a complete suite of design elements. This home is compact and yet, the house plan is functional and well suited for a small family.
