Traditional Plan 048-00223

Traditional House Plan #048-00223 Elevation Photo
Floorplan 1 for House Plan #048-00223
Traditional House Plan #048-00223 Elevation Photo
Floorplan 1 for House Plan #048-00223

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Images copyrighted by the designer. Photographs may reflect a homeowner modification.
Sq Ft 1,892
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 58'
Depth 66'

Floorplan Drawings

 PRINT  DOWNLOAD

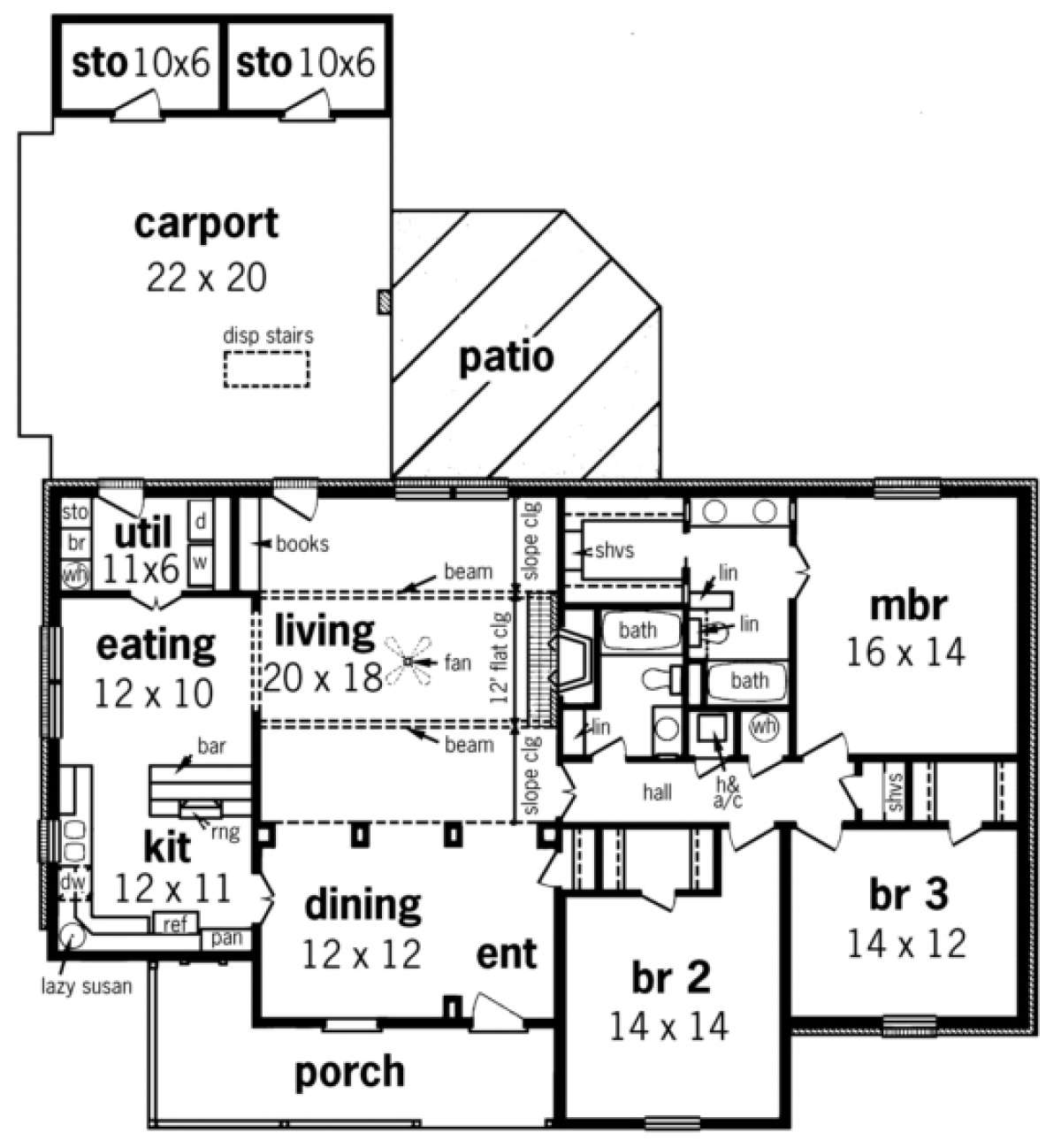

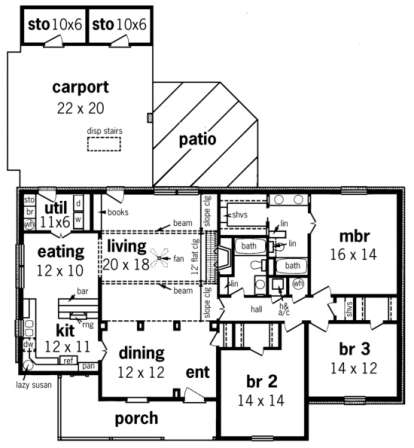

Floorplan 1 for House Plan #048-00223
Floorplan 1
Floorplan 1 for House Plan #048-00223
Images copyrighted by the designer.


What's Included in these plans?

  • Foundation plan - each plan is drawn on a particular type of foundation (crawl space, slab or basement).
  • Foundation details - includes details for all three foundations listed above.
  • Floor plan drawn to ¼" scale.
  • Door, window and square footage schedule.
  • four exterior views - front, rear and both sides
  • interior elevations for all cabinets
  • electrical plan - may be included as part of floor plan but is usually a separate drawing
  • electrical symbols
  • Sections through the building that illustrates the construction configuration
  • Details - includes cornice, fireplace, typical section, cabinet construction and other items that may need special detailing
  • Specifications which includes the type materials specified in the construction plus interior finish schedules, cost allowance schedules, plumbing and electrical schedules.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Reminiscent of farm homes of the Victorian period, this design features a centrally located living room with 12’ ceilings and a brick wood burning fireplace. The living room is open to the dining and foyer separated only by matched columns. Have you noticed that all bedrooms have huge walk-in closets? More storage abounds in the kitchen with its floor to ceiling built-in pantry and broom storage in the utility room. This is a super energy saving home featuring 2x6 exterior walls, 12” attic insulation and many other energy saving features.
