Traditional Plan 048-00001


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 569
Beds 1
Bath 1
1/2 Baths 0
Car 0
Stories 1
Width 20'
Depth 39'

Floorplan Drawings

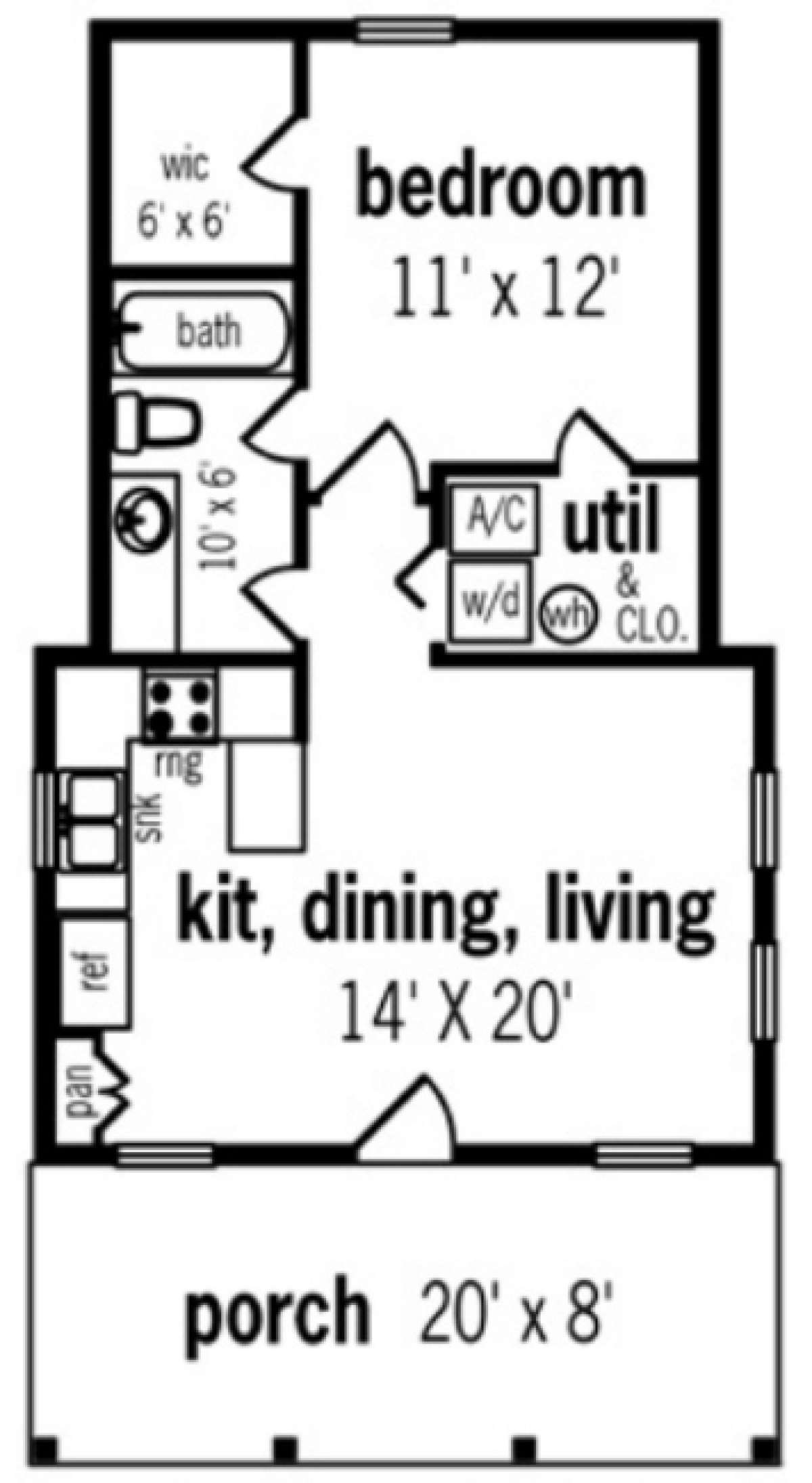

Floorplan 1
Floorplan 1 for House Plan #048-00001

What's Included in these plans?

  • Foundation plan - each plan is drawn on a particular type of foundation (crawl space, slab or basement).
  • Foundation details - includes details for all three foundations listed above.
  • Floor plan drawn to ¼" scale.
  • Door, window and square footage schedule.
  • four exterior views - front, rear and both sides
  • interior elevations for all cabinets
  • electrical plan - may be included as part of floor plan but is usually a separate drawing
  • electrical symbols
  • Sections through the building that illustrates the construction configuration
  • Details - includes cornice, fireplace, typical section, cabinet construction and other items that may need special detailing
  • Specifications which includes the type materials specified in the construction plus interior finish schedules, cost allowance schedules, plumbing and electrical schedules.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

To be in the woods, overlooking a serene lake or atop a mountain is a grand adventure and this traditional Cottage plan features an attractive exterior specifically suited for such an adventure. Simple construction with rich detailing highlights the exterior where a gable roof, exposed rafters, a front covered porch and low country window shutters outline the façade wonderfully. The covered porch features walk-up steps and open exposure along with columned beam support. The interior floor plan is fully functional and complete with one bedroom and one bath in 569 square feet of usable living space. The width and depth dimensions, 20’ and 39’, respectively, make this cottage house design perfect for a small and/or narrow lot and the home’s compact and efficient layout is designed for purposeful and intentional living where a young couple or individual can get away for the weekend or forever. The covered porch measures 20’x8’ and allows access into the combination living and dining spaces. There are multiple window views, a comfortable floor plan and modern kitchen amenities, including a separate pantry and peninsula bar situated on the rear and side walls which maximize furniture placement and create a spacious home environment. A laundry and mechanical room house the washer and dryer and assorted home necessities. There is an adjacent full bath with a large vanity space, toilet area and a tub/shower combination before accessing the bedroom. The bedroom is quite spacious and includes an attached walk-in closet. This complete home features a wonderful exterior façade and an interior floor plan that is ideally suited for relaxation, contemplation and/or an oasis for adventure.
