European House Plan #041-00323 Elevation Photo

Main Floor w/ Basement Stair Location for House Plan #041-00323

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 2,726

Beds 3

Bath 3

1/2 Baths 1

Car 2

Stories 1

Width 62' 6"

Depth 92' 10"

See What's Included

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

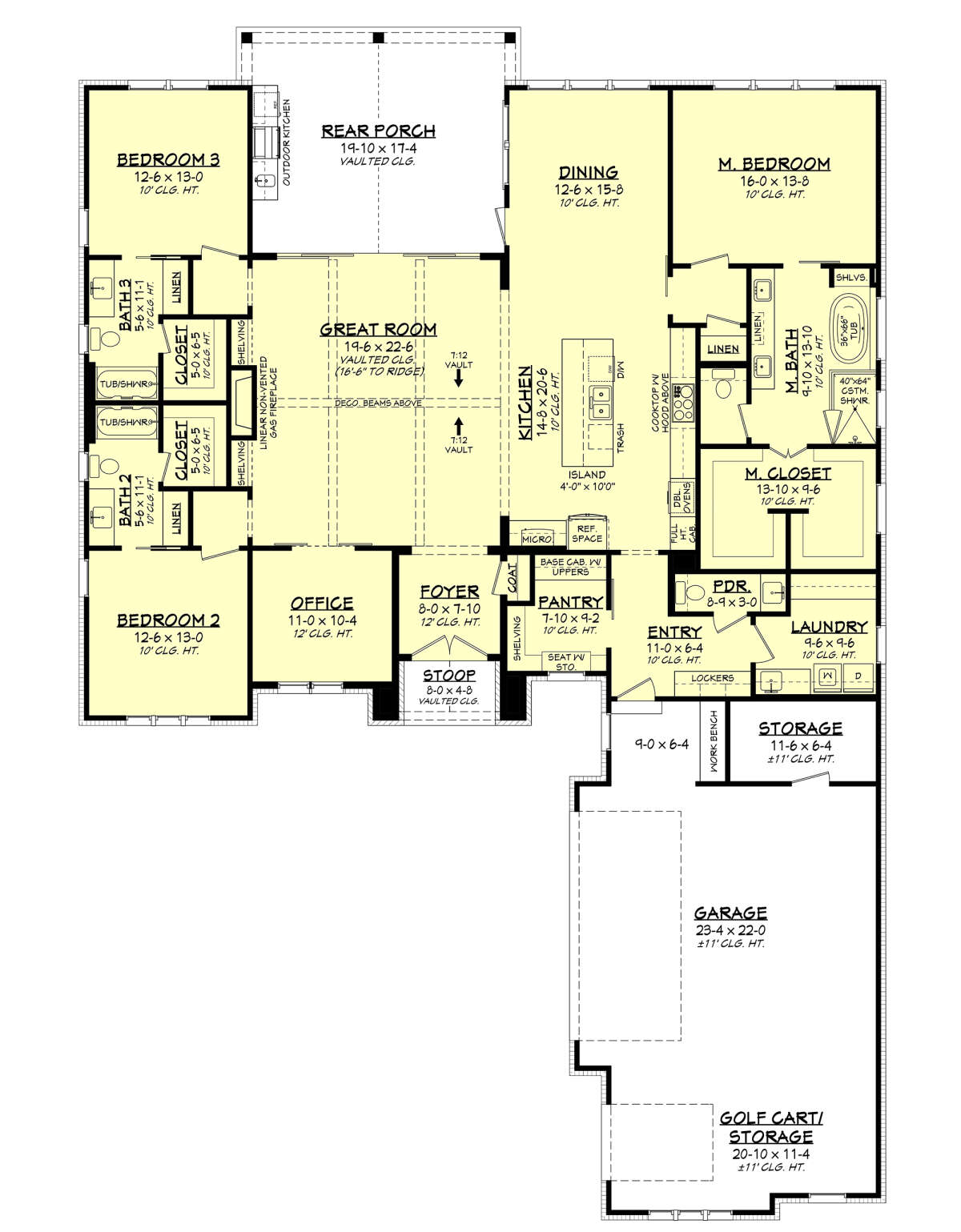

Main Floor

Main Floor w/ Basement Stair Location

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet
Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
Foundation Plan & Details
Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
Floor Plans
The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
Exterior Elevations

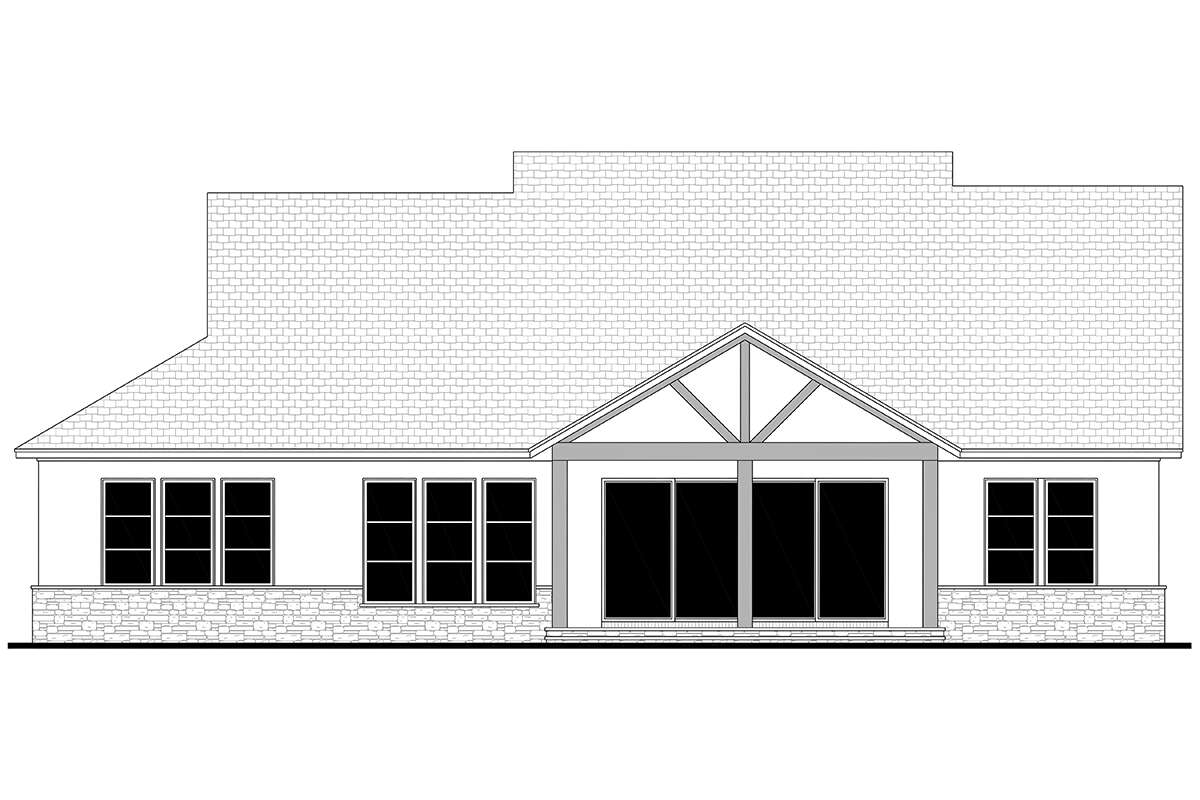

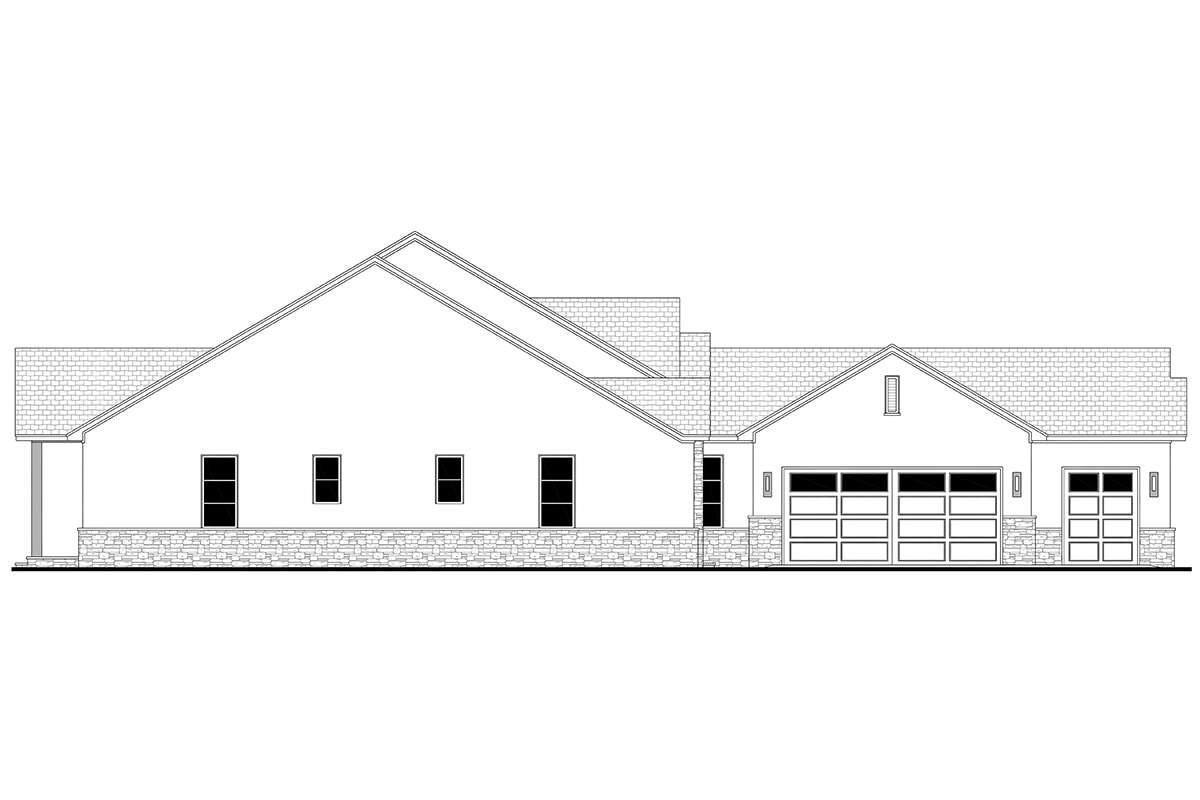

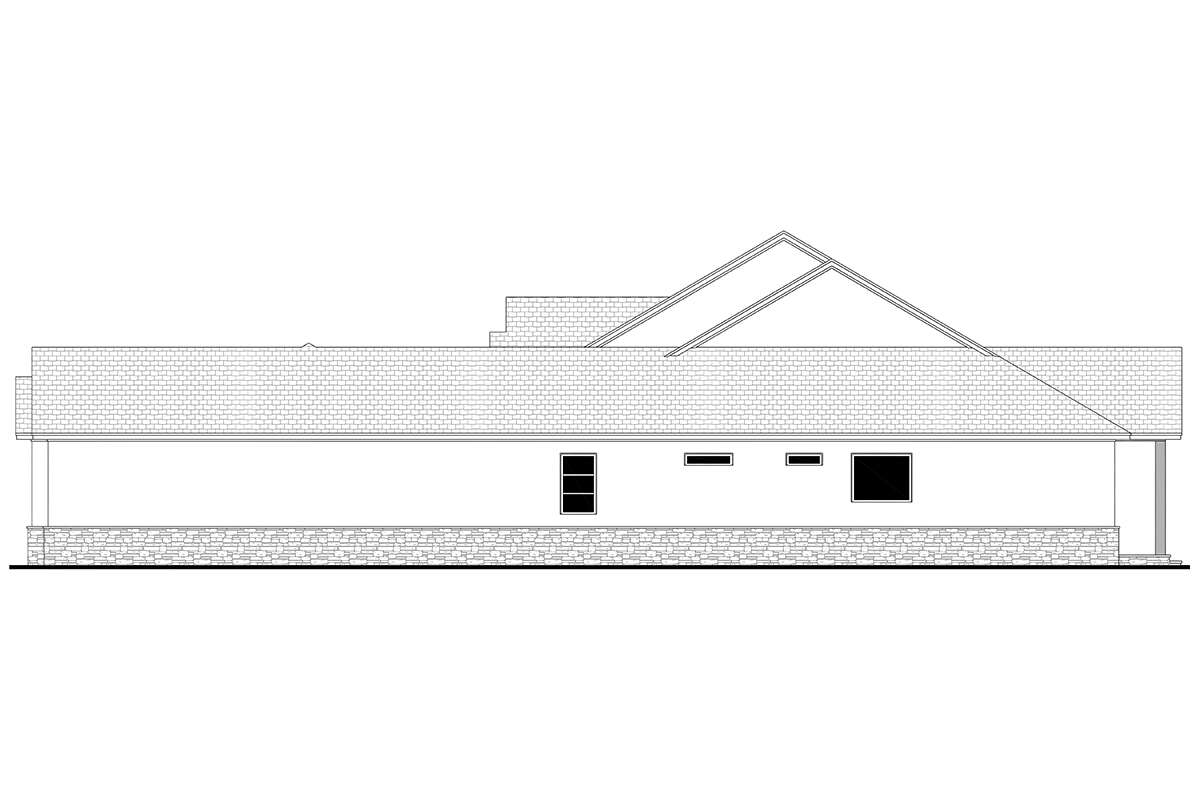

The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
Building Sections
The building sections describe to the builder how a particular home is to be constructed. Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
Roof Plan
The roof plan depicts the roof type, plate heights and roof slope of each plane.
Interior Cabinet Views
Cabinet views depict the overall design and layout of the kitchen cabinets.
Electrical Plan
The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

About This Plan

Clean lines and simple yet gorgeous exterior design elements highlight this European house plan. Dark trimmed window panels, brick and stonework along with black accent garage doors stage this dramatic design. There is a two car side/courtyard entrance as well as a golf cart or storage bay and an additional storage room in the garage along with a work bench making this a multi-use space for vehicles and hobbies. The main entrance into the home is double doored and the foyer extends to 12’ in height before opening onto the floor plan. Three bedrooms and three plus baths in approximately 2,726 square feet are housed on the interior along with entertaining space. The great room is quite large with vaulted ceilings and a center beam. The gas fireplace is flanked by shelving and there are sliders onto the rear porch which is also vaulted and features an outdoor kitchen. The dining room is ensconced in window views as well as having door access to the porch. A large center island takes the “spotlight” in the kitchen and a large walk-in pantry is tucked around the corner. The office sits adjacent to the great room and features sliders for convenience and privacy.

Two secondary bedrooms are situated on one side of the home; each has a private bath, window views and a walk-in closet. A half bath for guests, a mudroom and the laundry room are located off the garage before accessing the primary suite. The owner’s suite features 10’ ceiling heights and there is an elegant ensuite bath with double sinks and a separate shower and tub. There is a large walk-in closet off the bath, accessed by French doors and divided for privacy. A beautiful exterior and fully functional interior floor plan highlight this European design.
