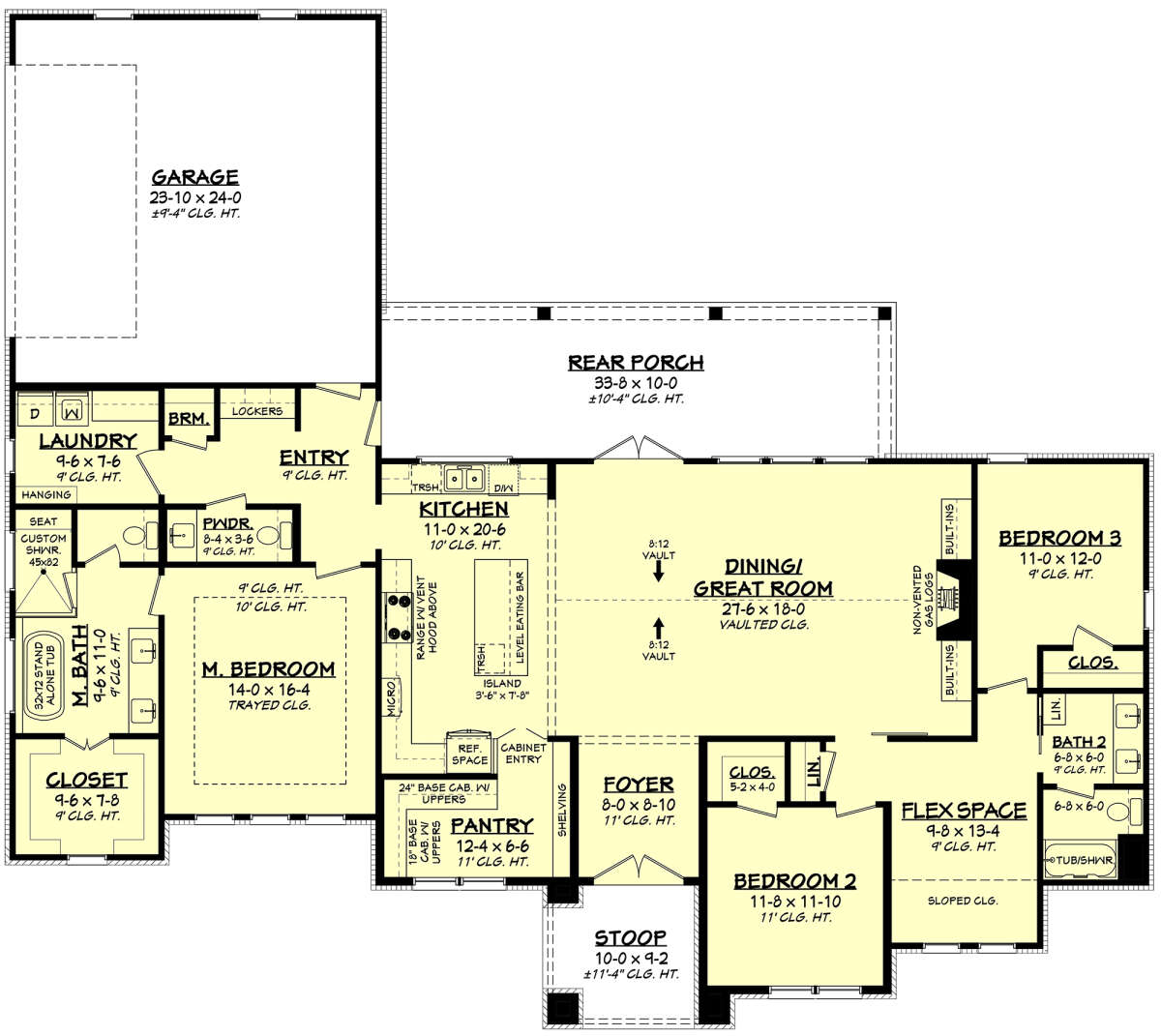

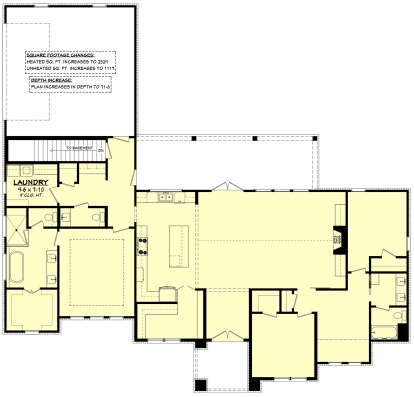

Main Floor w/ Basement Stair Location for House Plan #041-00315

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 2,295

Beds 3

Bath 2

1/2 Baths 1

Car 2

Stories 1

Width 75' 2"

Depth 66' 8"

See What's Included

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

Main Floor

Main Floor w/ Basement Stair Location

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet
Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
Foundation Plan & Details
Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
Floor Plans
The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
Exterior Elevations
The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
Building Sections
The building sections describe to the builder how a particular home is to be constructed. Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
Roof Plan
The roof plan depicts the roof type, plate heights and roof slope of each plane.
Interior Cabinet Views
Cabinet views depict the overall design and layout of the kitchen cabinets.
Electrical Plan
The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

About This Plan

A multitude of window views dressed in black and set against the white backdrop of stone gives this home an immediate Modern vibe. It’s a simple design but there is big impact here when walking up to the front double door entrance. Once in the approximate 2,295 square feet of living space home, the foyer with 11’ ceiling heights sets the stage for a dramatic entrance. The great room and dining space feature voluminous ceiling heights, a gas log fireplace flanked by built in cabinetry and fabulous window views. French door access onto the rear covered porch highlights great exterior outdoor space where family and friends can gather to celebrate and enjoy life. The grand kitchen showcases double sink window views, a large island, great counter and cabinet space and a pantry “to die for.” The pantry includes plenty of upper cabinets and shelving in addition to counter space to house all your small appliances, food items and anything else you might like to store away from the main kitchen. A two car side entry garage is located at the rear of the home and provides access to the mudroom with lockers, a broom closet, a half bath for guests along with a spacious laundry room. The laundry room offers washer/dryer space, counter space and a hanging rack for clothing.

The primary suite is located on this side of the house and offers spacious floor space along with an overhead tray ceiling feature. Off the bedroom is the en suite bath with double sinks, a free standing tub and a custom shower with seating along with the private water closet. The main walk-in closet is found off the bath through double doors. On the opposite side of the home are two bedrooms, a bath, and flex space. Both bedrooms are spacious with ample closet space and there is a linen closet both outside and inside the bath. Additionally, the bath features double sinks, a tub/shower combination, and a toilet area. The flex space is situated between the bedrooms and offers great space for a playroom for younger children or a homework station for older children. This great family home features a dramatic exterior and entrance along with a spacious layout and generous outdoor space.
