Modern Farmhouse Plan 041-00310


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,977
Beds 4
Bath 3
1/2 Baths 1
Car 2
Stories 1
Width 84'
Depth 66' 4"

Floorplan Drawings

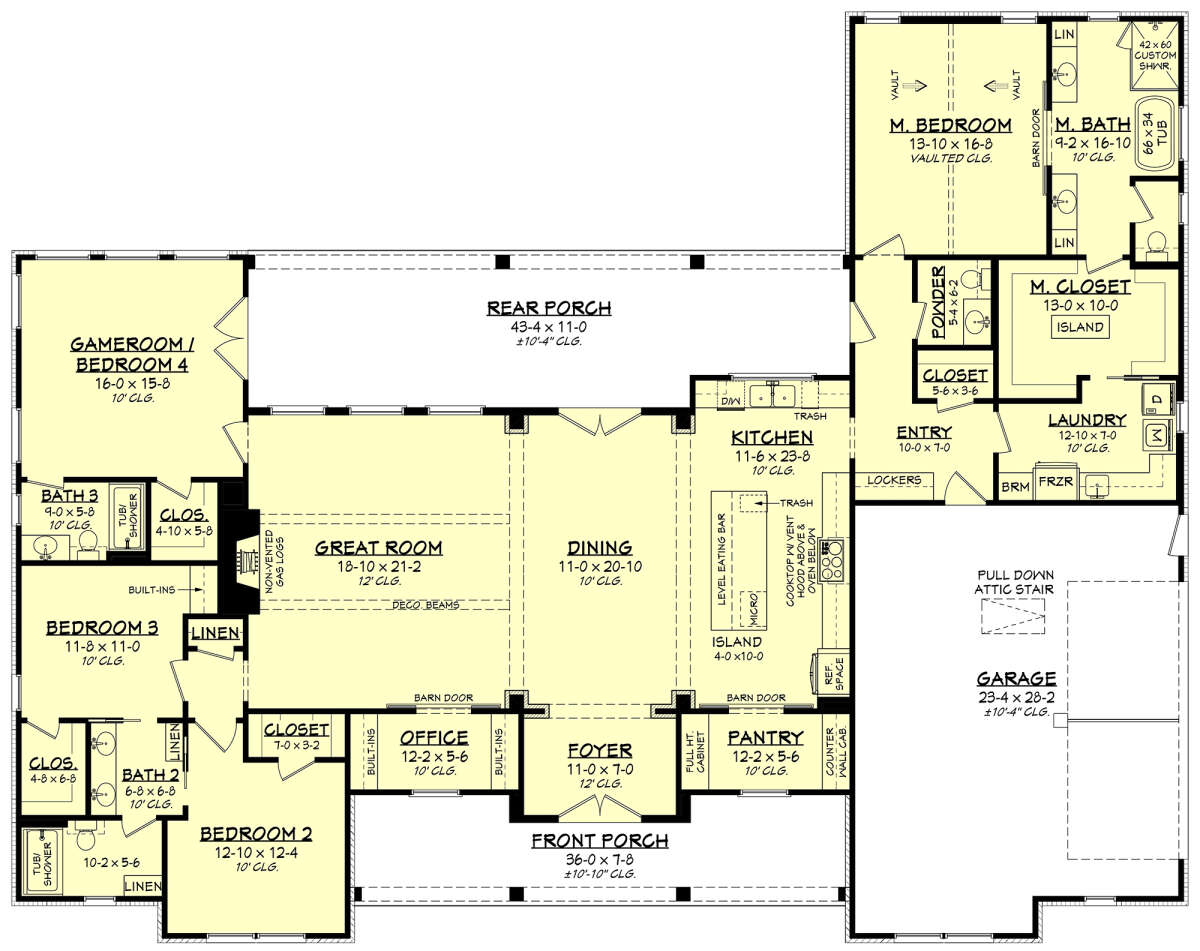

Main Floor
Main Floor  for House Plan #041-00310
Main Floor w/ Basement Stair Location
Main Floor w/ Basement Stair Location for House Plan #041-00310

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.

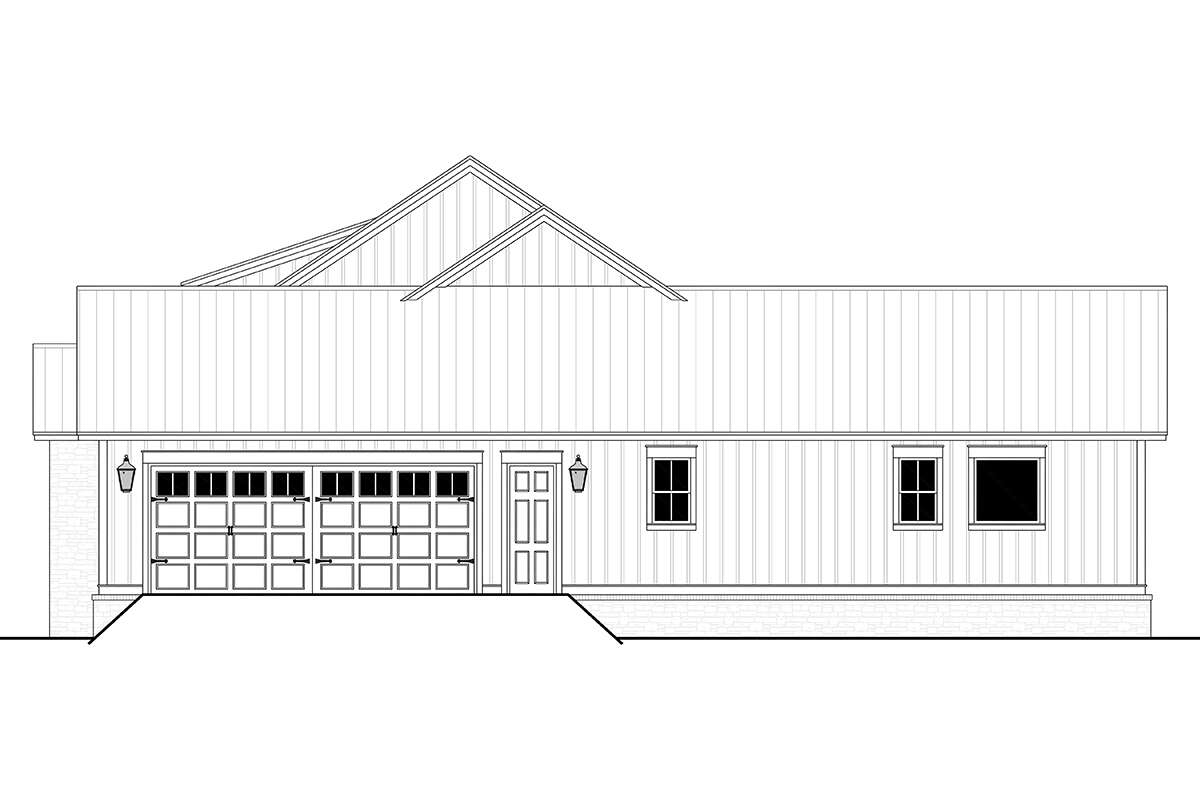

  • Exterior Elevations

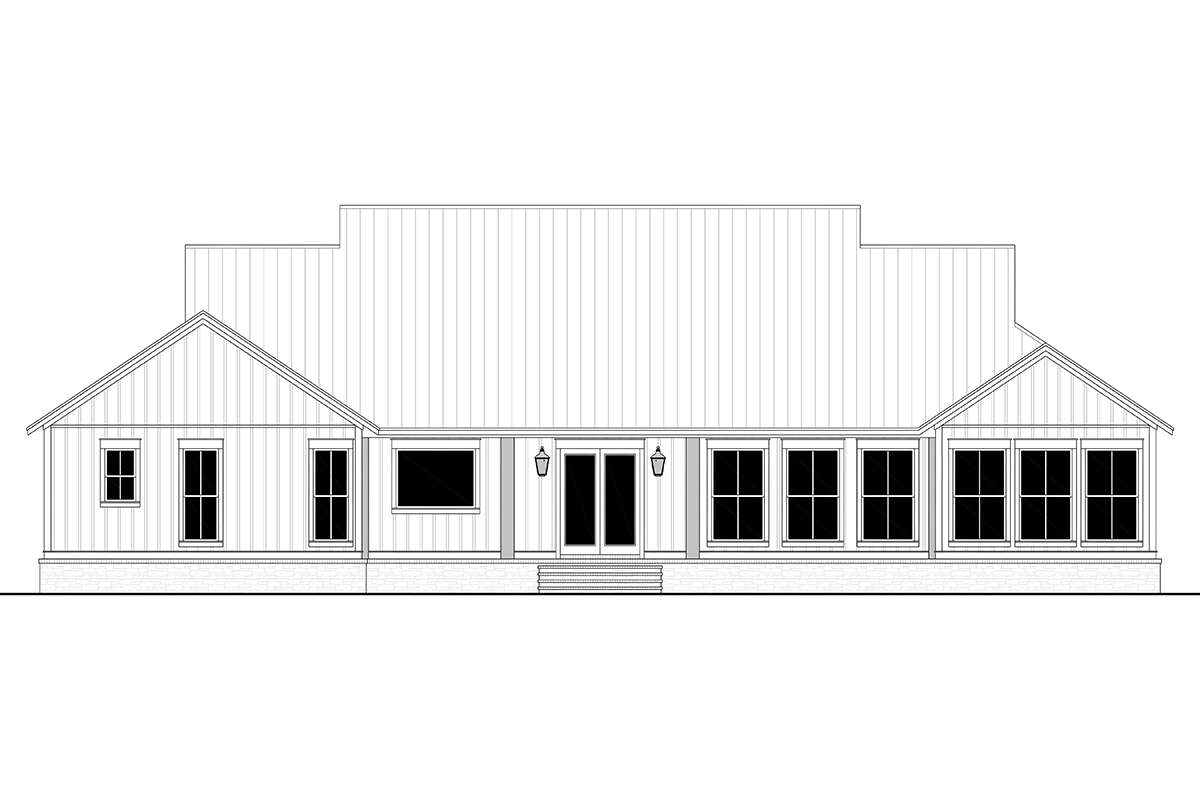

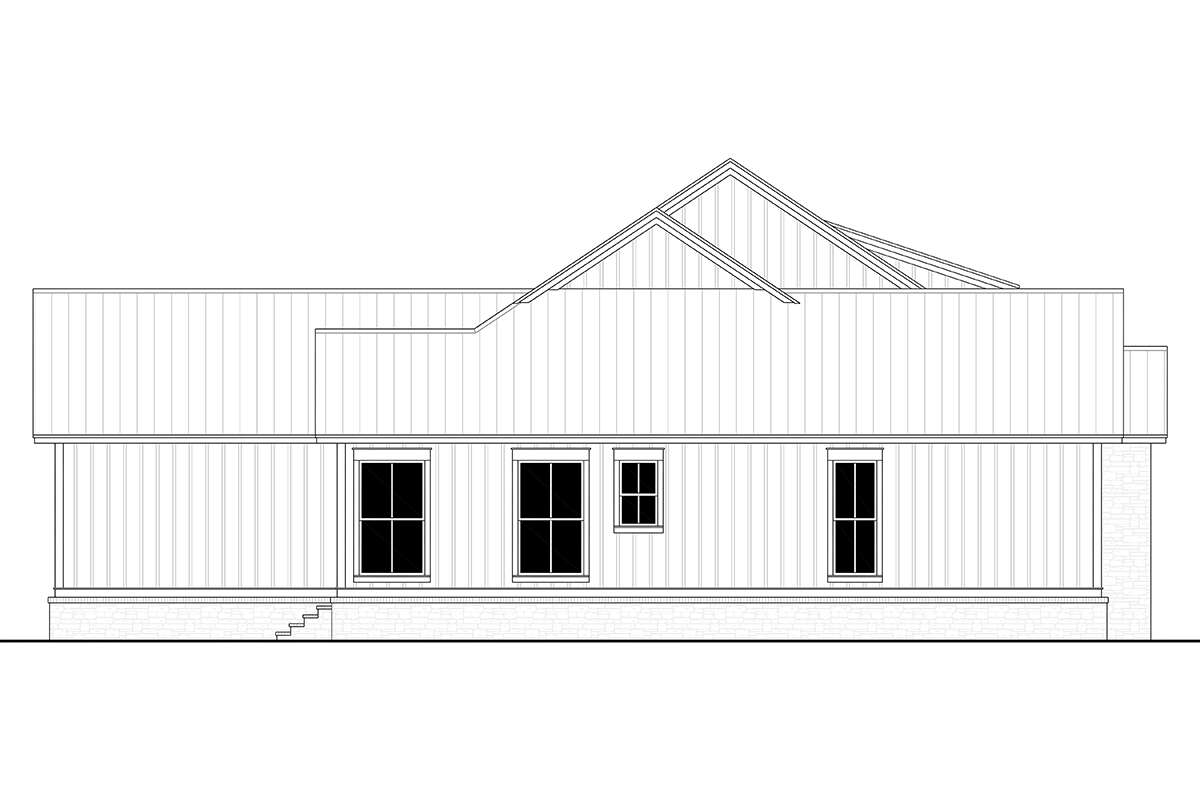

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

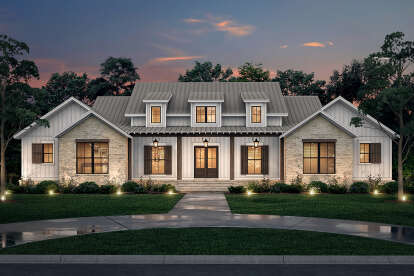

This sprawling Modern Farmhouse design showcases a beautiful front exterior that spans 84’ in width and includes stonework, warm woods, and a large front covered porch. The symmetrical front exterior is anchored with board and batten endcaps, overhead window dormers and exposed rafters. The front and rear porches provide an abundance of entertaining and relaxing space and multiple entry and exit points into the home. There are approximately 3,000 square feet of living space with four bedrooms and three plus baths. The two car side entry garage has plenty of vehicle space as well as a pedestrian door for easy removal of lawn and garden equipment, sports equipment, or just easy access into a workshop area. Located directly off the garage is the laundry room with counter space, a broom closet, freezer space and a nearby half bath.

The owner’s retreat is located on this wing of the home for privacy and includes a large, vaulted bedroom, a walk-in closet with dressing island and an elegant owner’s bath. The bath offers a separate shower and tub, separate dual vanities, a water closet, and linen storage. The remaining bedrooms are situated across the home; there are three good size bedrooms where two share a bath with double sinks for easy morning routines and the fourth has its own private bath. Each bedroom has window views and large closets. Between the two wings of the home are the living and dining spaces along with an office and foyer. The foyer features a double door entrance off the porch and 12’ ceiling heights for a dramatic entry point. The nearby office features built-in shelving and a barn door entrance overlooking the great room where there are decorative beams and a warming fireplace. The dining room is situated between the great room and kitchen and offers rear porch access for entertaining and outdoor dining possibilities. The kitchen is the family cook’s dream with a large center island and eat-in bar area, an enormous pantry and plenty of counter and cabinet space. Beauty and functionality come together to create a great family home in the Modern Farmhouse design.
