Modern Farmhouse Plan 041-00299


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,092
Beds 4
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 69' 6"
Depth 58' 4"

Floorplan Drawings

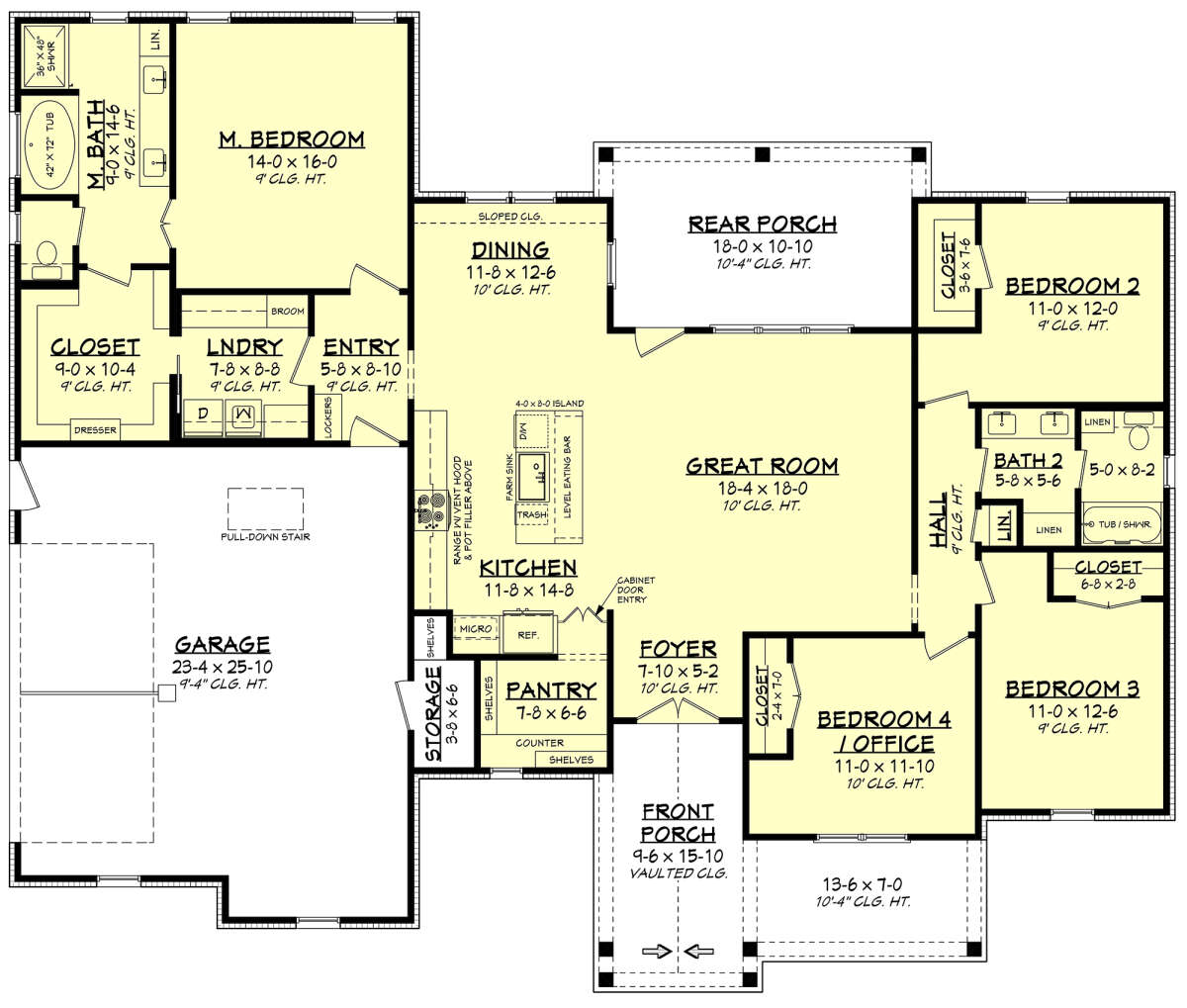

Main Floor
Main Floor  for House Plan #041-00299

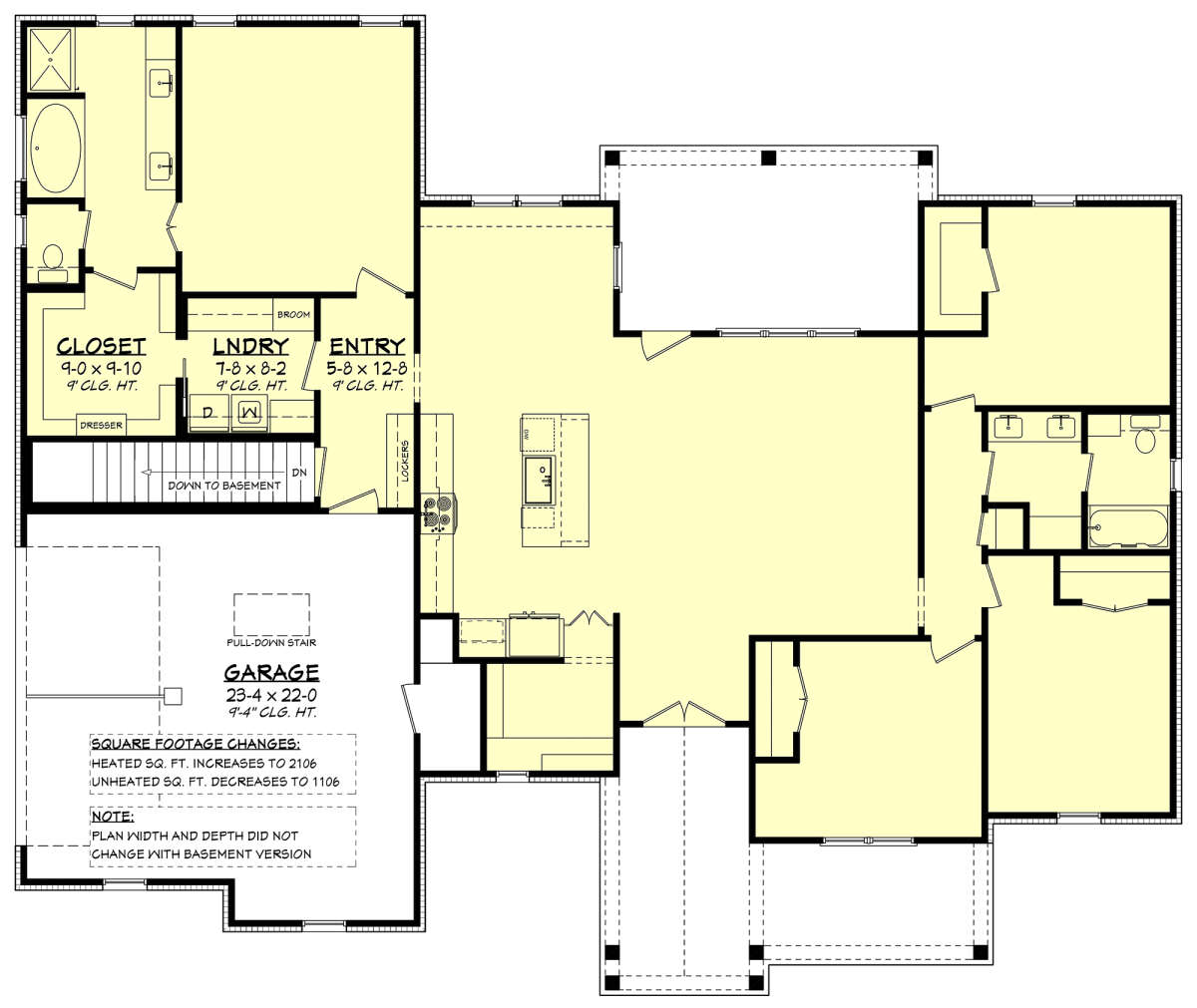

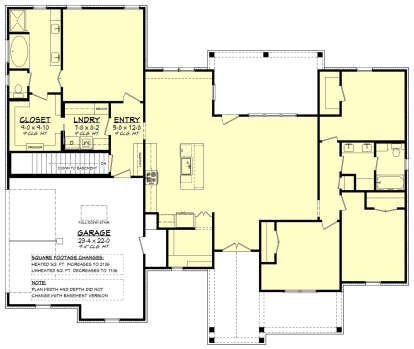

Main Floor w/ Basement Stair Location
Main Floor w/ Basement Stair Location for House Plan #041-00299

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.

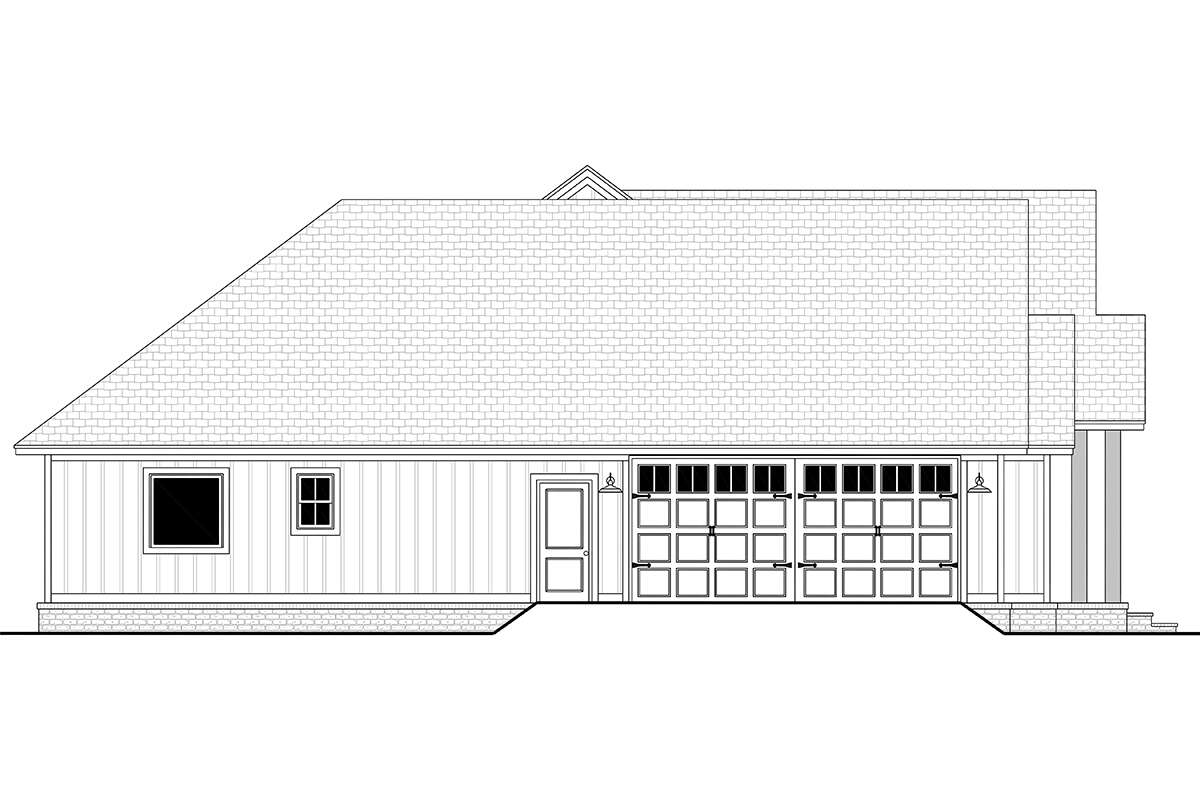

  • Exterior Elevations

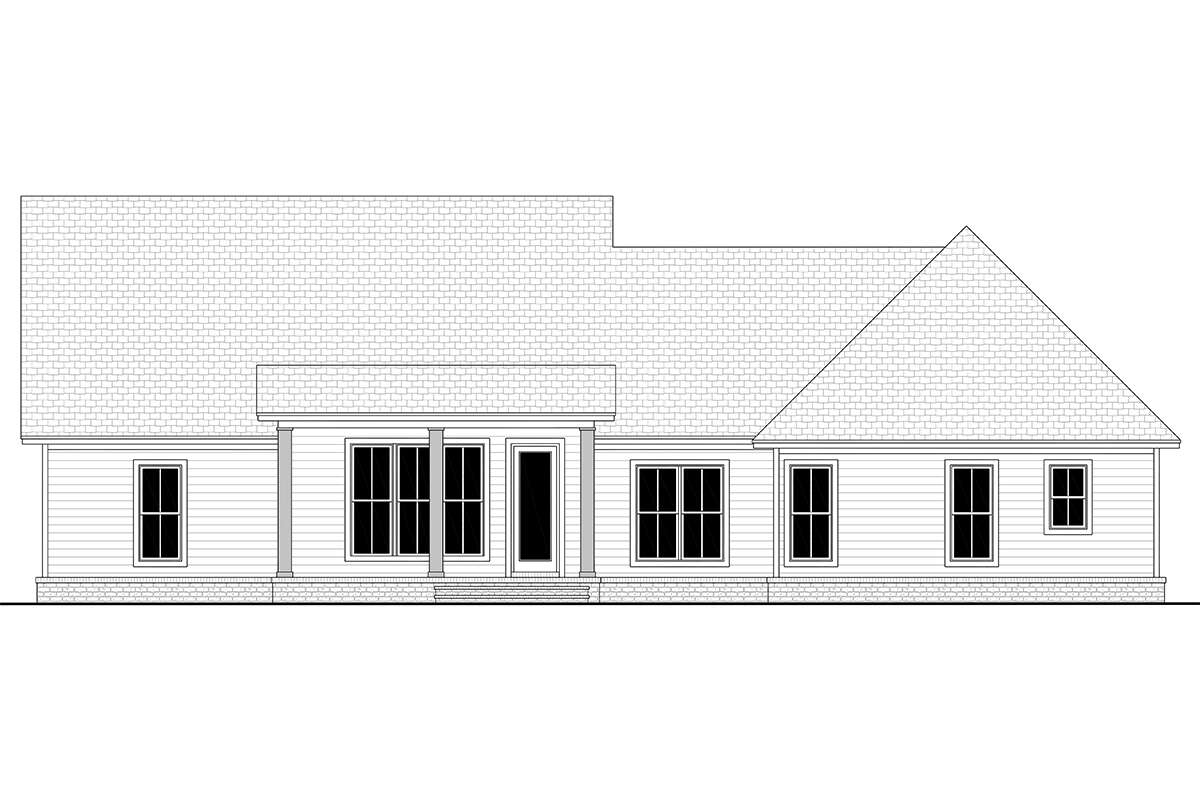

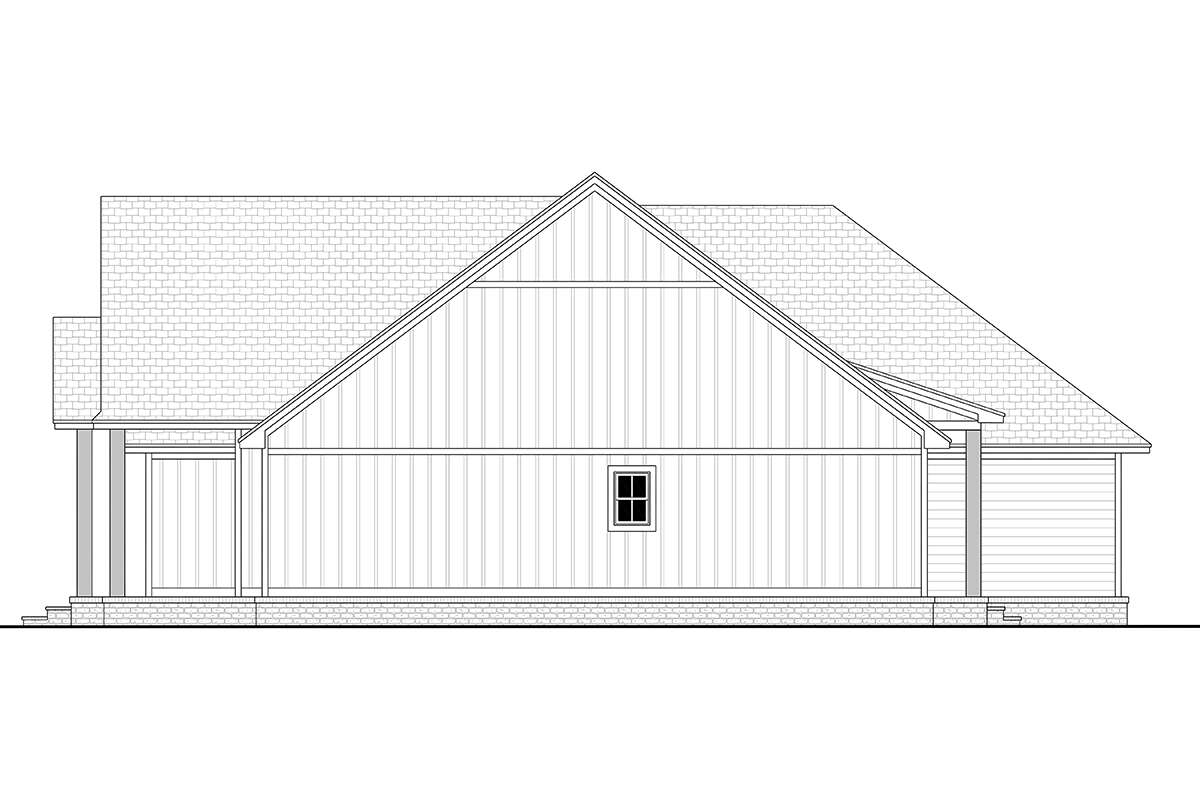

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

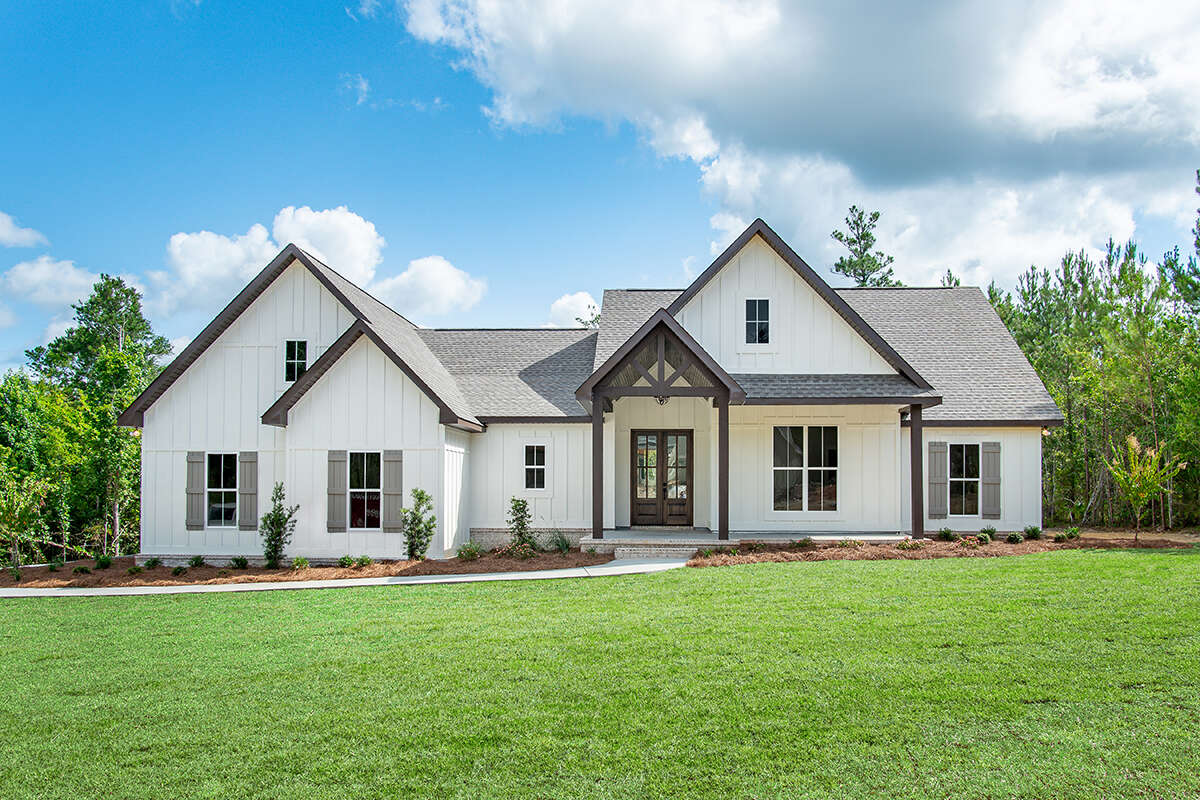

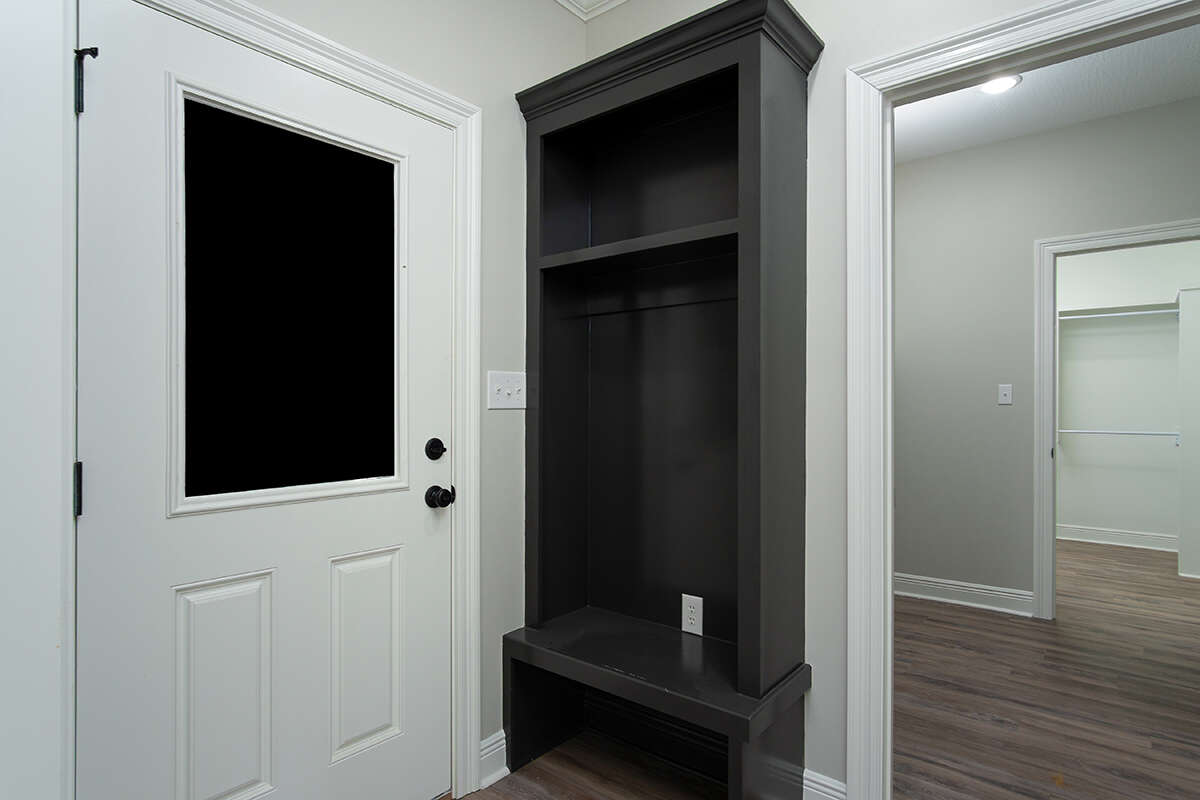

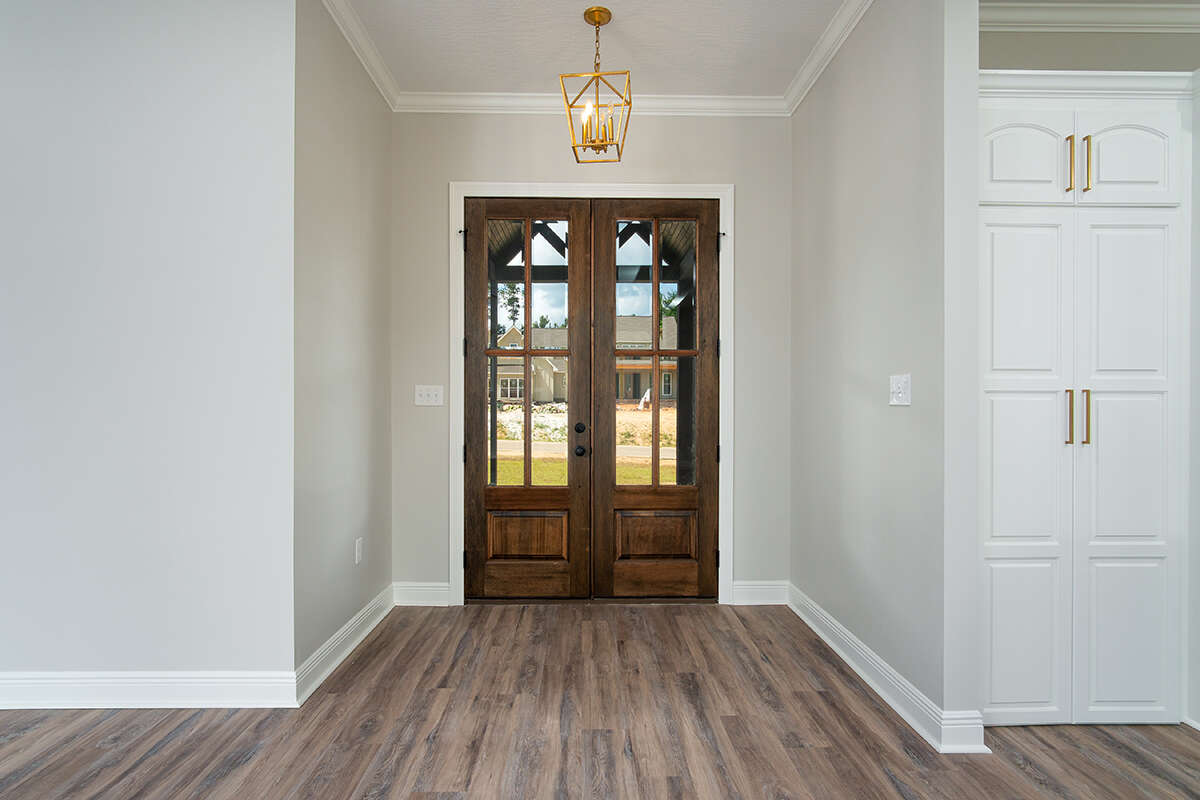

This clean and crisp exterior belongs to a gorgeously detailed Modern Farmhouse plan; while simply designed, the plan features a visually pleasing exterior from its multi-gabled design to the board and batten siding. The extended front covered porch offers plenty of room to greet guests and family and the double door entry strikes the perfect balance of exterior design elements. There is a double loading side entry garage with a pedestrian door, an attic pull-down staircase and additional storage before entering the home. There is a mudroom and laundry room as you enter the home before accessing the primary suite.

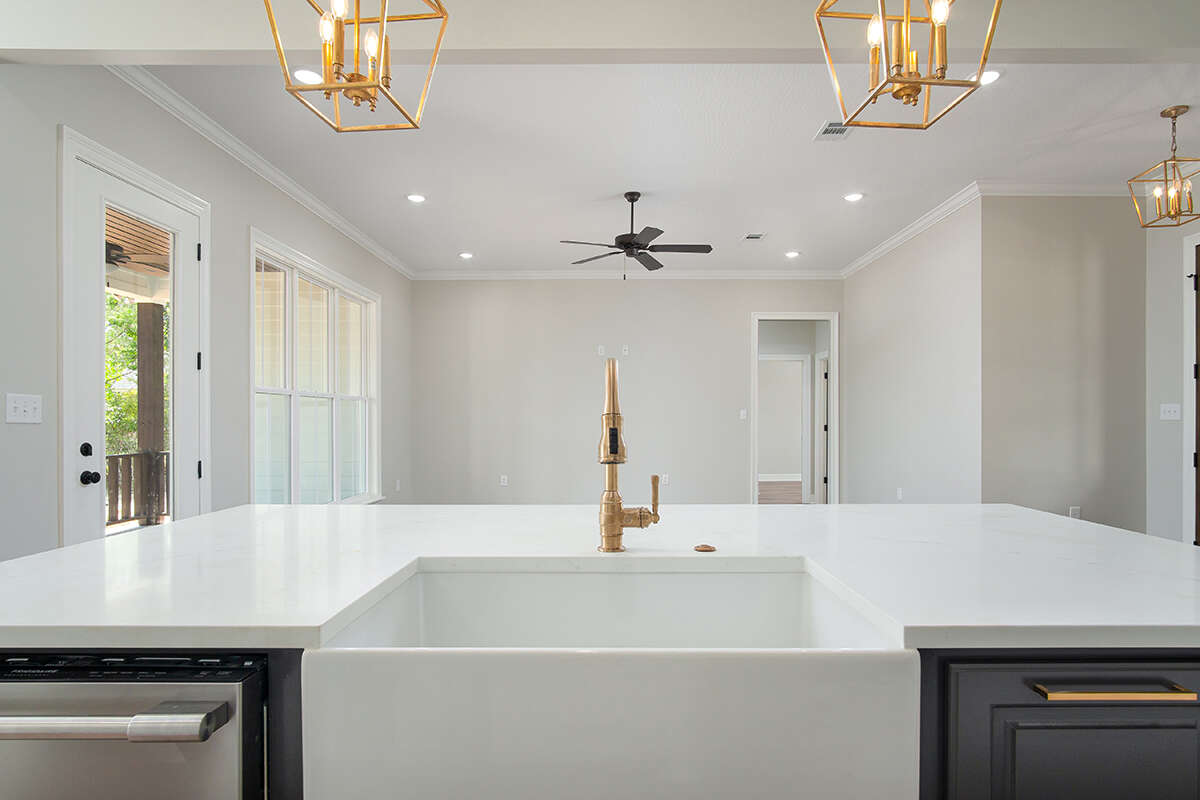

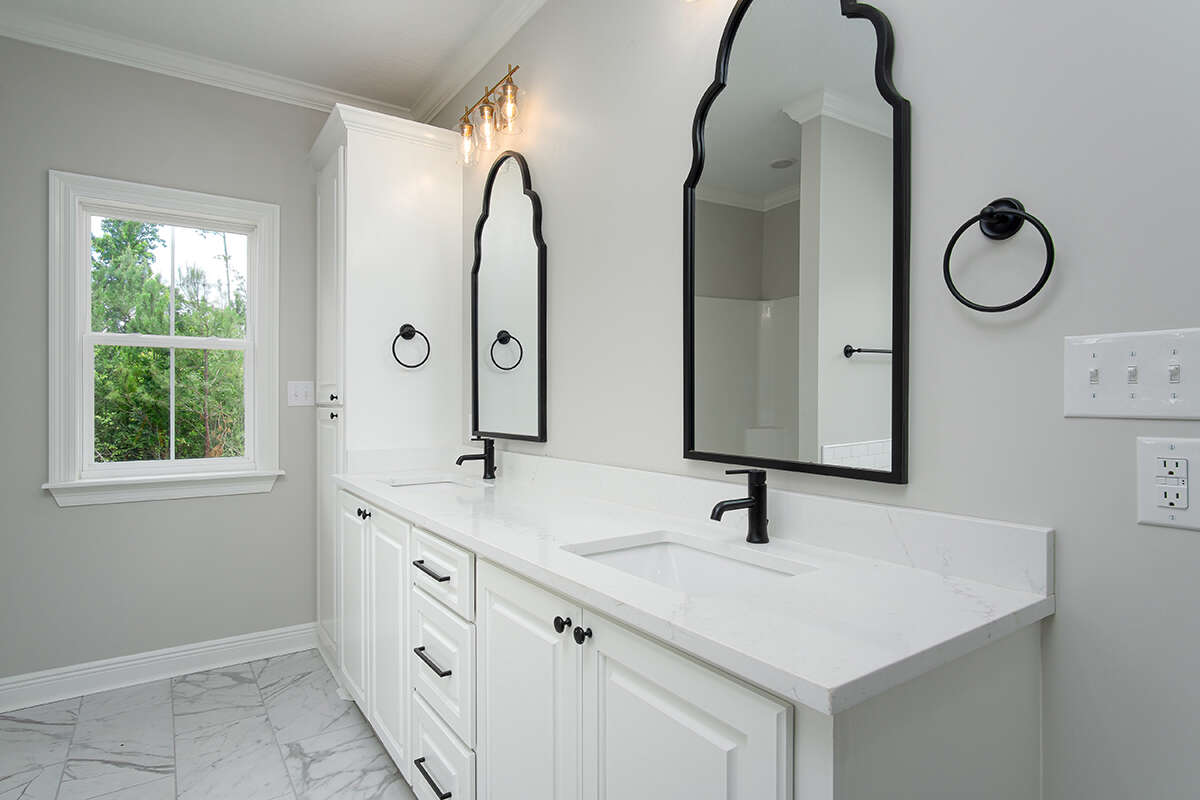

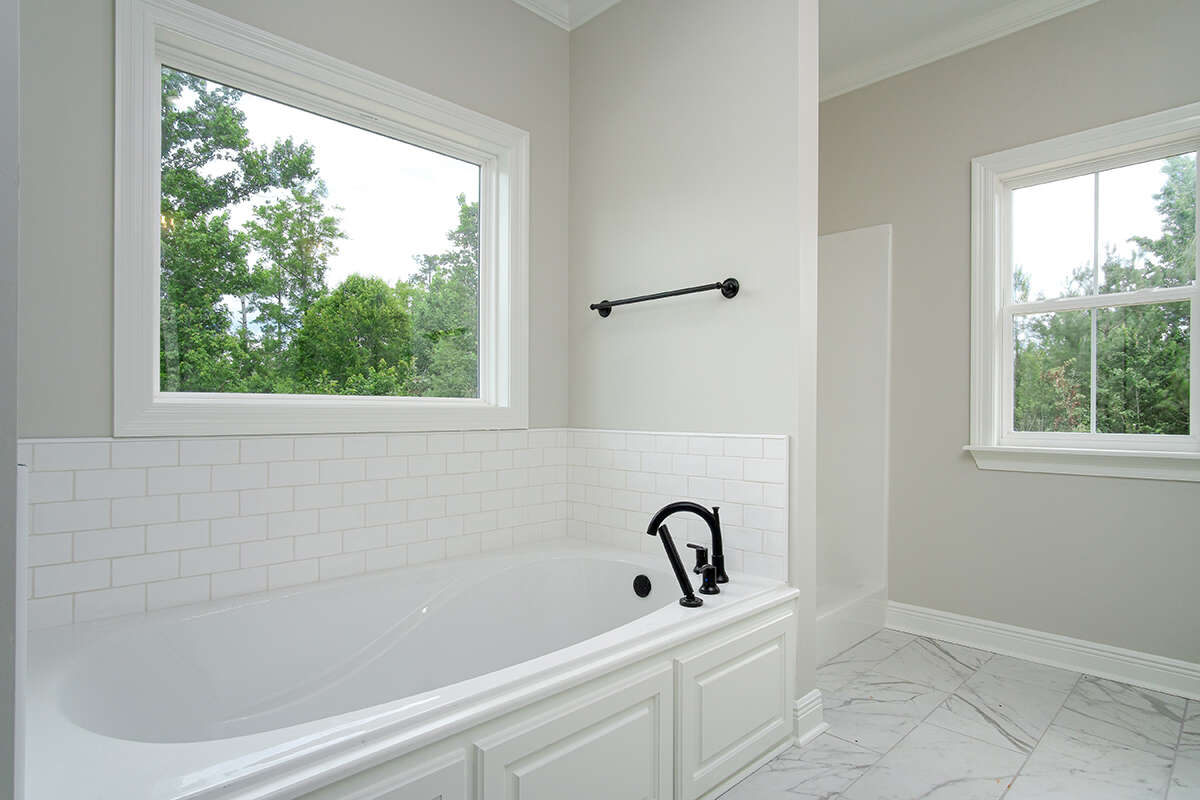

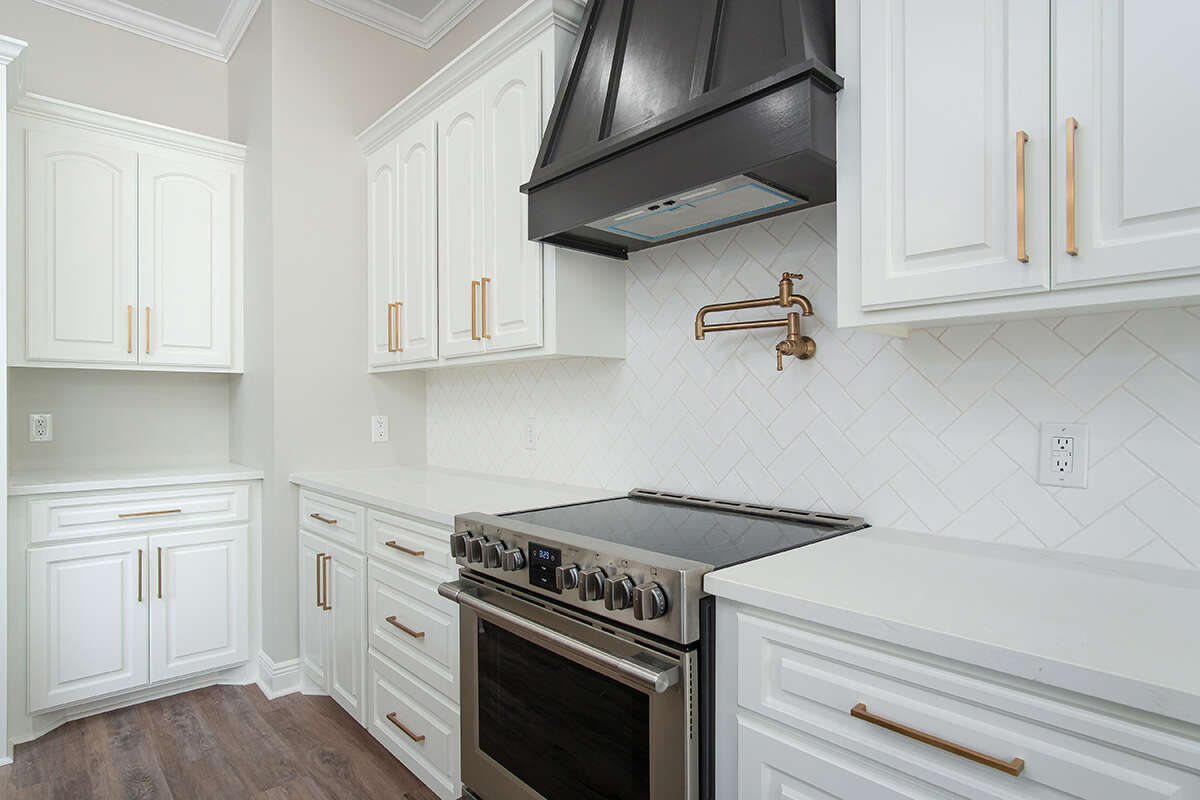

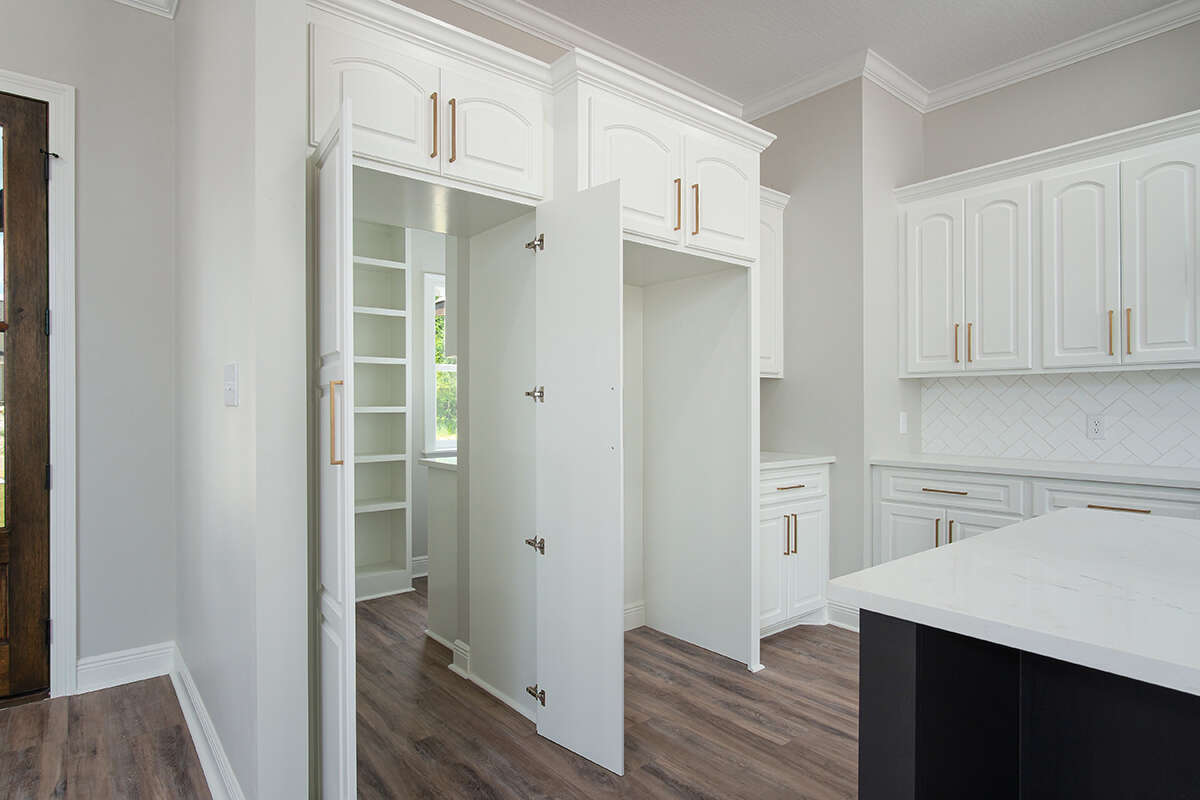

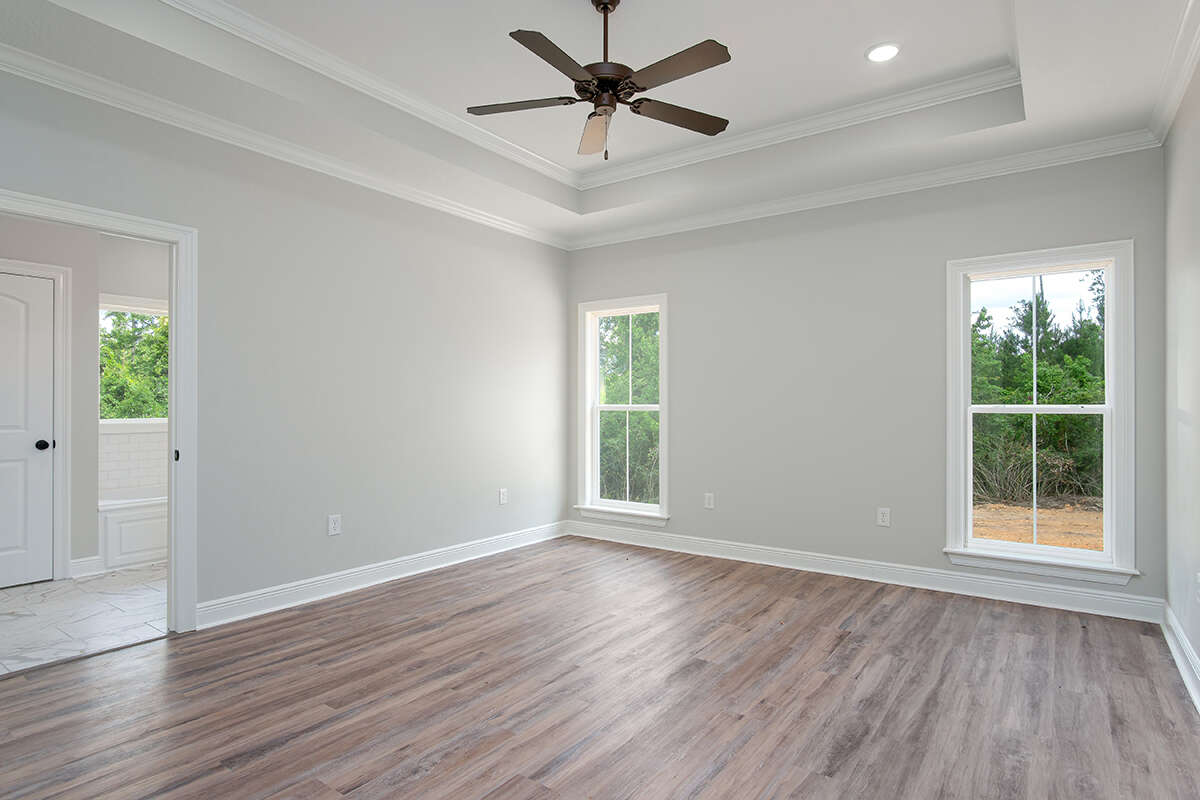

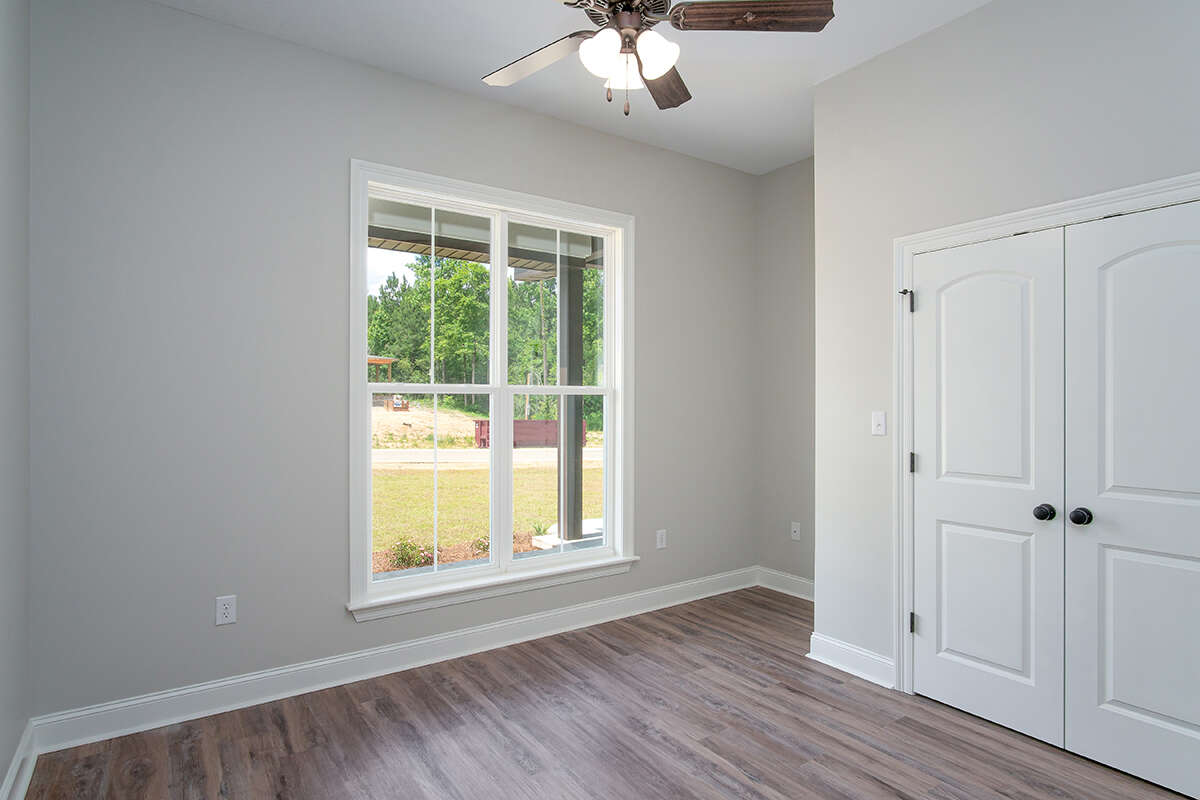

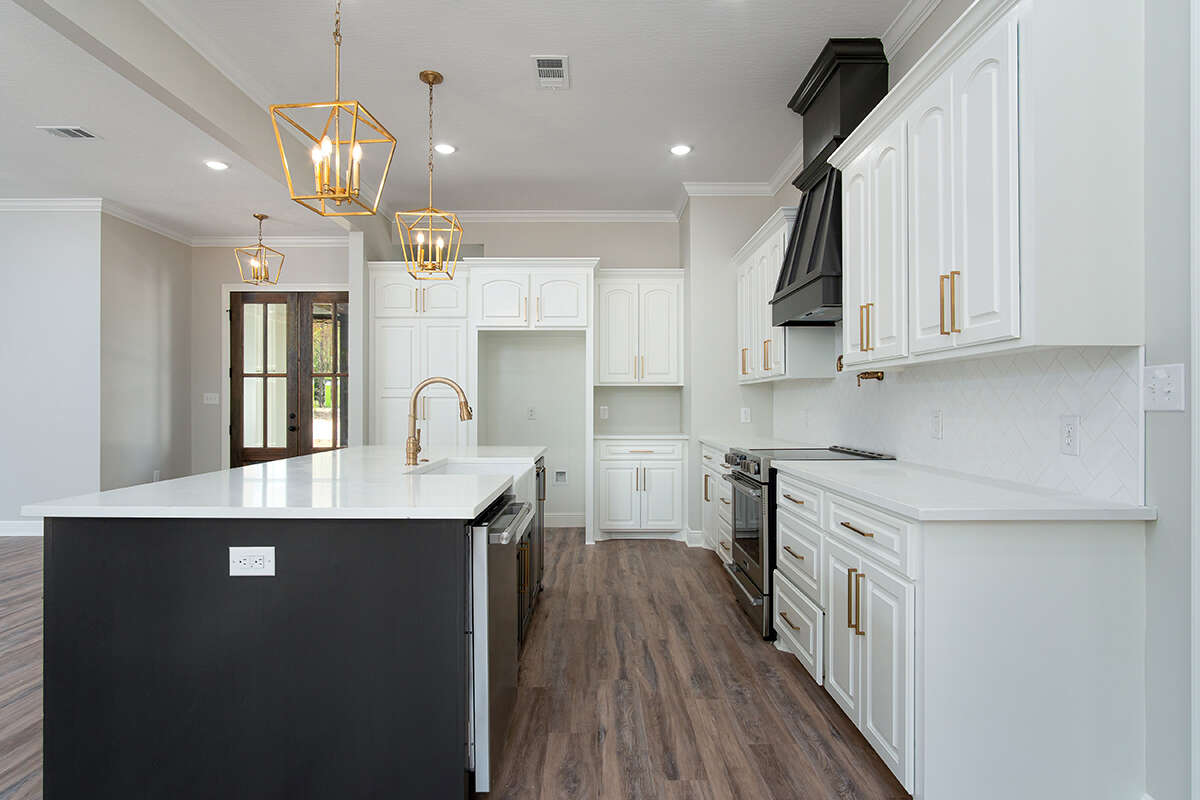

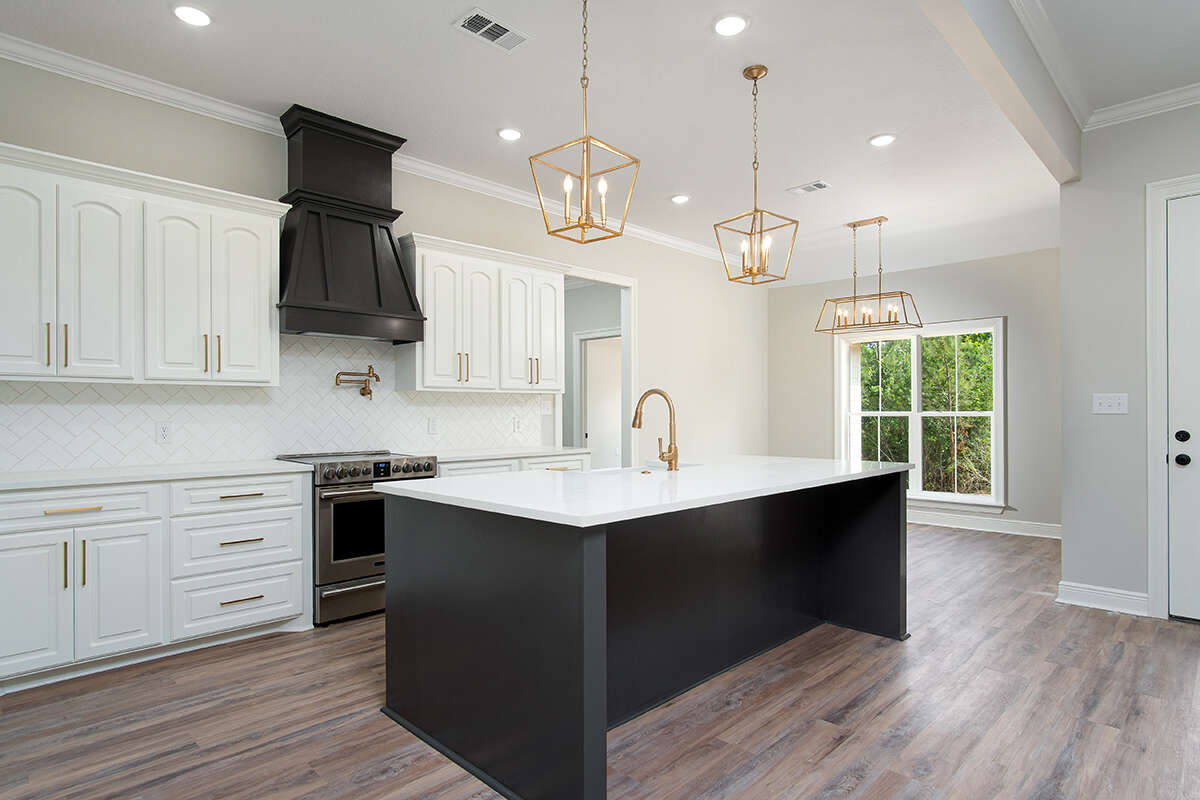

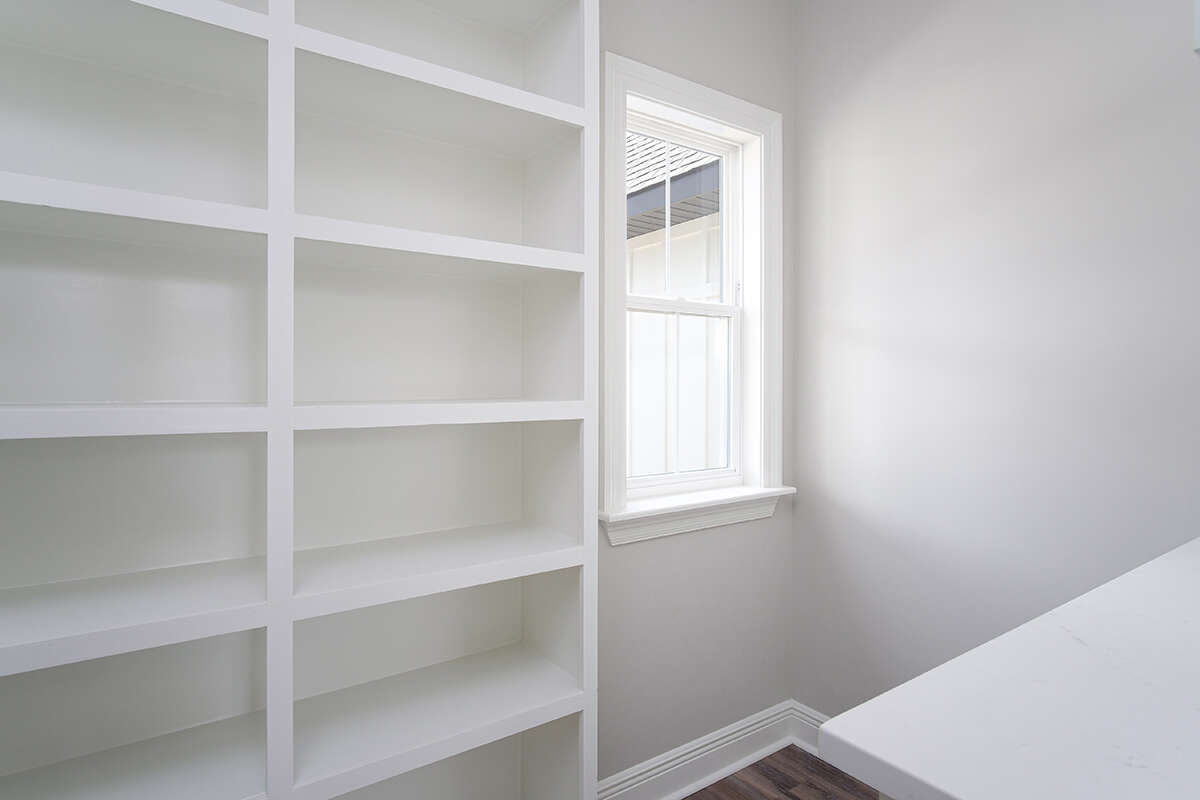

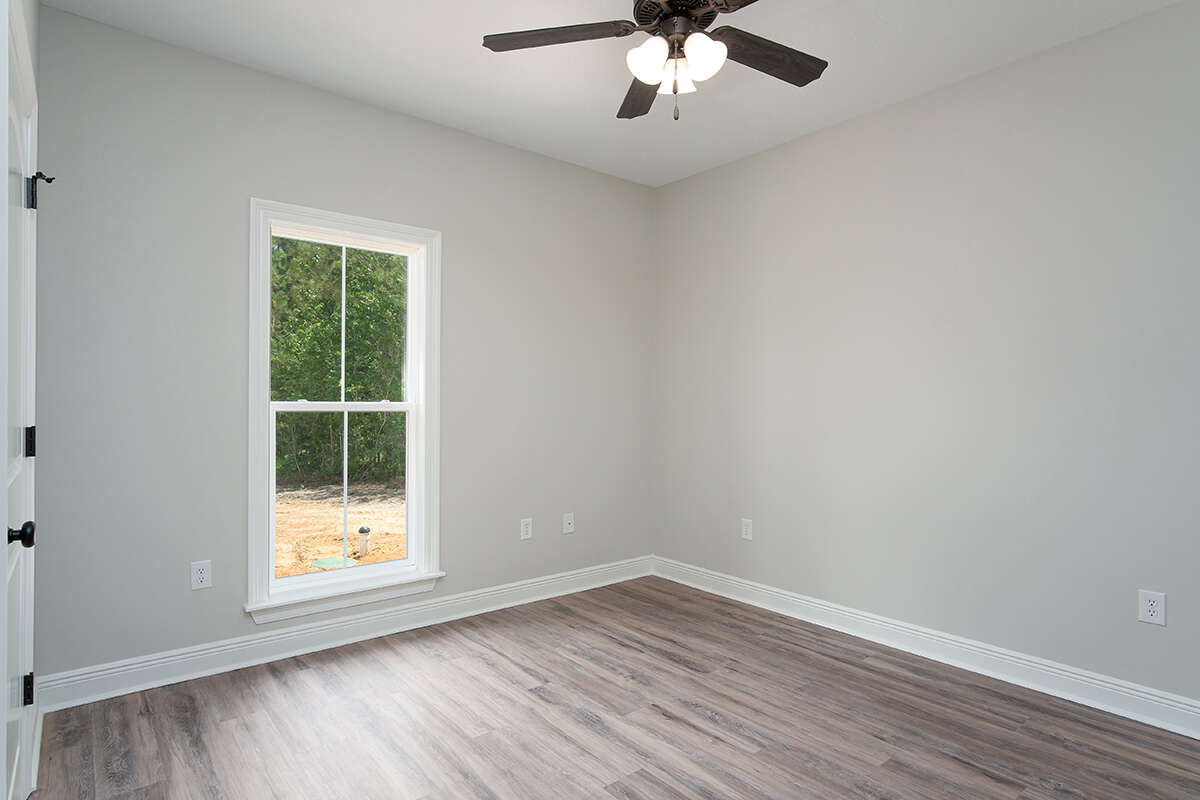

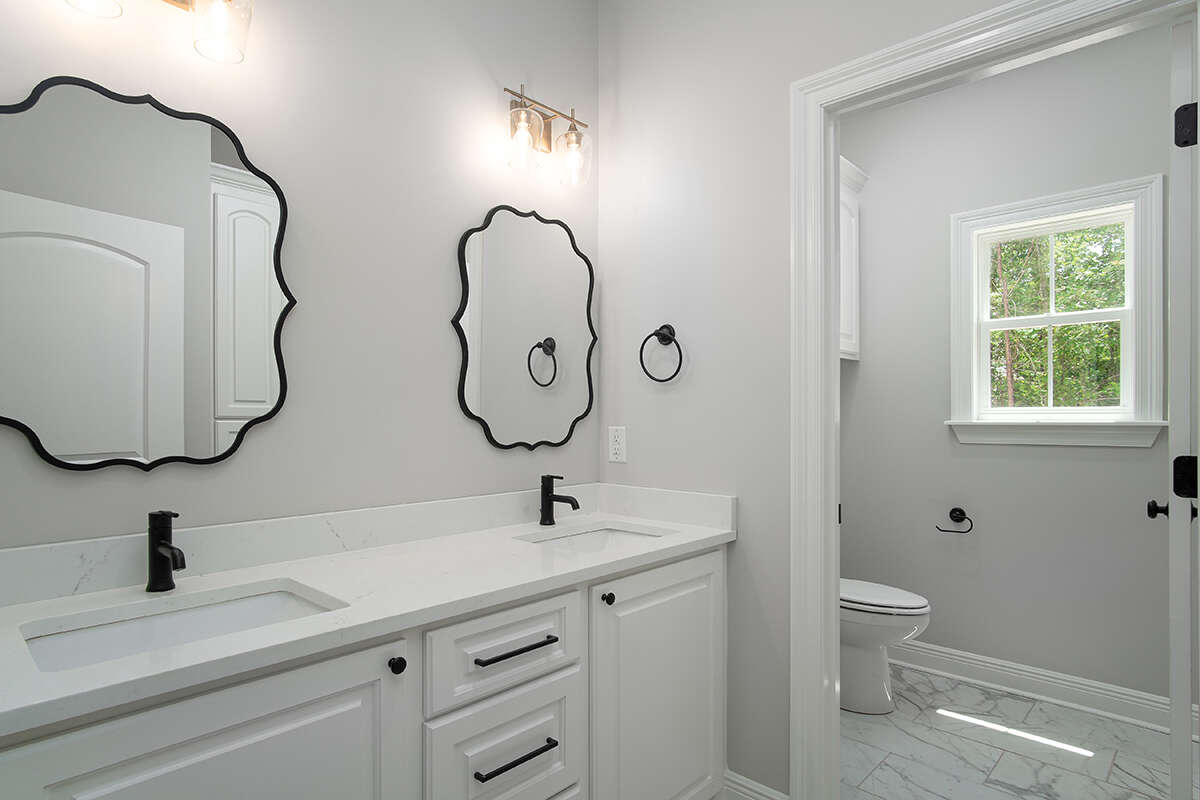

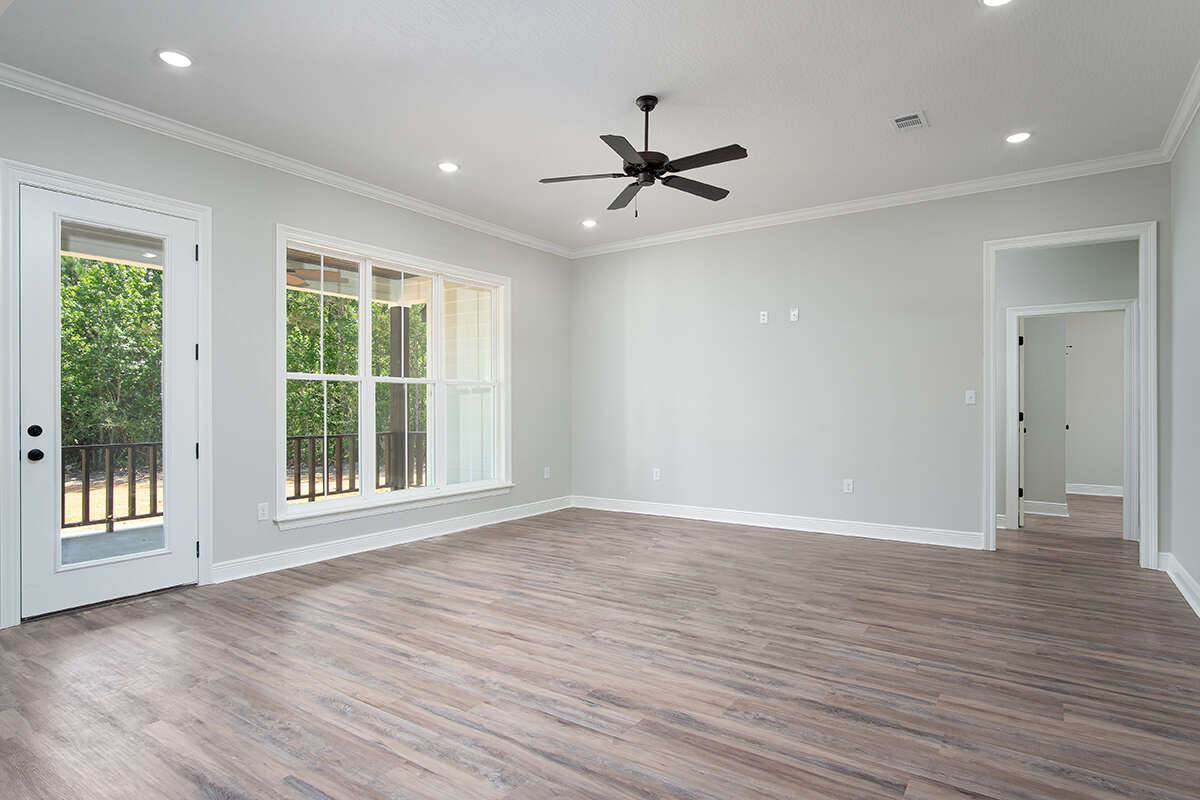

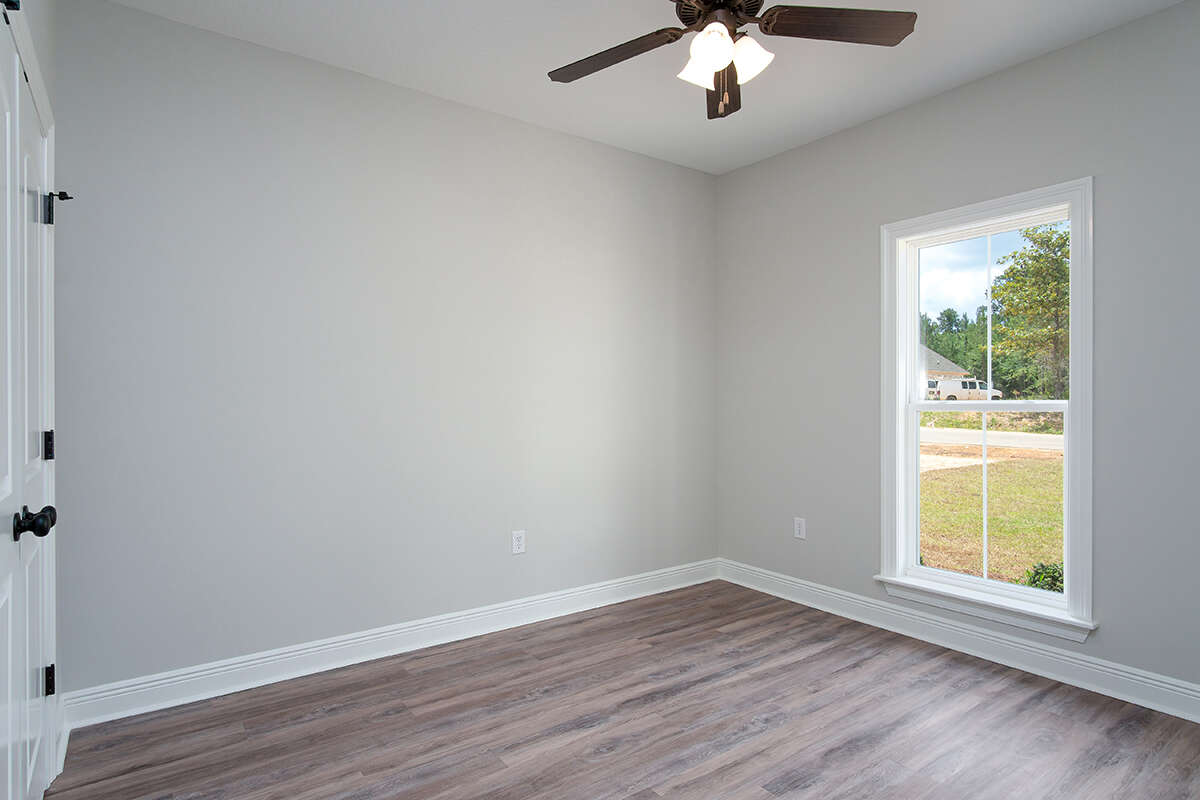

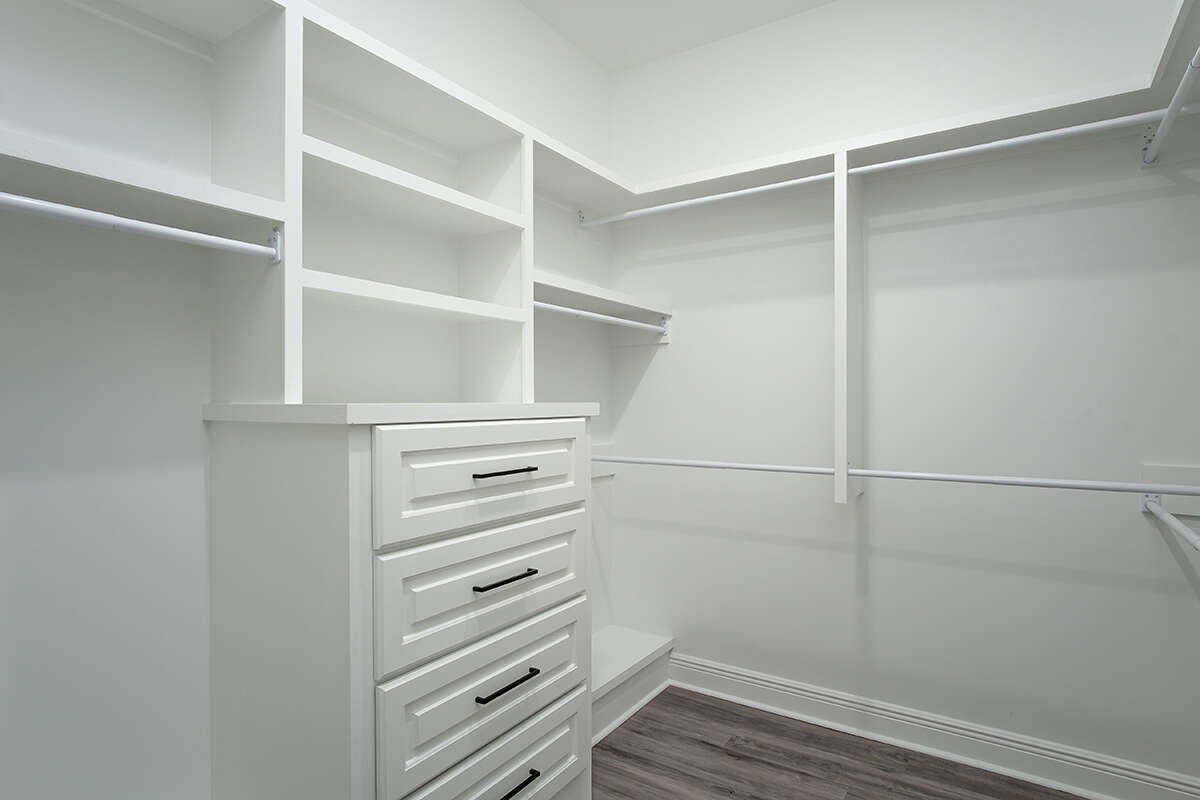

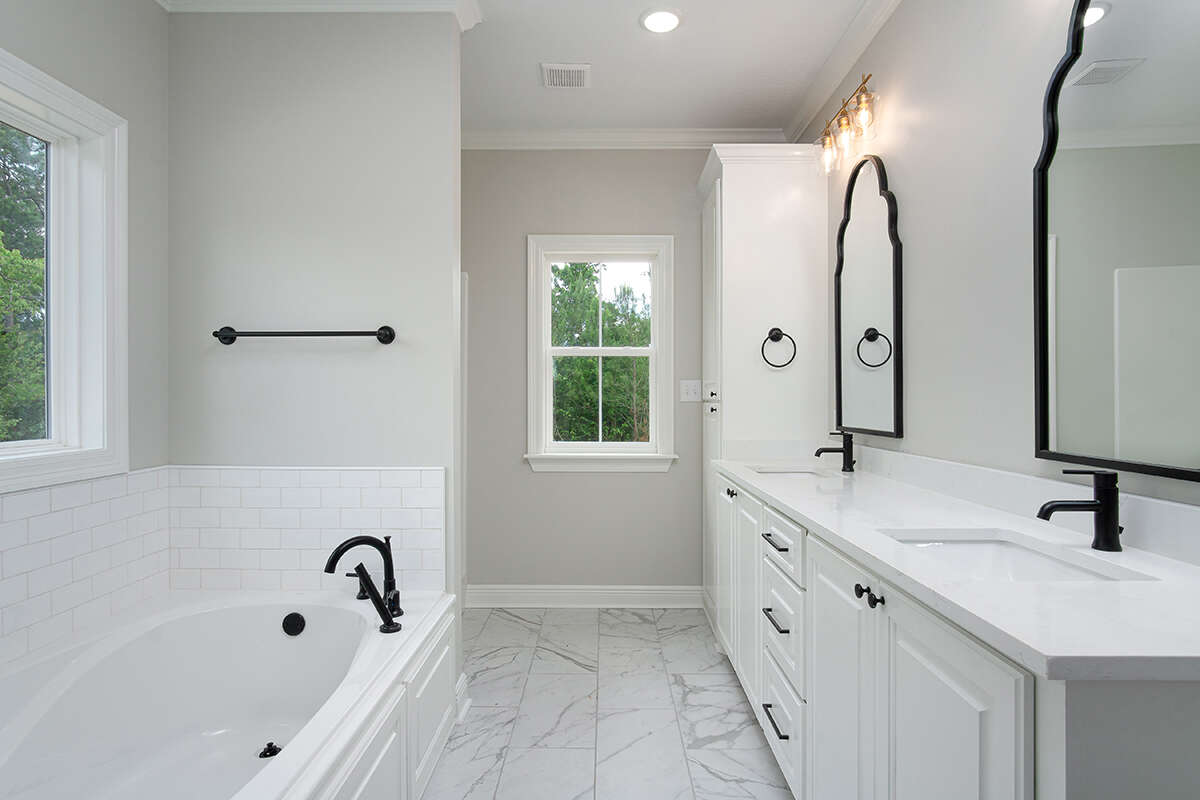

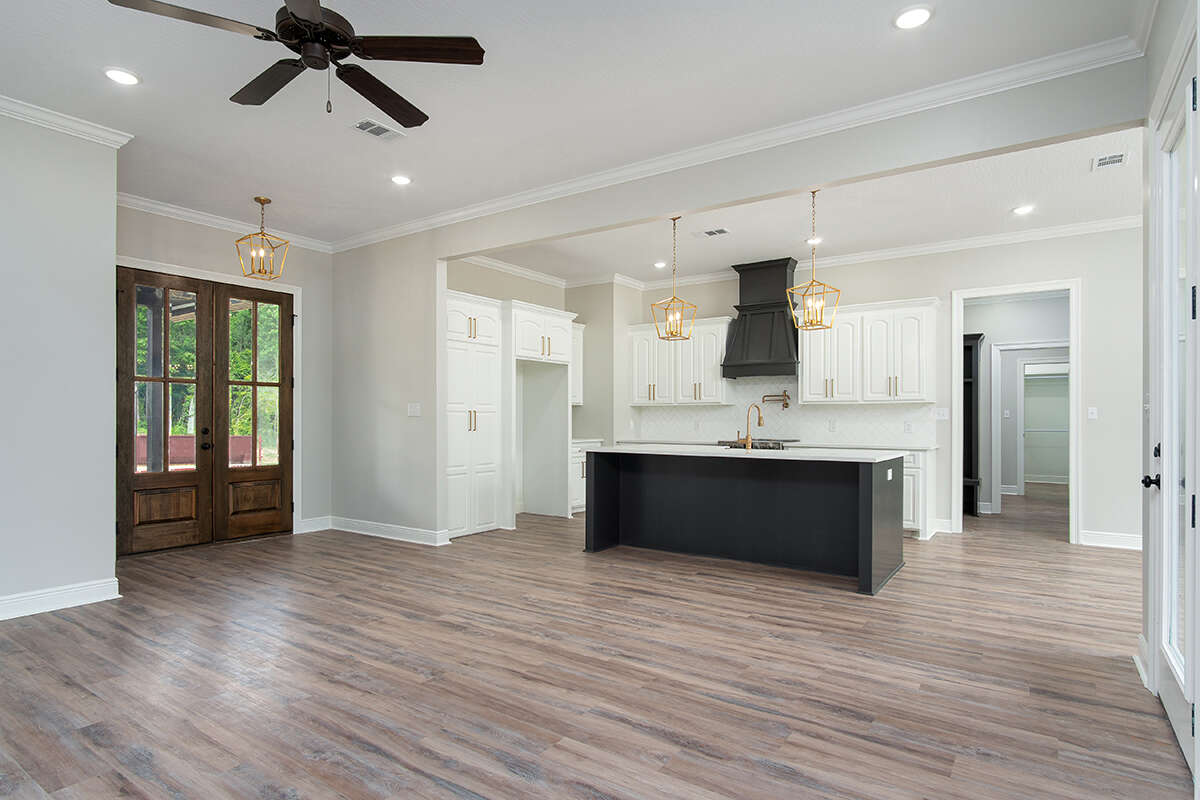

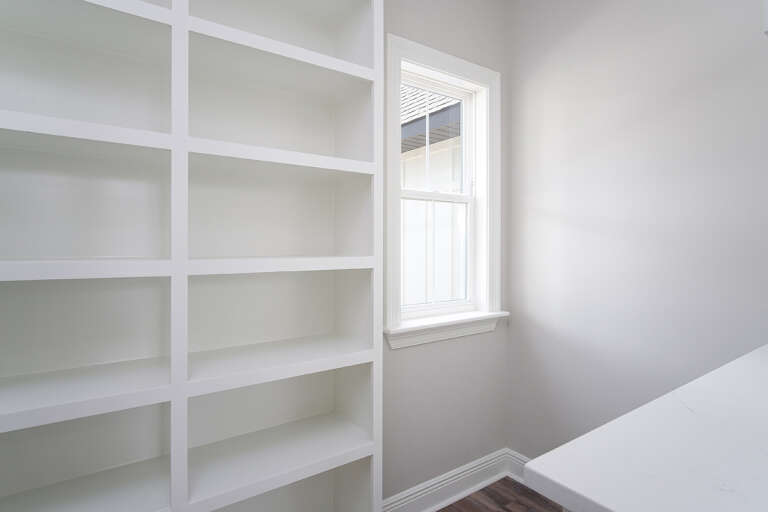

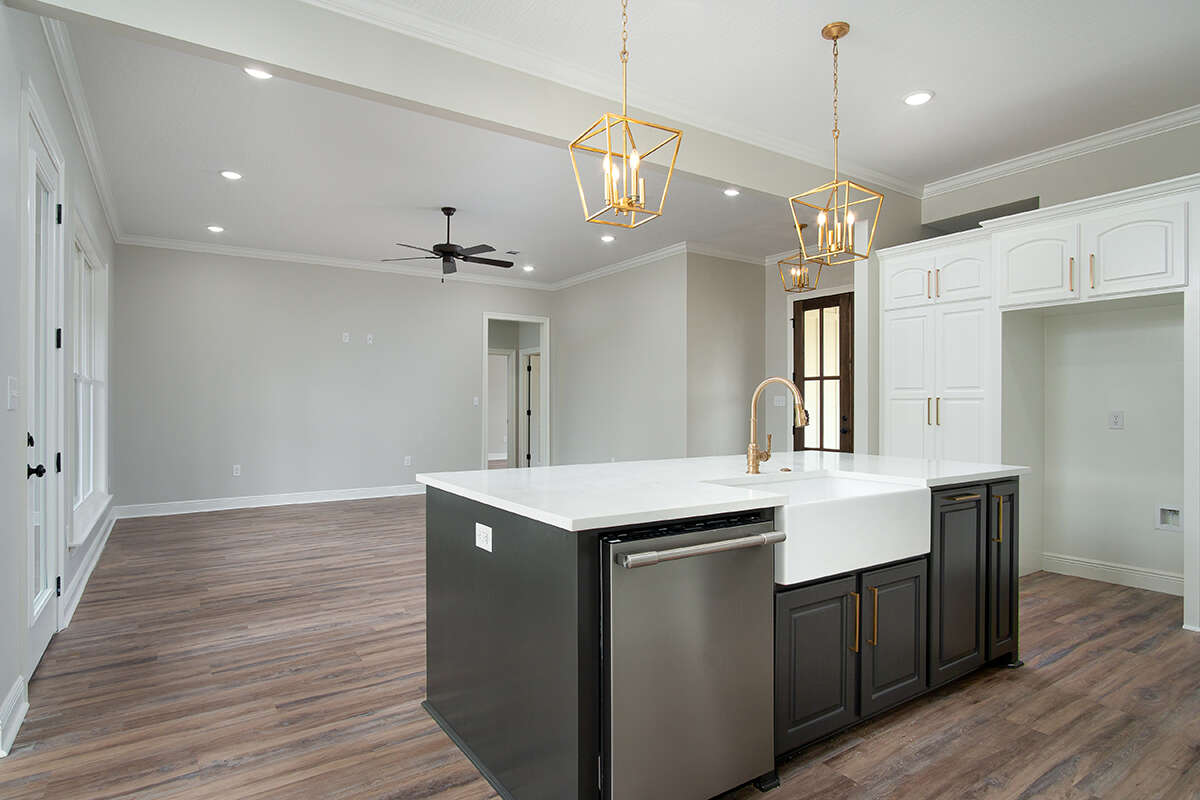

The interior floor plan features approximately 2,092 square feet of living space with four bedrooms and two bathrooms. The split bedroom plan features three secondary bedrooms on one side of the home where each has window views and large closets. The shared hall bath has an outside linen closet along with two interior linen closets, double sinks and a toilet and tub/shower combination. The owner’s suite is located diagonally across the home and features a spacious bedroom, a large walk-in closet and an elegant ensuite bath which includes dual vanities, a free standing tub, and a shower. The main living and dining areas are an open layout with great space and loads of window views as well as offering access to the rear porch. The kitchen forms the three part addition of the space and the focus is on the oversized island, perfect for meal prepping and casual dining. There is an enormous pantry located just off the kitchen as well. This is a beautifully designed home for families who value their entertaining and private space.
