Modern Farmhouse Plan 041-00233


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,607
Beds 4
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 74' 6"
Depth 69' 6"

Floorplan Drawings

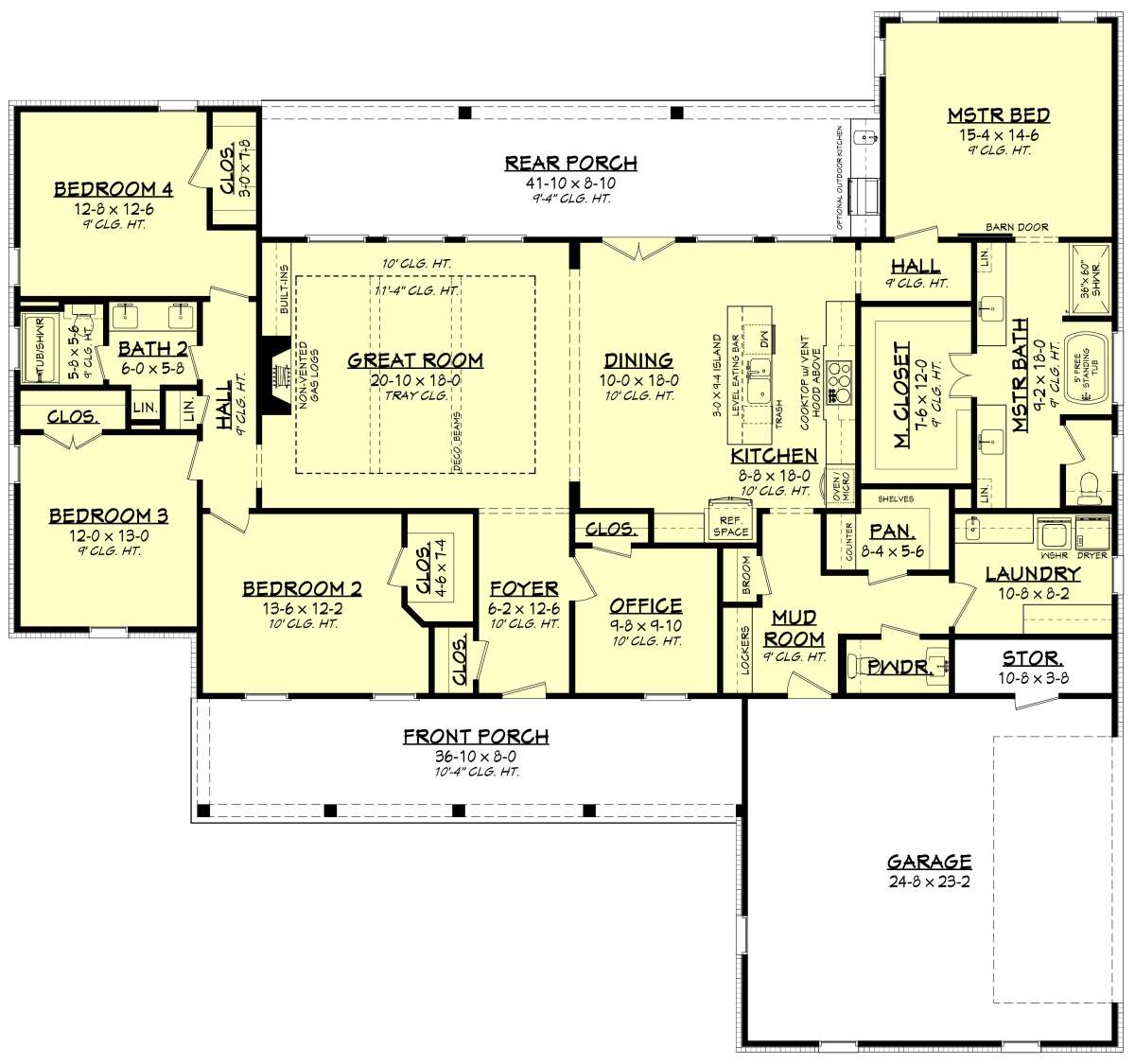

Main Floor
Main Floor for House Plan #041-00233

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

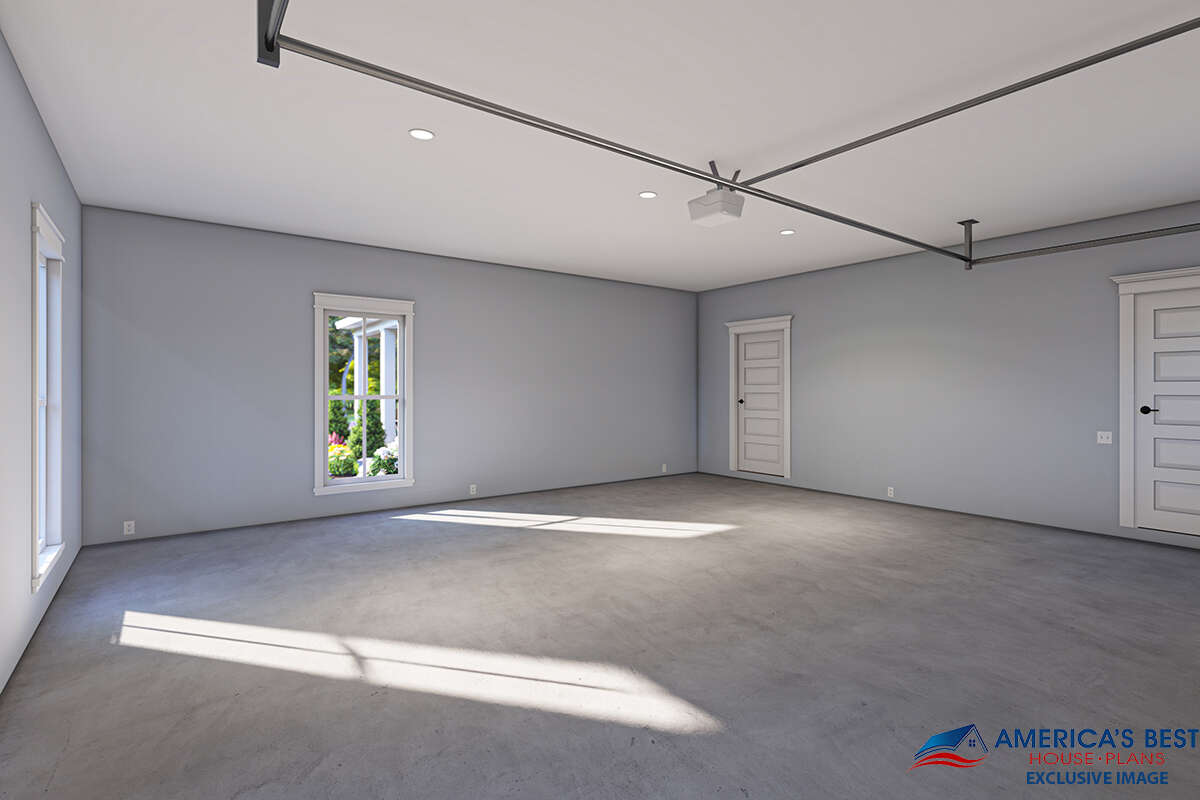

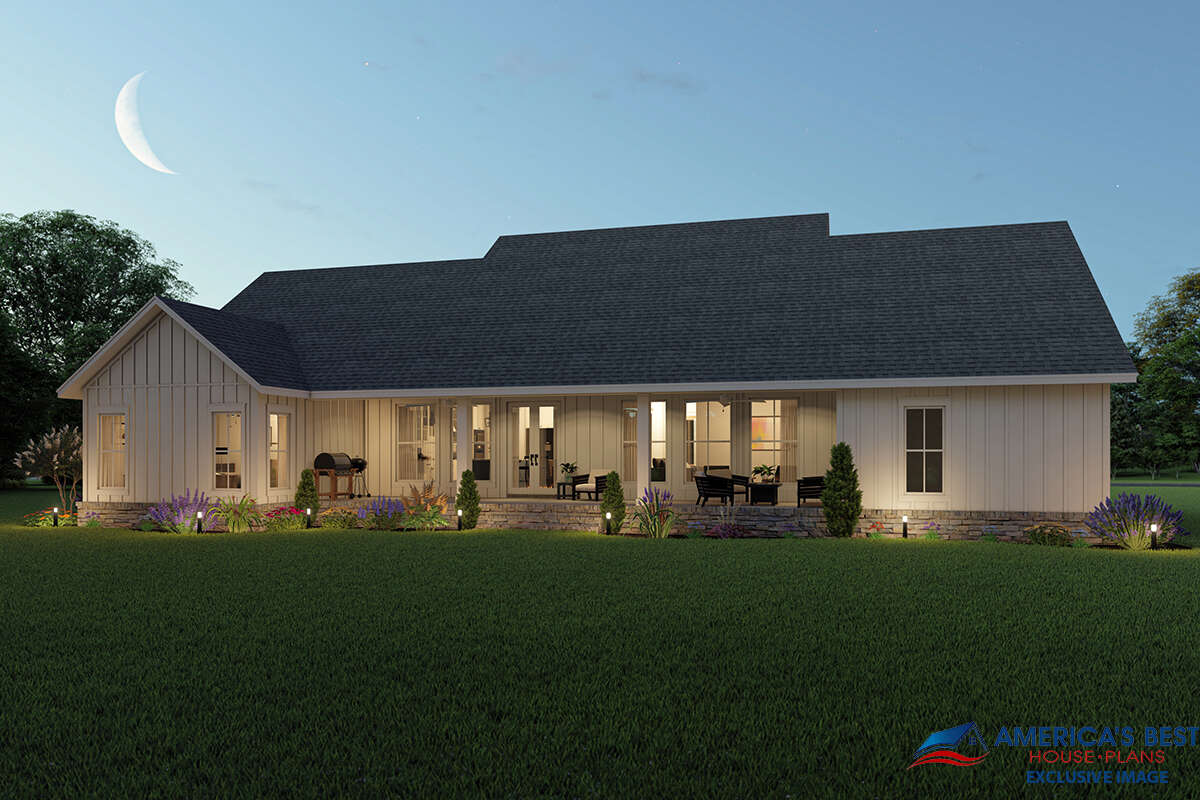

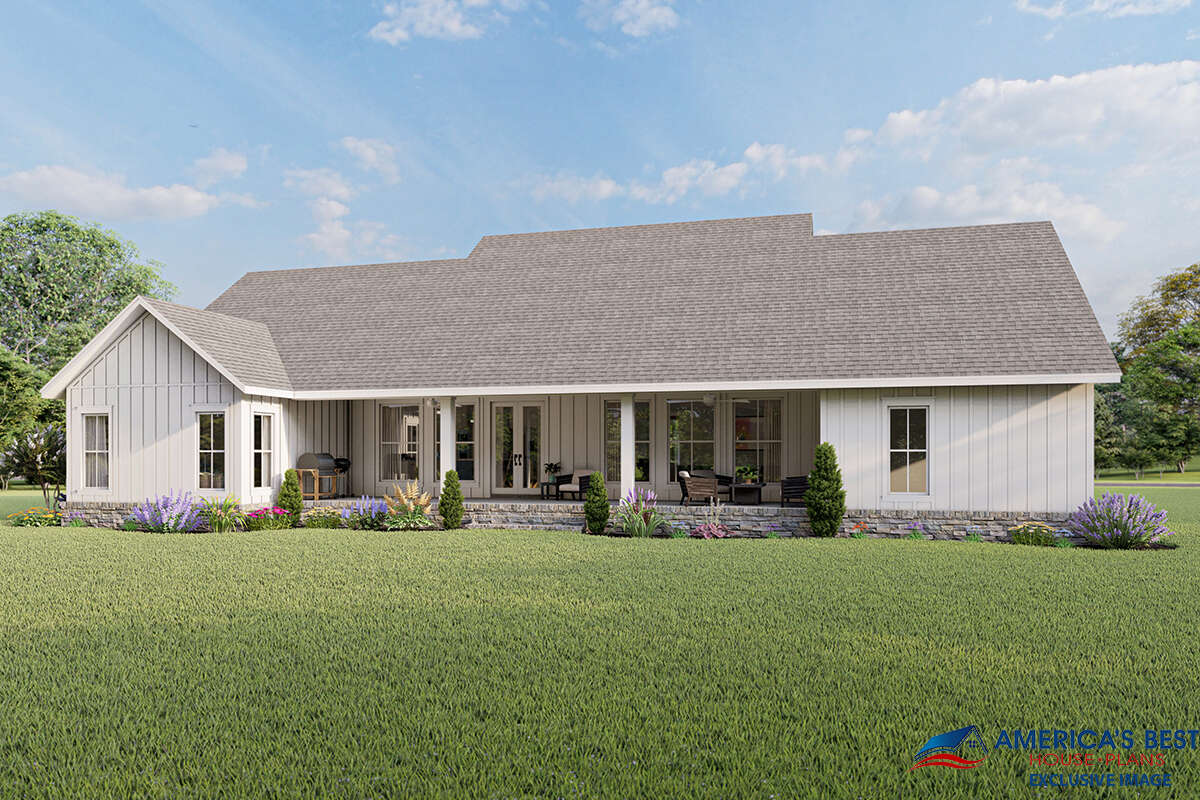

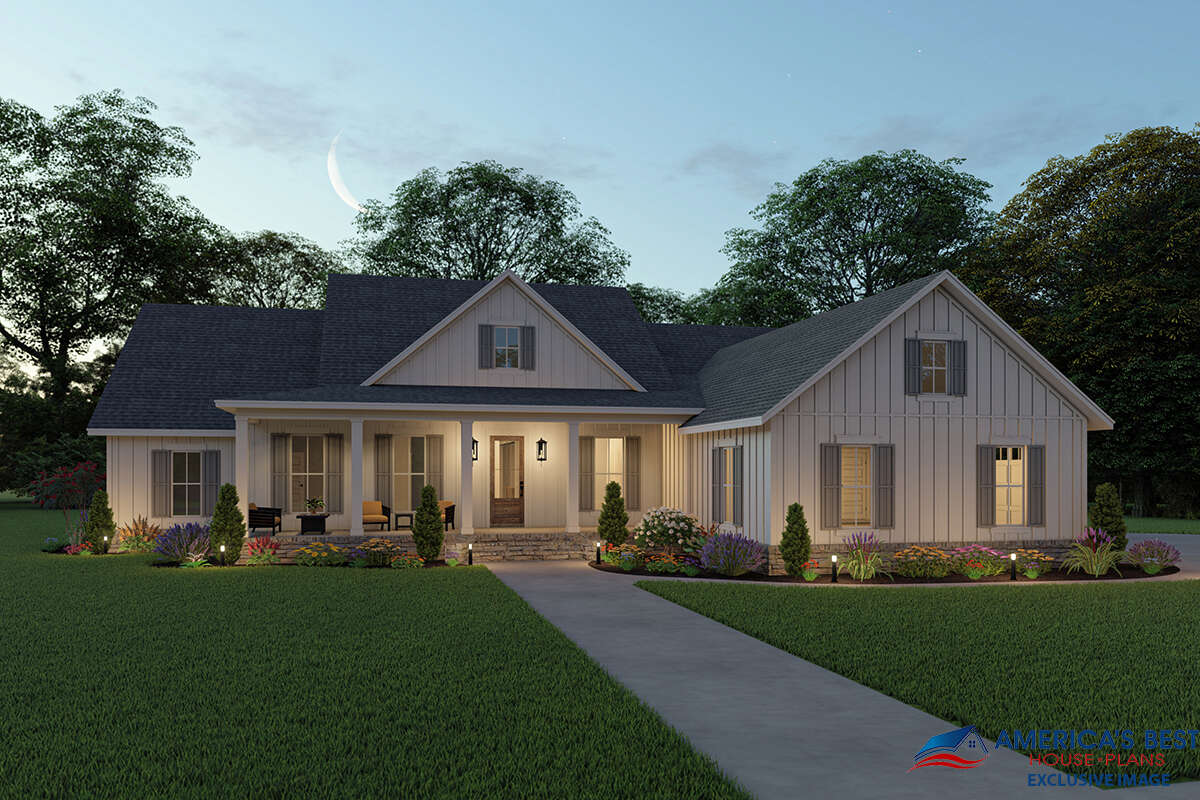

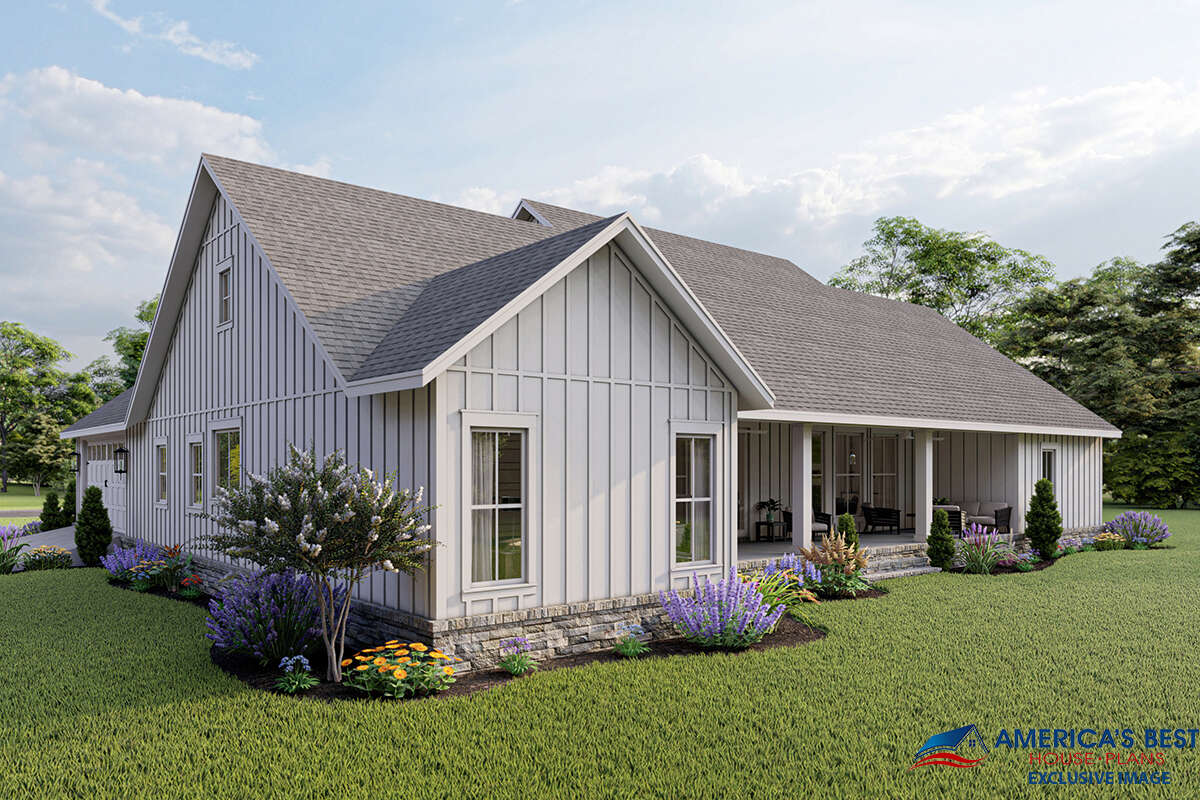

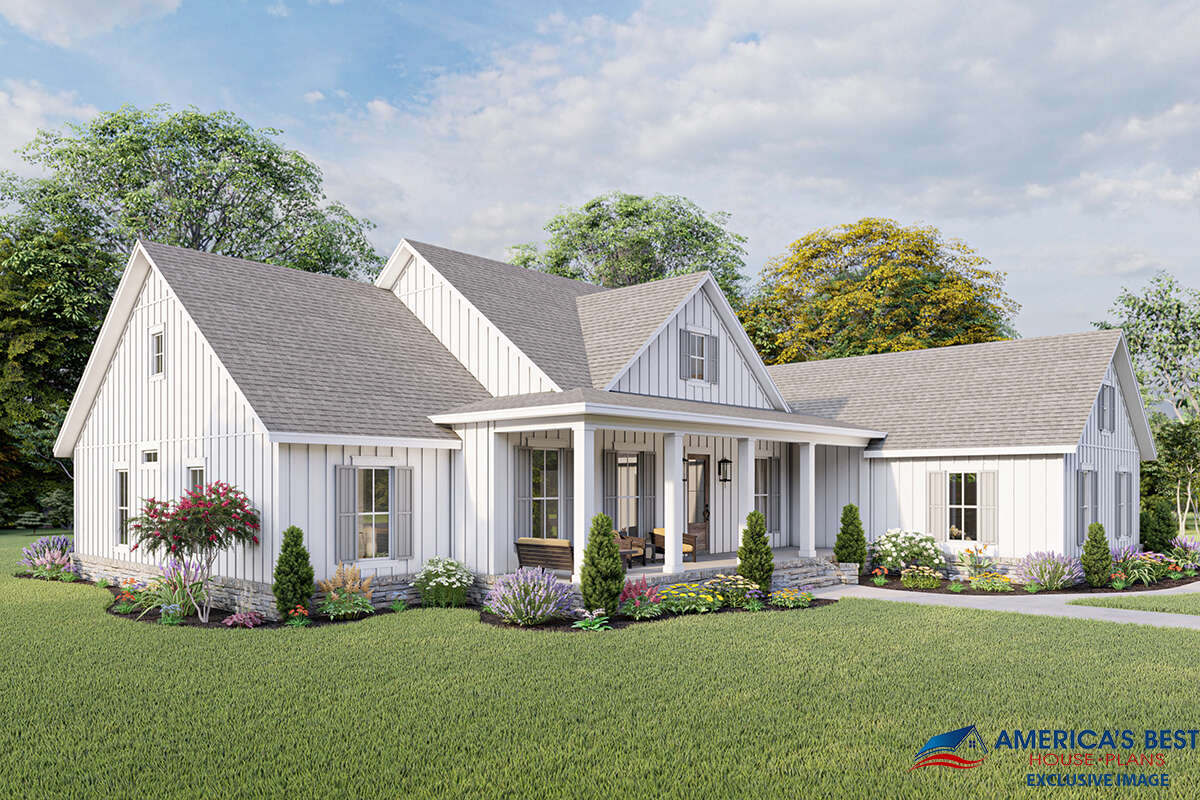

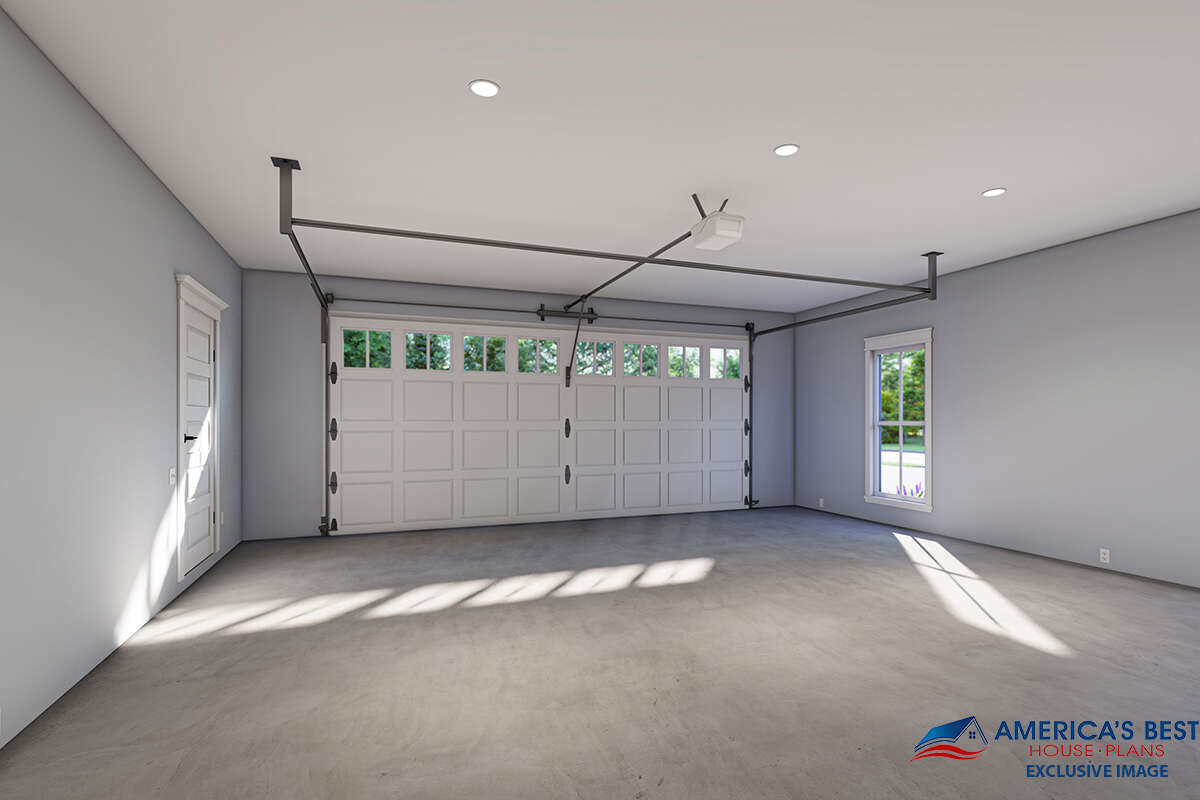

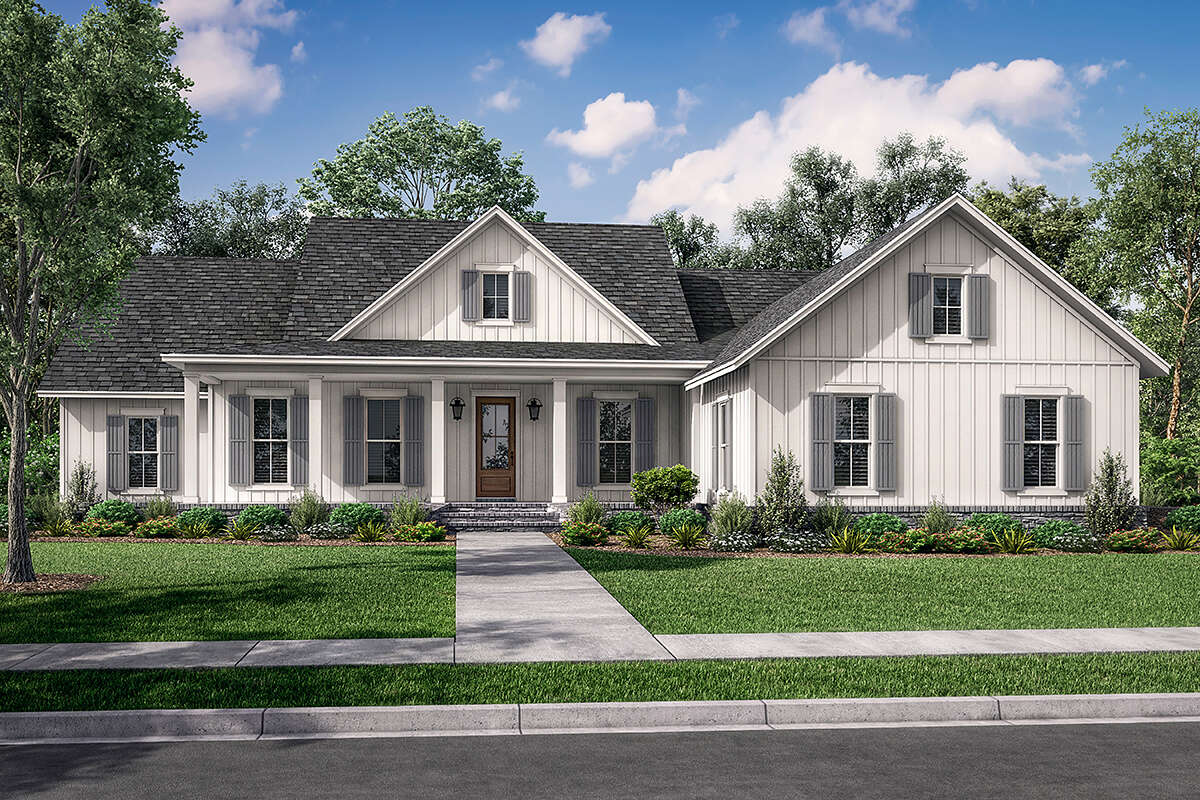

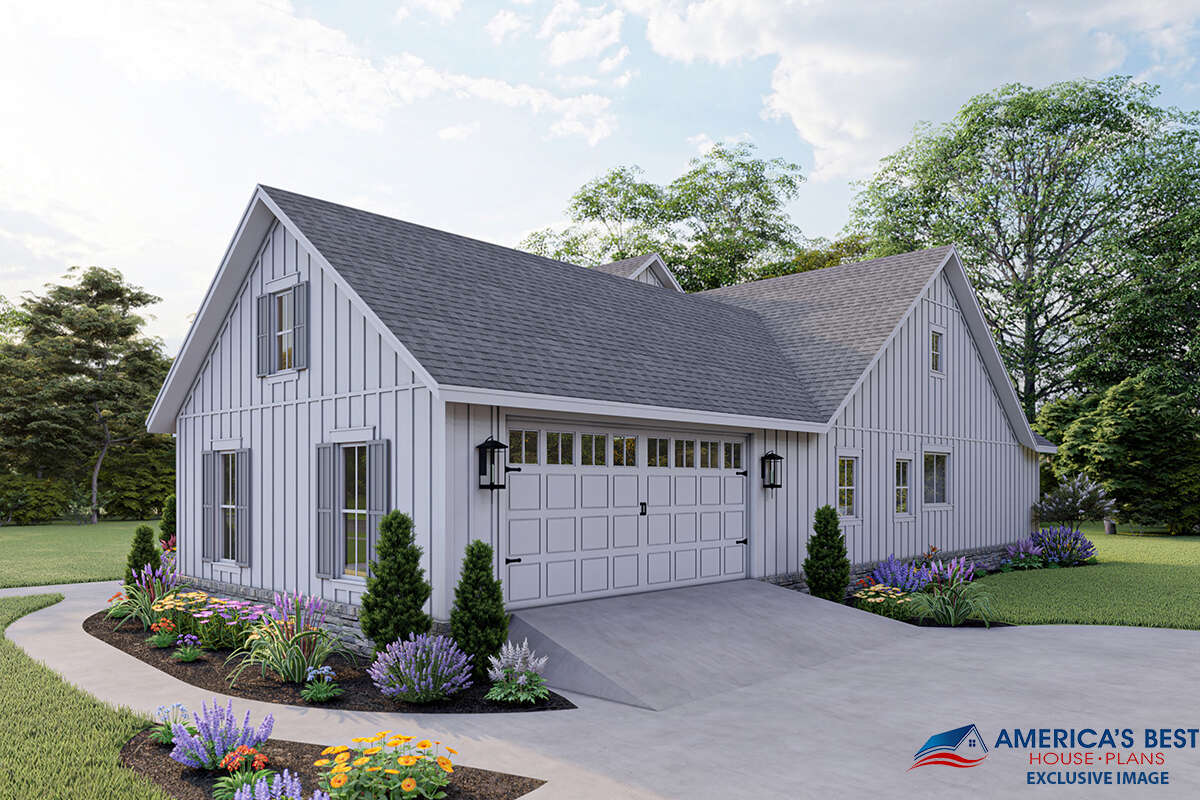

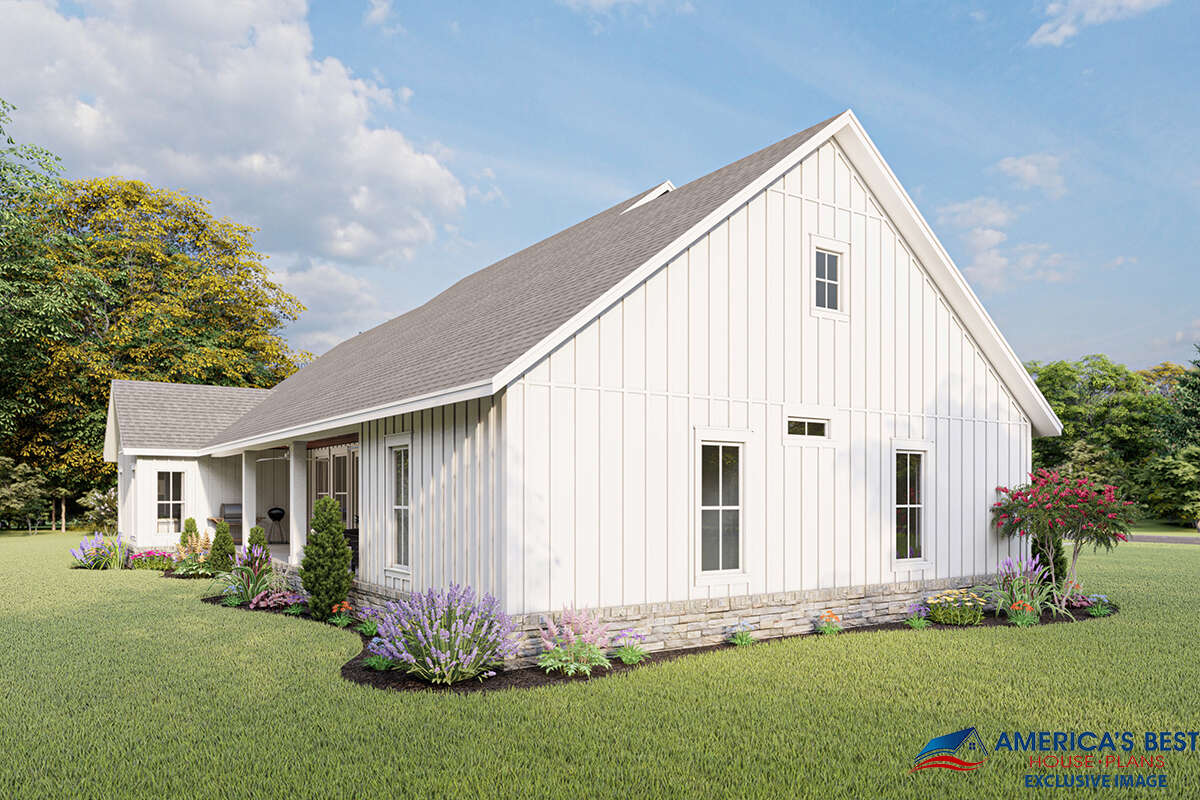

This Modern Farmhouse plan features a resounding 2,607 square foot home design complete with simple exterior construction and an interior layout outlined with all the desired features for today’s homeowner. The front exterior showcases traditional board and batten siding decorated with beautiful window shutters and complemented by a welcoming front porch. The covered porch details an approximate 10-foot ceiling height with 36-feet in width and 8-feet in depth. With dimensions like these, you can help but enjoy decorating with a few potted plants, rocking chairs, or a small table. As you greet neighbors, family, and friends into your home, the expanded front covered porch presents an excellent option to sit outdoors and enjoy an engaging conversation. Equally spacious and convenient is the rear porch, which measures approximately 9-feet in height, 41-feet in width, and 8-feet in depth. This space is perfect for barbecuing, lounging, dining al fresco, and possibly cooking in the optional outdoor kitchen. The garage finishes off the exterior and details a two-car garage with three large windows and a handy storage closet.

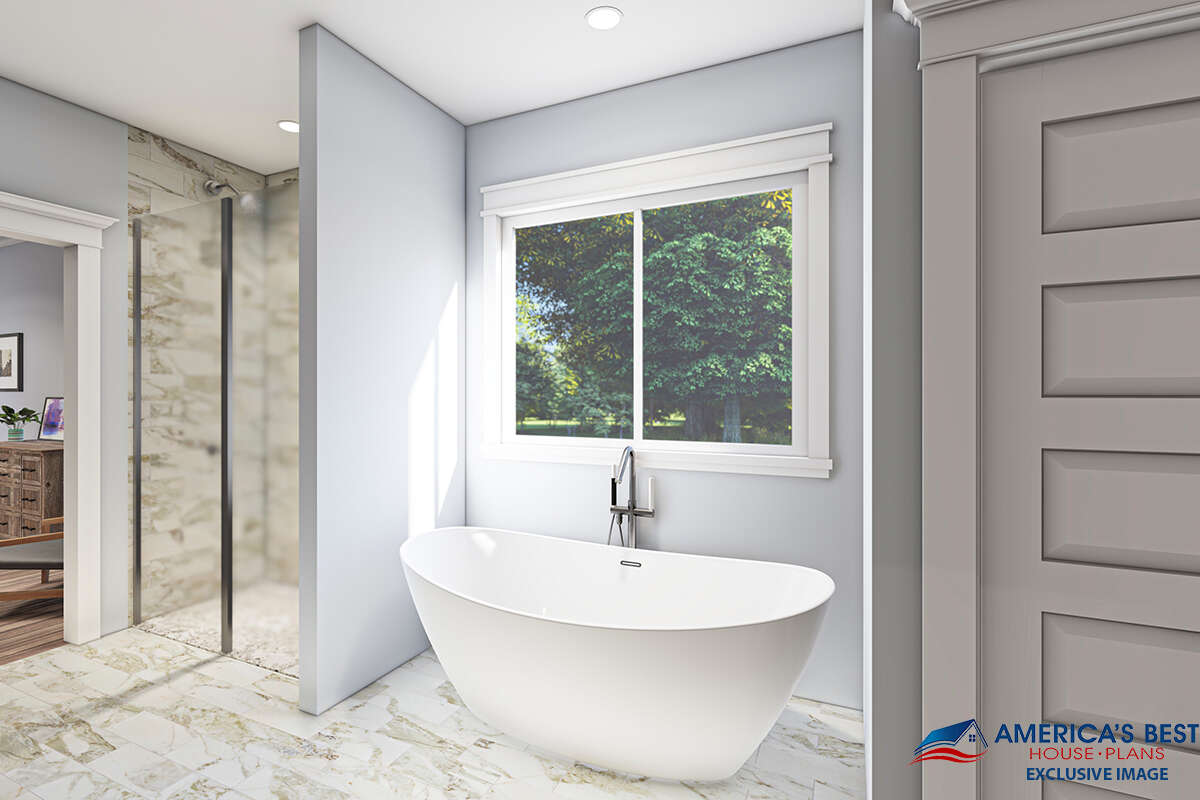

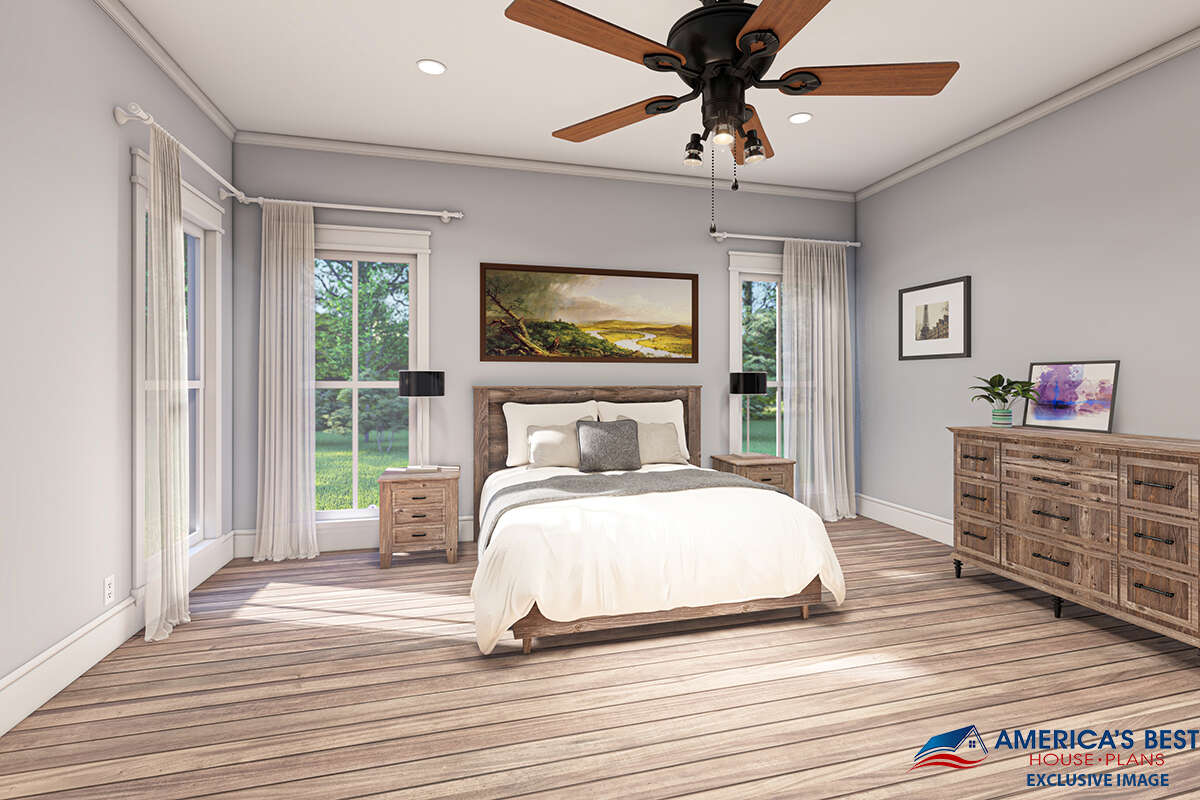

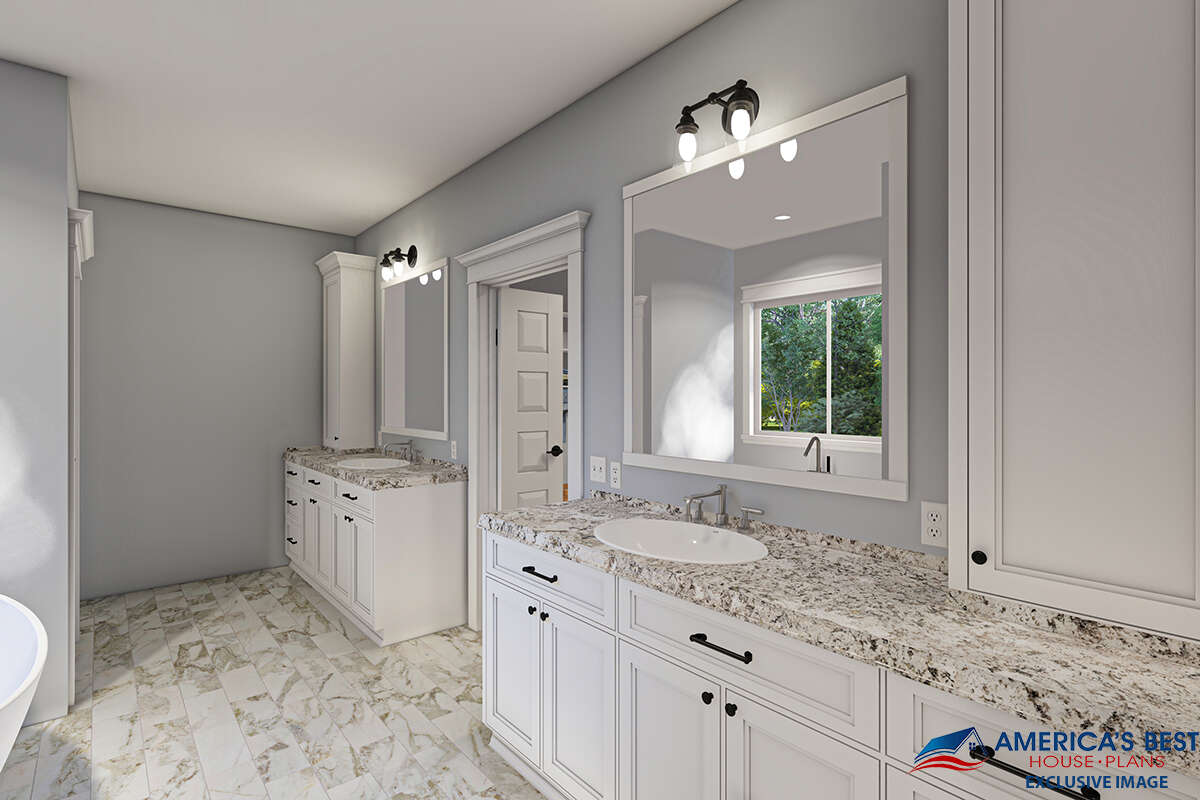

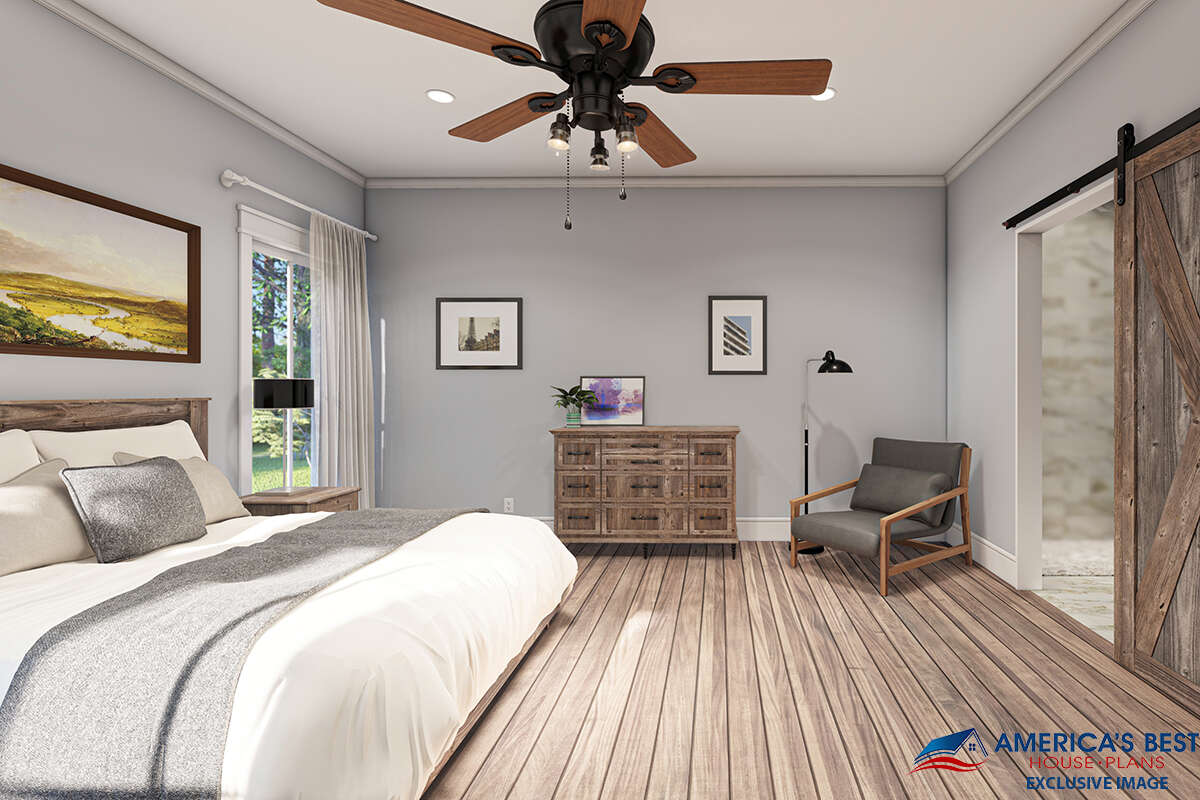

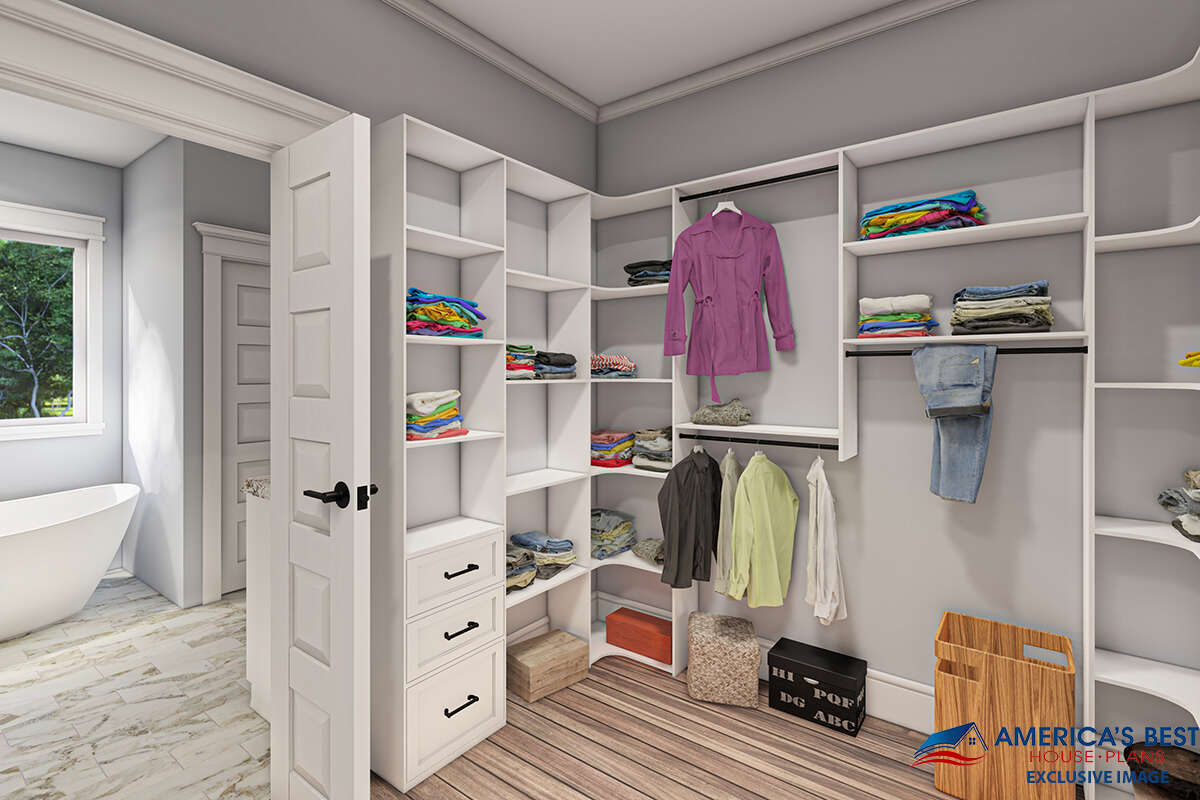

The interior is complete with four bedrooms and two-plus bathrooms in a split layout where the master bedroom enjoys a very large footprint, almost spanning out the entire right side of the home. The master details a spacious room sitting under a 9-foot ceiling height and brightened by three tall windows. Behind barn doors lies the master bathroom, which entails two separate, large vanities with extra space for linen, a 6-foot deep soaking tub, a separate shower, and a compartmentalized toilet. From the master bath access is granted into the master walk-in closet. Down the hall, the secondary bedrooms each offer their own unique detail while also sharing a hall bathroom with dual vanities, two linen closets, and a separate tub/shower combo with the toilet. Bedroom #2 details the most space of the three as is sits under a 10-foot ceiling height and features a walk-in closet. Bedroom #3 is the smallest of the three but doesn’t disappoint as it details a 9-foot ceiling height and ample closet space. Bedroom #4 details a little more space than bedroom 3 and features a private corner location and a walk-in closet.

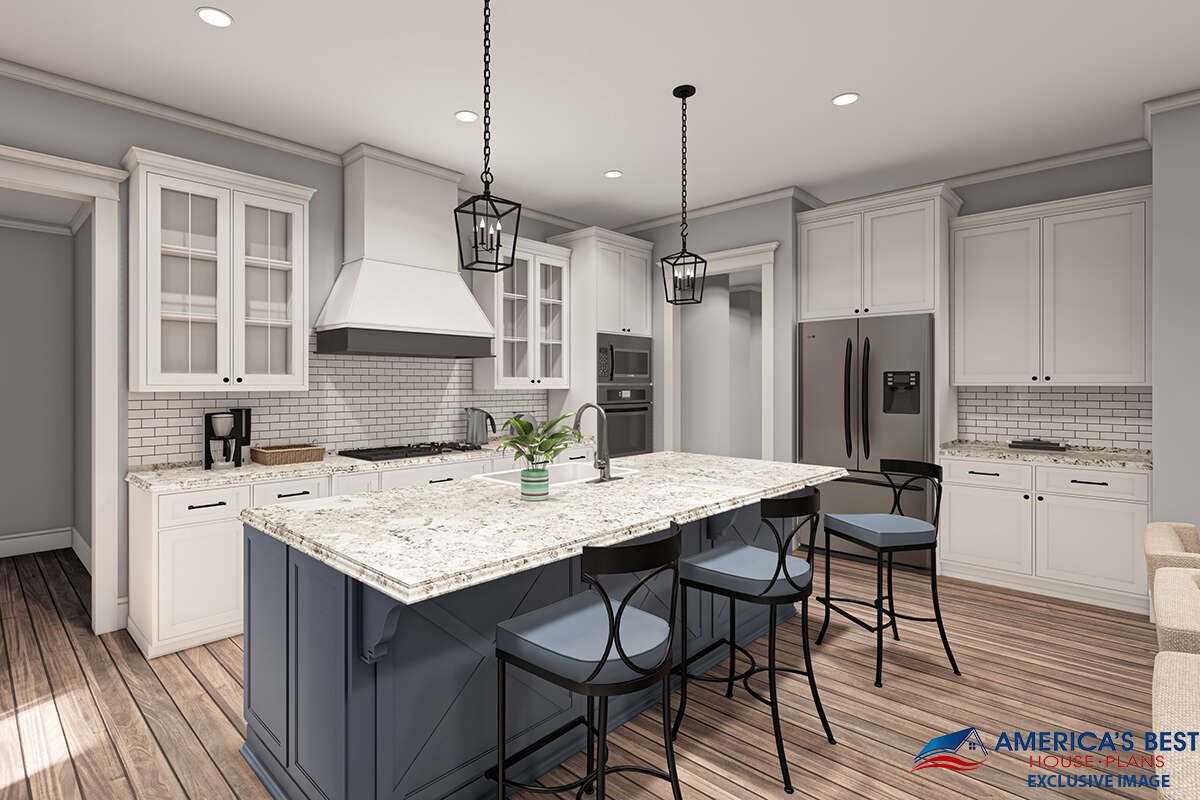

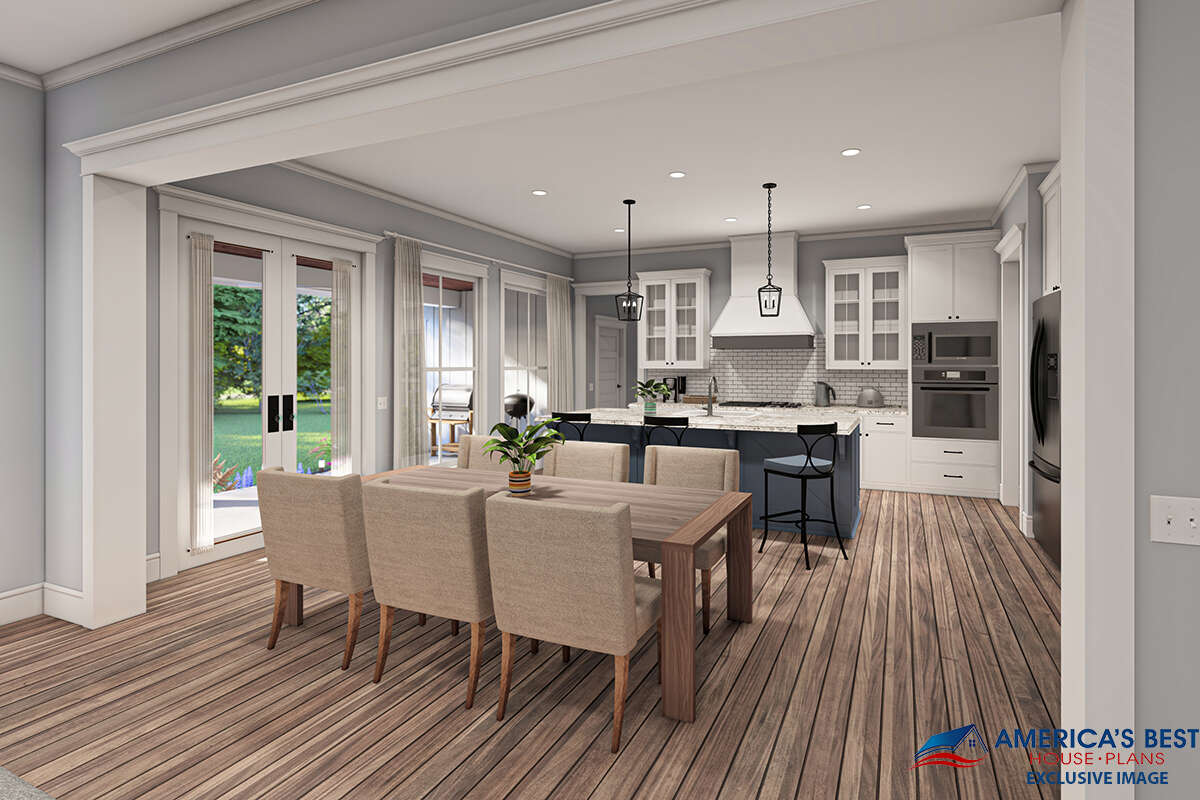

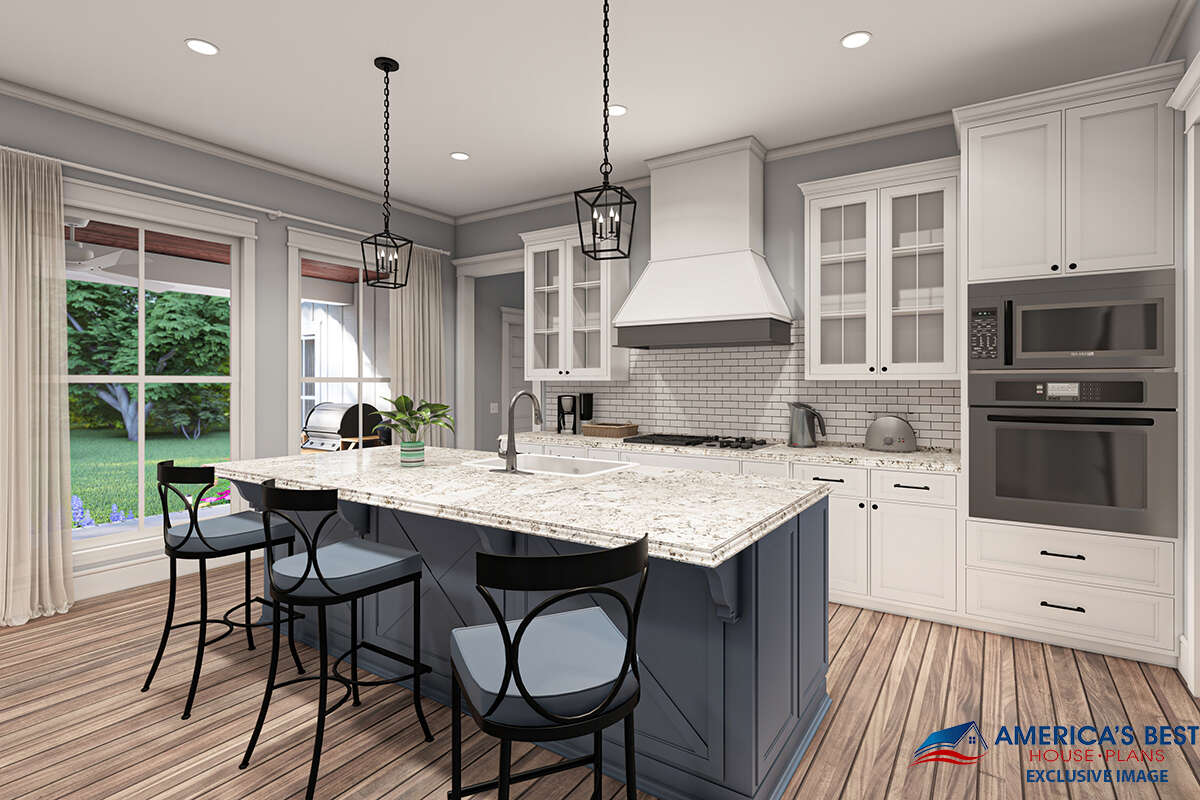

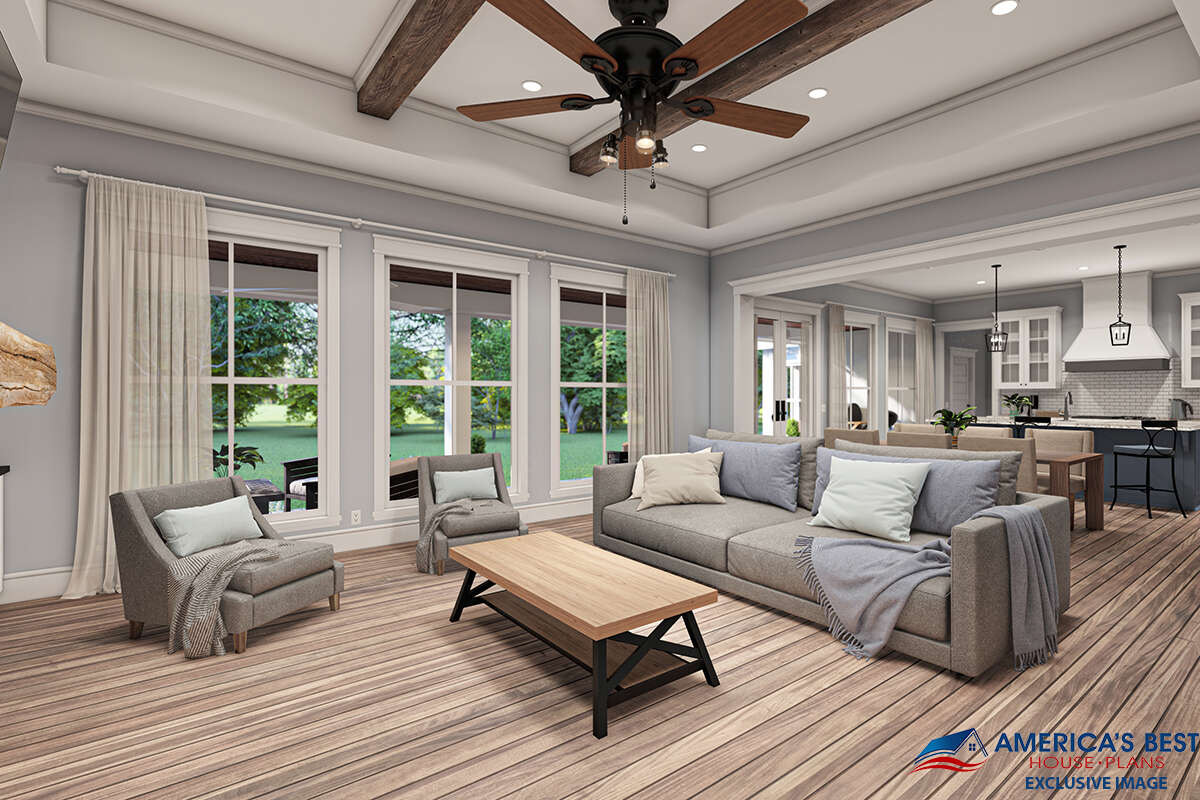

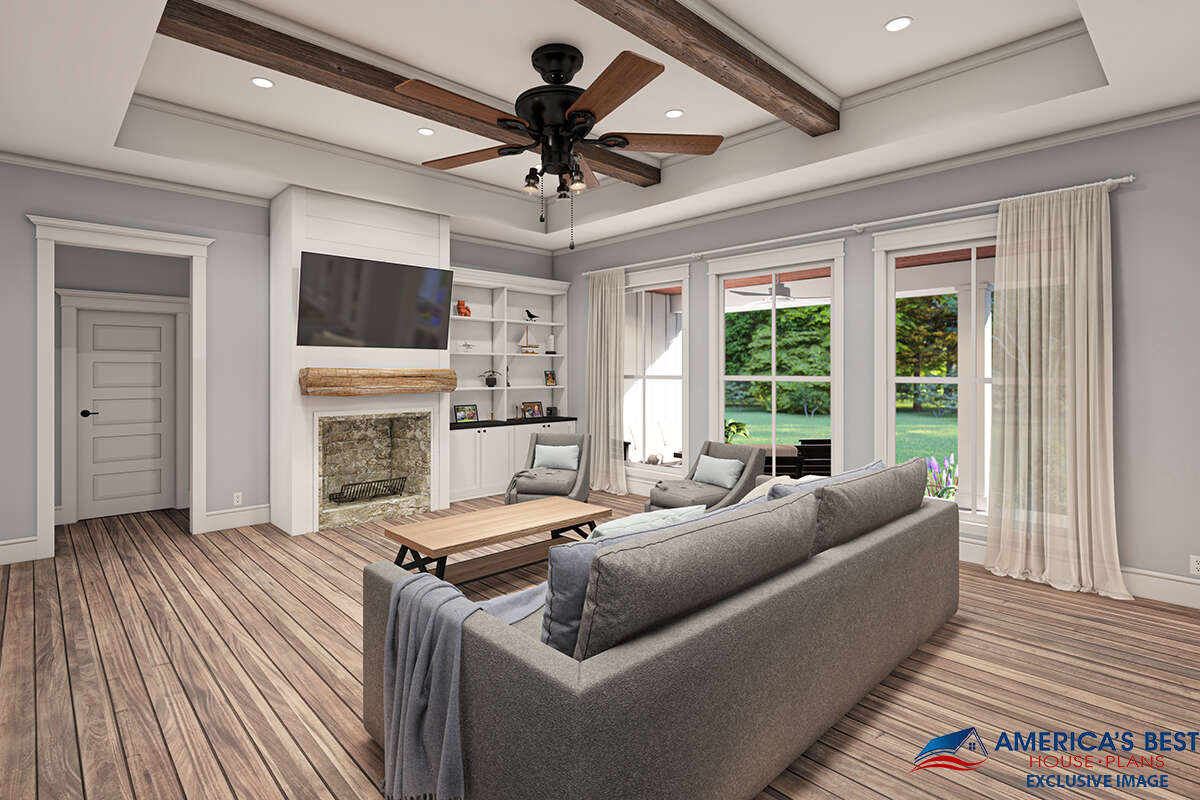

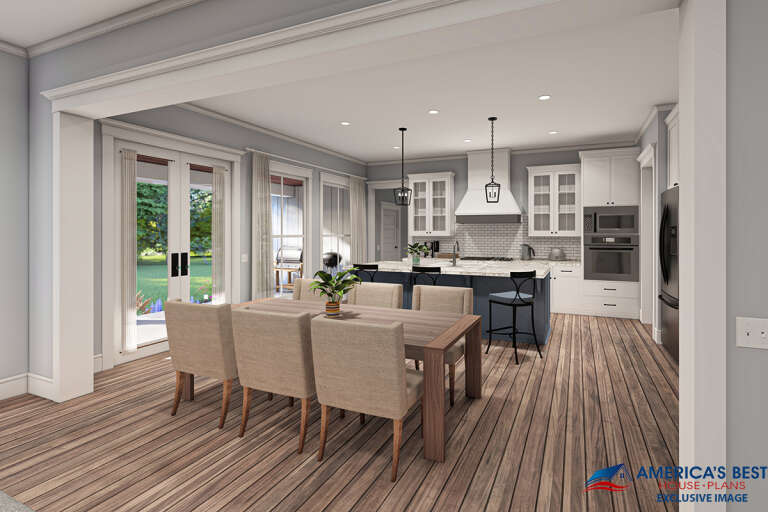

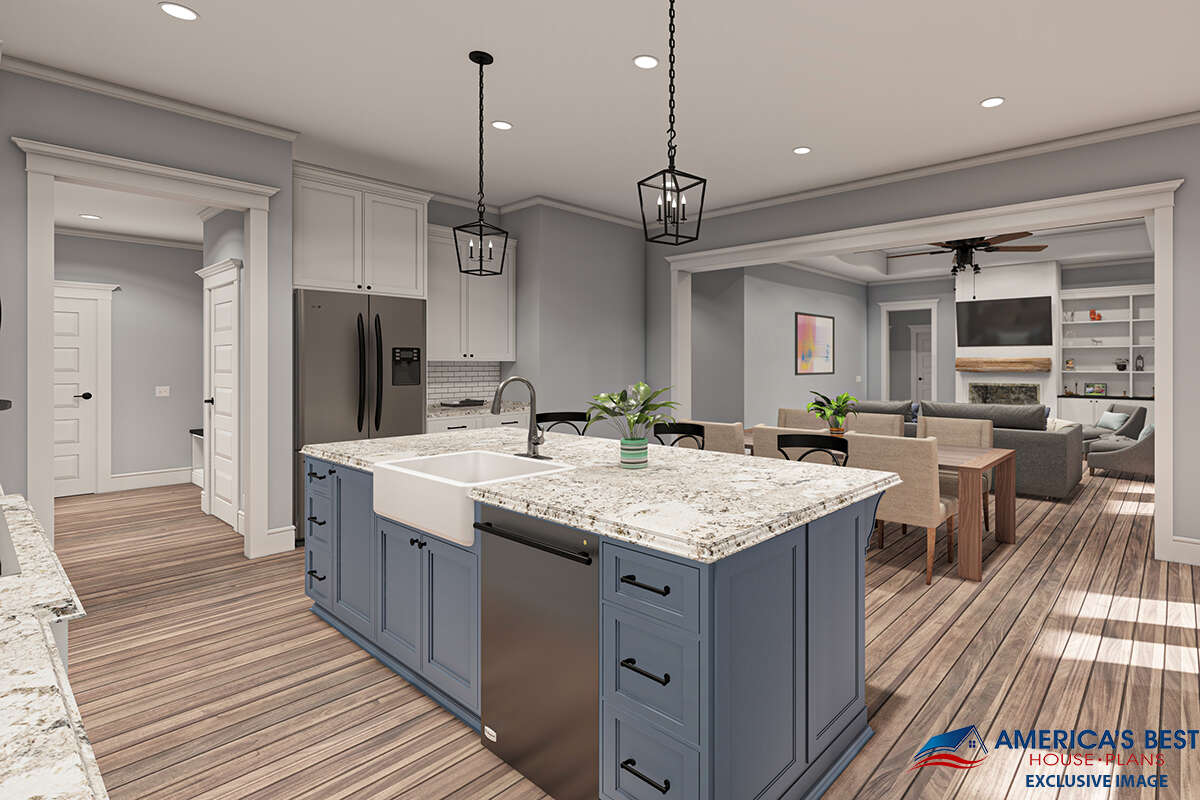

From the 10-foot foyer, the common rooms feature an open concept layout with the great room sitting under an 11-foot tray decorative ceiling with exposed beams and warmed by a non-vented gas log fireplace with built-in shelving on its right side. Beautiful, tall windows brighten these rooms as they align the rear wall from the great room to the kitchen. The centrally located dining room offers access to the rear porch and is spacious enough to fit a long dining table. The adjoining kitchen extends the dining seating by offering an eating bar on the center island, which also features a sink, dishwasher, and trash. The rest of the kitchen features extra countertop space for food prepping and storage for your favorite cooking and drinking equipment. In addition, there is also plenty of cabinetry and a walk-in pantry with built-in shelves and counters to make organizing a breeze.

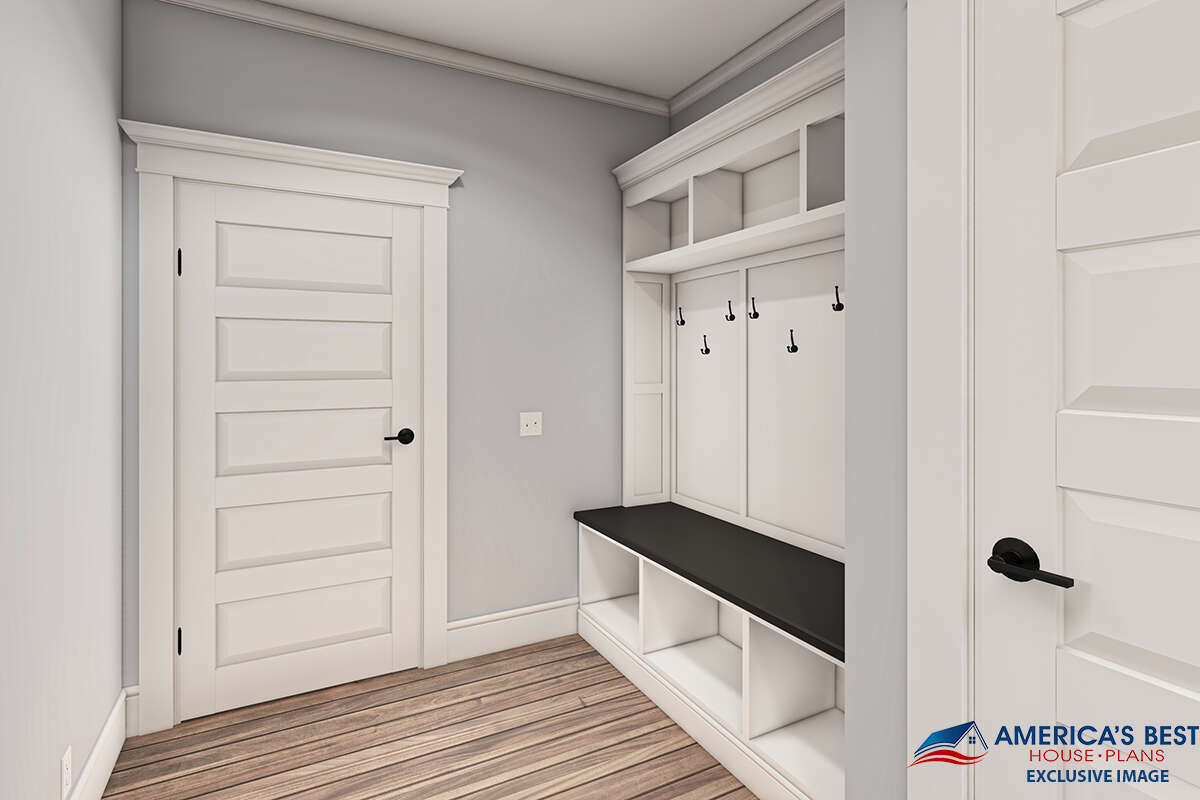

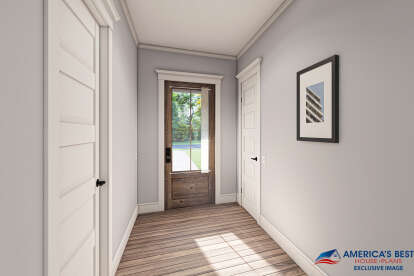

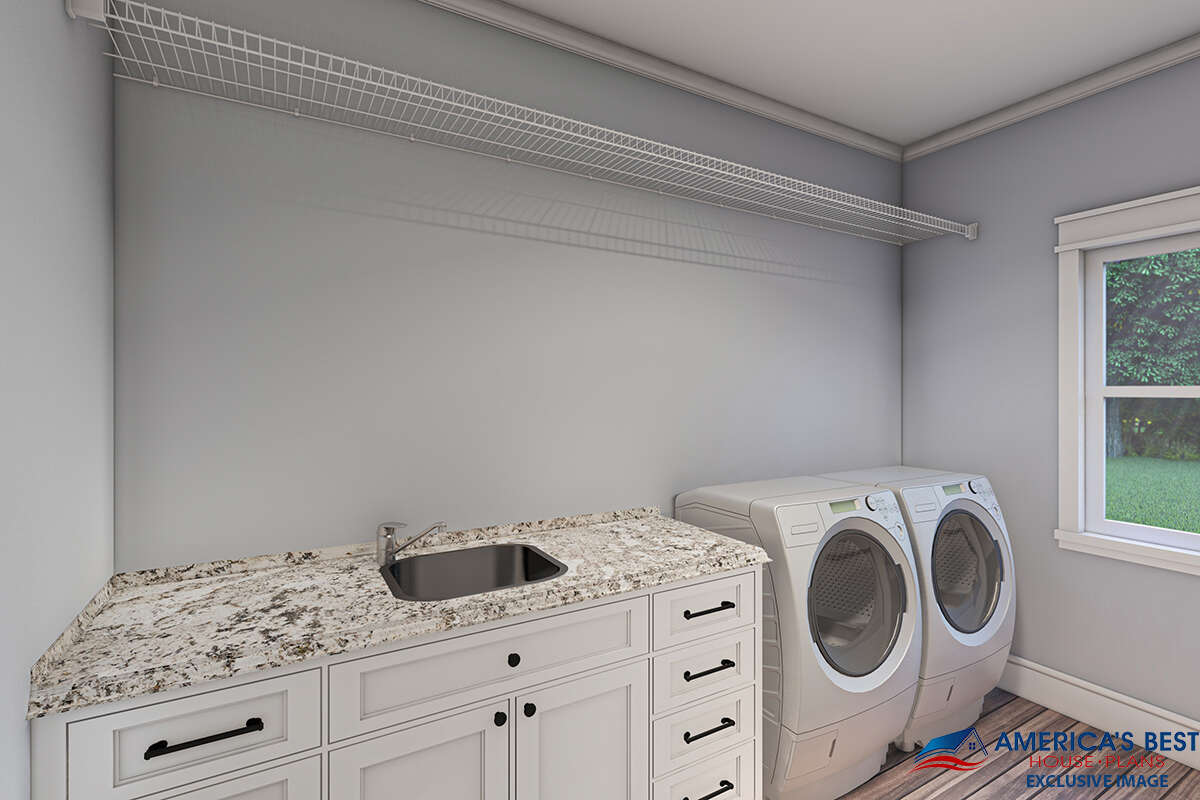

This Modern Farmhouse plan is topped off with a dedicated home office, which can easily be converted into a room the homeowner desires, a spacious mudroom off the garage, and a large laundry room to make doing laundry easier and more efficient. With all these awesome features and benefits, could this Modern Farmhouse plan be the one?
