Modern Farmhouse Plan 041-00231

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,697
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 57' 2"
Depth 50' 4"

Floorplan Drawings

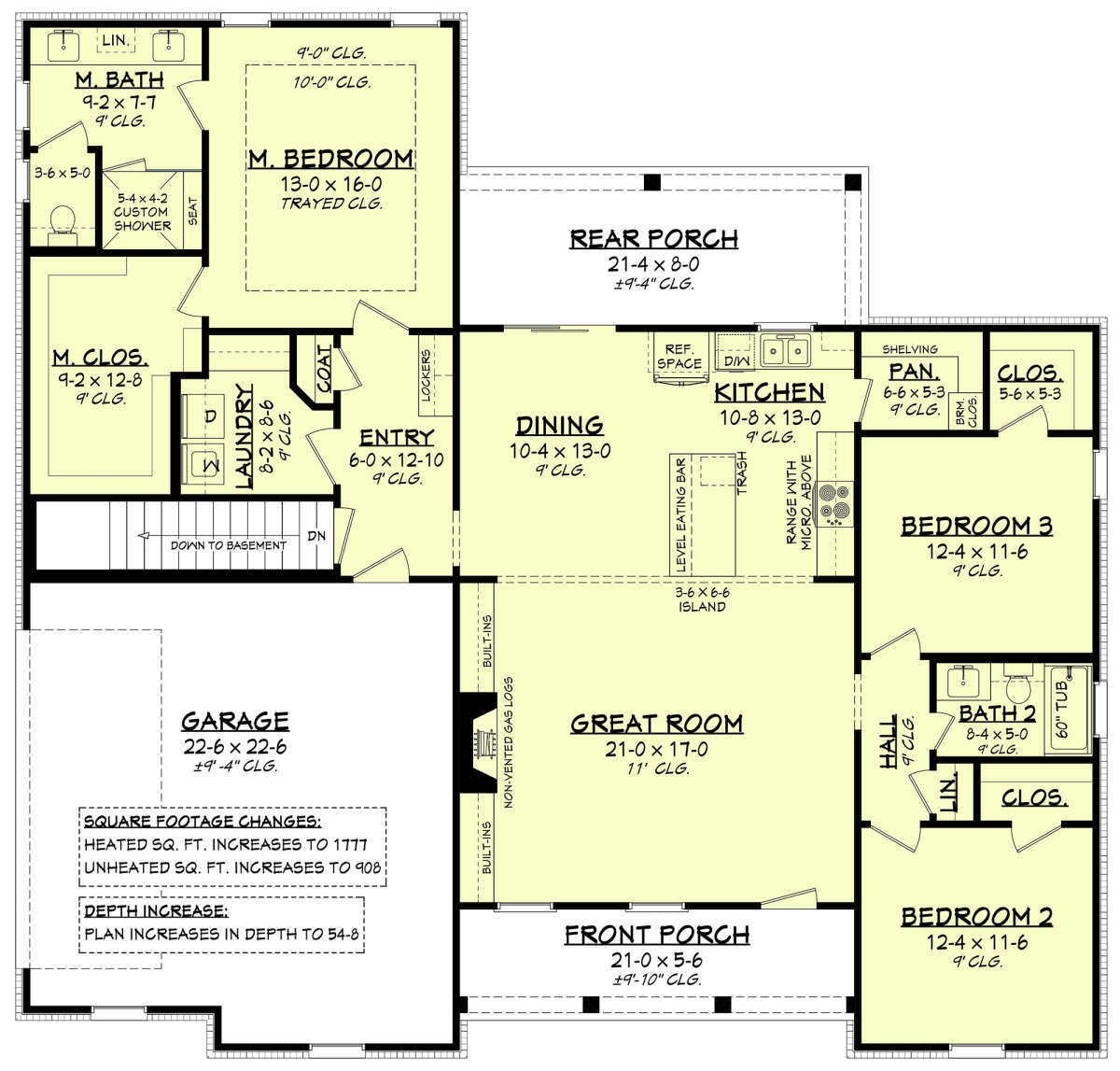

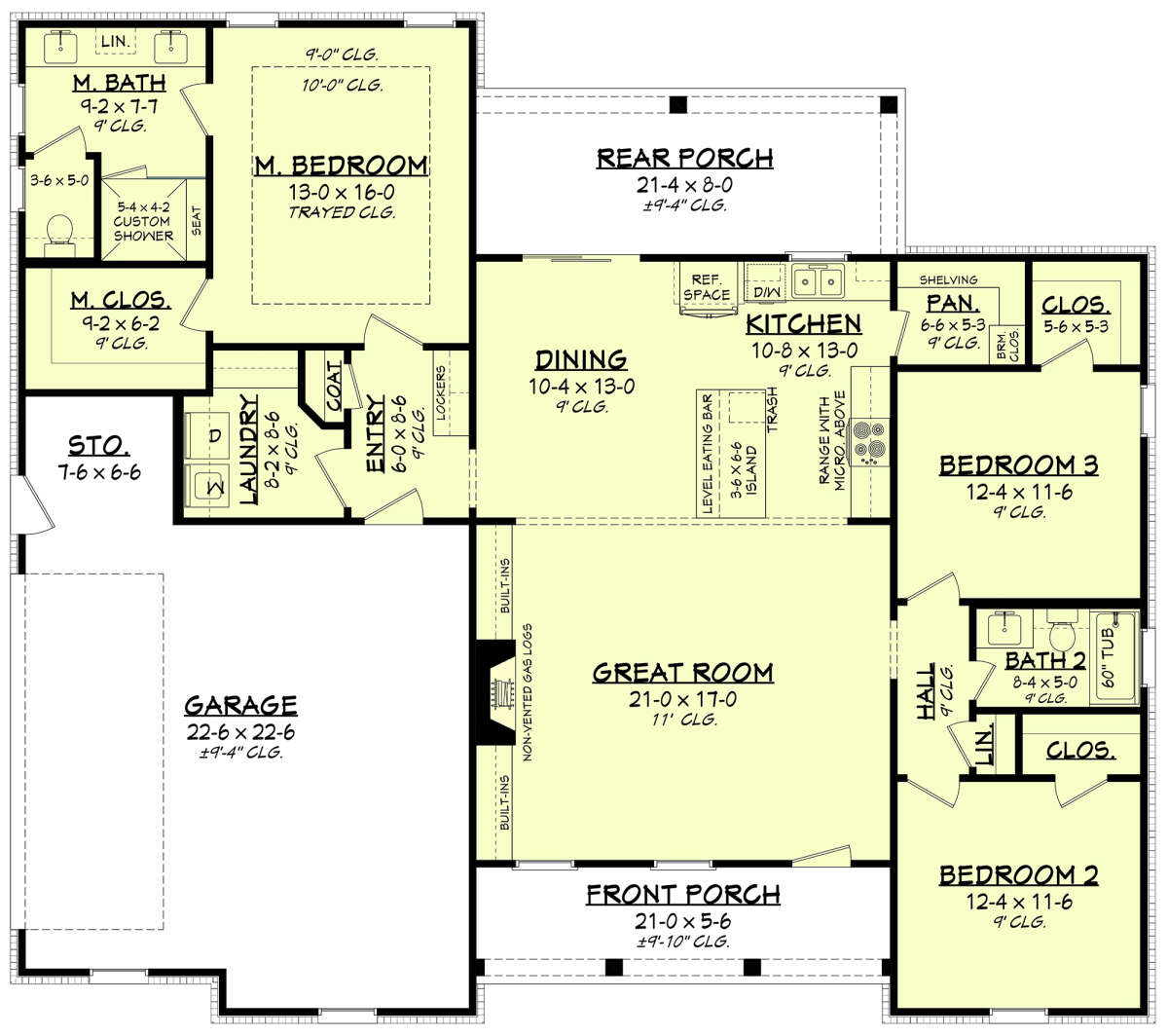

Main Floor
Main Floor for House Plan #041-00231

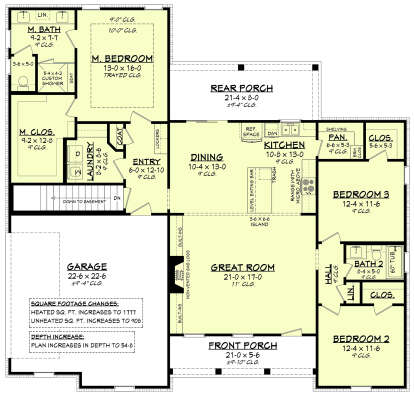

Main Floor w/ Basement Stair Location
Main Floor w/ Basement Stair Location for House Plan #041-00231


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

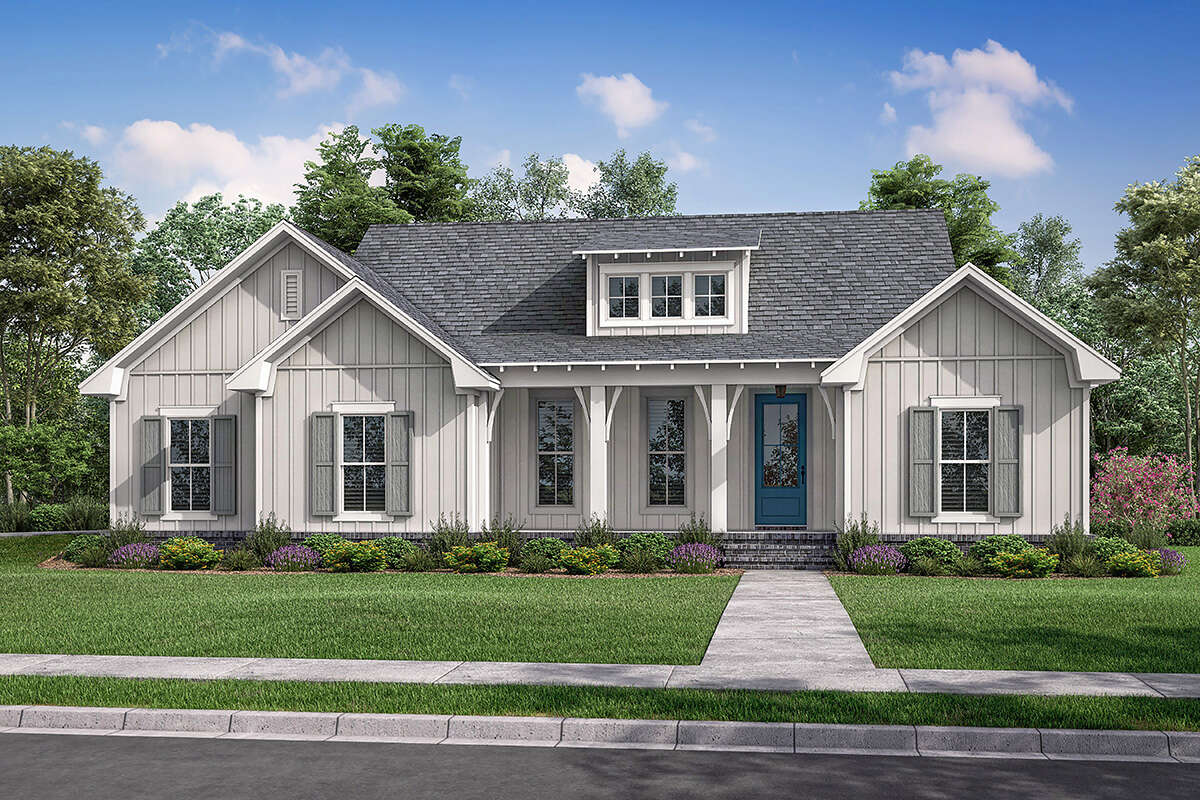

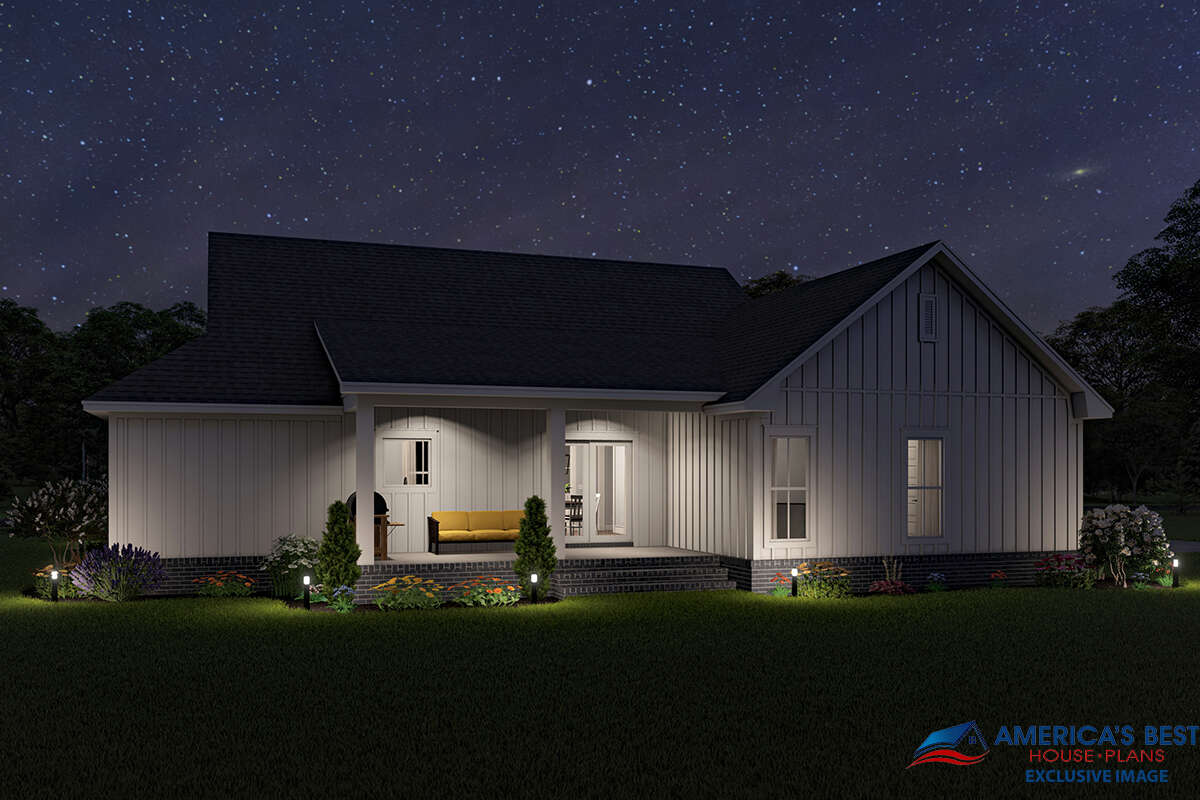

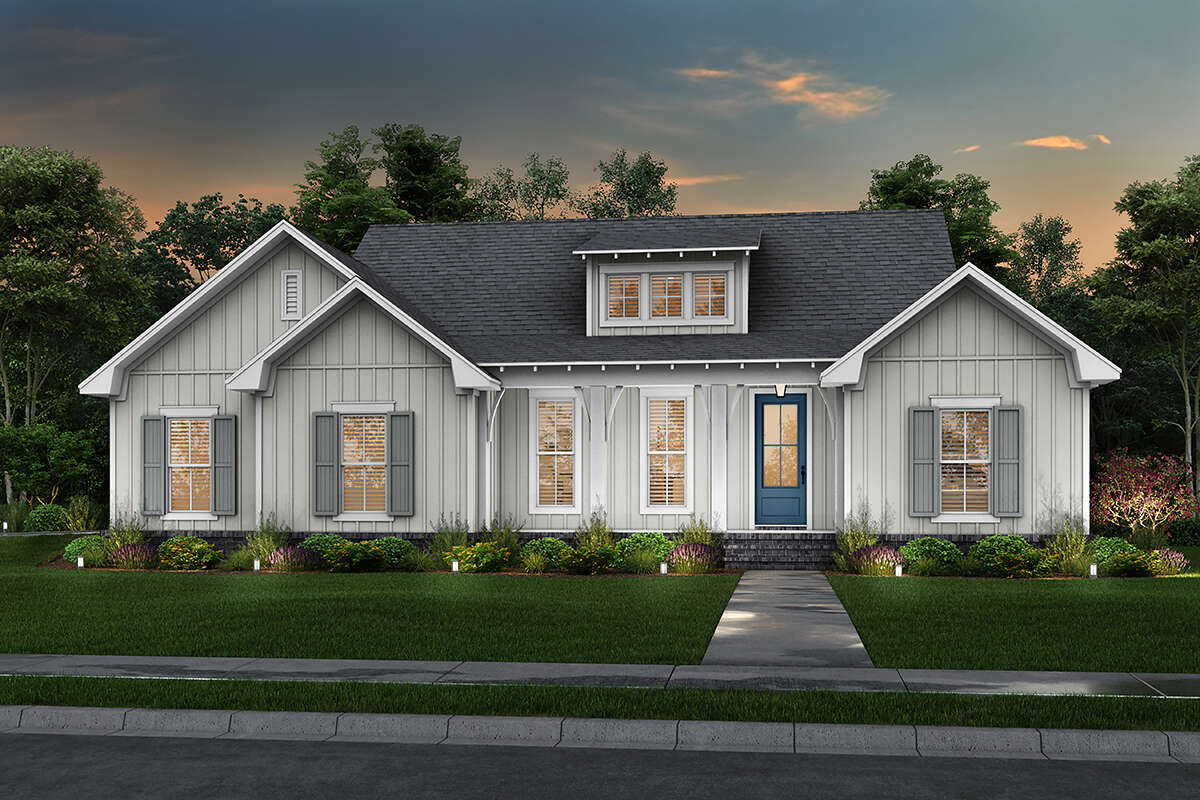

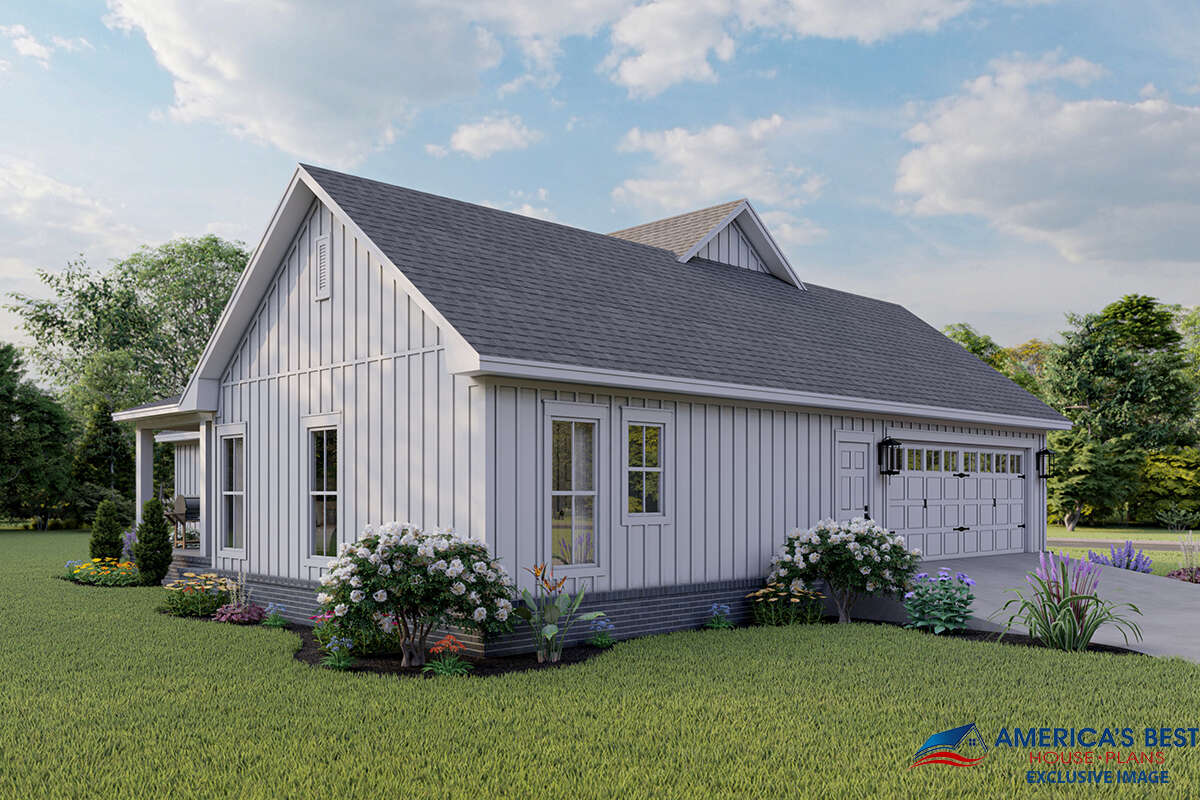

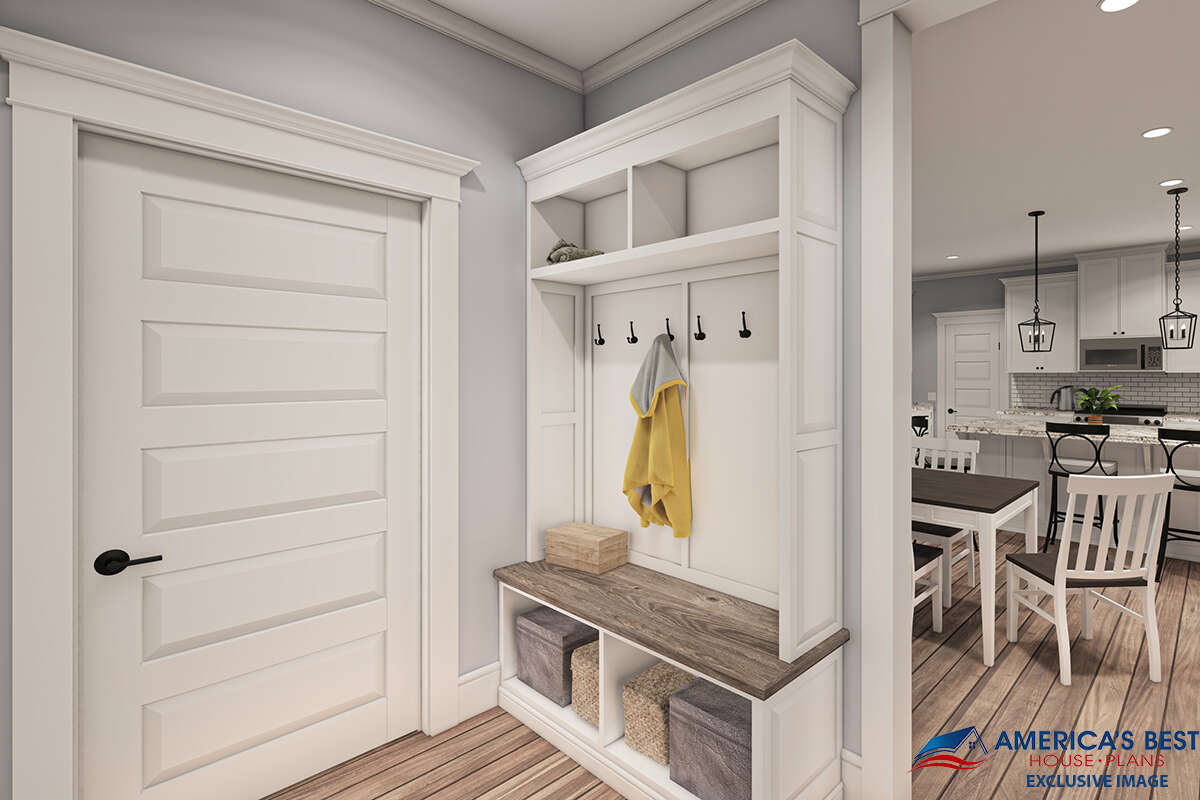

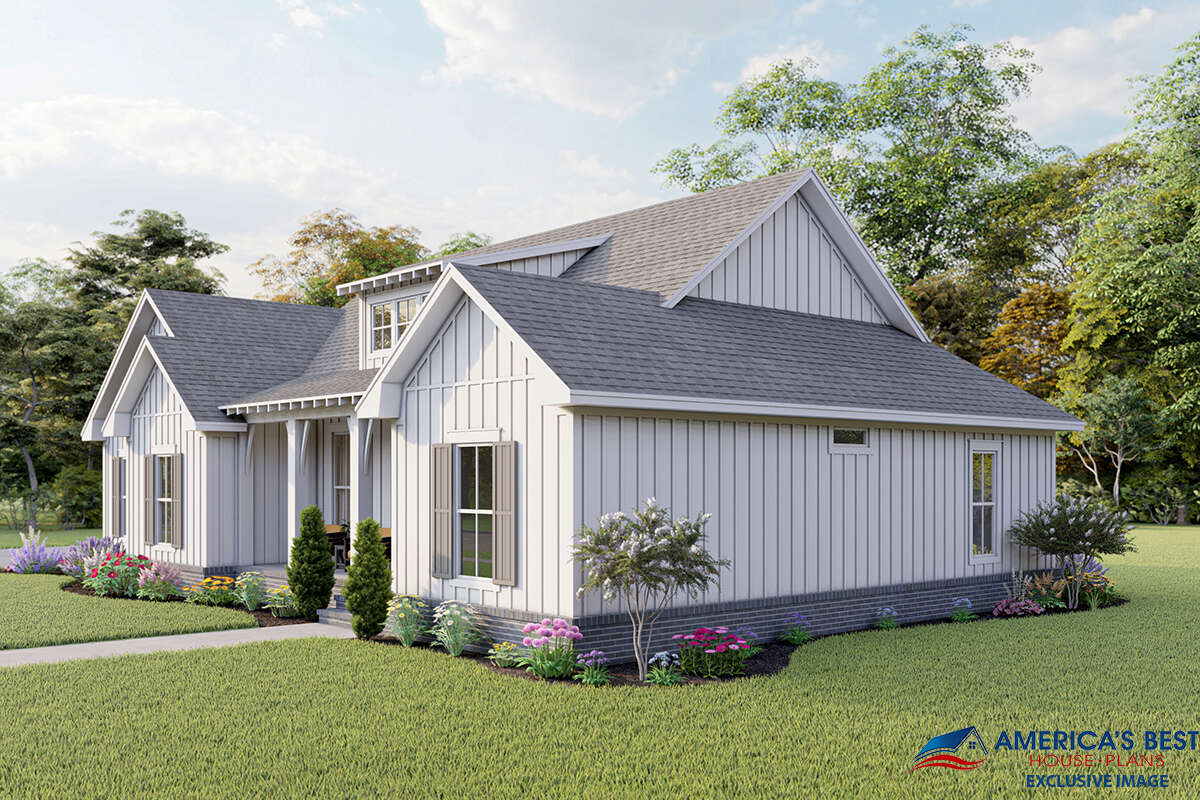

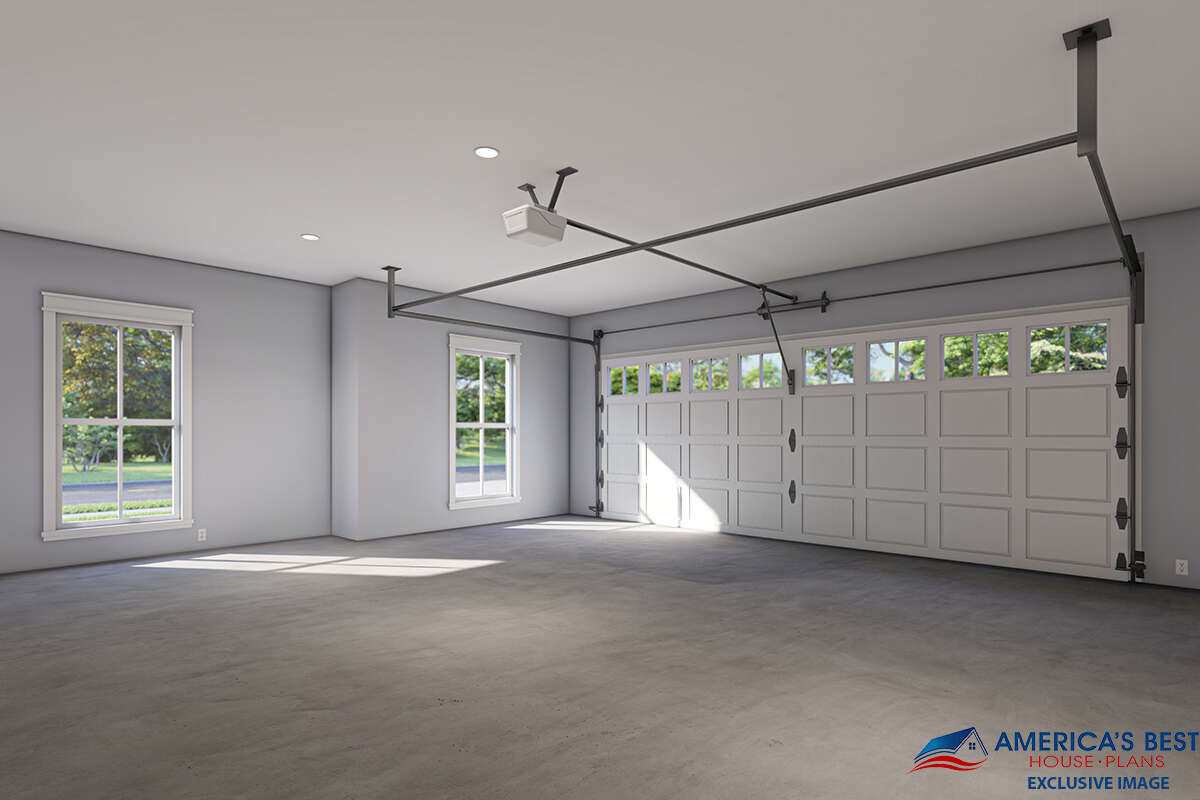

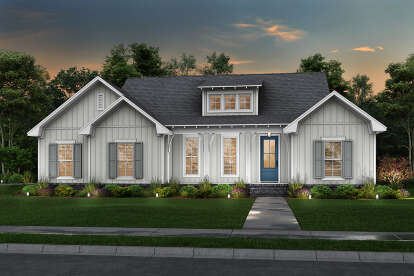

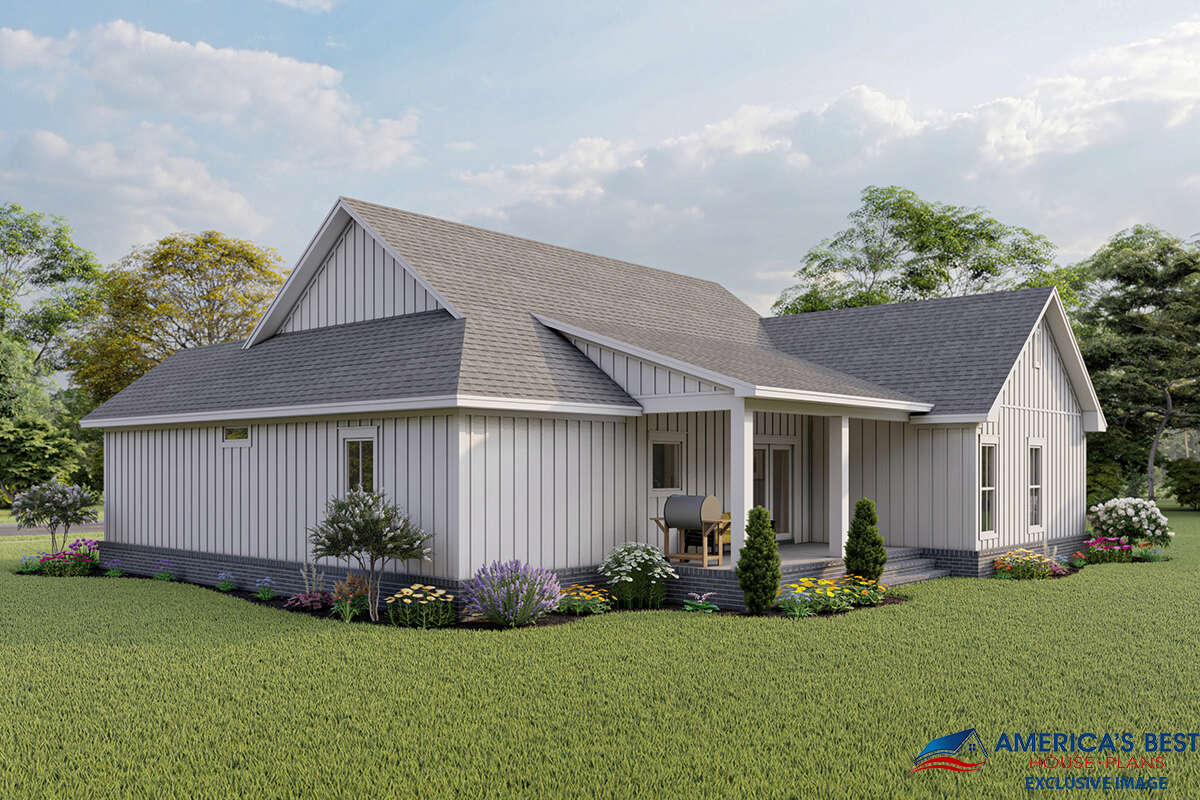

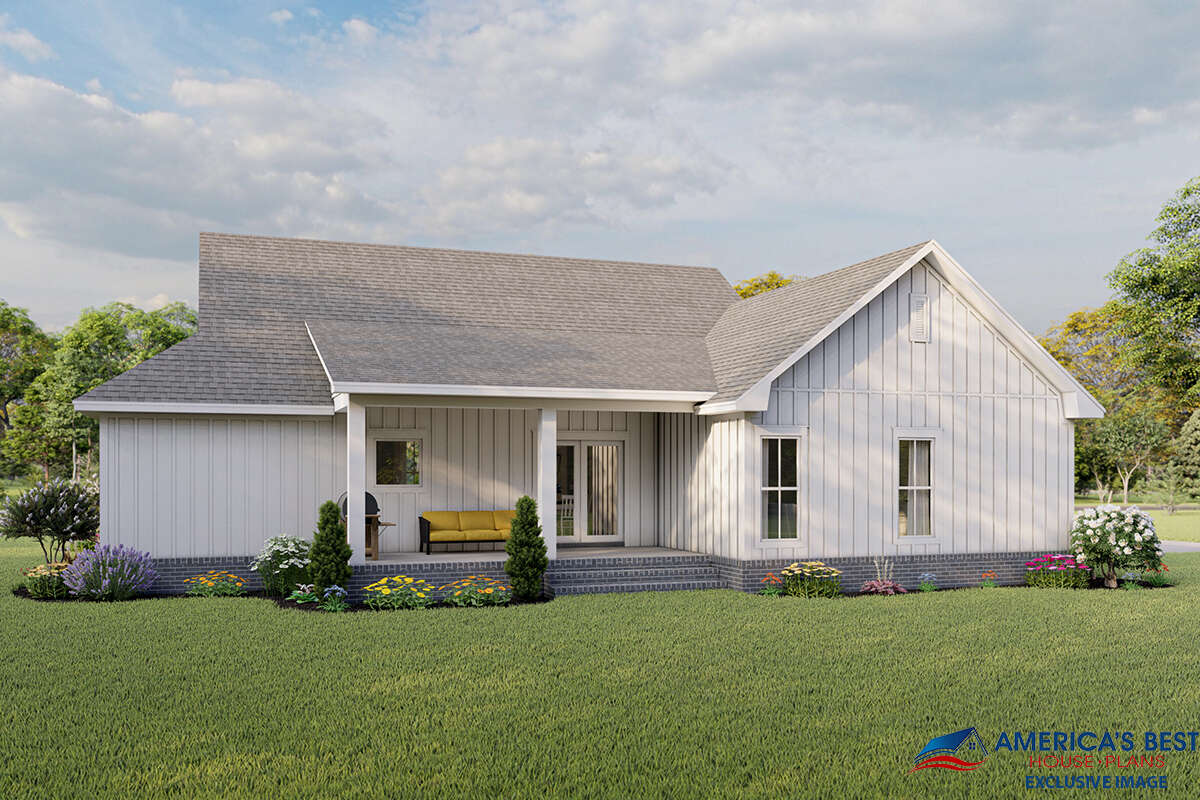

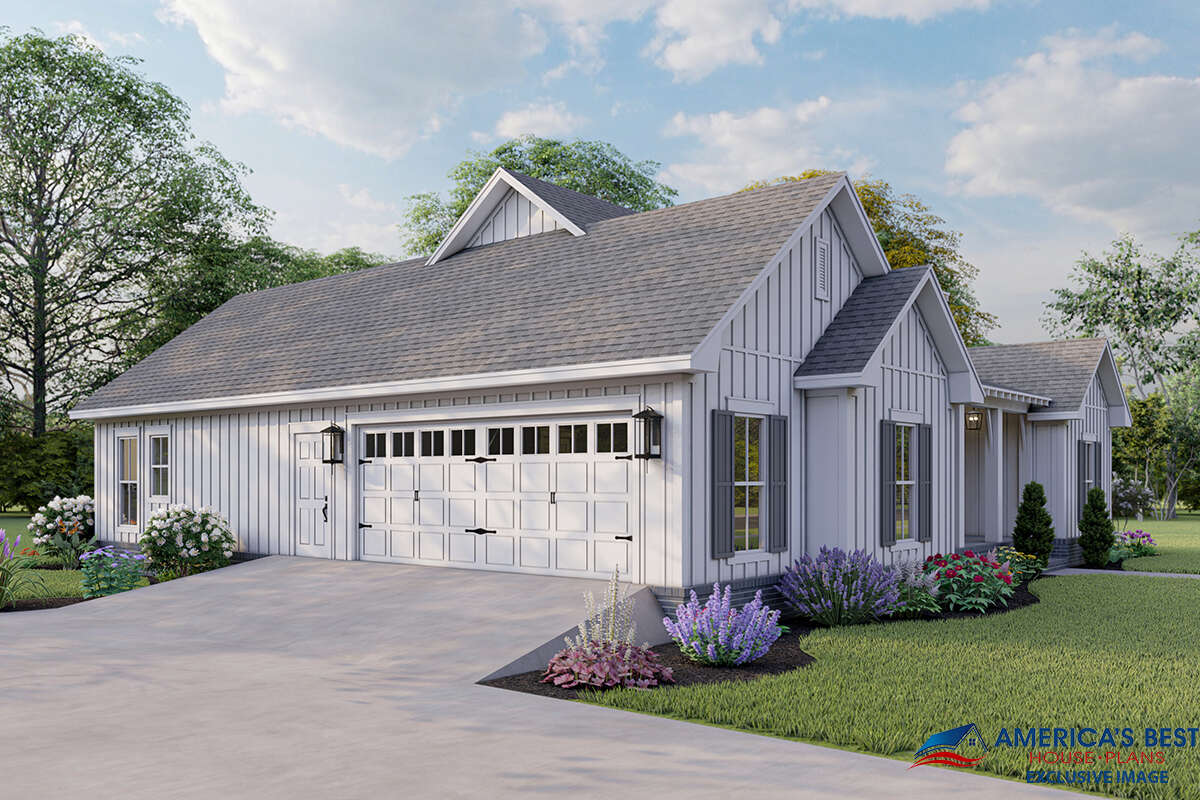

This superb Modern Farmhouse plan features an awesome one-story residence showcasing a classic farmhouse exterior. The façade is designed with board and batten siding, decorative window panels, and simple construction. The front door is graced with a covered porch highlighted with large windows and plenty of space to greet family and friends. The rear covered porch is a deep-set space for family lounging or cook-outs on the grill. The side-entry garage grants much space for two vehicles and hosts a storage corner as well as featuring two tall windows and a pedestrian door. Entrance from the garage leads to a small drop-off zone with built-in lockers, a coat closet, and access to the laundry room.

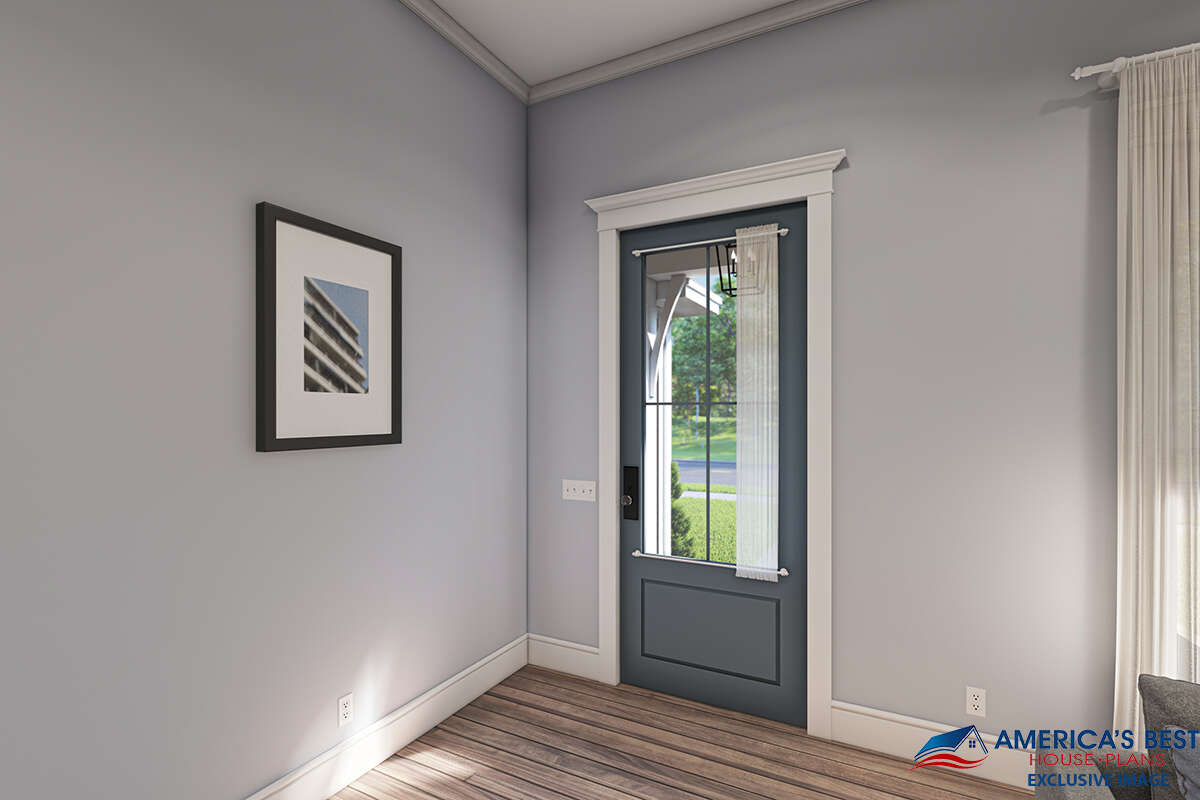

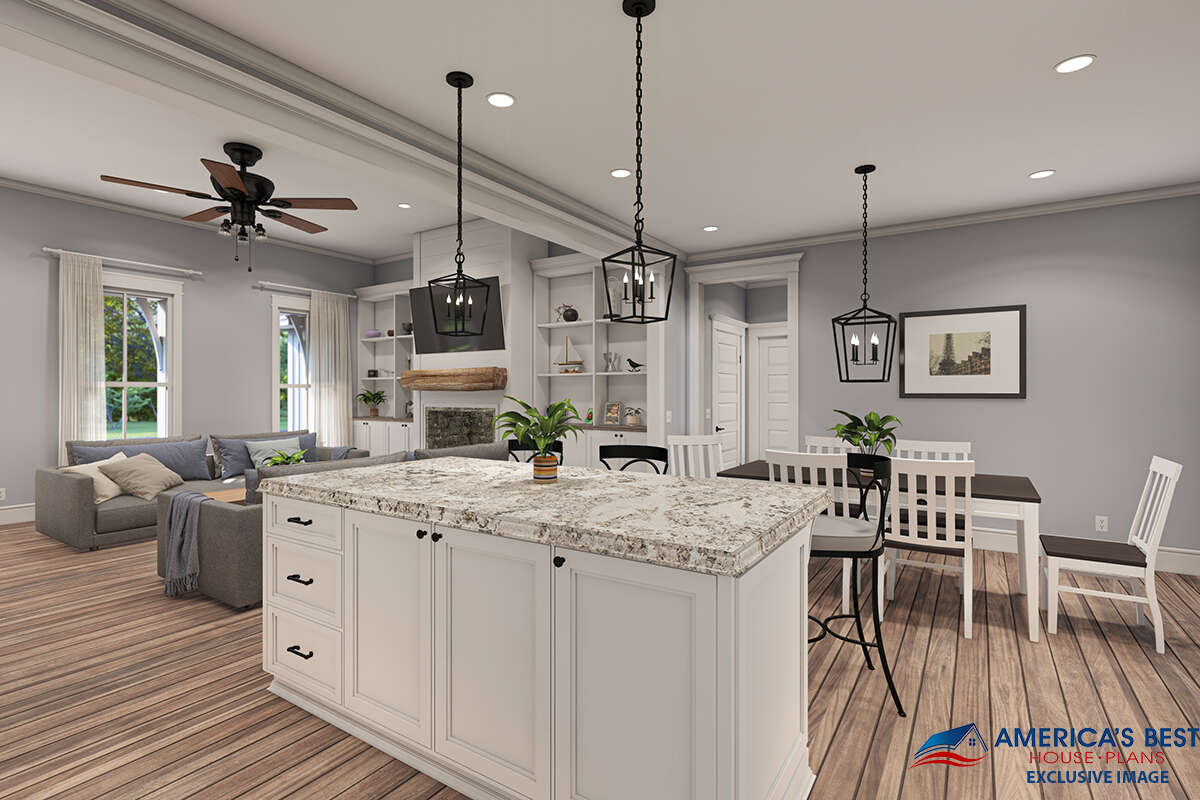

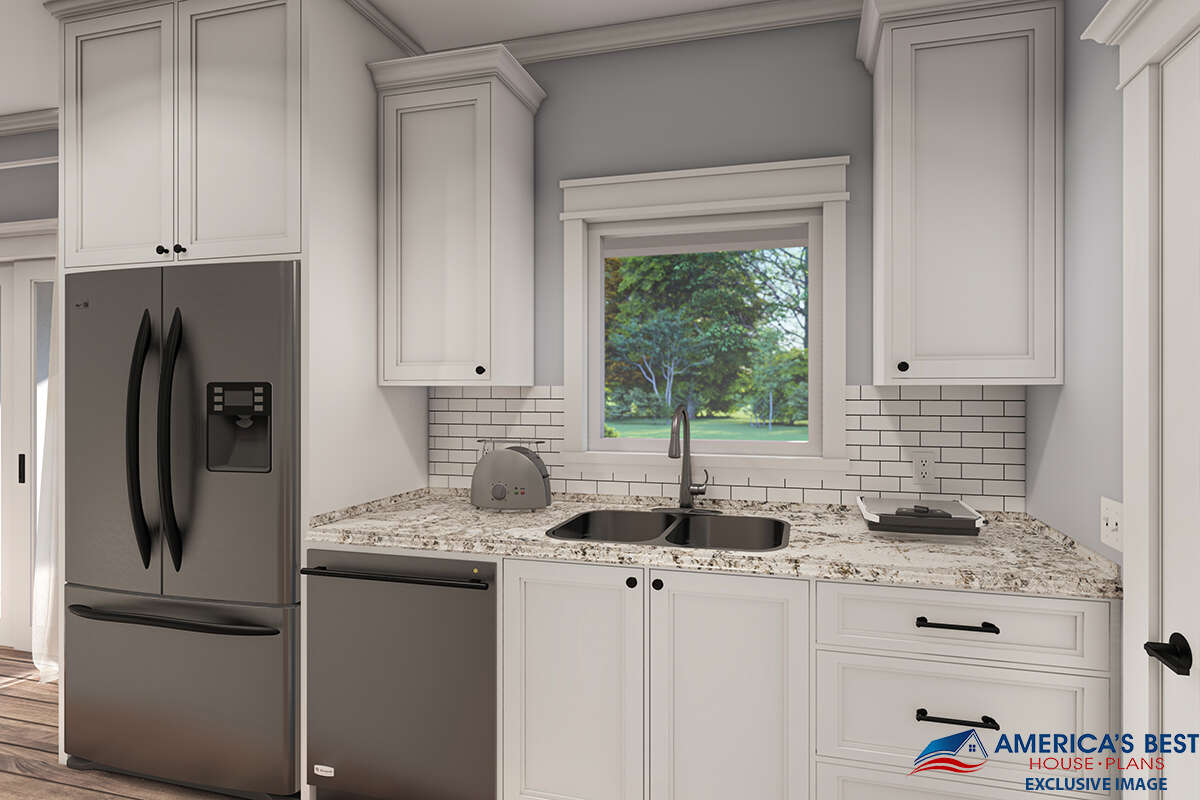

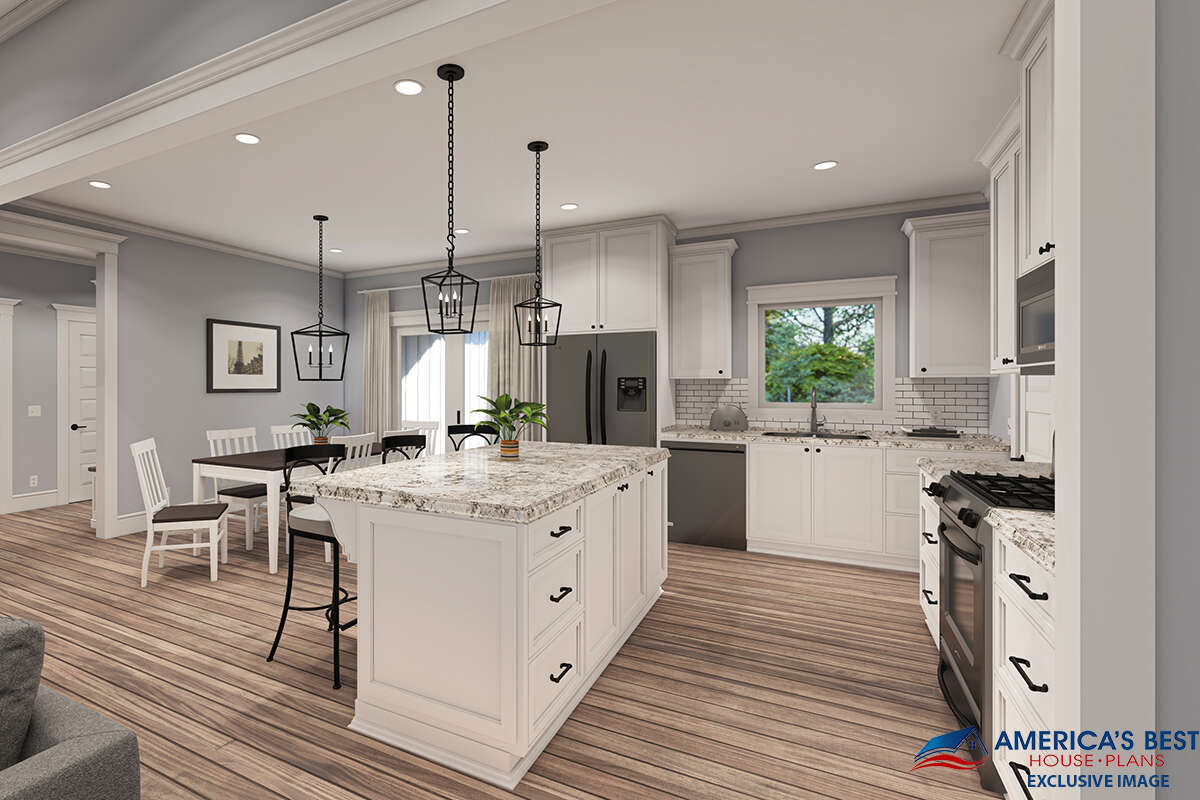

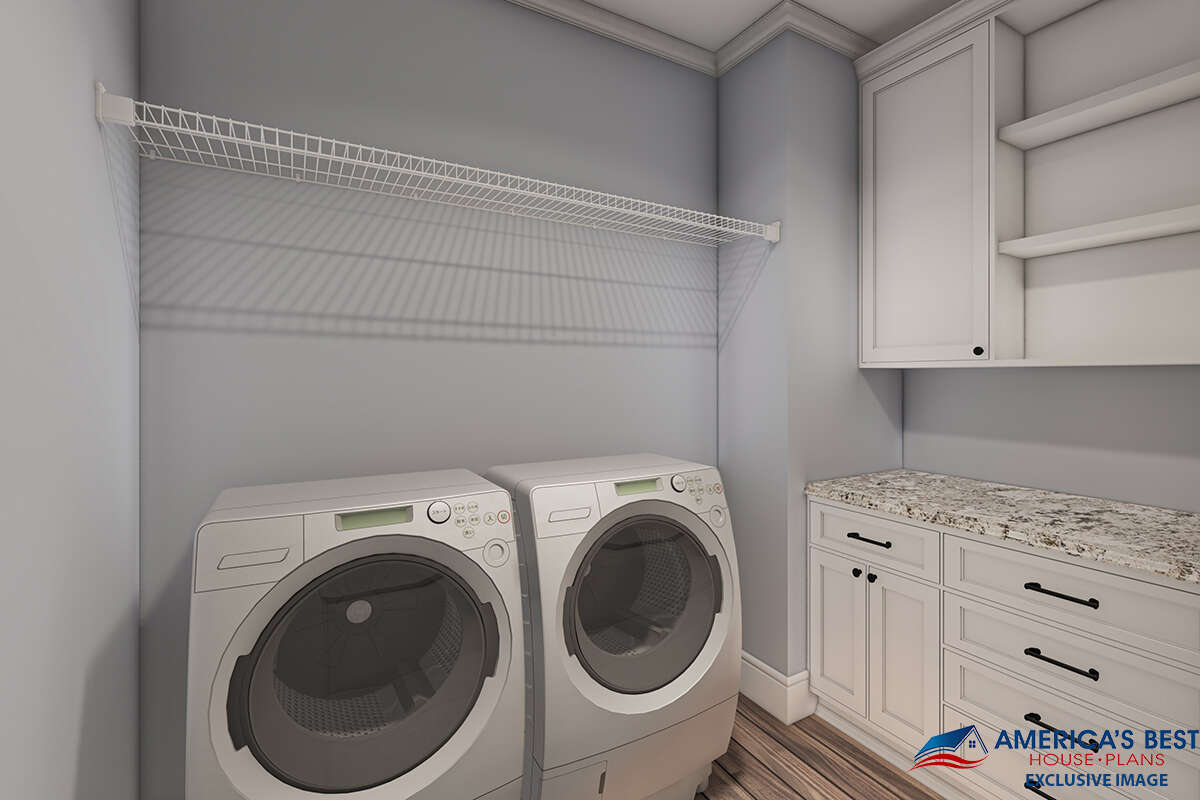

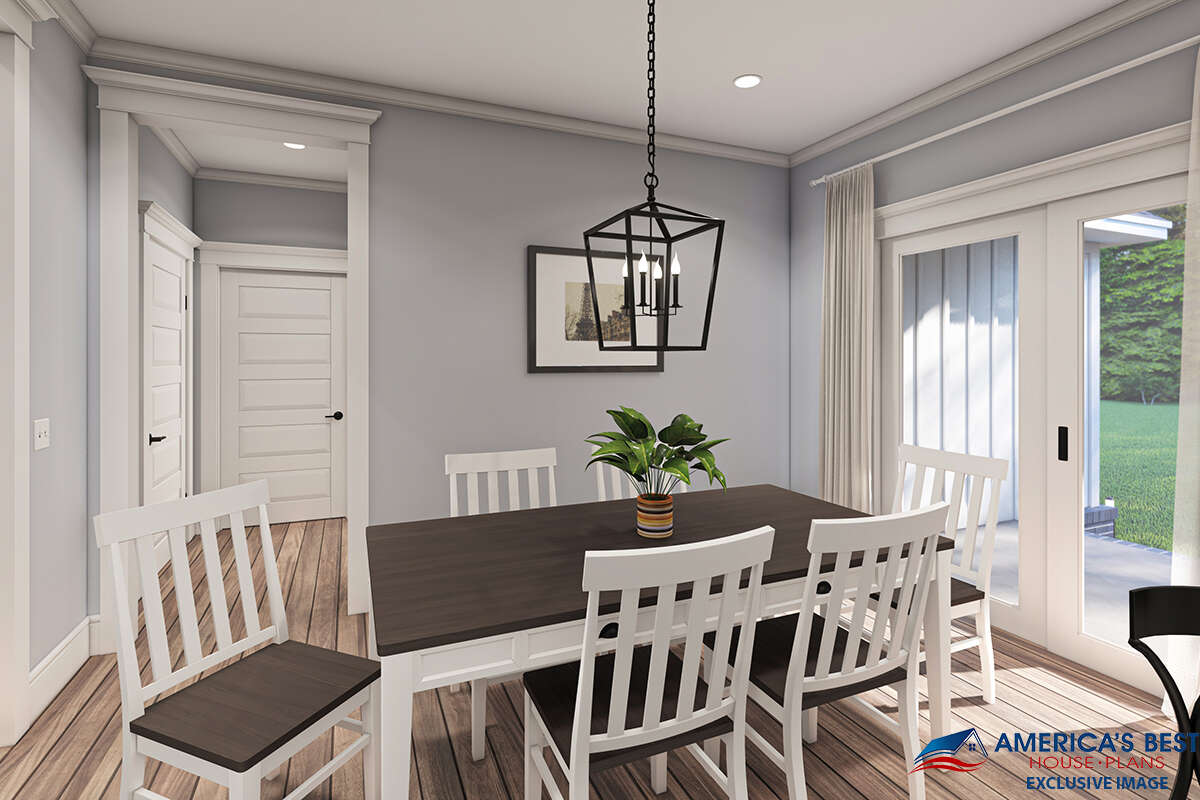

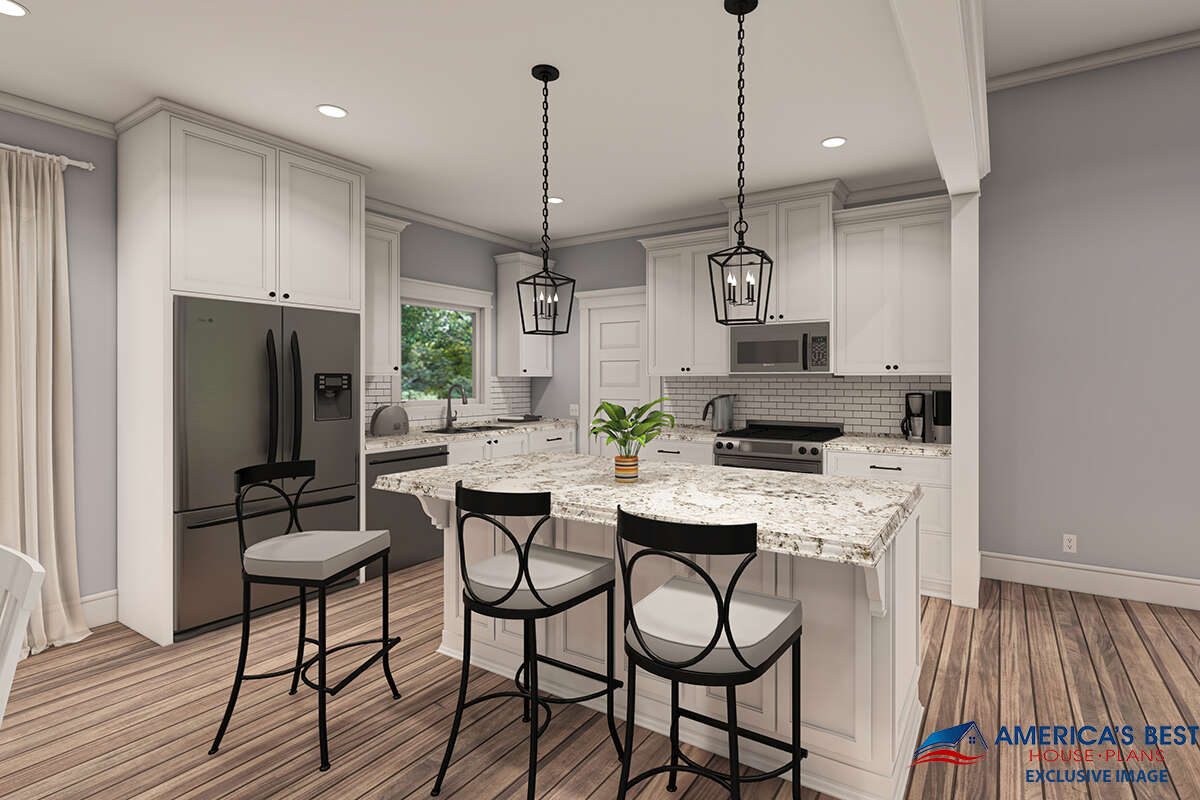

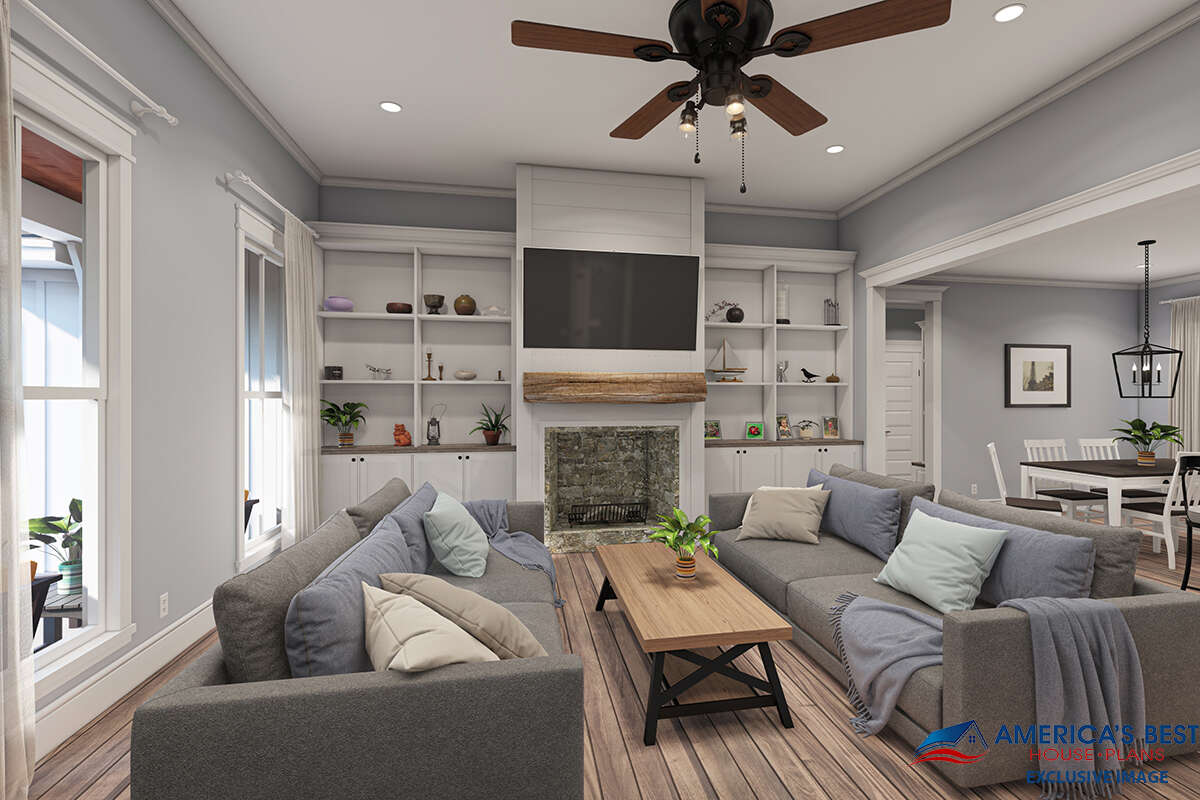

The interior layout features approximately 1,697 square feet of living space that includes three bedrooms, two plus bathrooms, and a beautiful open layout. The front entrance immediately welcomes you into the 11-foot ceiling great room, where you’ll find a warming non-vented gas logs fireplace flanked by built-in shelving on either side. The great room overlooks the kitchen and dining room, making these rooms seem like one seamless family-centered area. The kitchen details a center island with a level eating bar, a sink with a window view, and a walk-in pantry with shelving and a broom closet. There is also plenty of counter and cabinet space for prepping and storing kitchen utensils. The adjacent dining room provides sliding door access to the rear porch and is ready to enjoy daily family meals. Before entering the master bedroom, the laundry room is located just beyond the small mudroom and details sufficient space to wash clothes and fold them.

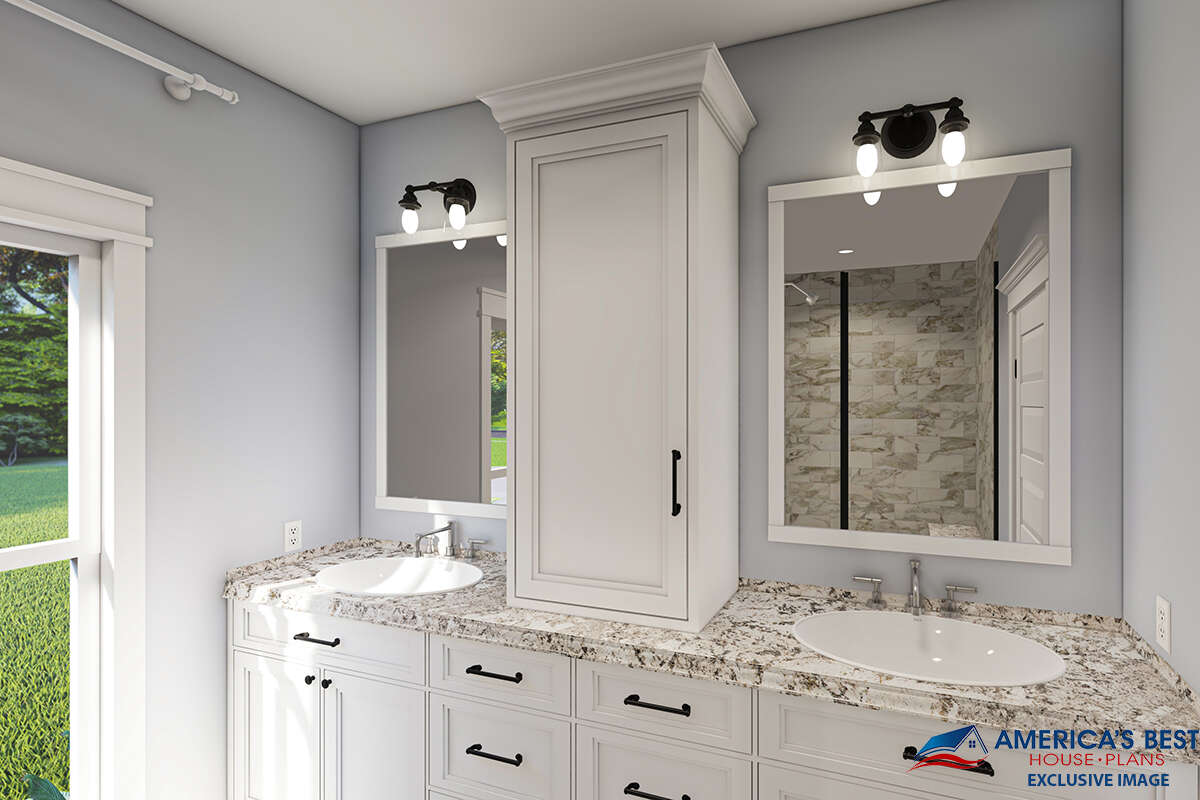

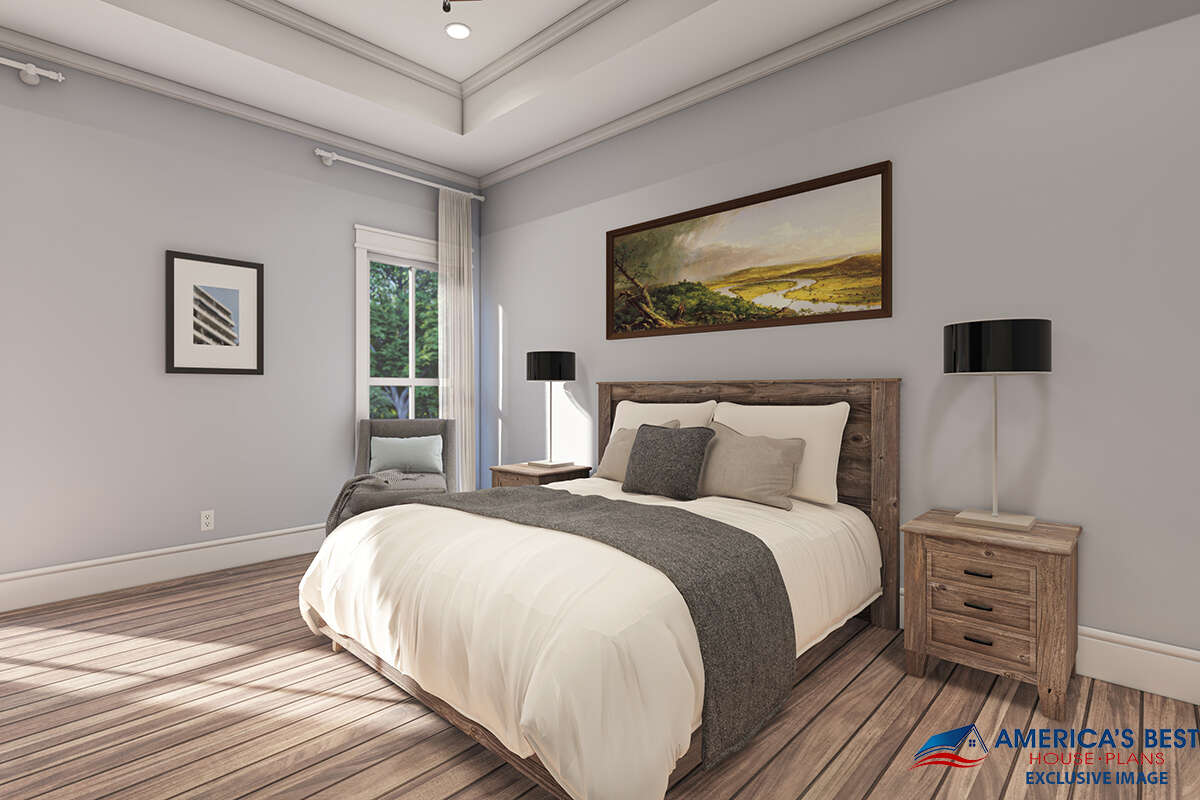

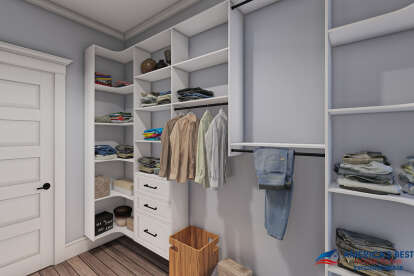

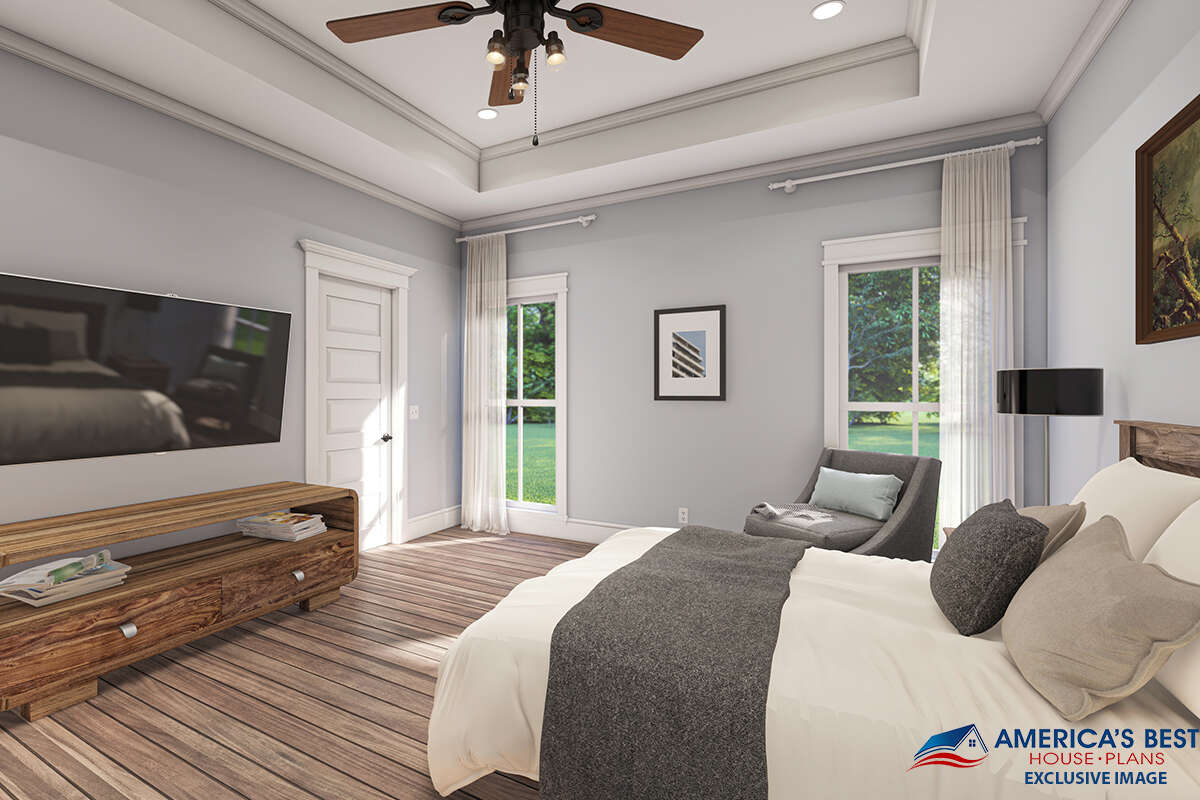

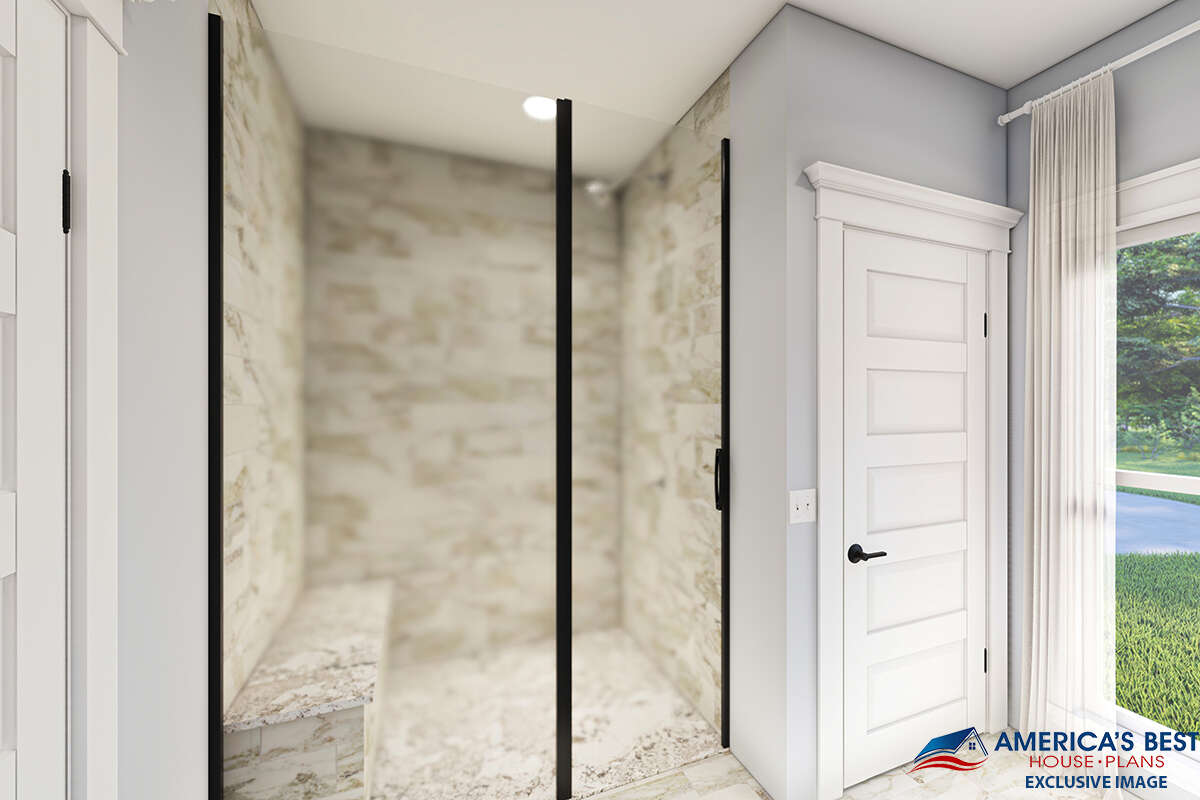

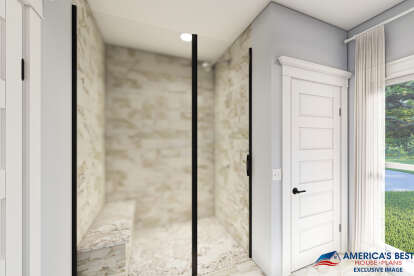

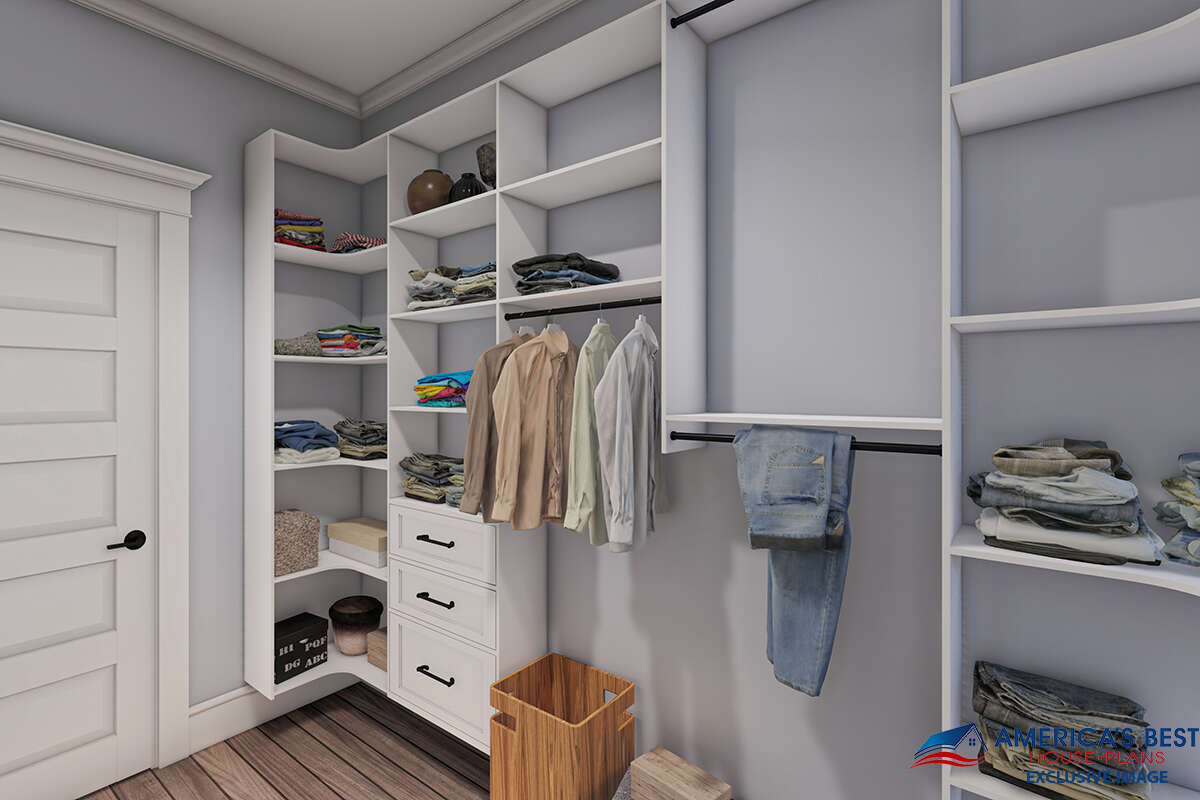

The split bedroom plan is perfect for the homeowner who enjoys a little privacy and features two secondary bedrooms with one shared hall bathroom. All bedrooms enjoy sufficient bedroom space with window views and great closet room. The shared bathroom details a large vanity, toilet, and tub/ shower combination. The owner's suite is situated on the opposite wing of the home, sharing space with the laundry room. The bedroom features a lovely homeowner space by providing generous floor space, 10-foot tray ceiling heights, a large walk-in closet, and wonderful window views. The darling primary bathroom is highlighted with dual vanities, a linen closet, a custom shower with bench, and a compartmentalized toilet area. This Modern Farmhouse plan delivers a family-friendly layout that is highly functional with comfortable outdoor spaces.
